1. Муқаддима
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your TOOLPORT 3x6 m Party Tent Marquee, PRO Smart model. Please read these instructions carefully before setting up and using the tent to ensure safe and correct usage. Keep this manual for future reference.
The TOOLPORT PRO Smart Party Tent is designed to provide a reliable and spacious shelter for various outdoor events and social gatherings. Its robust construction and high-quality materials ensure durability and protection.
2. Дастурамал оид ба бехатарӣ
- Лангар: Always ensure the tent is securely anchored to the ground using the provided stakes and guy ropes. Failure to do so can result in the tent being lifted by wind, causing damage or injury.
- Шароити шамол: Do not set up or use the tent in strong winds or stormy weather. Disassemble the tent immediately if adverse weather conditions are expected.
- Хавфи сӯхтор: Keep all heat sources, open flames, and flammable materials away from the tent fabric. The PVC material is not fireproof.
- Бори барф: The tent is not designed for heavy snow loads. Remove any accumulated snow promptly to prevent structural collapse.
- Маҷлис: Assembly should ideally be performed by at least two to four adults. Follow the assembly steps carefully to prevent injury.
- Вентилятсия: Ensure adequate ventilation, especially if using heating or cooking equipment inside the tent.
- Интихоби сайт: Choose a level, clear area for setup, free from sharp objects, overhead power lines, or other hazards.
3. Мундариҷаи баста
Пеш аз оғози васлкунӣ, санҷед, ки ҳамаи ҷузъҳо мавҷуд ва осеб наёфтаанд. Агар ягон қисм гум ё вайрон бошад, лутфан бо дастгирии мизоҷон тамос гиред.
- Galvanized Steel Frame (tubes and connectors)
- Roof Tarpaulin (PVC 700 N, one piece)
- Side Panels (multiple sections, with wind deflectors and windows)
- Gable Panels (end walls, one with zippered entrance)
- Elastic Tensioners
- Ground Stakes/Pegs
- Гай Ропс
- Дастурҳо оид ба васлкунӣ
- Асбобҳои васлкунӣ (агар дохил карда шуда бошад)
4. Насбкунӣ ва васлкунӣ
Follow these steps for a safe and efficient assembly of your TOOLPORT Party Tent. Refer to the included detailed assembly instructions for numbered parts and specific diagrams.
4.1 Prepare the Site
- Choose a flat, clear area of 3x6 meters, plus additional space for anchoring.
- Минтақаро аз ҳама гуна партовҳо, ашёи тез ё монеаҳо тоза кунед.
4.2 Чорчӯбро ҷамъ кунед
- Lay out all frame components (tubes and connectors) according to the assembly diagram. Tubes are approximately 38mm in diameter, and connectors are approximately 42mm.
- Connect the horizontal and vertical tubes using the galvanized steel connectors. The bolted assembly with wing screws ensures strong resistance and ease of installation.
- Gradually build the base frame, then add the vertical support poles.
- Attach the roof frame structure. Ensure all connections are securely bolted.
Figure 1: Tent frame structure with dimensions (3.0m width, 6.0m length, 2.0m side height, 2.90m peak height).
Figure 2: Detail of the bolted connection for the galvanized steel frame.
4.3 Install the Tarpaulins
- Carefully unfold the one-piece PVC roof tarpaulin and drape it over the assembled roof frame. Ensure it is centered and evenly distributed.
- Secure the roof tarpaulin to the frame using the elastic tensioners.
- Attach the side panels. These panels feature wind deflectors and can be mounted/dismounted every two meters.
- Install the gable panels (end walls). One gable panel includes a solid zippered entrance.

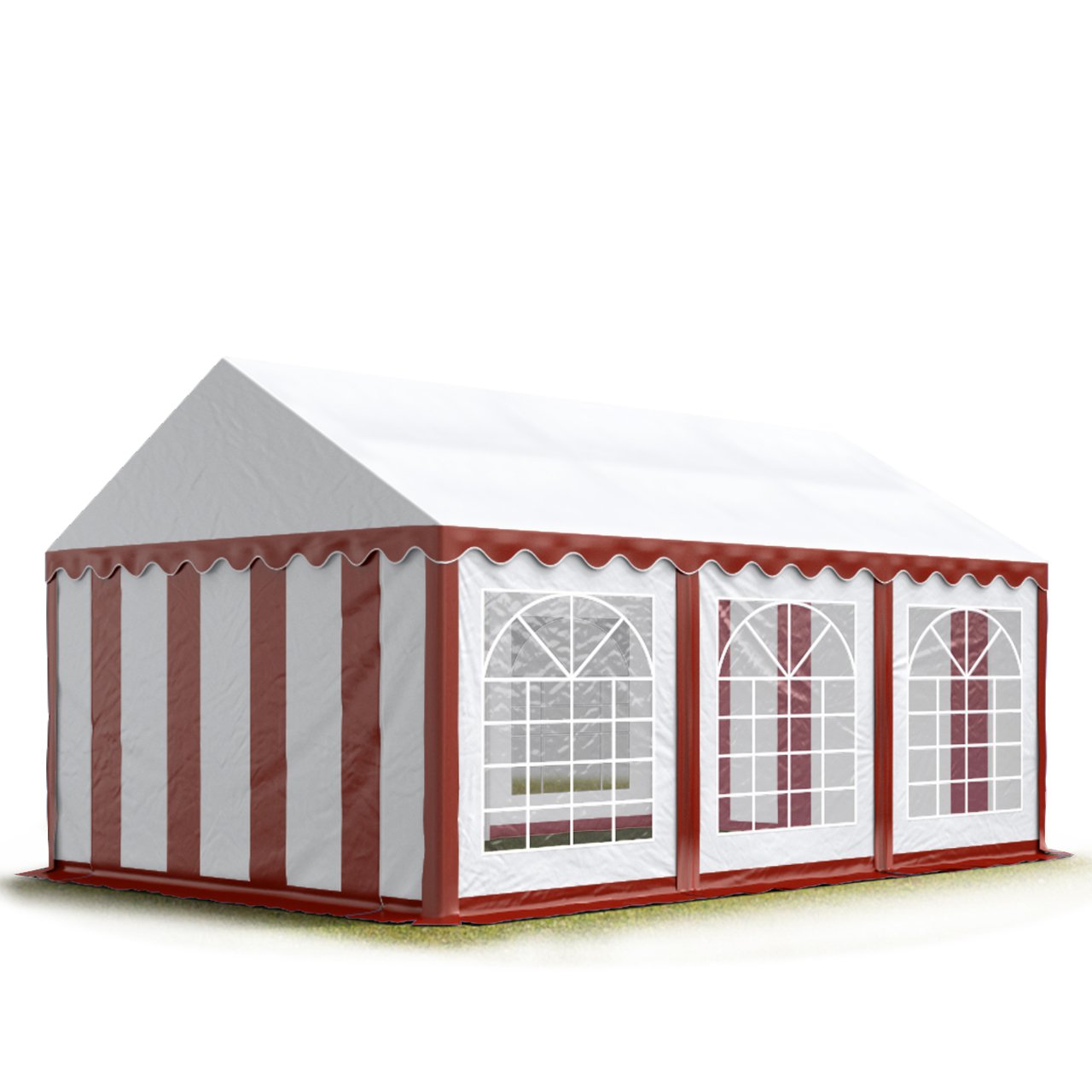

Figure 3: Fully assembled TOOLPORT 3x6m Party Tent.
4.4 Secure the Tent
- Use the provided ground stakes/pegs to firmly anchor the tent legs to the ground.
- Attach and tension the guy ropes to provide additional stability, especially in moderate wind conditions.
5. Дастурҳои истифодабарӣ
Your TOOLPORT Party Tent is designed for temporary outdoor use, ideal for events, parties, and social gatherings. The high-quality PVC 700 N tarpaulin provides excellent protection against sun and rain, while the wind deflectors and optimal air circulation help regulate internal temperature.
- Вуруд/Хуруҷ: Utilize the zippered entrance on the gable panel for easy access.
- Вентилятсия: The side panels are equipped with wind deflectors and can be adjusted or removed to optimize air circulation and temperature regulation within the tent.
- Муҳофизати ултрабунафш: The PVC tarpaulin offers UV protection, making it suitable for sunny conditions.
- Муқовимат ба об: The tent is waterproof, providing shelter during light to moderate rain.
Расми 4: Интерьер view of the tent, highlighting the spacious area and window panels.
6. Нигоҳдорӣ
Proper maintenance will extend the lifespan of your party tent.
- Тозакунӣ: Clean the PVC tarpaulins with mild soap and water. Avoid harsh chemicals or abrasive cleaners, which can damage the material. Rinse thoroughly and allow to dry completely before storage.
- Нигоҳубини чаҳорчӯба: Inspect the galvanized steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame.
- Нигоҳдорӣ: When not in use, disassemble the tent and store all components in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure the tarpaulins are completely dry to prevent mold and mildew.
- Санҷиш: Regularly check all ropes, stakes, and frame connections for wear and tear. Replace any damaged parts immediately.
7. Баррасии мушкилот
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Tent unstable / swaying | Лангари нокифоя; пайвастҳои сусти чорчӯба; шамоли сахт. | Ensure all stakes are firmly in the ground and guy ropes are taut. Check all bolted frame connections. Disassemble in strong winds. |
| Ихроҷи об | Improperly installed roof/side panels; damage to tarpaulin; heavy rain exceeding tent's capacity. | Verify all tarpaulins are correctly positioned and secured. Inspect for tears or holes and repair if necessary. Ensure proper tension to prevent water pooling. |
| Мушкилии васлкунии чаҳорчӯба | Incorrect part orientation; missing tools; insufficient personnel. | Refer to the detailed assembly instructions and diagrams. Ensure parts are aligned correctly. Use the recommended number of people for assembly. |
| Zipper on entrance stuck or broken | Dirt in zipper; misalignment; excessive force. | Clean zipper teeth. Gently realign the zipper. Avoid forcing the zipper. If broken, contact customer support for replacement parts. |
8. Мушаххасоти
- Модели: PRO Smart
- Андозаҳо (L x W x H): 600 x 300 x 200 см (19.69 x 9.84 x 6.56 фут)
- Майдони ошёна: 18 метри мураббаъ
- Вазн: 73.8 кг
- Маводҳои чаҳорчӯба: Пӯлоди галванӣ
- Диаметри найча: тахминан. 38мм
- Connector Diameter: тахминан. 42мм
- Маводи муқова: Polychlorure de vinyle (PVC) 700 N
- Ранги: Сурх-Сафед
- Сатҳи муқовимат ба об: Обногузар
- Муҳофизати ултрабунафш: Дуруст
- Истифодаи тавсияшаванда: Activities, Social Gatherings
- Маҷлис талаб карда мешавад: Бале
- Кишвари аслӣ: Олмон
9. Маълумот дар бораи кафолат
This product is subject to the standard return policy, which typically allows for returns or replacements within 30 days of purchase. For detailed warranty terms and conditions, please refer to the specific warranty documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
10. Дастгирии муштариён
If you have any questions, require assistance with assembly, or need to report missing or damaged parts, please contact TOOLPORT customer support. You can typically find contact information on the product packaging or the seller's webсайт.
For online support, visit the TOOLPORT brand store: TOOLPORT Store
