FEELWORLD T7PLUS 7-inch DSLR Camera Monitor User Manual

1. Муқаддима

This manual provides detailed instructions for the operation and maintenance of your FEELWORLD T7PLUS 7-inch DSLR Camera Monitor. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage. Keep this manual for future reference.

2. Маҳсулот ба охир расидview

The FEELWORLD T7PLUS is a high-resolution 7-inch camera monitor designed for professional photography and video production. It features a 1920x1200 display, 4K HDMI input/output, and advanced monitoring tools.

2.1 Хусусиятҳои асосӣ

• Намоиши баландсифат: 7-inch screen with 1920 x 1200 resolution, 1200:1 contrast ratio, and Rec.709 color standard for vivid and accurate image reproduction.
• Advanced Customization Functions: Supports 32 custom 3D LUTs and professional tools including waveform, vector scope, RGB histogram, peaking focus, false color, and more for precise control during shooting.
• Пайвастшавӣ бисёрҷониба: Equipped with 4K HDMI input and output, allowing simultaneous display and transmission of live signals to other monitors without compromising video quality.
• Тарҳрезии сабук ва устувор: Slim 18mm aluminum casing, weighing only 320g.
• Имконоти нерӯи чандир: Compatible with F550/F970 series batteries and DC 12V power input.

2.2 Қисмҳо

Маҷмӯа ҷузъҳои зеринро дар бар мегирад:

• 1 x FEELWORLD T7PLUS Monitor
• 1 x Mini HDMI Cable
• 1 x сояафкан
• 1 x Warming Boot Holder
• 1 x F970 Battery Plate
• 1 x F550 Battery
• 1 x Дастури корбар
• 1 x Сими адаптери USB
• 1 х сумка

Тасвир: Пеш view of the FEELWORLD T7PLUS monitor, showcasing дисплейи 7-дюймаи он.

Image: A visual representation of all items included in the FEELWORLD T7PLUS package, including the monitor, cables, battery, and accessories.

3. Танзимот

3.1 Мониторро насб кунед

The T7PLUS monitor can be mounted using the included warming boot holder or other compatible mounting solutions. Ensure the monitor is securely attached to your camera rig or stand.

Image: The FEELWORLD T7PLUS monitor shown mounted on top of a DSLR camera, ready for use.

3.2 Пайвастшавии барқ

The monitor supports two power input methods:

• Қувваи батарея: Attach a compatible F550 or F970 series battery to the F970 battery plate on the back of the monitor.
• DC 12V Power: Connect a 12V/1.5A DC power adapter to the DC 12V input port on the side of the monitor.

Тасвир: Наздик view of the rear of the FEELWORLD T7PLUS monitor, highlighting the battery plate and DC 12V power input port.

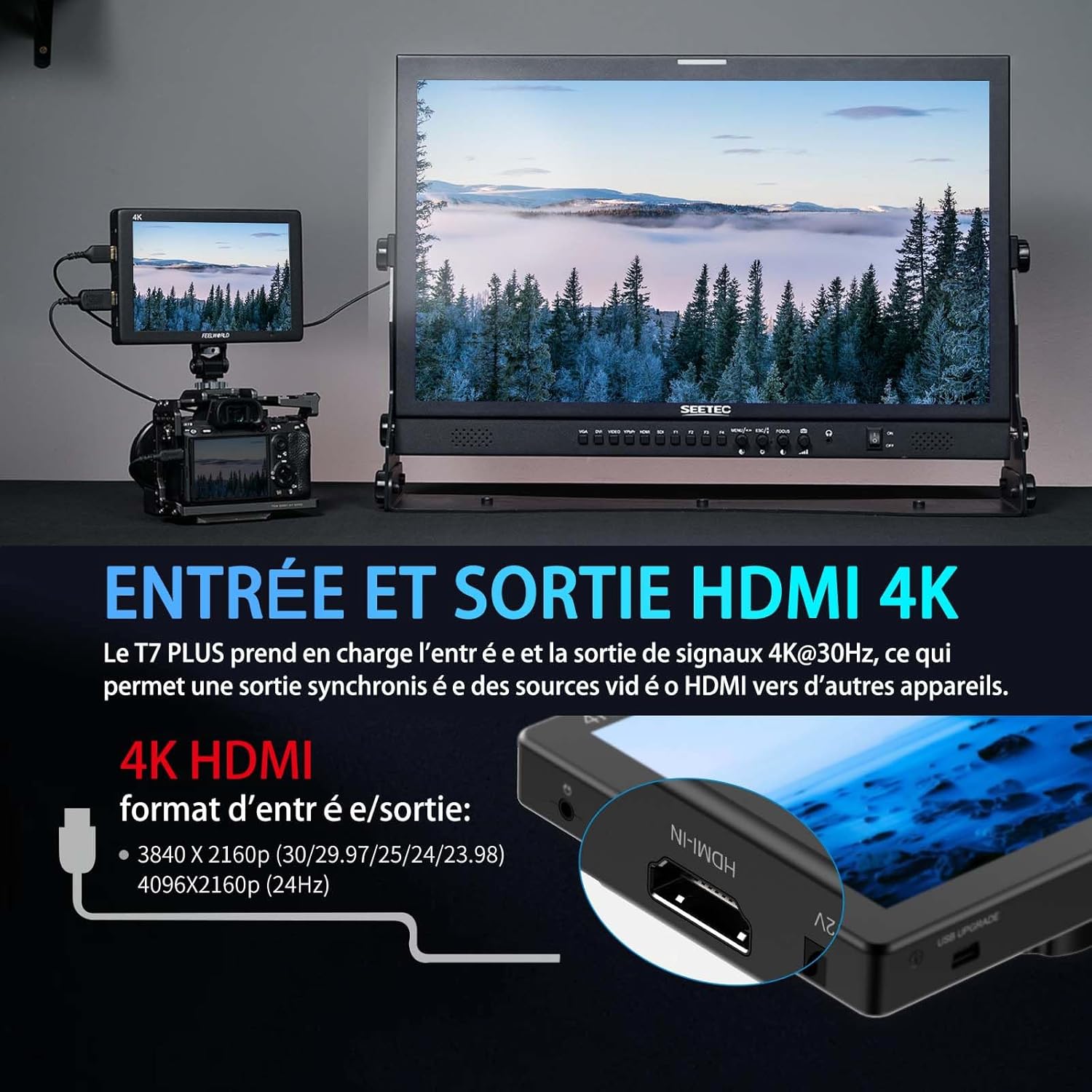

3.3 Пайвасти HDMI

Connect your camera or video source to the HDMI-IN port using the provided Mini HDMI cable. If you need to output the signal to another monitor, use the HDMI-OUT port.

Тасвир: тараф view of the FEELWORLD T7PLUS monitor, showing the HDMI-IN and HDMI-OUT ports, along with the DC 12V input and headphone jack.

4. Дастурҳои истифодабарӣ

4.1 Идоракунии асосӣ

The monitor features several buttons for navigation and function control:

• Тугмаи барқ: Press and hold to turn the monitor on/off.
• Тугмаи МЕНЮ: Ба менюи асосӣ ворид мешавад.
• Тугмаҳои тир (боло/поён/чап/рост): Дар байни имконоти меню паймоиш кунед ва танзимотро танзим кунед.
• F1-F4 Function Buttons: Customizable shortcut buttons for quick access to frequently used features.

Image: Close-up of the control buttons on the top edge of the FEELWORLD T7PLUS monitor, including power, menu, navigation, and customizable function buttons (F1-F4).

4.2 Навигатсияи меню

Press the MENU button to open the main menu. Use the arrow buttons to navigate through categories and options. Press the MENU button again or the right arrow to confirm selections. To exit the menu, press the left arrow button repeatedly until the menu closes.

5. Хусусиятҳои пешрафта

5.1 3D LUT (Look Up Table)

The T7PLUS supports loading up to 32 custom 3D LUTs via a USB drive. This allows you to preview фоҳишаи шумоtage with specific color grades in real-time.

1. .cube LUT-и худро захира кунед files to the root directory of a USB drive.
2. Connect the USB drive to the monitor's USB port.
3. Navigate to the "LUT" menu option.
4. Select "Load LUT" and choose your desired LUT file.
5. You can switch between loaded LUTs for quick comparison.

Image: The FEELWORLD T7PLUS monitor displaying the 3D LUT menu, showing options for loading and managing custom LUT fileс аз диски USB.

5.2 Waveform, Vector Scope, and Histogram

These tools provide detailed analysis of your video signal, helping you achieve accurate exposure and color balance.

• Шакли мавҷ: Сатҳҳои равшанӣ ва ранги сигнали видеоии шуморо нишон медиҳад.
• Доираи векторӣ: Shows the color hue and saturation.
• Гистограммаи RGB: Illustrates the distribution of red, green, and blue color channels.

These functions can be activated individually or simultaneously via the menu or assigned to a function button.

Image: The FEELWORLD T7PLUS monitor displaying a waveform monitor, showing the luminance and chrominance levels of the video input.

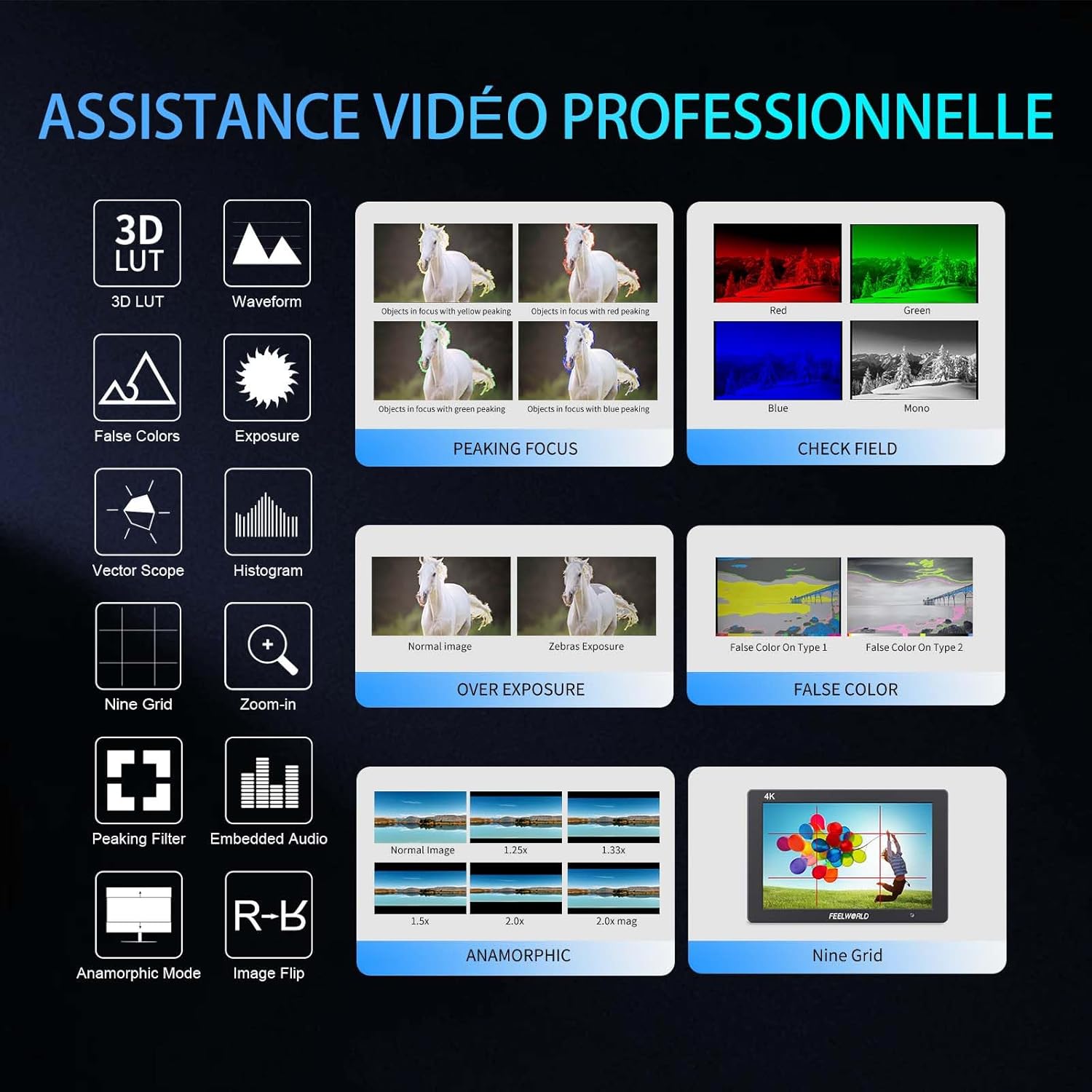

5.3 Other Monitoring Tools

• Кӯмаки фокуси баландсифат: Кунҷҳои тезро таъкид мекунад, то ба даст овардани фокуси дақиқ мусоидат кунад.
• Ранги бардурӯғ: Displays exposure levels using a spectrum of colors.
• Экспозиция (зебраҳо): Минтақаҳои аз ҳад зиёд намоёнро бо нақшҳои зебра нишон медиҳад.
• Дуркунӣ: Барои фокуси муҳим қисмати тасвирро калон мекунад.
• Нӯҳ шабака: Overlays a grid for composition assistance.
• Ҳолати анаморфӣ: Фӯи анаморфиро фишурда мекунадtage.
• Тасвири тасвир: Тасвирро ба таври уфуқӣ ё амудӣ гардонед.
• Аудио дарунсохташуда: Сатҳҳои аудиоро аз вуруди HDMI нишон медиҳад.

6. Мушаххасоти

7. Баррасии мушкилот

• Не қудрат:
  • Ensure the battery is fully charged and correctly inserted, or the DC adapter is securely connected to a power source.
  • Тугмаи барқро барои пайвастшавии дуруст санҷед.
• Сигнал нест:
  • Verify that the HDMI cable is securely connected to both the camera/source and the monitor's HDMI-IN port.
  • Confirm the camera's HDMI output settings are correct and active.
  • Сими дигари HDMI-ро санҷед.
• Таҳрифи тасвир/Рангҳои нодуруст:
  • Check the monitor's color settings and ensure no LUTs are incorrectly applied.
  • Verify the camera's video output format is compatible with the monitor.
• Тугмаҳо ҷавоб намедиҳанд:
  • Restart the monitor by turning it off and on again.
  • Боварӣ ҳосил кунед, ки ягон партов ба тугмаҳо халал намерасонад.

8. Нигоҳдорӣ

• Тозакунӣ: Use a soft, dry cloth to clean the monitor's body. For the screen, use a specialized screen cleaning solution and a microfiber cloth. Avoid harsh chemicals or abrasive materials.
• Нигоҳдорӣ: When not in use, store the monitor in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided bag for protection during transport.
• Нигоҳубини батарея: If using batteries, ensure they are charged periodically even when not in use to maintain battery health.

9. Кафолат ва дастгирӣ

The FEELWORLD T7PLUS monitor comes with a Кафолати 1 сол from the FEELWORLD Official Store. For technical support, service, or warranty claims, please contact FEELWORLD customer service through their official channels or the retailer where the product was purchased.

Барои маълумоти иловагӣ, боздид кунед FEELWORLD Brand Store.
