MYLEK 34-Inch Tower Fan (Model MY34W) Instruction Manual

1. Маълумоти муҳим оид ба бехатарӣ

Please read all instructions carefully before using your MYLEK Tower Fan. Retain this manual for future reference.

• Ин асбоб танҳо барои истифодаи дохили хона пешбинӣ шудааст.
• Ensure the power supply matches the rating label on the fan.
• Always unplug the fan from the power outlet before cleaning, maintenance, or if it will not be used for an extended period.
• Вентиляторро бо сим ё васлаки вайроншуда кор накунед. Агар сим вайрон шуда бошад, барои пешгирӣ аз хатар, онро бояд истеҳсолкунанда, агенти хидматрасонии он ё шахсони ба ин монанд босалоҳият иваз кунанд.
• Keep hands, hair, clothing, and other objects away from the fan's grilles during operation to prevent injury or damage.
• Do not insert any objects into the fan's openings.
• Position the fan on a stable, flat surface to prevent it from tipping over.
• This fan features a bladeless design and narrow grills, making it suitable for households with children and pets.
• Equipped with a fused BS Standards 3-Pin safety plug to prevent damage from over-voltage and power surges.
• Constructed with ABS safety plastic for durability and peace of mind.

Image: Safety features of the MYLEK Tower Fan, highlighting its bladeless design, narrow grill, BS standard 3-pin safety plug, and ABS safety construction, making it safe for children and pets.

2. Хусусиятҳои маҳсулот

The MYLEK 34-inch Tower Fan is designed to provide efficient and comfortable cooling for your home or office. Key features include:

• 3 Танзимоти суръат: Choose between Low, Medium, and High airflow.
• 3 Wind Modes: Normal (constant airflow), Natural (simulates a natural breeze), and Sleep (quieter operation with reduced airflow).
• 70° Smooth Oscillation: Distributes cool air across a wider area.
• 8-Hour Shutdown Timer: Program the fan to turn off automatically.
• Ioniser Function: Releases negative ions to refresh the air.
• Назорати дурдаст: Амалиёти қулай аз дур.
• Намоиши LED: Clear indication of settings and room temperature.
• Фаъолияти садои паст: Operates at approximately 25dB, ideal for bedrooms and offices.
• Lightweight with Carry Handle: Easy to move and position.

Image: The MYLEK Tower Fan in a modern living room, illustrating its key features such as remote control, three speed settings, three wind modes, and an 8-hour shutdown timer.

Image: The MYLEK Tower Fan positioned in a bedroom, highlighting its oscillation function, fresh air ioniser, 1.5-meter cable length, and quiet 25dB noise level.

3. Танзимот

1. Кушодани: Бодиққат вентиляторро аз бастааш хориҷ кунед. Боварӣ ҳосил кунед, ки ҳама ҷузъҳо мавҷуданд ва осеб надидаанд.
2. Ҷойгиршавӣ: Place the fan on a firm, level surface. Ensure there is adequate space around the fan for proper airflow and oscillation. Avoid placing it directly against walls or furniture.
3. Пайвасти барқ: Plug the fan's 3-pin power cord into a suitable 230V AC electrical outlet.

4. Дастурҳои истифодабарӣ

The MYLEK Tower Fan can be operated using the touch control panel on top of the unit or the included remote control.

Тасвир: Муфассал view of the MYLEK Tower Fan's user-friendly touch buttons and the included remote control, illustrating the various function buttons such as On/Off, Mode, Speed, Swing, Ion, and Timer.

4.1 Панели идоракунӣ ва функсияҳои идоракунии дурдаст

• Фаъол/хомӯш ( U ): Барои фаъол ё хомӯш кардани вентилятор пахш кунед.
• Суръат ( Фан ): Press repeatedly to cycle through Low, Medium, and High-speed settings.
• Режим ( МАВЧ ): Press repeatedly to select Normal, Natural, or Sleep wind modes.
• Oscillation ( Свинг ): Барои фаъол ё ғайрифаъол кардани функсияи ларзиши 70° -ро пахш кунед.
• Ioniser ( IO ): Press to turn the ioniser function on or off. The ioniser helps to refresh the air by releasing negative ions.
• Таймер ( СОАТ ): Press repeatedly to set the auto-off timer from 1 to 8 hours. Each press adds one hour.

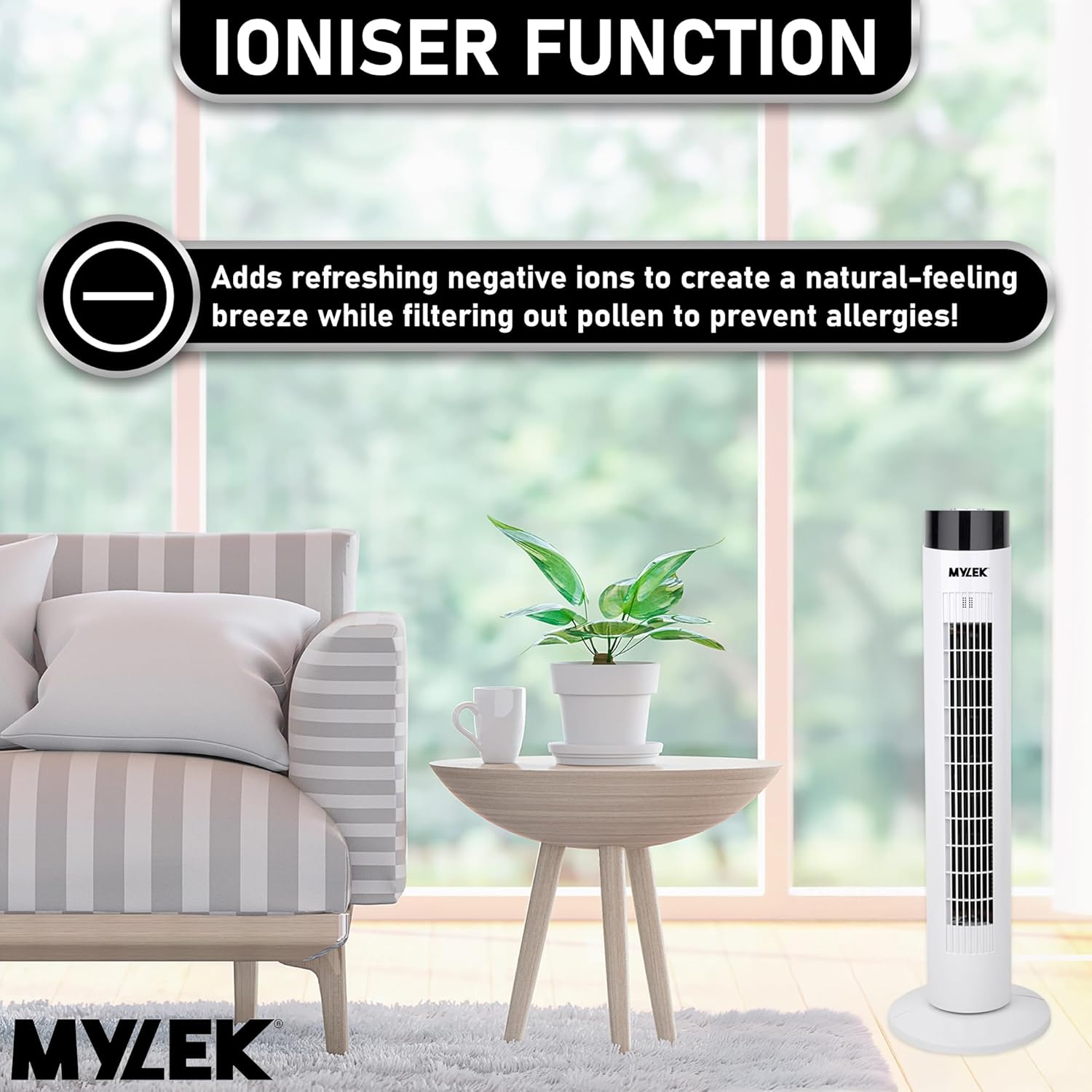

Image: The MYLEK Tower Fan in a living room setting, illustrating the ioniser function which adds refreshing negative ions to the air, creating a natural breeze effect and filtering out pollen.

5. Нигоҳдорӣ

Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your MYLEK Tower Fan.

1. Тоза кардани берун: Сатҳи берунии вентиляторро бо нарм пок кунед, гamp матоъ. Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.
2. Тоза кардани вуруд/баромади ҳаво: Use a soft brush or vacuum cleaner with a brush attachment to gently remove dust from the air inlet and outlet grilles.
3. Нигоҳдорӣ: When not in use, store the fan in a cool, dry place, preferably in its original packaging, to protect it from dust and damage.
4. Пеш аз анҷом додани ягон тозакунӣ ё нигоҳдорӣ ҳамеша вентиляторро аз розетка ҷудо кунед.

6. Баррасии мушкилот

If you encounter any issues with your MYLEK Tower Fan, please refer to the following common troubleshooting steps:

• Фан даргир намешавад:
  • Боварӣ ҳосил кунед, ки сими барқ ​​ба васлаки барқии коркунанда боэътимод пайваст карда шудааст.
  • Check if the power outlet is functioning by plugging in another appliance.
  • Verify that the fan's power button has been pressed.
• Ҷараёни ҳаво суст ё тамоман вуҷуд надорад:
  • Check if the air inlet or outlet grilles are obstructed by dust or debris. Clean as per maintenance instructions.
  • Ensure the fan is set to a higher speed setting.
• Fan is making unusual noise:
  • Ensure the fan is placed on a stable, flat surface.
  • Check for any foreign objects that may have fallen into the fan's grilles. Unplug the fan before inspecting.
• Идоракунии дурдаст кор намекунад:
  • Агар лозим бошад, батареяҳои пулти дурдастро тафтиш кунед ва иваз кунед.
  • Ensure there are no obstructions between the remote control and the fan's receiver.

If the problem persists after trying these steps, please contact MYLEK customer support.

7. Мушаххасоти

Image: The MYLEK Tower Fan with its key dimensions and weight clearly marked, showing a height of 34 inches and a weight of 3.4 kilograms.

8. Кафолат ва дастгирӣ

Your MYLEK Tower Fan comes with a Кафолати 2 сол аз рӯзи харид. Ин кафолат нуқсонҳои истеҳсолиро дар ҳолати истифодаи муқаррарӣ фаро мегирад.

For warranty claims, technical assistance, or any other inquiries, please contact MYLEK customer service. Our team provides excellent UK customer service support to assist you.

Please have your model number (MY34W) and proof of purchase ready when contacting support.
