Муқаддима
This manual provides essential information for the safe and efficient use of your BLOWHOT Estella L 90 cm Auto Clean Motion Sensor Chimney. Please read these instructions carefully before installation and operation, and retain them for future reference.
The BLOWHOT Estella L chimney is designed to keep your kitchen smoke and odor-free with its powerful suction and advanced features. Key features include:
- Сохти пурқувват: 1,300 m³/h airflow for effective smoke and odor removal.
- Heat Auto Clean Function: Simplifies maintenance by cleaning oil and residue with a single touch.
- Технологияи сенсории ҳаракат: Allows for easy, hands-free operation with simple hand gestures.
- Filterless Technology: Ensures efficient filtration and reduces maintenance needs.
- 3-Назорати суръат: Provides precise airflow adjustments for various cooking requirements.
- Сатҳи пасти садо: Operates quietly at less than 59 dBA.
- Чароғҳои LED: Integrated lighting for improved visibility over your cooking area.
Насб ва насб
The BLOWHOT Estella L chimney is a T-shape, wall-mounted unit. Professional installation is recommended to ensure proper functioning and safety.
Компонентҳои дохилшуда:
- Chimney Unit
- Clamps
- Бурҳо
- Қубури каналӣ
Дастурҳои насб:
- Ensure the installation area is suitable for a wall-mounted chimney, considering the product dimensions (90D x 45W x 90H Centimeters).
- Mount the chimney securely to the wall using the provided clampс ва винтҳо.
- Connect the duct pipe for proper ventilation. This model supports ductless/recirculating ventilation.
- Ensure the electrical connection is 220 Volts as specified.
For professional installation services, please contact BLOWHOT customer support at 1800-890-0998 (All India) or email support@blowhotindia.com. Standard installation charges apply.
Image: BLOWHOT Estella L Chimney with key dimensions indicated.
Дастурҳои амалиётӣ
Your BLOWHOT Estella L chimney features motion sensor controls and a 3-speed fan for convenient operation.
Назорати сенсори ҳаракат:
The chimney can be operated with simple hand gestures. Wave your hand in front of the motion sensor to turn the chimney on/off or adjust fan speeds. Refer to the specific gesture patterns in the quick start guide provided with your product for detailed instructions.
Назорати суръат:
The 3-speed control allows you to select the appropriate suction power for different cooking needs. Use lower speeds for light cooking and higher speeds for heavy frying or strong odors.
Чароғҳои LED:
Activate the integrated LED lights to illuminate your cooking area for better visibility.

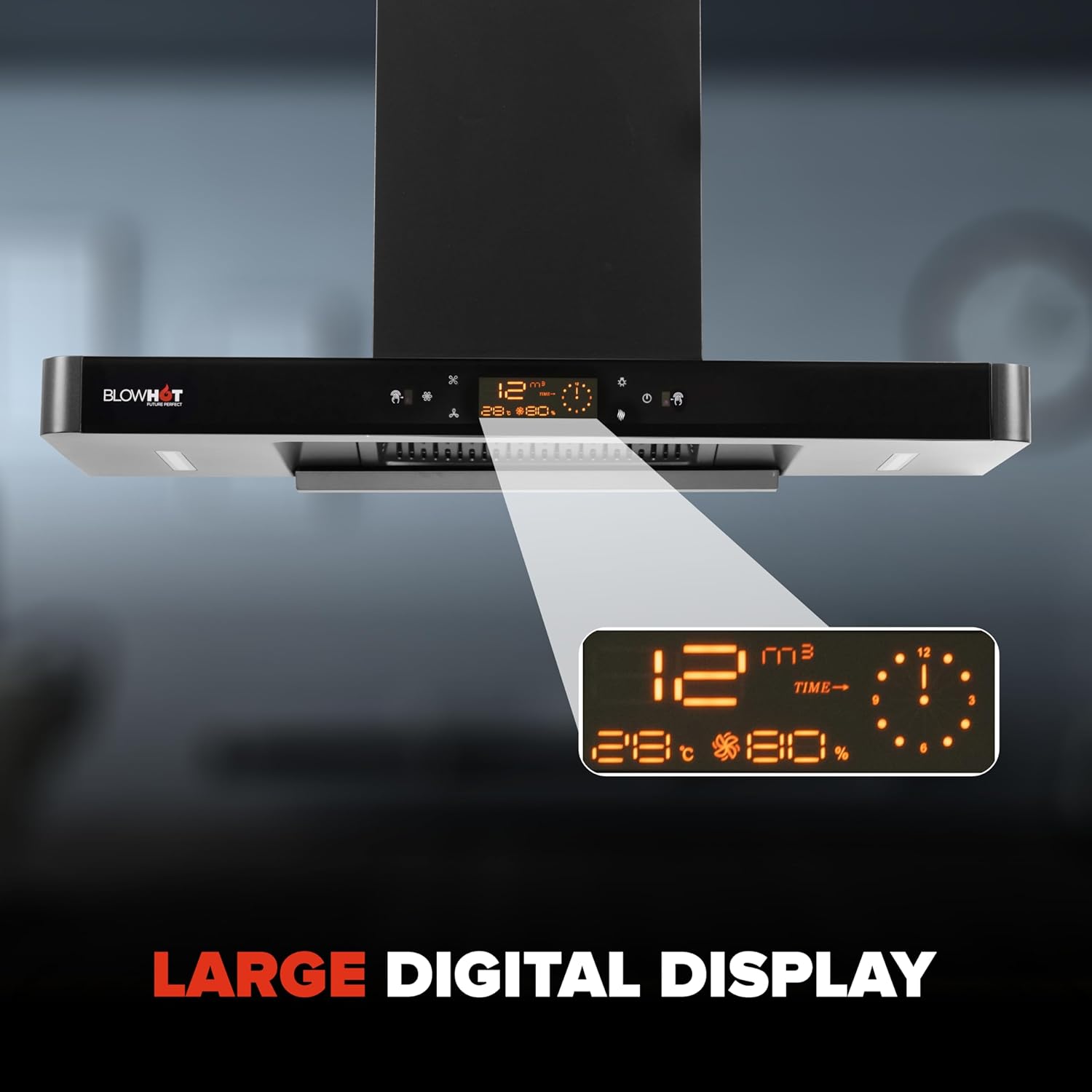

Image: Large digital display on the BLOWHOT Estella L Chimney.
Нигоҳдорӣ
Regular maintenance ensures the longevity and optimal performance of your BLOWHOT Estella L chimney.
Heat Auto Clean Function:
This chimney features a heat auto clean function. To activate, simply press the designated auto-clean button. The function uses heat to melt and collect oil and residue into the durable stainless steel large oil cup. This process significantly reduces manual cleaning effort.
Image: Heat Auto Clean function in action, cleaning oil and residue.
Oil Cup Cleaning:
Periodically empty and clean the large stainless steel oil cup. Ensure the chimney is turned off and cooled before removing the oil cup for cleaning. Wash with mild detergent and warm water, then dry thoroughly before reinserting.
Тозакунии берунӣ:
Wipe the exterior surfaces of the chimney with a soft, damp матоъ ва шустушӯй нарм. Аз тозакунакҳои абразивӣ ё матои тозакунанда худдорӣ намоед, ки метавонанд ба марра зарар расонанд.
Мушкилкушо
If you encounter any issues with your BLOWHOT Estella L chimney, please refer to the following basic troubleshooting steps. For complex problems, contact customer support.
- Chimney not turning on: Тафтиш кунед, ки сими барқ ба васлаки корӣ боэътимод васл шудааст ё не. Калиди барқро тасдиқ кунед.
- Low suction power: Ensure the oil cup is not overflowing and is properly seated. Check for any obstructions in the duct pipe.
- Садои ғайриоддӣ: Ensure all components are securely fastened. If the noise persists, contact service.
- Сенсори ҳаракат ҷавоб намедиҳад: Ensure the sensor area is clean and free from obstructions. Try restarting the chimney by cycling the power.
If the problem persists after attempting these steps, please contact BLOWHOT customer support for assistance.
Мушаххасоти
| Хусусият | Мушаххасоти |
|---|---|
| Модели | Estella L |
| Бренд | БЛОХОТ |
| Иқтидори ҷараёни ҳаво | 1300 м³/соат |
| Материал | Alloy Steel, Metal, Stainless Steel |
| Сатҳи садо | 59 децибел |
| Навъи васлкунӣ | Монтажи девор |
| Навъи назорат | Сенсори ҳаракат |
| Ҷилдиtage | 220 вольт |
| Шумораи суръатҳо | 3 |
| Вазни ашё | 15 килограмм |
| Навъи манбаи нур | НН - НУРНИШОН |
| Навъи филтр | Filterless Technology (Mesh for initial filtration) |
| Шакли адад | Wall Mounted, T-Shape |
| Навъи вентилятсия | Бе канал/Гардиши такрорӣ |
| Истеъмоли солонаи энергия | 160 Ватт |
| Андозаҳои маҳсулот (LxWxH) | 90 x 45 x 90 Сантиметр |
| Ранги | Сиёҳ |
Image: High suction power mechanism of the BLOWHOT Estella L Chimney.
Маълумот дар бораи кафолат
BLOWHOT provides comprehensive warranty coverage for the Estella L chimney:
- Мотор: 15 Years from the date of purchase.
- Main PCB and Blower: 2 Years from the date of purchase.
- Кафолати умумӣ: 1 сол аз рӯзи харид.
To register your warranty or for any warranty-related queries, please contact BLOWHOT customer support.
Дастгирии муштариён
For installation, warranty registration, service requests, or any other assistance, please reach out to BLOWHOT customer support:
- Рақами ройгон: 1800-890-0998 (All India)
- Почтаи электронӣ: support@blowhotindia.com
BLOWHOT maintains a wide network of over 500 service centers across India to provide prompt and efficient support.
Image: BLOWHOT service center network across India.
