Intelbras GX 3000 Wireless Mesh Router User Manual

1. Муқаддима

The Intelbras GX 3000 is a multifunction wireless mesh router designed to provide high-speed internet connectivity via 5G/4G networks and Wi-Fi 6. This device integrates advanced Qualcomm technology for both its 5G modem and Wi-Fi 6 solution, ensuring high performance and reliability. It supports up to 128 devices simultaneously on the Wi-Fi network and offers wired connectivity options. The GX 3000 is suitable for various environments, from home to office, providing robust network performance.

This manual provides instructions for setting up, operating, and maintaining your Intelbras GX 3000 router. Please read it carefully before use.

2. Package Contents & Device Overview

2.1. Мундариҷаи баста

• Intelbras GX 3000 Wireless Mesh Router
• Адаптери барқ
• Кабели шабакавӣ
• Дастури оғози зуд (ба ин дастур дохил карда нашудааст)

2.2. Дастгоҳ тамом шудview

Расми 1: Пеш View of the GX 3000 Router

This image displays the front of the Intelbras GX 3000 router, showing its sleek white design and LED indicators for 5G, 4G, call status, Wi-Fi, and WPS button.

Figure 2: GX 3000 Router with Highlighted Indicators and Ports

This image provides a closer look at the router, emphasizing the LED indicators on the front (5G, 4G, Call, Wi-Fi, WPS) and the various ports located on the rear panel, including LAN, WAN, and TEL ports.

2.2.1. Портҳои панели ақиб

Figure 3: Rear Panel of the GX 3000 Router

This image shows the rear panel of the router, clearly displaying the LAN, WAN, and TEL ports for wired connections.

• Порттҳои LAN: For connecting wired devices such as computers, smart TVs, or gaming consoles.
• Бандари WAN: For connecting to an external modem or internet source (if not using 5G/4G).
• Порти TEL: For voice services (if supported by your service provider).
• Вуруди барқ: Ба адаптери қувваи воридшуда пайваст мешавад.

2.2.2. Bottom Panel Features

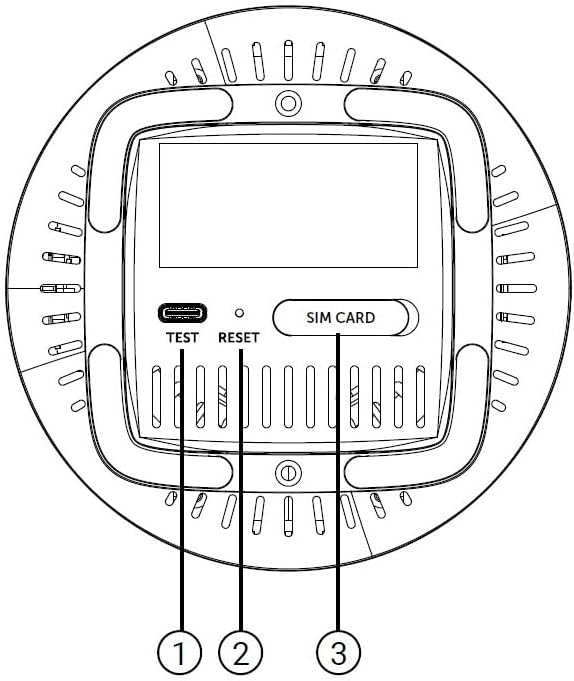

Figure 4: Bottom Panel Features of the GX 3000 Router

This diagram illustrates the bottom panel of the router, highlighting the TEST port, RESET button, and SIM CARD slot.

• TEST Port: Барои мақсадҳои ташхисӣ.
• Тугмаи RESET: Used to restore factory default settings. Press and hold for 10 seconds while the device is powered on.
• SIM CARD Slot: Insert your 5G/4G SIM card here for mobile broadband connectivity.

3. Танзимот

3.1. Ҷойгиркунии ибтидоӣ

Place the router in a central location within your desired coverage area, away from obstructions, metal objects, and other electronic devices that may cause interference. Ensure good ventilation around the device.

3.2. Гузоштани SIM корт

1. Боварӣ ҳосил кунед, ки роутер хомӯш аст.
2. Locate the SIM CARD slot on the bottom panel of the router (refer to Figure 4).
3. Insert your activated 5G/4G SIM card into the slot with the gold contacts facing down and the notched corner oriented correctly. Push until it clicks into place.
4. To remove, gently push the SIM card in again until it springs out.

3.3. Пайваст кардани қувваи барқ

1. Connect one end of the power adapter to the Power Input port on the rear of the router.
2. Қисми дигари адаптери барқро ба васлаки стандартии барқ ​​пайваст кунед.
3. The router will power on automatically. Wait for the LED indicators to stabilize.

3.4. Wired Connections (Optional)

If you wish to connect devices via Ethernet:

1. Connect one end of the provided network cable to a LAN port on the rear of the router.
2. Connect the other end of the network cable to the Ethernet port of your computer, smart TV, or other wired device.

3.5. Пайвастагии ибтидоии Wi-Fi

The default Wi-Fi network name (SSID) and password are usually printed on a label on the bottom of the router. Follow these steps to connect:

1. On your wireless device (smartphone, laptop, tablet), open the Wi-Fi settings.
2. Scan for available networks and select the SSID corresponding to your GX 3000 router.
3. Enter the default Wi-Fi password when prompted.
4. Once connected, you can access the router's web interface to customize settings.

4. Дастурҳои истифодабарӣ

4.1. Нишондиҳандаҳои LED

LED-ҳои панели пеш маълумот дар бораи вазъиятро нишон медиҳанд:

• 5G LED: Ҳолати шабакаи 5G-ро нишон медиҳад.
• 4G LED: Ҳолати шабакаи 4G-ро нишон медиҳад.
• Call LED: Indicates voice service status.
• LED Wi-Fi: Indicates Wi-Fi network activity.
• LED WPS: Ҳолати функсияи WPS-ро нишон медиҳад.

Refer to the full user manual (if provided separately) for detailed LED behavior (e.g., solid, blinking, color) and their meanings.

4.2. Дастрасӣ ба Web Интерфейси идоракунӣ

To configure advanced settings, manage your network, or change Wi-Fi credentials, access the router's web интерфейс:

1. Ensure your device is connected to the GX 3000's Wi-Fi network or via an Ethernet cable.
2. Кушодани а web браузер (масалан, Chrome, Firefox, Edge).
3. Дар сатри суроға, суроғаи IP-и пешфарзии роутерро ворид кунед (одатан 192.168.1.1 or 192.168.0.1) and press Enter. This information is usually on the label on the bottom of the router.
4. Enter the default username and password (also found on the router label).
5. You will now be in the router's management interface, where you can customize settings such as Wi-Fi name, password, security protocols, and more.

4.3. Wi-Fi Protected Setup (WPS)

WPS allows you to connect Wi-Fi devices without entering the password manually:

1. Press the WPS button on the front of the GX 3000 router (refer to Figure 1). The WPS LED will start blinking.
2. Within two minutes, press the WPS button on your client device (e.g., Wi-Fi adapter, printer).
3. Дастгоҳҳо ба таври худкор пайваст мешаванд.

Note: WPS is a convenient feature but may be less secure than manual password entry.

4.4. Mesh Network Expansion

The GX 3000 supports mesh networking to expand Wi-Fi coverage. You can add other compatible Intelbras Qi5 line products to create a seamless mesh network. Each additional Wi-Fi 6 router can extend coverage by up to 300 m². It is recommended to use up to 6 routers in the same mesh network for optimal performance.

Refer to the specific instructions provided with additional mesh units for pairing and configuration.

5. Нигоҳдорӣ

5.1. Тоза кардани дастгоҳ

• Ensure the router is powered off and unplugged before cleaning.
• Барои тоза кардани берунии дастгоҳ матои мулоим ва хушкро истифода баред.
• Do not use liquid cleaners, aerosols, or solvents, as they may damage the casing ё ҷузъҳои дохилӣ.
• Қуттиҳои вентилятсияро аз чанг ва хошок тоза нигоҳ доред.

5.2. Навсозии нармафзор

Periodically check the Intelbras official webсайт барои навсозиҳои нармафзор. Навсозиҳои нармафзор метавонанд самаранокиро беҳтар кунанд, хусусиятҳои нав илова кунанд ва амниятро беҳтар созанд. Дастурҳои дар бастаи навсозии нармафзор додашударо бодиққат риоя кунед.

5.3. Аз нав танзимкунӣ ба танзимоти пешфарзии заводӣ

If you encounter persistent issues or forget your login credentials, you can reset the router to its factory default settings:

1. With the router powered on, locate the RESET button on the bottom panel (refer to Figure 4).
2. Using a paperclip or a similar pointed object, press and hold the RESET button for approximately 10 seconds.
3. Release the button. The router will restart with all settings restored to their original factory defaults.
4. You will need to reconfigure your Wi-Fi settings and any other custom configurations after a factory reset.

6. Баррасии мушкилот

7. Мушаххасоти

8. Кафолат ва дастгирӣ

8.1. Маълумот дар бораи кафолат

Intelbras products are covered by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Intelbras webсайт. Барои даъвоҳои кафолат далели хариди худро нигоҳ доред.

8.2. Дастгирии техникӣ

If you require technical assistance or have questions not covered in this manual, please contact Intelbras customer support. You can find contact information (phone numbers, email, support portal) on the official Intelbras webсайт:

Intelbras Official Webсайт: www.intelbras.com.br

When contacting support, please have your product model (GX 3000) and serial number ready.
