This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Modern White Bedside Cabinet with RGB LED Lights. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product.

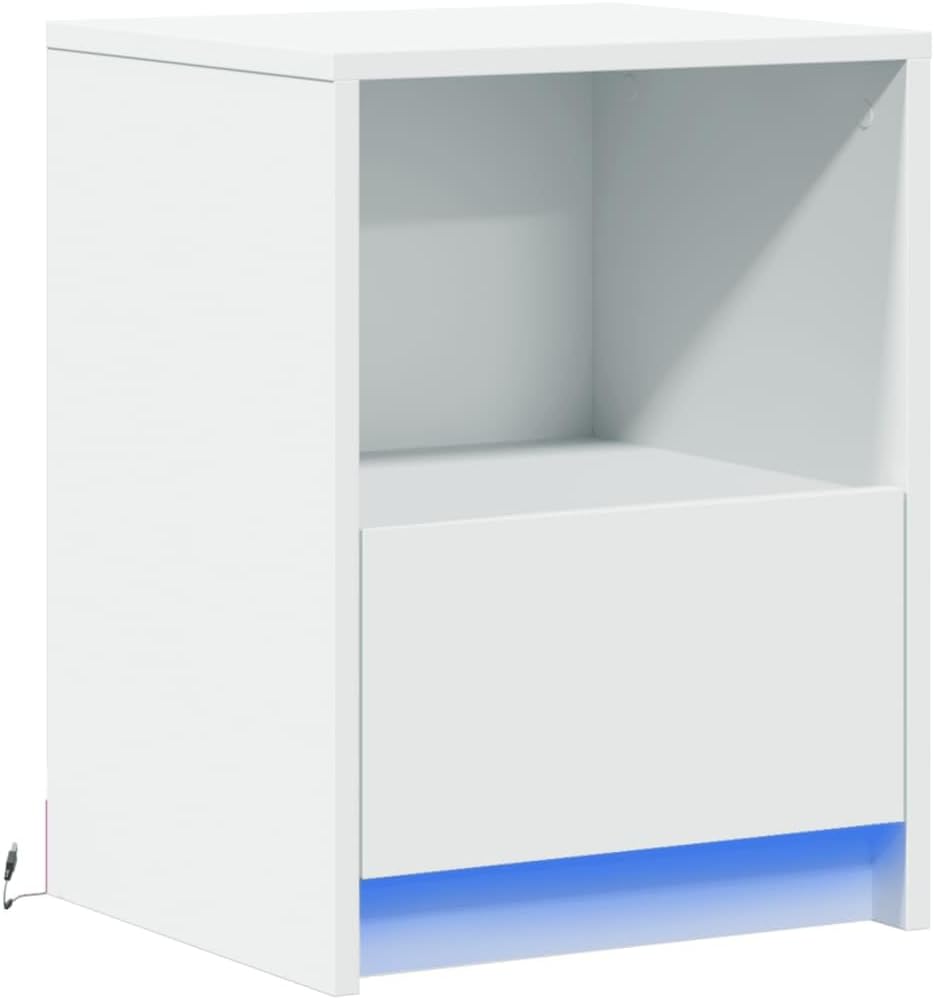

Расми 1: Пеш view of the vidaXL Modern White Bedside Cabinet, showcasing its sleek white design and the integrated RGB LED lighting strip at the bottom.
Маълумот оид ба бехатарӣ
- Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳо пеш аз васлкунӣ мавҷуд ва осеб надидаанд.
- Барои пешгирӣ кардани харошидан дар рӯи мулоим ва тоза ҷамъ кунед.
- Ҳангоми васлкунӣ винтҳоро аз ҳад зиёд сахт накунед.
- Ҳангоми васлкунӣ қисмҳои хурдро аз кӯдакон дур нигоҳ доред.
- Maximum weight capacity for the top surface is 50 kg (110 lbs). Do not exceed this limit.
- The LED lights are powered via USB (5V). Use only appropriate USB power sources.
Мундариҷаи баста
Боварӣ ҳосил кунед, ки ҳамаи қисмҳои дар зер номбаршуда дар бастаи шумо дохил карда шудаанд:
- Engineered Wood Panels (various sizes for cabinet body, drawer, shelves)
- Drawer Slides and Hardware
- RGB LED Light Strip with USB Cable
- Таҷҳизоти васлкунӣ (винтҳо, дюбельҳо, қуфлҳо ва ғ.)
- Дастурамал оид ба васлкунӣ
Танзим ва васлкунӣ
Шумораи тавсияшавандаи одамон барои Ассамблея: 2
Воситаҳои зарурӣ (дохил карда нашудаанд): Phillips head screwdriver, Hammer (optional, for dowels).
- Қисмҳоро кушоед ва муайян кунед: Carefully unpack all components and lay them out on a clean, soft surface. Refer to the parts list in your included assembly instructions to identify each piece.
- Чорчӯби кабинетро ҷамъ кунед: Begin by connecting the side panels to the top and bottom panels using the provided dowels and cam locks. Ensure all connections are secure.
- Рафъҳоро насб кунед: Insert the fixed shelf into the designated slots within the cabinet frame.
- Ҷамъоварии ҷавф: Construct the drawer box by joining the drawer sides, front, and back. Attach the drawer bottom. Install the drawer slides onto the drawer box.
- Install Drawer into Cabinet: Attach the corresponding drawer slides to the inside of the cabinet frame. Carefully slide the assembled drawer into the cabinet.
- Панели пуштиро пайваст кунед: Secure the back panel to the cabinet frame using small nails or screws.
- Чароғҳои LED насб кунед: Adhere the RGB LED light strip to the designated area, typically along the bottom edge or inside the open compartment. Connect the USB cable.
- Ҷойгиркунии ниҳоӣ: Once assembled, carefully move the cabinet to its desired location.

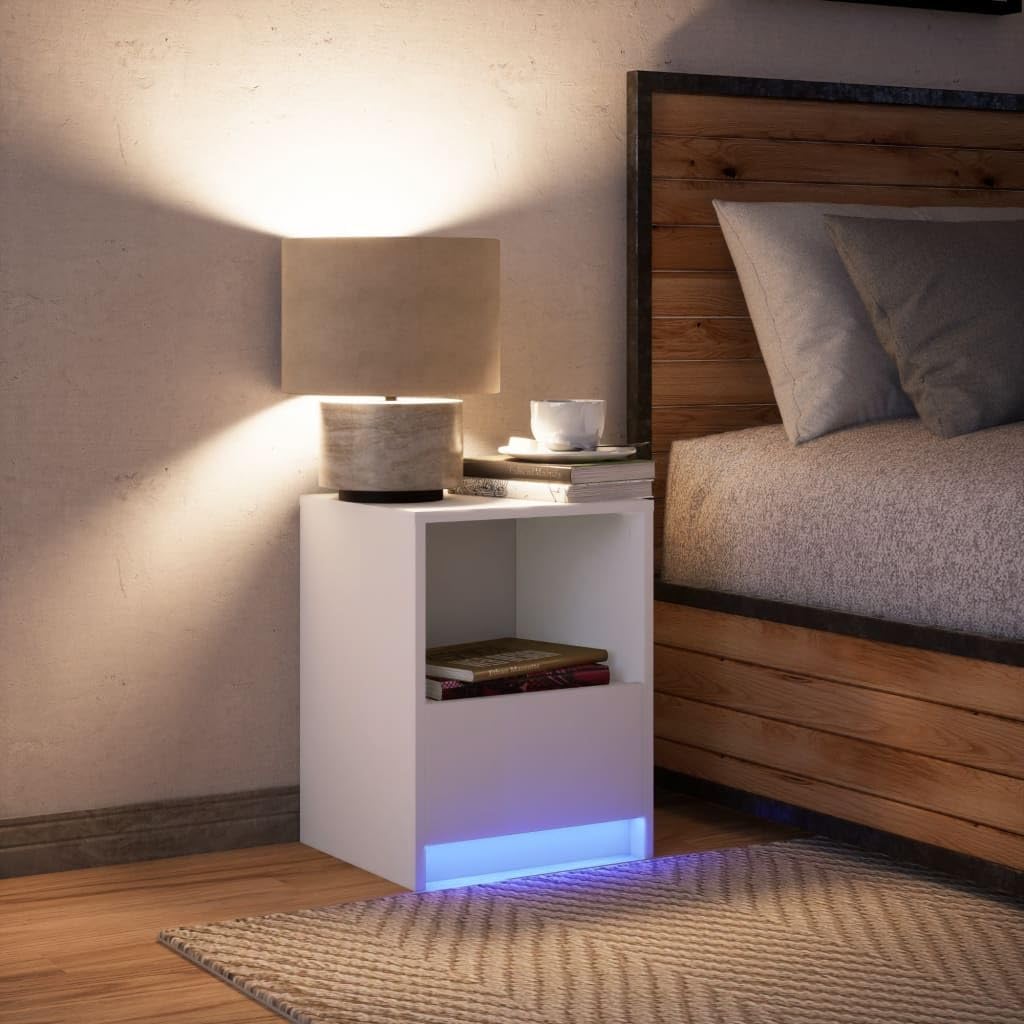

Расми 2: The bedside cabinet positioned next to a bed, illustrating its functional use as a nightstand with a lamp and books.
Расми 3: Technical drawing showing the dimensions of the bedside cabinet: 34 cm (W) x 38 cm (L) x 50 cm (H).
Operating Instructions (LED Lights)
The RGB LED lights are designed to enhance the ambiance of your room. They are powered via a USB connection.
- Пайвасти барқ: Connect the USB plug of the LED light strip to any standard USB power source (e.g., USB wall adapter, power bank, computer USB port). A traditional power adapter is not included.
- Controlling Lights: The LED strip typically includes an inline controller or can be controlled via a remote (if included with your specific model). Use the controller to:
- Чароғҳоро фурӯзон/хомӯш кунед.
- Change colors (RGB options).
- Равшаниро танзим кунед.
- Select lighting modes (e.g., static, fade, flash).
Расми 4: The bedside cabinet with its RGB LED lights illuminated in a blue hue, demonstrating the lighting feature.
Нигоҳдорӣ ва нигоҳубин
- Тозакунӣ: Сатҳи кабинетро бо нарм пок кунед, гamp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the engineered wood finish.
- чанг: Барои пешгирӣ аз ҷамъшавии он, мунтазам шкафро аз чангу хок тоза кунед.
- Рехтан: Барои пешгирӣ кардани осеби намӣ ба чӯби муҳандисӣ ҳама гуна рехтро фавран тоза кунед.
- Чароғҳои LED: The LED lights are designed for long life and require no specific maintenance. If they stop working, check the USB connection and power source.
- Таҷҳизоти: Periodically check and tighten any loose screws or fittings to maintain stability.
Мушкилкушо
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Кабинет ларзида/ноустувор аст. | Винтҳои фуҷур ё васлкунии нобаробар. | Check all screws and fittings and tighten them. Ensure the cabinet is on a level surface. |
| Обовара ба таври оддӣ ҳаракат намекунад. | Drawer slides misaligned or obstructed. | Ensure drawer slides are correctly installed and aligned. Check for any obstructions in the tracks. |
| Чароғҳои LED фурӯзон намешаванд. | No power, loose connection, or faulty USB source. | Verify the USB cable is securely plugged in. Try a different USB power source. Check the inline controller for damage. |
| LED colors are incorrect or unresponsive. | Controller malfunction or power issue. | Unplug and replug the USB power. If using a remote, check battery. |
Мушаххасоти
- Бренд: vidaXL
- Рақами модел: 852019
- Ранги: Сафед
- Шакл: Росткунҷа
- Мавод: Вуди муҳандисӣ
- Андозаҳо (W x L x H): 34 x 38 x 50 см (13.4 x 15 x 19.7 инч)
- Surface Height: 50 см (19.7 инч)
- Вазни ашё: 8.6 кг (18.96 фунт)
- Иқтидори максималии вазн: 50 кг (110 фунт)
- Шумораи ҷевонҳо: 1
- Равшании LED: RGB LED Lights, USB Plug Only (5V)
- Дарун/берунӣ: Танҳо дарунӣ
- Маҷлис талаб карда мешавад: Бале
- EAN: 8721102965845
Кафолат ва дастгирӣ
For warranty information, please refer to the specific terms and conditions provided at the time of purchase or contact vidaXL customer service directly. This product is subject to a 30-day return policy for refunds or replacements, as per the seller's terms.
For technical support, missing parts, or any other inquiries, please contact vidaXL customer service through their official website or the platform where the product was purchased. Please have your model number (852019) and purchase details ready when contacting support.
