TECSUN S-8800 Multi-conversion AM/FM/LW/SW/SSB Radio Receiver User Manual

1. Муқаддима

The TECSUN S-8800 is a versatile multi-conversion radio receiver designed for optimal reception across AM, FM, LW, SW, and SSB bands. It incorporates advanced High-IF analog circuits, triple AM conversion, and DSP decoding technology to deliver superior audio performance. This manual provides comprehensive instructions for setting up, operating, and maintaining your S-8800 receiver.

2. Мундариҷаи баста

Лутфан тафтиш кунед, ки ҳамаи ҷузъҳои дар поён овардашуда ба бастаи шумо дохил карда шудаанд:

• TECSUN S-8800 Radio Receiver
• USB-MiniUSB Cable
• 2 x 18650 Li-ion Batteries
• Назорати дурдаст
• 2 x батареяҳои AAA (барои идоракунии дурдаст)
• BNC Antenna Adapter
• Дастури корбар (Ин ҳуҷҷат)

3. Маҳсулот ба охир расидview

Familiarize yourself with the main components and controls of your TECSUN S-8800 radio receiver.

Figure 3.1: TECSUN S-8800 radio receiver and its remote control.

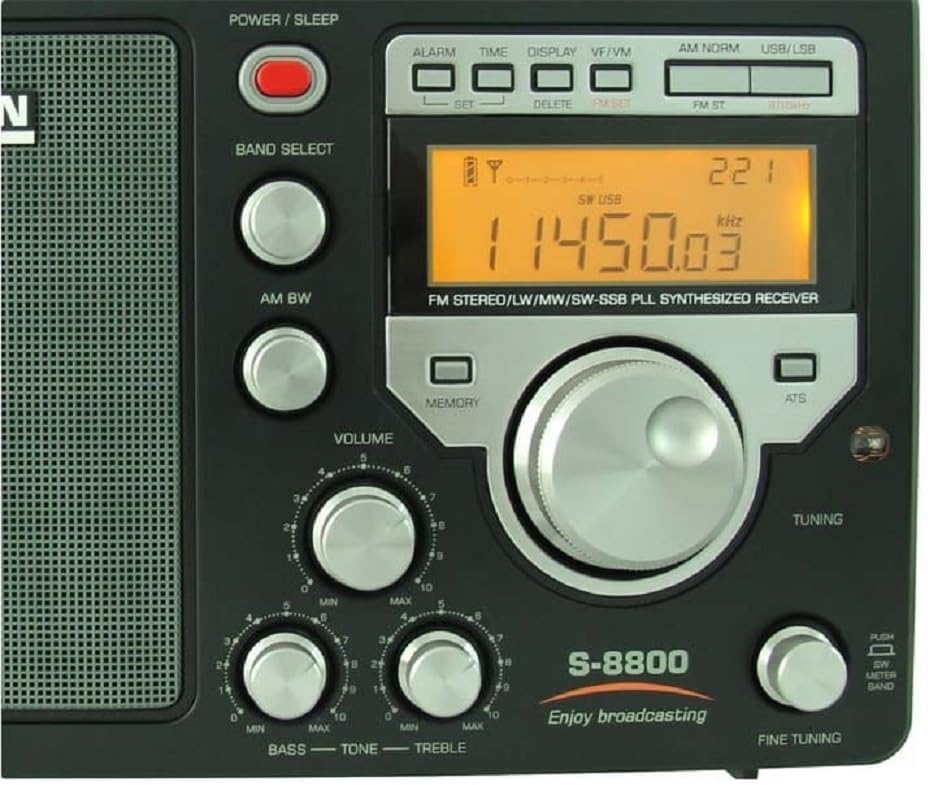

Figure 3.2: Front panel with display, tuning knob, and audio controls.

Расми 3.3: Тараф view illustrating headphone, line-out, and external antenna connections.

Figure 3.4: Rear panel with FM/SW BNC, AM/GND antenna terminals, and MiniUSB charging port.

4. Танзимот

4.1. Таъмини барқ

1. Насби батарея: Open the battery compartment cover on the rear of the radio. Insert the two 18650 Li-ion batteries, ensuring correct polarity as indicated inside the compartment. Close the cover securely.
2. AC Power / Charging: Connect the supplied USB-MiniUSB cable to the radio's MiniUSB port (DC 5V/1A) and a compatible USB power adapter (not included) or a computer's USB port. The radio can operate while charging.

4.2. Antenna Connections

• Антеннаи дохилӣ: For FM and SW reception, extend the telescopic antenna fully. For AM (MW) and LW reception, the radio utilizes an internal ferrite bar antenna.
• Антеннаҳои беруна:
  • FM/Ҷанубу Ғарбӣ: Connect an external FM or SW antenna to the BNC (50 Ohm) connector on the side of the radio. Use the provided BNC adapter if necessary.
  • AM/LW: For improved AM/LW reception, connect an external AM antenna to the AM + GND (500 Ohm) terminals on the rear panel.

4.3. Натиҷаи аудио

• Гӯшмонакҳо: Connect 3.5mm stereo headphones to the 'STEREO VIA EARPHONE' jack for private listening.
• Хатти баромади: Use the RCA (LEFT+RIGHT) line-out ports to connect the radio to an external ampдастгоҳи сабткунанда ё сабткунанда.

5. Дастурҳои истифодабарӣ

5.1. Фаъол/хомӯш

-ро пахш кунед POWER/SLEEP button located on the top right of the front panel to turn the radio on or off.

5.2. Интихоби банд

-ро пахш кунед ИНТИХОБИ БАНД button repeatedly to cycle through the available frequency bands: FM, AM (MW), LW, SW, and SSB.

5.3. Усулҳои танзим

• Rotary Tuning Knob: Rotate the large central tuning knob to adjust the frequency.
• Direct Frequency Entry: Using the remote control, enter the desired frequency directly using the number pad.
• AutoScan (ATS): -ро пахш кунед АТС button to automatically scan and store available stations within the current band into memory.
• Танзими дастӣ: -ро истифода баред +/- buttons (if available on remote/front panel) for step-by-step frequency adjustments.
• Ҳамҷӯрии хуб: Истифода баред ҲАМҶӮРИИ ХУБ knob for precise frequency adjustments, particularly useful for SSB reception.

5.4. Frequency Steps

The radio supports various tuning steps depending on the band:

• FM: 10 KHz / 100 KHz
• LW: 1 KHz / 9 KHz
• MW: 1 KHz / 9-10 KHz
• SW: 1 KHz / 5 KHz

5.5. Вазифаҳои хотира

The S-8800 can store up to 650 stations (FM 100, LW 100, MW 100, SW 250, SSB 100).

• Истгоҳи мағоза: Tune to the desired station, then press and hold the ХОТИР button until the display confirms storage.
• Recall Station: -ро пахш кунед ХОТИР button briefly, then use the tuning knob or number pad on the remote to select a stored memory location.

5.6. SSB (Single Side Band) Operation

1. Select the SSB band using the ИНТИХОБИ БАНД тугма.
2. -ро истифода баред USB/LSB switch to select either Upper Side Band (USB) or Lower Side Band (LSB).
3. Adjust the dedicated ҲАМҶӮРИИ ХУБ controller (± 10 Hz) for clear voice reception.

5.7. Назорати аудио

• Ҳаҷм: Сатҳи баромади аудиоро бо истифода аз тугма танзим кунед ҲАҶМ тугма.
• Бас/Требл: Истифода баред басс ва ТРЕБЛ knobs to adjust the audio tone to your preference.

5.8. Намоиш ва рӯшноӣ

The LCD display shows the current frequency, time, and other operational information. Press the НАМОИШ button to activate the backlight or set it to stay on. A visual signal meter indicates the strength of the received signal.

5.9. Вақтсанҷи ҳушдор ва хоб

• Огоҳӣ: Set an alarm to automatically turn on the radio at a specified time. Refer to the display controls for setting the alarm time.
• Вақти хоб: The radio can be set to automatically turn off after a period ranging from 1 to 120 minutes.

5.10. Функсияи қулф

-ро пахш кунед ҚУЛФ button to disable all controls and prevent accidental changes to settings. Press it again to unlock.

6. Нигоҳдорӣ

6.1. Тозакунӣ

Wipe the radio with a soft, dry cloth. Do not use abrasive cleaners, solvents, or strong chemicals, as these may damage the finish or internal components.

6.2. Нигоҳубини батарея

If the radio will not be used for an extended period, remove the 18650 Li-ion batteries from the main unit and the AAA batteries from the remote control to prevent leakage and damage.

6.3. Нигоҳдорӣ

Store the radio in a cool, dry place, away from direct sunlight, high humidity, and extreme temperatures. Protect it from dust and physical impact.

7. Баррасии мушкилот

If you encounter issues with your TECSUN S-8800, please refer to the following common problems and solutions:

• Не қудрат:
  • Ensure the 18650 Li-ion batteries are correctly installed and fully charged.
  • Verify the USB-MiniUSB cable is properly connected for AC power or charging.
  • Тасдиқ кунед POWER/SLEEP тугма пахш карда шуд.
• Қабули бад:
  • Fully extend the telescopic antenna for FM/SW bands.
  • Try connecting an external antenna to the appropriate BNC or AM/GND terminals.
  • Adjust the radio's position or location to minimize interference.
  • For AM/LW, rotate the radio to optimize the internal ferrite bar antenna's reception.
  • -ро тафтиш кунед ҲАСОСИЯТИИ РФ switch (DX/Local) for optimal signal handling.
• Овоз нест:
  • -ро тафтиш кунед ҲАҶМ сатҳи.
  • Ensure headphones are not connected if expecting sound from the internal speaker.
  • Verify that the correct band and frequency are selected.
• SSB Distortion:
  • Бодиққат танзим кунед ҲАМҶӮРИИ ХУБ knob for clear voice reception.
  • Ensure the correct USB/LSB mode is selected for the signal you are trying to receive.

8. Мушаххасоти

9. Маълумот дар бораи кафолат

This product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your package or contact your retailer for specific terms and conditions regarding warranty coverage and service. Keep your purchase receipt as proof of purchase.

10. Дастгирии муштариён

For technical assistance, troubleshooting, or service inquiries, please contact your local dealer or the point of purchase. When contacting support, please have your product model (S-8800) and purchase details readily available for faster service.
