Муқаддима
Ташаккур ба шумо барои харидasing the Leadjoy Xeno Plus Game Controller. This controller is designed to provide a versatile and high-performance gaming experience across multiple platforms. This manual will guide you through the setup, operation, and maintenance of your new controller to ensure optimal performance and longevity.
Маҳсулот ба охир расидview ва ҷузъҳо
The Leadjoy Xeno Plus controller offers advanced features such as multi-mode connectivity, TMR joysticks, microswitch buttons, and customizable triggers. Familiarize yourself with the controller's components and included accessories.
Мундариҷаи баста:
- Leadjoy Xeno Plus Game Controller Unit
- Смарт пуркунандаи барқ
- Replaceable Magnetic Cover (Clear Blue)
- Replaceable Cross D-pad
- Стикерҳои ороишӣ
- Сими пуркунандаи USB-C
- Дастури дастурӣ
Тарҳбандии контроллер:
Тасвир: тамомview of the Leadjoy Xeno Plus Game Controller highlighting its various features and components, including TMR sticks, microswitch buttons, dual triggers, and back buttons.
Image: The complete package contents of the Leadjoy Xeno Plus Game Controller, including the controller, charging dock, USB-C cable, and interchangeable parts.
Ташкил кардан
1. Пуркунии ибтидоӣ
- Connect the USB-C charging cable to the smart charging dock and a power source.
- Place the Leadjoy Xeno Plus controller onto the smart charging dock. The controller will automatically power off and begin charging.
- Allow the controller to fully charge before first use. The LED indicators on the controller will show charging status.
2. Пайвастшавӣ ба дастгоҳҳо
The Leadjoy Xeno Plus supports three connection modes: Wired, 2.4GHz Wireless, and Bluetooth.
Image: The Leadjoy Xeno Plus controller connected to various devices, illustrating its wired, 2.4G wireless, and Bluetooth connectivity options for PC, Switch, Android, and iOS.
Пайвасти симӣ:
- Connect the USB-C cable directly from the controller to your PC or compatible device.
- The controller will be automatically recognized.
2.4GHz Wireless Connection (via Dock):
- Plug the 2.4GHz wireless receiver (located in the smart charging dock) into a USB port on your PC or compatible device (e.g., Xbox Series S/X with R20 receiver, sold separately).
- The controller will automatically connect to the receiver.
Пайвасти Bluetooth:
- Press and hold the Bluetooth pairing button on the controller until the LED indicator flashes rapidly.
- On your device (Nintendo Switch, PC, Mac, iOS, Android), go to Bluetooth settings and select "Leadjoy Xeno Plus" from the list of available devices.
- Once paired, the LED indicator will become solid.
- For Nintendo Switch, the controller supports one-click wake-up from sleep mode.
Дастурҳои амалиётӣ
Фаъол / Хомӯш:
- To power on, press the Home button.
- To power off, press and hold the Home button for a few seconds, or place it on the smart charging dock.
TMR Joysticks and Microswitch Buttons:
The controller features advanced TMR joysticks for high precision and durability, minimizing drift over time. The ABXY buttons utilize microswitches for a tactile and responsive click.
Тасвир: Диаграммаи муфассал нишон медиҳадasing the internal components and features of the TMR joysticks, emphasizing high-level sampling, resolution, linear feel, ultra-low latency, durability, and full customization.
Dual Trigger Modes:
The Xeno Plus controller features dual-mode triggers, allowing you to switch between Hair Trigger and Full Trigger modes based on your game type.

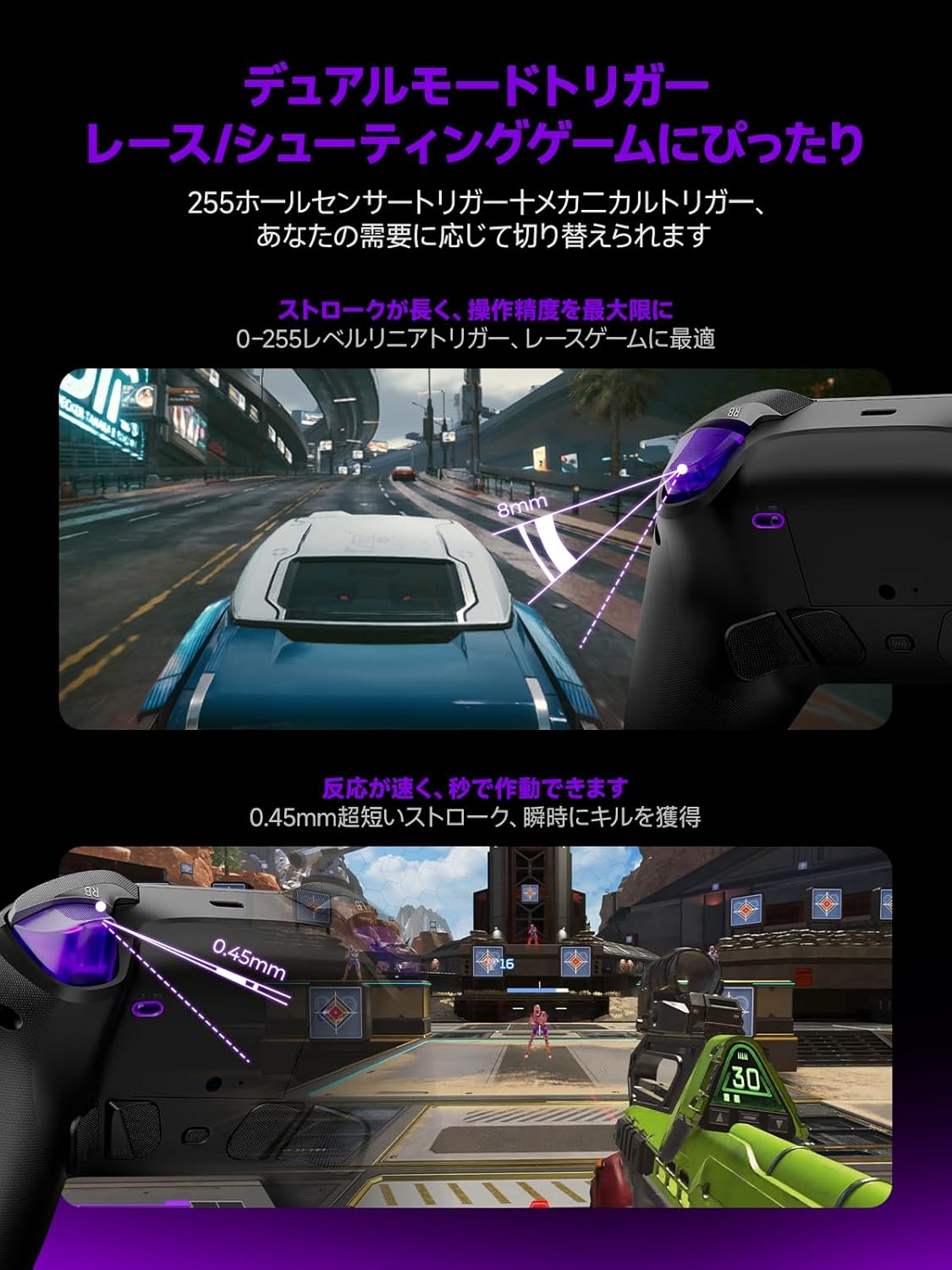

Image: Illustrations demonstrating the dual trigger modes. The top image shows a full trigger pull (8mm) ideal for precise throttle control in racing games. The bottom image shows a hair trigger pull (0.45mm) for rapid firing in shooting games.
- Full Trigger Mode: Ideal for racing games, providing analog input for precise throttle and brake control.
- Ҳолати триггери мӯй: Optimized for FPS games, offering a short travel distance for instant firing and quicker reactions.
- To switch modes, use the dedicated switch located on the back of the controller.
Customizable Back Buttons:
The controller includes four customizable back buttons (R5, R4, L4, L5) that can be mapped to various functions or macros for enhanced gameplay.
Сурат: А view of the back of the Leadjoy Xeno Plus controller, highlighting the four customizable back buttons (R5, R4, L4, L5) and their mechanical microswitch design.
- Refer to the dedicated application for detailed instructions on mapping and creating macros for these buttons.
Motion Aim:
The controller supports motion aim, compatible with all games, offering precise control through gyroscope technology.

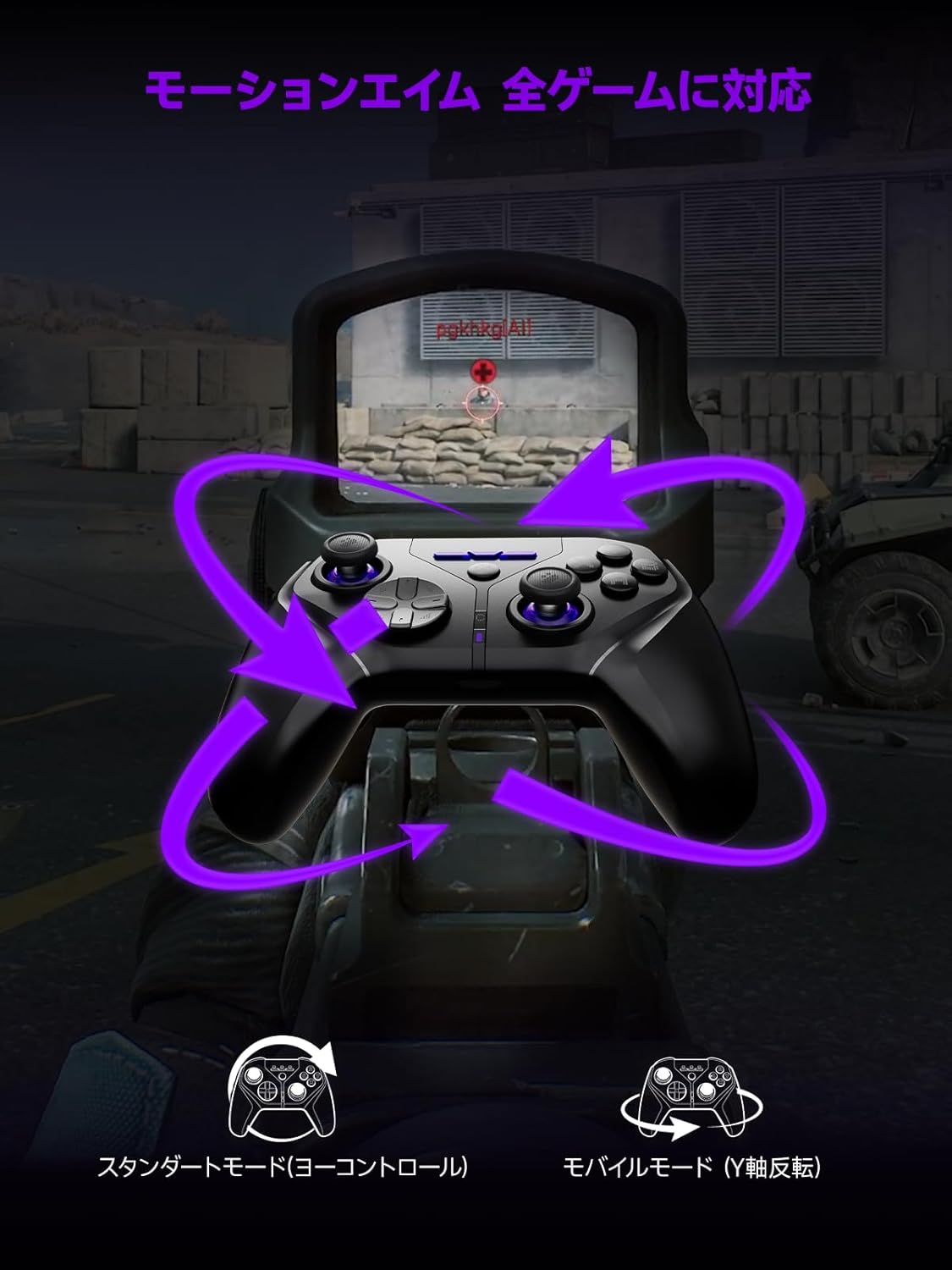

Image: A visual representation of the motion aim feature, showing how tilting the controller translates to in-game aiming, with options for standard (yaw control) and mobile (Y-axis inversion) modes.
- The controller features 1000Hz 6-axis gyroscope control for precise motion aiming.
- Settings for motion aim can be adjusted via the dedicated application.
Функсияи NFC:
The controller is fully compatible with NFC functions, including amiibo for Nintendo Switch.
- To use NFC, place your amiibo figure or card on the designated NFC touchpoint on the controller.
- Ensure your game supports amiibo functionality.
Нигоҳдорӣ
Тозакунӣ:
- Wipe the controller with a soft, dry cloth.
- Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.
Нигоҳубини батарея:
- Аз таъсири контроллер дар ҳарорати аз ҳад зиёд худдорӣ кунед.
- For long-term storage, charge the battery to approximately 50% and store in a cool, dry place.
- The smart charging dock includes overcharge protection to preserve battery life.
Мушкилкушо
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Контроллер фаъол нест. | Батареяи кам. | Charge the controller using the smart charging dock or USB-C cable. |
| Тавассути Bluetooth пайваст шуда наметавонад. | Not in pairing mode; device Bluetooth off; interference. | Ensure controller is in pairing mode (flashing LED). Check device Bluetooth settings. Move closer to the device. |
| 2.4GHz wireless connection issues. | Receiver not properly connected; interference. | Ensure the 2.4GHz receiver is securely plugged into a USB port. Reduce distance between controller and receiver. |
| Тугмаҳо ё джойстикҳо ҷавоб намедиҳанд. | Software glitch; low battery; physical damage. | Restart the controller. Ensure battery is charged. If issues persist, contact support. |
| Controller not recognized by PC. | Driver issues; incorrect mode. | Ensure controller is in the correct mode (Xinput/Dinput if applicable). Try a different USB port. Update PC drivers. |
Мушаххасоти
- Модели: Xeno Plus
- Пайвастшавӣ: Симӣ (USB-C), бесими 2.4GHz, Bluetooth
- Сатҳи овоздиҳӣ: 1000 Гц
- Ҷойстикҳо: TMR (Magnetic Hall Effect)
- Тугмаҳо: Microswitch ABXY buttons, 4 customizable back buttons
- Триггерҳо: Dual-mode (Hair Trigger / Full Trigger)
- Батарея: 1000mAh (up to 30+ hours playtime)
- Пур кардан: Smart Charging Dock (USB-C)
- Вибрация: HD Vibration (ALPS linear motors)
- Равшанӣ: Customizable RGB
- Хусусиятҳои махсус: NFC (amiibo support), One-click Switch wake-up
- Мутобиқат: Nintendo Switch (1/2/Lite/OLED), PC (Xinput/Dinput), iOS 13.4+, Android 10+, Steam Deck
- Андозаҳои маҳсулот: 17.5 х 17.5 х 10 см
- Вазни маҳсулот: 230 гр
- пайдоиш: Хитой
Кафолат ва дастгирӣ
Кафолат:
The Leadjoy Xeno Plus Game Controller comes with a 12-month warranty covering initial defects and operational malfunctions. Please retain your proof of purchase for warranty claims.
Дастгирии муштариён:
For any questions, technical assistance, or warranty claims, please contact Leadjoy customer support through the retailer where you purchased the product or visit the official Leadjoy webсайт барои захираҳои дастгирӣ.
