Lutron Diva DVSCELV-300P-BI Electronic Low-Voltage Дастури дастурии Dimmer

1. Маҳсулот ба охир расидview

The Lutron Diva DVSCELV-300P-BI is a 300-watt single pole electronic low-voltage dimmer designed to control lighting from one location. It features a large paddle switch for on/off control and a linear slider for precise dimming adjustments. This dimmer is specifically for use with electronic low-voltage lighting applications. It allows users to adjust light levels, contributing to energy savings and creating desired room atmospheres. Wallplates are sold separately.

2. Маълумот оид ба бехатарӣ

• ҲУШДОР: ШОК ХАВФ. May result in serious injury or death. Turn OFF power at the circuit breaker or fuse box before installing.
• Мувофиқи ҳама рамзҳои электрикии миллӣ ва маҳаллӣ насб кунед.
• Агар шумо ба ягон қисми ин дастурҳо боварӣ надошта бошед, ба электрики ботаҷриба муроҷиат кунед.
• Do not use with standard incandescent, magnetic low-voltage, or fluorescent lighting. This dimmer is for electronic low-voltagтанҳо барномаҳои e.
• Ватти умумиро таъмин кунедtage of the connected lighting does not exceed 300 watts.

3. Мундариҷаи баста

• Lutron Diva DVSCELV-300P-BI Dimmer
• Wire connectors (various colors, typically yellow and blue)
• Дастури насб

Note: Wallplate is not included and must be purchased separately.

4. Мушаххасоти

5. Насбкунӣ

Before beginning installation, ensure you have turned off power at the circuit breaker. This dimmer is designed for single-pole applications where the light is controlled from one switch. A neutral wire connection is typically required for proper operation.

5.1. Тайёрӣ

1. Хомӯш кардани барқ: Locate your circuit breaker panel and turn off the power to the light switch you are replacing.
2. Хомӯш будани барқро тасдиқ кунед: Flip the existing switch on and off to confirm the power is disconnected.
3. Remove existing wallplate and switch: Unscrew the wallplate and then the mounting screws holding the old switch in place. Carefully pull the switch out from the wall box.
4. Identify wires: Note the connections of the existing wires. Typically, a single-pole switch will have two load/line wires and a ground wire. Some dimmers may require a neutral wire (usually white).

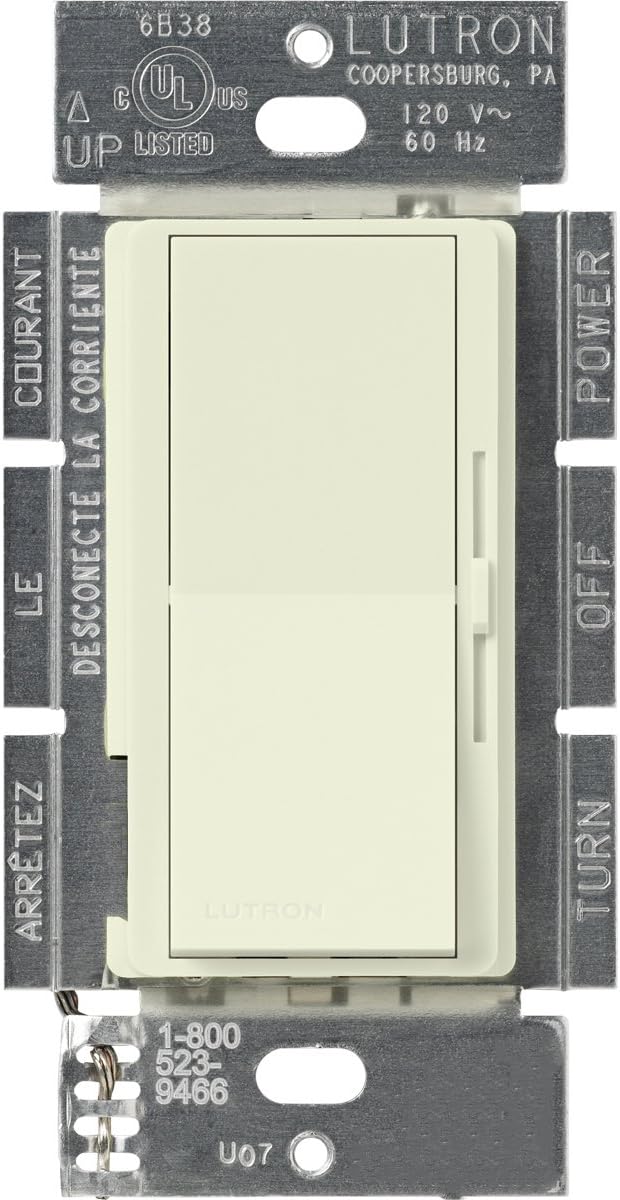

Тасвир: Пеш view of the Lutron Diva DVSCELV-300P-BI Electronic Low-Voltage Dimmer, showing the paddle switch and linear slider.

Тасвир: тараф view of the Lutron Diva DVSCELV-300P-BI Dimmer, illustrating the pre-stripped wires for connection.

5.2. Васл кардани симҳои диммер

The Lutron Diva DVSCELV-300P-BI dimmer typically has three wires: a green wire (ground), a black wire (hot/line), and a yellow wire (load). Some models may also include a white wire (neutral).

1. Сими заминӣ: Connect the green wire from the dimmer to the bare copper or green ground wire in the wall box using a wire connector.
2. Сими гарм/хат: Connect the black wire from the dimmer to the incoming hot/line wire from the circuit breaker (often black or red) using a wire connector.
3. Сими боркунӣ: Connect the yellow wire from the dimmer to the load wire that goes to the light fixture (often black or red) using a wire connector.
4. Neutral Wire (if applicable): If your dimmer has a white wire and your wall box has a neutral wire bundle (usually white wires twisted together), connect the white dimmer wire to the neutral bundle using a wire connector. If no neutral wire is present in the wall box, cap off the white wire from the dimmer with a wire connector.

5.3. Finishing Installation

1. Secure the dimmer: Carefully push all wires back into the wall box. Mount the dimmer to the wall box using the provided screws.
2. Attach wallplate: Install the coordinating wallplate (sold separately) over the dimmer.
3. Барқарор кардани қувваи барқ: Return to your circuit breaker panel and turn the power back on.

Image: The Lutron Diva DVSCELV-300P-BI Dimmer installed in a wall, ready for use.

6. Амалиёт

• Фурӯзон/хомӯш кардани чароғҳо: Press the large paddle switch to turn the connected lights on or off.
• Танзими равшанӣ: Use the linear slider located next to the paddle switch to adjust the light level. Slide up for brighter lights and down for dimmer lights.
• Preset Dimming: The dimmer will return to the previously set light level when turned back on.

Image: A hand demonstrating the operation of the Lutron Diva DVSCELV-300P-BI Dimmer, highlighting the paddle switch and linear slider.

7. Нигоҳдорӣ

• Тозакунӣ: Clean the dimmer and wallplate with a soft, damp матоъ. Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.
• Қисмҳои аз ҷониби корбар хидматшаванда нест: Дар дохили диммер қисмҳои барои таъмир мувофиқ мавҷуд нестанд. Кӯшиш накунед, ки дастгоҳро кушоед ё таъмир кунед.

8. Баррасии мушкилот

9. Кафолат ва дастгирӣ

For warranty information, technical support, or further assistance, please visit the official Lutron website or contact Lutron customer service. Keep your purchase receipt for warranty claims.

Lutron Support: Lutron.com/support
