Дастури корбарии сканери ҳуҷҷатҳои Avision AV 320D2+ A3

1. Муқаддима ва зиёдаview

The Avision AV 320D2+ is a high-performance A3 document scanner designed for efficient and reliable document digitization. Featuring a 600 dpi optical resolution and USB connectivity, it is capable of handling a wide range of document sizes up to A3, making it suitable for various professional environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your scanner.

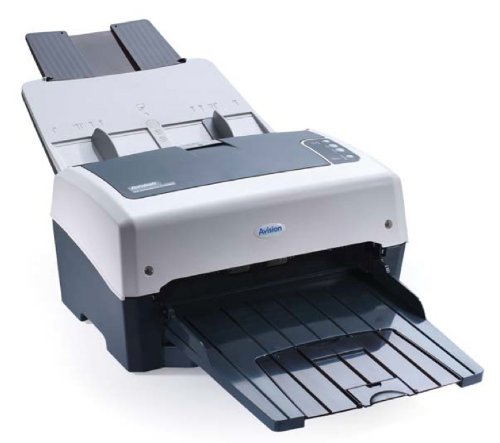

Figure 1: Avision AV 320D2+ A3 Document Scanner. This image displays the Avision AV 320D2+ A3 Document Scanner from a front-right perspective. The scanner is light grey and dark grey, featuring an automatic document feeder (ADF) at the top with paper guides visible, and an extended output tray at the front. The Avision logo is visible on the front panel.

2. Танзимот

2.1 Кушодани баста

1. Сканер ва тамоми замимаҳоеро, ки аз бастабандӣ боэҳтиёт хориҷ кунед.
2. Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳои дар рӯйхат номбаршуда мавҷуд аст.
3. Remove all protective tapes and packing materials from the scanner, including any inside the document feeder and output tray.

2.2 Пайваст кардани сканер

1. Place the scanner on a stable, flat surface near your computer.
2. Connect the power adapter to the scanner's power input and then plug it into an electrical outlet.
3. Connect one end of the supplied USB cable to the USB port on the scanner and the other end to an available USB port on your computer.
4. Power on the scanner using the power button, typically located on the side or rear panel.

2.3 Насби нармафзор

Before using the scanner, you must install the necessary drivers and scanning software. Refer to the included software CD or visit the official Avision website for the latest drivers and utilities.

1. Insert the software installation CD into your computer's CD/DVD drive, or download the software package from the Avision support webсайт.
2. Follow the on-screen instructions to install the scanner drivers and bundled scanning applications. It is recommended to install all provided software for full functionality.
3. Агар пас аз ба итмом расидани насб талаб карда шавад, компютери худро бозоғоз намоед.

3. Истифода бурдани сканер

3.1 Боркунии ҳуҷҷатҳо

• Таъминкунандаи худкори ҳуҷҷат (ADF): Open the ADF input tray. Adjust the paper guides to fit the width of your documents. Place the documents face-down with the top edge first into the ADF. The standard sheet capacity is 50 sheets.
• Ensure documents are free of staples, paper clips, or any foreign objects that could damage the scanner.
• For mixed-size documents, ensure they are aligned properly to prevent skewing.

3.2 Basic Scanning Procedures

1. Load your documents into the ADF as described above.
2. Open your preferred scanning application (e.g., Avision Button Manager, TWAIN/ISIS compatible software).
3. Select the Avision AV 320D2+ as your scanner.
4. Choose your desired scanning settings (e.g., color mode, resolution, destination folder).
5. Initiate the scan from the software interface. The scanner will automatically feed and scan the documents.
6. Review the scanned images and save them to your desired location.

3.3 Танзимоти скан

The scanner supports various settings to optimize scan quality and file андоза:

• Қарор: Adjustable up to 600 dpi. Higher resolution provides better image quality but results in larger file андозаҳо.
• Реҷаи ранг: Options typically include Color, Grayscale, and Black & White (Binary).
• Сканкунии дуплекс: The AV 320D2+ supports duplex (two-sided) scanning, allowing you to capture both sides of a document in a single pass.
• Формати баромад: Common output formats include PDF, JPEG, TIFF, and searchable PDF.

4. Нигоҳдорӣ

4.1 Тоза кардани сканер

Regular cleaning ensures optimal performance and extends the life of your scanner.

• берунӣ: Сатҳи беруниро бо нарм пок кунед, гamp, матои бехат. Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.
• Сатҳи шиша: Аз матои мулоим истифода баред гampened with a non-abrasive glass cleaner to clean the scanner's glass surfaces (if applicable).
• Роллерҳо: Роликхои хуроки чорворо дар вакт-вакташ бо матои бепуш сабук тоза кардан дampбо спирти изопропилӣ барои тоза кардани чанги коғаз ва пасмондаҳо.
• Always power off and unplug the scanner before cleaning.

5. Баррасии мушкилот

This section addresses common issues you might encounter with your Avision AV 320D2+ scanner.

6. Мушаххасоти

Key technical specifications for the Avision AV 320D2+ scanner:

• Навъи маҳсулот: Сканери ҳуҷҷат
• Формати коғаз: A3
• Қарор: 600 dpi (оптикӣ)
• Пайвастшавӣ: USB
• Ранги: Сиёҳ/Сафед
• Вазн: Тақрибан 26.46 фунт (12 кг)
• Истеъмоли қувваи барқ: 38.4 Ватт
• Standard Sheet Capacity (ADF): 50 варақ
• Технологияи сенсори оптикӣ: CMOS
• Номи модел: AV320D2+
• Рақами намунавӣ: FT-0807H

7. Кафолат ва дастгирӣ

7.1 Кафолати истеҳсолкунанда

The Avision AV 320D2+ scanner typically comes with a Кафолати 2-солаи истеҳсолкунанда. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or visit the official Avision webсайт.

7.2 Дастгирии техникӣ

For technical assistance, driver updates, or further troubleshooting not covered in this manual, please contact Avision customer support. Support contact information can usually be found on the Avision official webсайт ё дар ҳуҷҷатҳое, ки бо сканери шумо пешниҳод шудаанд.

Note: Availability of spare parts and software updates may vary. Please check the manufacturer's official channels for the most current information.
