Дастури ивазкунии қатъкунии гармӣ / термостат Whirlpool W10480709

1. Муқаддима

This guide provides detailed instructions for the safe and effective replacement of the Whirlpool Part Number W10480709, a thermal cutoff or thermostat designed for various Whirlpool brand dryer models. This component plays a critical role in regulating dryer temperature and preventing overheating, ensuring safe operation.

Before beginning any repair, carefully read and understand all instructions and safety warnings.

2. Маълумот оид ба бехатарӣ

Огоҳӣ: Disconnect power to the dryer before servicing to avoid electrical shock. Failure to do so can result in serious injury or death.

• Ҳамеша таҷҳизоти муҳофизатии шахсии мувофиқ, аз қабили дастпӯшак ва айнаки муҳофизатӣ пӯшед.
• Ensure the dryer has cooled down completely before handling internal components.
• Агар шумо дар бораи ягон қадами иҷрошуда итминон надошта бошед, бо мутахассиси соҳаи таҷҳизоти барқӣ машварат кунед.
• Кӯдакон ва ҳайвоноти хонагиро аз ҷои кор дур нигоҳ доред.
• Properly dispose of old parts according to local regulations.

3. Installation Guide (Replacement)

This section outlines the general steps for replacing the thermal cutoff/thermostat. Specific disassembly procedures may vary by dryer model. Refer to your dryer's service manual for model-specific instructions.

3.1. Воситаҳои зарурӣ

• Маҷмӯи буранда (Филлипс ва сари ҳамвор)
• Nut driver set or socket wrench set
• Анбӯри сӯзандор
• Multimeter (optional, for testing continuity)

3.2. Тайёрӣ

1. Хомӯш кардани барқ: Unplug the dryer from the electrical outlet or turn off the circuit breaker supplying power to the dryer.
2. Дастрасӣ ба панели пушти: Move the dryer away from the wall to access the rear panel.
3. Панели пуштиро хориҷ кунед: Use a screwdriver or nut driver to remove the screws securing the rear access panel. Carefully set the panel aside.

3.3. Component Identification and Replacement

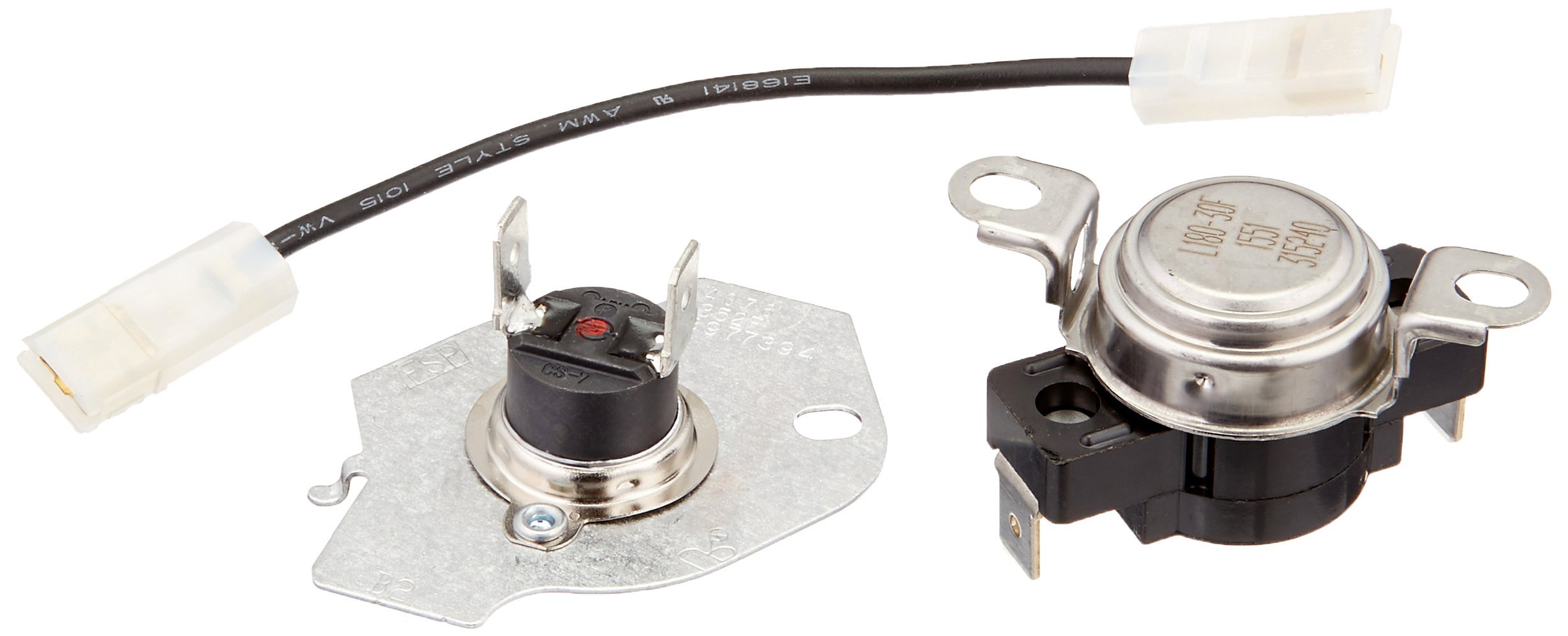

Image showing the Whirlpool Part Number W10480709, a thermal cutoff or thermostat component. This part is typically located near the heating element or blower housing.

1. Locate the Part: Identify the existing thermal cutoff or thermostat. It is usually a small, disc-shaped component with two wires connected to it, often mounted on the blower housing or near the heating element.
2. Ноқилҳоро ҷудо кунед: Using needle-nose pliers, carefully pull the wires off the terminals of the old component. Note their original positions if they are not identical.
3. Қисми кӯҳнаро хориҷ кунед: Unscrew or unclip the old thermal cutoff/thermostat from its mounting bracket.
4. Қисми навро насб кунед: Position the new Whirlpool W10480709 part in the same location and secure it with the screws or clips.
5. Пайваст кардани симҳо: Reconnect the wires to the terminals of the new component. Ensure connections are snug.

3.4. Reassembly and Testing

1. Панели қафоро иваз кунед: Reattach the rear access panel, ensuring all screws are securely fastened.
2. Барқарор кардани қудрат: Plug the dryer back into the electrical outlet or turn on the circuit breaker.
3. Амалиёти озмоишӣ: Run a short cycle to confirm the dryer heats and operates correctly.

4. Нигоҳдорӣ

To prolong the life of your dryer and its components, including the thermal cutoff, regular maintenance is recommended:

• Филтри тозаи линт: Clean the lint filter before or after every load.
• Inspect Venting: Periodically check and clean the dryer's exhaust vent system to ensure proper airflow. Restricted airflow can cause overheating and premature failure of thermal components.
• Аз изофабор канорагирӣ кунед: Do not overload the dryer, as this can also lead to inefficient drying and increased heat.

5. Баррасии мушкилот

If your dryer still exhibits issues after replacing the thermal cutoff/thermostat, consider the following:

• Гармӣ нест: If the dryer runs but produces no heat, check other heating circuit components such as the heating element, cycling thermostat, or thermal fuse.
• Аз ҳад зиёд гармшавӣ: If the dryer overheats and shuts off, inspect the exhaust vent for blockages and ensure proper airflow. The new thermal cutoff may be tripping due to an underlying issue.
• Не қудрат: If the dryer has no power at all, check the circuit breaker and the power cord.
• Кӯмаки касбӣ: If the problem persists, it is advisable to contact a qualified appliance repair technician.

6. Мушаххасоти

7. Кафолат ва дастгирӣ

For specific warranty information regarding your Whirlpool W10480709 part, please refer to the documentation included with your purchase or contact Whirlpool customer support directly. Genuine Whirlpool parts typically come with a manufacturer's warranty against defects.

For technical support or further assistance, visit the official Whirlpool webсайт ё шӯъбаи хидматрасонии муштариёни онҳо тамос гиред.

Расмии Whirlpool Webсайт: www.whirlpool.com
