Дастури истифодабарии сарлавҳа ва чаҳорчӯбаи пояи Glideaway BB24 Bolt-On

1. Маҳсулот ба охир расидview

The Glideaway BB24 Bolt-On Headboard and Footboard Frame is designed to provide sturdy support for your mattress and box spring, accommodating both Twin and Full size beds. This frame is specifically engineered to attach to existing bolt-on style headboards and footboards, whether they are made of brass, metal, or wood. It features multi-slotted brackets for versatile attachment and includes steel cross support bars with adjustable glides for enhanced stability and mattress longevity.

2. Маълумот оид ба бехатарӣ

• Муҳим: This bed frame is designed for use with both a headboard and a footboard that feature bolt-on attachment points.
• Do Not Use Standalone: It is not recommended to use this frame as a stand-alone unit without a headboard and footboard. The bolt-on mounting plates extend beyond the ends of the box spring, which can pose a tripping hazard to shins, ankles, and feet.
• Ensure all bolts and connections are securely tightened before use to prevent instability.
• Ҳангоми васлкунӣ қисмҳои хурдро аз кӯдакон дур нигоҳ доред.

3. Мундариҷаи баста

Лутфан тафтиш кунед, ки ҳамаи ҷузъҳо пеш аз оғози васлкунӣ мавҷуданд:

• 2 x Angle Iron Side Rails (approximately 77 inches long)
• 2 x Steel Cross Support Bars with Legs
• 4 x Adjustable Glides (pre-attached or to be attached to legs)
• Multi-slotted Headboard and Footboard Brackets (integrated into side rails)
• Necessary Nuts and Bolts for assembly (may vary, typically provided with headboard/footboard)

4. Дастурамал оид ба насб ва васлкунӣ

Follow these steps to assemble your Glideaway BB24 bed frame:

1. Prepare Your Headboard and Footboard: Ensure your headboard and footboard are in place and have two bolt-on through holes on each leg for attachment.
2. Роҳҳои паҳлӯро ба сарлавҳа часпонед: Align one end of a side rail with the attachment points on one leg of your headboard. Use appropriate nuts and bolts (not always included with frame) to securely fasten the side rail to the headboard. The multi-slotted brackets allow for slight variations in headboard widths. Repeat for the other side rail and headboard leg.
3. Роҳҳои паҳлӯро ба тахтаи пойгоҳ пайваст кунед: Once the headboard is attached, align the free ends of the side rails with the attachment points on the footboard legs. Securely fasten them using nuts and bolts.
4. Install Cross Support Bars: Position the two steel cross support bars between the side rails. These bars are designed to provide central support for your mattress and box spring. Ensure the legs of the cross support bars are facing downwards.
5. Adjust Glides: The frame includes adjustable glides on the legs. Adjust these glides to ensure the bed frame sits firmly and level on the floor, preventing wobbling.

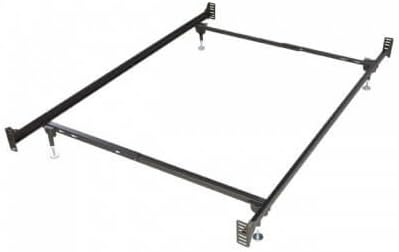

Расми 1: Fully assembled Glideaway BB24 bed frame, showing the side rails, cross supports, and attachment points for a headboard and footboard. This image illustrates the overall structure of the frame.

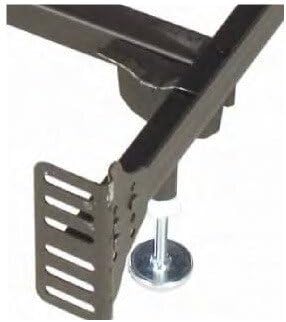

Расми 2: Муфассал view of the multi-slotted bracket and an adjustable glide on a leg of the Glideaway BB24 bed frame. This shows how the frame connects to a headboard or footboard and how the height can be adjusted for stability.

5. Дастурҳои истифодабарӣ

Once assembled and securely attached to your headboard and footboard, the Glideaway BB24 frame is ready for use. Place your box spring directly onto the frame, ensuring it is centered and fully supported by the side rails and cross support bars. Then, place your mattress on top of the box spring. The frame provides a stable foundation, meeting mattress warranty requirements and preventing sagging.

6. Нигоҳдорӣ

• Санҷиши мунтазам: Давра ба давра ҳамаи болтҳо ва пайвастҳоро тафтиш кунед, то боварӣ ҳосил кунед, ки онҳо сахт мемонанд. Агар лозим бошад, дубора сахт кунед.
• Тозакунӣ: Чаҳорчӯбаи металлиро бо таблиғ пок кунедamp cloth to remove dust and debris. Avoid harsh chemical cleaners that may damage the finish.
• Glide Adjustment: If the bed becomes wobbly, re-adjust the glides to ensure even contact with the floor.

7. Баррасии мушкилот

• Чаҳорчӯбаи кат ларзиш дорад: Ensure all bolts connecting the side rails to the headboard and footboard are securely tightened. Check that the cross support bars are properly seated and their legs are making firm contact with the floor. Adjust the glides as needed to level the frame.
• Headboard/Footboard Does Not Align: The multi-slotted brackets are designed to accommodate slight variations. Try different slots to find the best fit. If significant misalignment occurs, verify that your headboard and footboard are compatible with a bolt-on frame.
• Садои чир-чир: Squeaking can often be resolved by re-tightening all bolts on the frame and ensuring the cross support legs are stable. If the issue persists, check the contact points between the box spring and the frame.

8. Мушаххасоти

• Модели: BB24
• Мутобиқат: Twin (38 x 75 inches) and Full (54 x 75 inches) size mattresses and box springs. Designed for bolt-on headboards and footboards.
• Side Rails: Two 1 ¼ inch angle iron side rails, approximately 77 inches long.
• Дастгирӣ: Two heavy-duty steel cross support bars with a total of 4 legs.
• Вижагиҳо: Multi-slotted head and footboard brackets, adjustable glides.
• Мавод: Пӯлод

9. Кафолат ва дастгирӣ

For specific warranty information regarding your Glideaway BB24 bed frame, please refer to the documentation provided at the time of purchase or visit the official Glideaway website. For further assistance, technical support, or to inquire about replacement parts, please contact Glideaway customer service directly.
