1. Муқаддима
This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your DuroMax XP7HPE 208cc Electric Start Gas Engine. This 4-stroke OHV engine is designed for multi-use applications, including powering lawn and garden equipment, go-karts, pressure washers, log splitters, and water pumps. Please read this manual thoroughly before operating the engine to ensure proper use and to prevent injury or damage.
Тасвири 1.1: Пеш view of the DuroMax XP7HPE 208cc Electric Start Gas Engine, showcasing он кабуди c астasing and key components like the air filter and fuel tank.
2. Маълумот оид ба бехатарӣ
Огоҳӣ: Риоя накардани ин дастурҳои бехатарӣ метавонад боиси ҷароҳати вазнин ё марг гардад.
- Хавфи оксиди карбон: Engine exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Never operate the engine indoors or in poorly ventilated areas. Ensure adequate ventilation when operating.
- Бехатарии сӯзишворӣ: Gasoline is highly flammable and its vapors are explosive. Handle fuel with extreme care. Store gasoline in approved containers in a well-ventilated area away from ignition sources. Do not refuel a hot or running engine.
- Сатҳи гарм: The engine and exhaust system become very hot during operation and remain hot for a period after shutdown. Avoid contact with hot surfaces to prevent burns.
- Қисмҳои ҳаракаткунанда: Keep hands, feet, hair, and clothing away from moving parts such as the flywheel, fan, and recoil starter to prevent entanglement and injury.
- Бехатарии барқ: Ensure all electrical connections are secure and insulated. Do not operate the engine in wet conditions.
- Пешниҳоди 65 Огоҳӣ: This product can expose you to chemicals including carbon monoxide, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
3. Маҳсулот ба охир расидview and Key Components
The DuroMax XP7HPE engine features a robust design for reliable performance. Key components include:
- 208cc 4-Stroke OHV Engine: Provides efficient power output.
- Electric Start Key Switch Box: For convenient starting.
- Оғози бозгашт: Manual pull-start option.
- Large 1 Gallon Fuel Tank: Иҷрои кори дарозмуддатро имконпазир мекунад.
- Dual, Semi-dry, Oil Bath Air Cleaner: Ensures clean air intake.
- Transistorized Magneto Ignition System: For reliable spark.
- 3/4" Diameter Shaft: Standard size for various applications.
- EPA and CARB Approved: Meets environmental standards.
Тасвир 3.1: Тараф view of the engine, highlighting the carburetor and the air filter assembly, crucial for engine performance.
Тасвири 3.2: боло view of the engine, displaying the fuel tank and the oil fill cap, essential for fuel and oil management.
4. Танзим ва насб
4.1 Кушодан ва тафтиш
Carefully remove the engine from its packaging. Inspect for any shipping damage. Ensure all components listed in the packing list are present.
4.2 Илова кардани равғани мотор
The engine is shipped without oil. Before first use, add 0.6 liters (20 oz) of 30W engine oil. Locate the oil fill cap/dipstick (typically yellow) and fill to the upper mark on the dipstick. Do not overfill.
Тасвири 4.1: боло view of the engine, indicating the location of the fuel tank and the oil fill cap for initial setup.
4.3 Иловаи сӯзишворӣ
Fill the fuel tank with fresh, unleaded 87 octane gasoline. Do not use E85 or mixed fuels. Ensure the fuel cap is securely tightened after refueling.
4.4 Battery Connection (for Electric Start)
Connect the battery cables to the engine's electric start terminals. Ensure correct polarity (red to positive, black to negative). Secure connections to prevent vibration-induced disconnections.
Тасвир 4.2: Тараф view of the engine, illustrating the electric start motor and associated wiring connections.
4.5 Engine Mounting
Mount the engine securely to a stable, level surface using appropriate hardware. Refer to the engine mount diagram for bolt patterns and dimensions.
Image 4.3: Diagram illustrating the engine's mounting bolt pattern and dimensions for secure installation.
Тасвири 4.4: Поён view of the engine, clearly showing the four mounting points for attachment to equipment.
5. Амалиёт
5.1 Санҷиши пеш аз амалиёт
- Сатҳи равғани муҳаррикро тафтиш кунед.
- Сатҳи сӯзишвориро тафтиш кунед.
- Филтри ҳаворо тафтиш кунед.
- Боварӣ ҳосил кунед, ки ҳама пайвастҳо бехатаранд.
5.2 Ба кор андохтани муҳаррик
- Клапани сӯзишвориро ба ҳолати "ON" гардонед.
- Move the choke lever to the 'CLOSED' position (for cold starts). For warm starts, the choke may not be necessary.
- Move the throttle lever to the 'FAST' position.
- Оғози барқ: Turn the ignition key to the 'START' position. Release the key once the engine starts.
- Оғози бозгашт: Grasp the recoil starter handle and pull slowly until resistance is felt, then pull quickly and firmly. Repeat if necessary.
- Once the engine starts, gradually move the choke lever to the 'OPEN' position as the engine warms up.

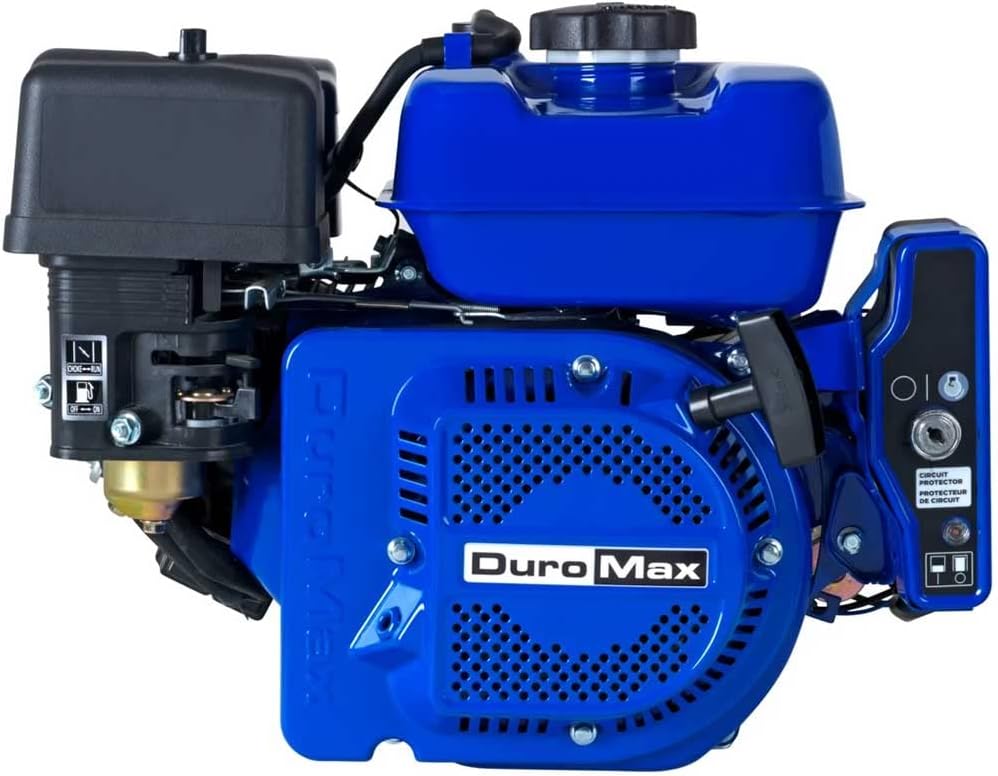

Тасвир 5.1: Тараф view of the engine, highlighting the recoil starter mechanism for manual engine ignition.
5.3 Қатъи мотор
- Move the throttle lever to the 'SLOW' or 'IDLE' position.
- Turn the ignition key to the 'OFF' position (for electric start models) or move the engine switch to 'OFF'.
- Клапани сӯзишвориро ба ҳолати "OFF" гардонед.
6. Нигоҳдорӣ
Regular maintenance is crucial for the longevity and optimal performance of your engine.
6.1 Барномаи таъмнр
| Адад | Ҳар як истифода | Every 25 Hrs / Monthly | Every 100 Hrs / Annually |
|---|---|---|---|
| Сатҳи равғани муҳаррикро тафтиш кунед | ✓ | ||
| Филтри ҳавои тоза | ✓ | ||
| Равғани моторро иваз кунед | ✓ | ||
| Шамъи оташгирандаро тафтиш кунед | ✓ | ||
| Inspect Fuel Line | ✓ |
6.2 Тартиби иваз кардани равған
Drain old oil when the engine is warm. Remove the oil drain plug and allow oil to drain completely. Replace the drain plug and refill with 0.6 liters (20 oz) of recommended engine oil (e.g., SAE 30W or 10W-30).
6.3 Тоза кардани филтри ҳаво
Remove the air filter cover and element. Clean the element with warm, soapy water, rinse thoroughly, and allow to air dry completely. Reinstall the dry filter element and cover.
7. Баррасии мушкилот
This section addresses common issues you might encounter with your engine.
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Мотор ба кор намеояд | No fuel, stale fuel, incorrect choke position, low oil, spark plug issue, battery dead (electric start) | Add fresh fuel, adjust choke, check oil level, inspect/clean/replace spark plug, charge/replace battery |
| Мотор суст кор мекунад | Dirty air filter, stale fuel, incorrect throttle, spark plug issue | Clean air filter, replace fuel, adjust throttle, inspect/clean spark plug |
| Вибрацияи аз ҳад зиёд | Loose mounting bolts, unbalanced load, internal engine issue | Tighten mounting bolts, ensure load is balanced, consult service center if persistent |
| Electric start not charging battery | Faulty charging system, loose connections, battery issue | Check connections, test charging system components, test battery |
8. Мушаххасоти
| Хусусият | Мушаххасоти |
|---|---|
| Модели | XP7HPE |
| Навъи муҳаррик | 4-инсулт, OHV |
| Ҷойивазкунӣ | 208cc (196ml) |
| Bore x Stroke | 68х54мм |
| Натиҷаи максимум | 3600 чархзании |
| Max Torque | 13.2 Нм / 9.7 фут-лб |
| Андозаи чоҳи | 3/4" Diameter, 2-3/8" Long, 3/16" Keyway |
| Охири чоҳ | 5/16" Size 24 UNF - Drilled and Tapped |
| Навъи сӯзишворӣ | Unleaded Gasoline (87 Octane) |
| Иқтидори зарфи сӯзишворӣ | 1 галлон |
| Иқтидори нафт | 0.6 литр (20 унс) |
| Системаро оғоз кунед | Оғози барқӣ, Оғози ақибнишинӣ |
| Системаи сӯзишворӣ | Магнитҳои транзисторӣ |
| Тозакунандаи ҳаво | Dual, Semi-dry, Oil Bath |
| Андозаҳои маҳсулот (L x W x H) | 17.3" x 16.7" x 17.12" |
| Вазни ашё | 44 фунт |
| Мутобиқати партовҳо | EPA and CARB Approved |
Image 8.1: Diagram summarizing key specifications and features of the DuroMax XP7HPE engine.
Тасвири 8.2: Наздик view of the engine's output shaft, indicating its 4-inch length for compatibility assessment.
9. Маълумот дар бораи кафолат
DuroMax products are typically covered by a limited warranty. For specific warranty terms, conditions, and registration procedures, please refer to the warranty card included with your product or visit the official DuroMax webсайт. Барои даъвоҳои кафолат далели хариди худро нигоҳ доред.
10. Дастгирии муштариён
For technical assistance, parts, or service inquiries, please contact DuroMax customer support. You can find contact information on the official DuroMax webсайт ё тавассути ҳуҷҷатҳои маҳсулоти шумо.
Таҷҳизоти барқии DuroMax
Webсайт: www.duromaxpower.com (Хурample link, лутфан расмиро тасдиқ кунед webсайт)
