1. Муқаддима
This manual provides essential information for the Traxxas Model 7530 Front and Rear Bulkhead with Differential Housing. These components are designed as direct replacement parts for Traxxas LaTrax 1/18 scale vehicles, including models such as the Teton and SST. The set includes both front and rear bulkheads, which also serve as the housings for the vehicle's differentials. Manufactured from durable materials, these parts are intended to restore or maintain the structural integrity and drivetrain functionality of your remote-controlled vehicle.
For detailed assembly and disassembly procedures specific to your vehicle model, always refer to your vehicle's original user manual or service guide.

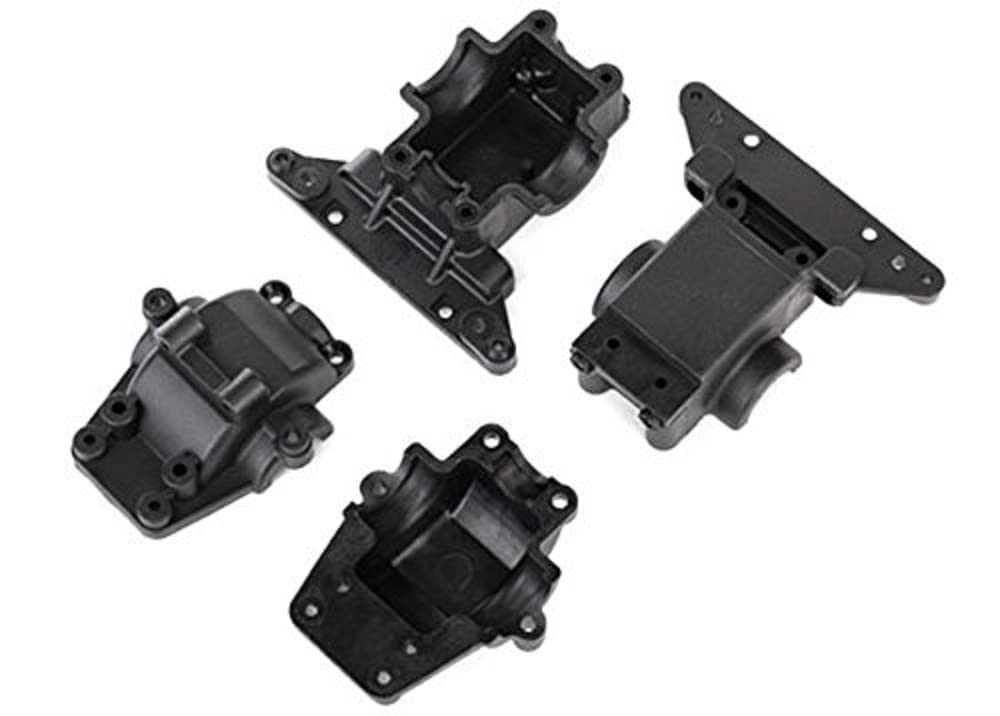

Image 1: The Traxxas Model 7530 Front and Rear Bulkhead with Differential Housing set. This image displays four black plastic components, which are the upper and lower halves of two bulkheads. Each bulkhead half is designed to house a differential and provide structural support for the vehicle's chassis and suspension components.
2. Танзим ва насб
The Traxxas Model 7530 bulkheads and differential housings are designed for direct replacement. Proper installation requires careful disassembly and reassembly of your LaTrax 1/18 scale vehicle's chassis and drivetrain components.
2.1 Воситаҳои зарурӣ
- Бурҷи хурди Филлипс
- Hex wrenches (sizes may vary, consult vehicle manual)
- Pliers (optional, for small parts)
- Grease for differential gears (if replacing or servicing differentials)
2.2 Қадамҳои насб (Дастури умумӣ)
- Vehicle Disassembly: Carefully disassemble the relevant sections of your LaTrax 1/18 scale vehicle to access the existing bulkheads and differential housings. This typically involves removing wheels, suspension arms, and chassis screws. Refer to your vehicle's specific manual for precise steps.
- Differential Transfer: If replacing only the bulkhead housings, transfer the internal differential gears and components from the old housing to the new Traxxas 7530 housing. Ensure all gears are properly seated and lubricated with appropriate differential grease.
- Ҷойгиркунии компонент: Position the new bulkheads and differential housings onto the chassis. Ensure proper alignment with suspension mounts and other connecting points.
- Пайвасткунакҳои бехатар: Reinstall all screws and fasteners, tightening them securely but without over-tightening, which can strip plastic threads.
- Бозсозӣ: Reassemble the remaining vehicle components, ensuring all parts are correctly installed and move freely.
- Санҷиши функсионалӣ: Before operating, manually check the movement of the suspension and drivetrain to ensure smooth operation and proper engagement of gears.
Муҳим: Always consult your specific LaTrax vehicle's instruction manual for detailed, model-specific installation procedures and torque specifications.
3. Принсипҳои фаъолият
The bulkheads and differential housings serve critical functions in your RC vehicle's performance:
- Differential Protection: They enclose and protect the differential gears from dirt, debris, and impacts, ensuring smooth power transfer to the wheels.
- Дастгирии сохторӣ: As integral parts of the chassis, bulkheads provide mounting points for suspension arms, shock towers, and other components, contributing to the vehicle's overall rigidity and handling characteristics.
- Ҳамоҳангсозӣ: They maintain the precise alignment of the drivetrain components, which is essential for efficient power delivery and preventing premature wear.
4. Нигоҳдорӣ
Regular maintenance of your bulkheads and differential housings will extend their lifespan and ensure optimal vehicle performance.
- Санҷиш: Periodically inspect the bulkheads for cracks, stress marks, or deformation, especially after impacts.
- Тозакунӣ: Clean the exterior of the bulkheads and surrounding areas to prevent dirt and debris buildup, which can hinder performance or cause wear.
- Differential Service: If you notice unusual noises or performance issues from the differentials, disassemble the housings to inspect the gears for wear and re-lubricate as needed.
- Санҷиши бастабандӣ: Ensure all screws securing the bulkheads are tight. Loose screws can lead to excessive play and potential damage.
5. Баррасии мушкилот
Addressing common issues related to bulkheads and differential housings.
- Excessive Play in Suspension/Drivetrain: Check for loose screws securing the bulkheads to the chassis or suspension components. Inspect the bulkheads for cracks or damage that might allow movement.
- Grinding Noises from Drivetrain: This often indicates issues within the differential. Disassemble the differential housing, inspect gears for wear or damage, and ensure proper lubrication.
- Vehicle Pulling to One Side: While many factors can cause this, inspect the bulkheads for any signs of warping or damage that might affect suspension geometry.
- Broken Bulkhead: If a bulkhead is visibly cracked or broken, it requires immediate replacement to restore structural integrity and protect internal components.
6. Мушаххасоти
| Аттрибут | Тафсилот |
|---|---|
| Рақами модел | 7530 |
| Навъи қисм | Front & Rear Bulkhead / Differential Housing |
| Мутобиқати | Traxxas LaTrax 1/18 Scale Vehicles (e.g., Teton, SST) |
| Материал | High-quality composite plastic |
| Андозаҳои маҳсулот | 3.1 x 7.35 x 1.7 дюйм (андозаи тахминии бастабандӣ) |
| Вазни ашё | 0.32 унция |
| Синну соли тавсияшудаи истеҳсолкунанда | 14 сол ва боло |
7. Кафолат ва дастгирӣ
Traxxas products are known for their quality and durability. For specific warranty information regarding the Traxxas Model 7530 bulkheads and differential housings, please refer to the official Traxxas website or contact Traxxas customer support directly. Keep your purchase receipt as proof of purchase.
Traxxas Customer Support:
For technical assistance, parts inquiries, or warranty claims, please visit the official Traxxas website or contact their customer service department. Contact information can typically be found on the Traxxas website or in your vehicle's original manual.
