Raindrip R675CT Analog 3-Dial Water Timer Instruction Manual

Муқаддима

The Raindrip R675CT Analog 3-Dial Water Timer is designed to automate your drip irrigation system, providing efficient and consistent watering for your garden. Its intuitive three-dial interface allows for easy programming of watering schedules, manual watering, and rain delays. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your water timer.

Тасвир: Пеш view of the Raindrip R675CT Analog 3-Dial Water Timer, showing its three control dials and hose connections.

Ташкил кардан

1. Насби батарея

The R675CT water timer is battery-operated. Ensure you have fresh batteries for proper operation. The battery compartment is typically located on the side or back of the unit.

Тасвир: Поён view of the water timer, highlighting the battery compartment for installation.

2. Пайвастшавӣ ба манбаи об

Connect the inlet of the water timer directly to an outdoor faucet or hose bibb. The timer is compatible with Garden Hose Thread (GHT). If connecting to a different tubing size, an appropriate adapter (not included) may be required.

Image: The Raindrip R675CT water timer securely attached to an outdoor faucet, ready for use.

3. Пайвастшавӣ ба системаи обёрӣ

Connect your drip irrigation supply tubing or hose to the outlet of the water timer. Ensure all connections are tight to prevent leaks.

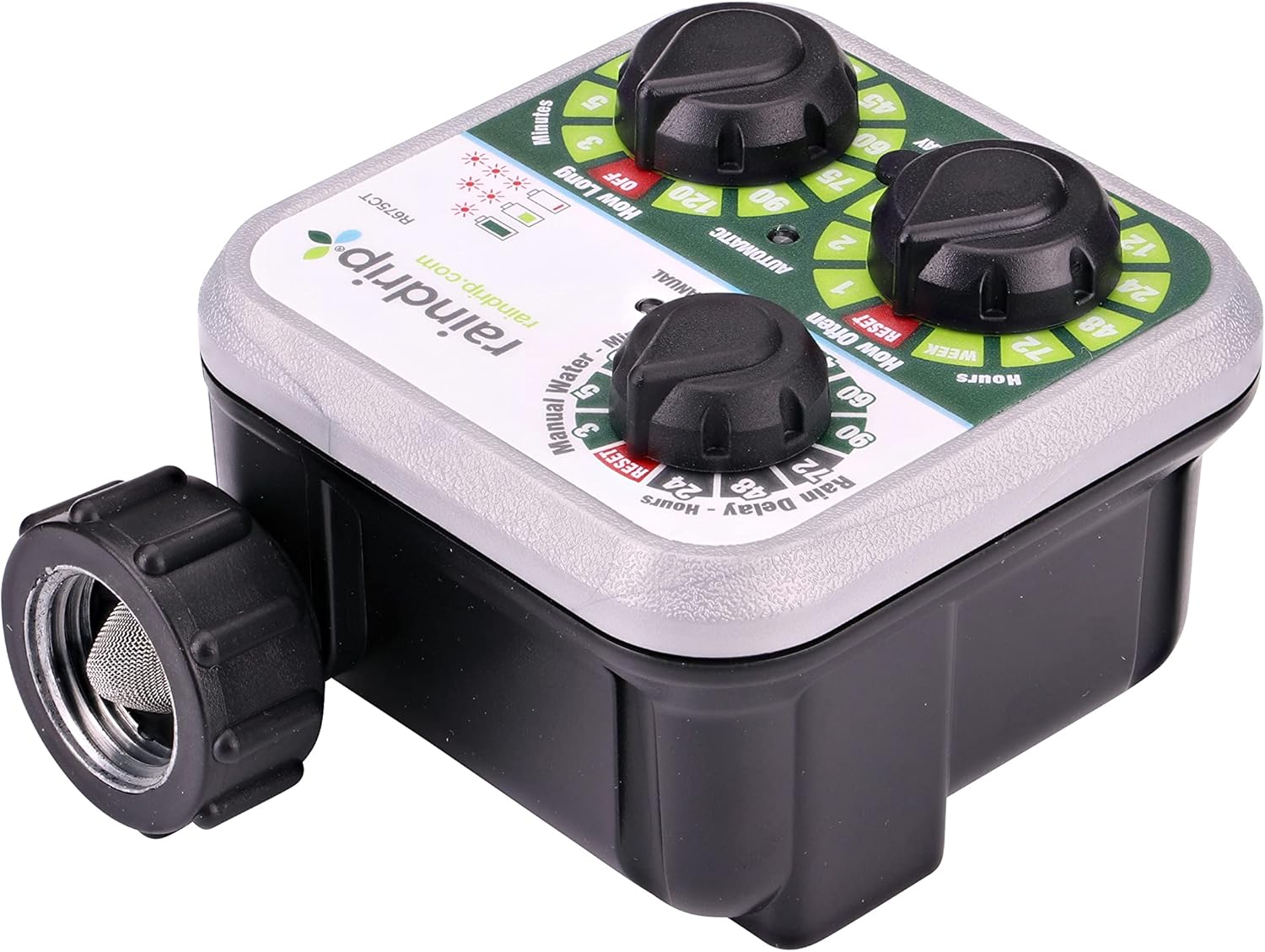

Тасвир: тараф view of the water timer, illustrating the inlet connection at the top and the outlet connection at the bottom for the irrigation system.

Дастурҳои амалиётӣ

The Raindrip R675CT features three easy-to-use control dials for programming your watering schedule.

Тасвир: Муфассал view of the three control dials on the Raindrip R675CT, labeled for 'How Often', 'How Long', and 'Manual Water/Rain Delay'.

1. Set Watering Frequency (How Often Dial)

Turn the 'How Often' dial to select the desired interval between watering cycles. Options range from 1 hour to 1 week (72 hours). The timer will initiate the first watering cycle immediately after setting this dial.

2. Set Run Time (How Long Dial)

Turn the 'How Long' dial to specify the duration of each watering cycle. Options range from 3 minutes to 120 minutes. Set to 'OFF' to disable automatic watering.

3. Manual Watering / Rain Delay (Manual Water/Rain Delay Dial)

• Manual Water: Turn this dial to a specific minute setting (e.g., 3, 5, 10, 15 minutes) to initiate a manual watering cycle without affecting your programmed schedule. The timer will water for the selected duration and then return to its programmed schedule.
• Таъхири борон: Turn this dial to delay watering for a set period (24, 48, or 72 hours). This feature is useful during periods of rain to conserve water. The timer will resume its programmed schedule after the delay period ends.

Нишондиҳандаи нур

An indicator light on the timer blinks to confirm that changes have been made to the settings, providing visual feedback for successful programming.

Нигоҳдорӣ

Иваз кардани батарея

The battery-operated timer signals when batteries are running low. Replace batteries promptly to ensure continuous operation. When batteries run out, the timer's unique water-saving feature will turn the valve to the “off” position, stopping the flow of water to prevent waste.

Image: The water timer displaying its battery life indicator, showing the current power level.

Тозакунӣ

Periodically inspect the inlet screen filter for debris and clean it as needed to maintain optimal water flow and prevent clogging.

Мушкилкушо

• Timer not watering: Check battery level and replace if low. Ensure the 'How Long' dial is not set to 'OFF'. Verify water supply is on.
• Watering inconsistently: Low batteries can cause erratic behavior. Replace batteries. Ensure dials are set firmly to desired positions.
• Leaks at connections: Ensure all connections to the faucet and irrigation system are tightened securely. Use plumber's tape on threads if necessary to create a better seal. Avoid cross-threading plastic components during installation.
• No indicator light: Насби батареяро тафтиш кунед ва боварӣ ҳосил кунед, ки батареяҳо тару тоза мебошанд.

Мушаххасоти

Кафолат ва дастгирӣ

Raindrip stands by their product and offers a 1-year, 100% satisfaction guarantee. If your product breaks, Raindrip will send you a new one for free; you only need to cover shipping and handling costs.

For further assistance or inquiries, please visit the official Raindrip webсайт ё бо дастгирии мизоҷони худ тамос гиред.
