The Pool Protector Electronic Monitoring System

1. Муқаддима

The Safety Pool Protector Electronic Monitoring System is designed to enhance pool safety by automatically sounding an alarm when a child or pet enters an unsupervised pool. This portable, self-contained unit detects water entry via an electronic sensor, triggering a loud pulsating alarm both at the main unit and at a remote receiver located inside your home. The system operates on one 9-volt battery (not included) and includes a remote receiver that can be placed up to 200 feet from the main unit.

2. Маълумот оид ба бехатарӣ

• This device is an aid to supervision and does not replace the need for constant adult supervision of children and pets near water.
• Always ensure the alarm is active when the pool is unsupervised.
• Regularly test the alarm's functionality to ensure it is operating correctly.
• Keep the alarm unit and remote receiver dry and away from extreme temperatures.

3. Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳама ҷузъҳо мавҷуданд:

• Pool Protector Main Unit
• Қабулкунандаи дурдаст
• Дастури корбар (ин ҳуҷҷат)

Note: One 9-volt battery is required for the main unit and is not included.

4. Маҳсулот ба охир расидview

The Pool Protector system consists of a main alarm unit designed for placement in the pool and a remote receiver for indoor monitoring.

Расми 4.1: Пеш view of the Pool Protector main unit, showing the display area and control buttons.

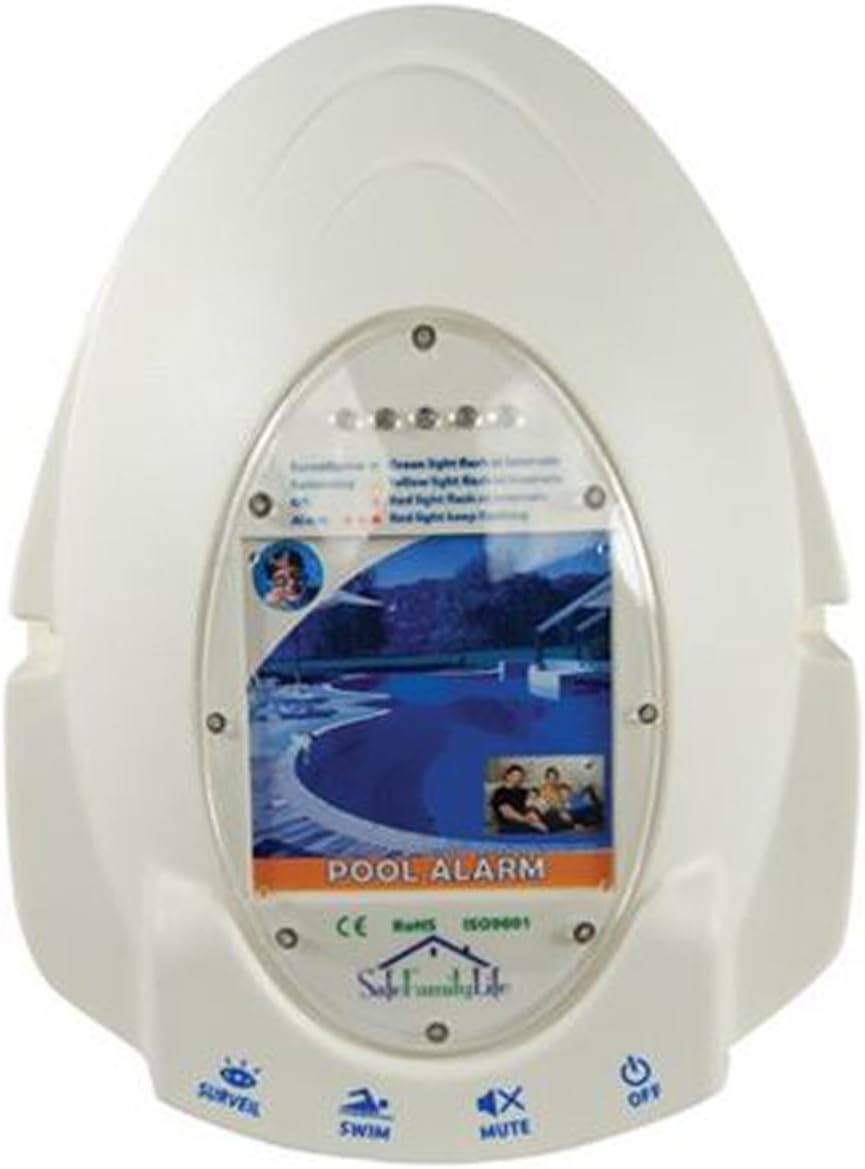

Расми 4.2: Пеши муфассал view of the Pool Protector main unit, highlighting the user interface.

Расми 4.3: Бозгашт view of the Pool Protector main unit, illustrating the mounting points and the water sensor probe.

5. Танзимот

5.1 Насби батарея

1. Қисмати батареяро дар дастгоҳи асосӣ ҷойгир кунед.
2. Open the compartment and insert one new 9-volt alkaline battery, ensuring correct polarity.
3. Securely close the battery compartment. The battery is expected to last approximately one year.

5.2 Main Unit Placement and Installation

The main unit is designed for easy installation. It should be mounted in a location within the pool that allows its sensor to detect water entry effectively, typically near the edge of the pool. Refer to Figure 4.3 for mounting points on the back of the unit.

• Choose a stable mounting surface at the pool's edge.
• Ensure the sensor probe extends into the water according to local regulations and product guidelines.
• Secure the unit firmly using appropriate hardware (not included) to prevent accidental displacement.

5.3 Remote Receiver Setup

The remote receiver can be mounted in your home up to 200 feet from the main unit.

• Select a central location within your home where the alarm can be clearly heard.
• Mount the receiver to a wall using appropriate fasteners.
• Ensure there are no major obstructions between the main unit and the remote receiver that could interfere with the wireless signal.

6. Дастурҳои истифодабарӣ

6.1 Automatic Monitoring

Once installed and powered on, the Pool Protector main unit automatically monitors the pool for water disturbances. When the electronic sensor detects entry into the pool, it triggers a loud pulsating alarm.

6.2 Фаъолсозии ҳушдор

Upon detection of water entry, the main unit will emit a loud pulsating alarm. Simultaneously, the remote receiver inside your home will also sound an alarm, alerting you to the event.

6.3 Хомӯш кардани сигнал

Specific instructions for silencing the alarm will be located on the device itself or in accompanying quick-start guides. Typically, a button on the main unit or remote receiver is pressed to acknowledge and silence the alarm.

7. Нигоҳдорӣ

7.1 Иваз кардани батарея

If the pool alarm does not react to water disturbances or the alarm sounds weak, it is likely time to replace the 9-volt battery in the main unit. Follow the battery installation steps in Section 5.1.

7.2 Тозакунӣ

Periodically clean the main unit and sensor probe to remove any debris, algae, or mineral buildup that could affect its performance. Use a soft cloth and mild detergent. Do not use abrasive cleaners or solvents.

7.3 Санҷиши мунтазам

It is recommended to test the alarm system weekly by simulating an entry into the pool to ensure both the main unit and remote receiver are functioning correctly.

8. Баррасии мушкилот

• Огоҳӣ садо намедиҳад: Check the 9-volt battery in the main unit and replace if necessary. Ensure the unit is properly positioned in the water and the sensor is clear of obstructions.
• Remote receiver not alarming: Verify the remote receiver is within the 200-foot range of the main unit and that there are no significant signal obstructions. Check its power source (if applicable, typically battery or plug-in).
• Ҳушдорҳои бардурӯғ: Ensure the main unit is securely mounted and not subject to excessive movement from wind or water circulation. Clean the sensor to remove any debris.
• Weak alarm sound: Replace the 9-volt battery in the main unit.

9. Мушаххасоти

10. Кафолат ва дастгирӣ

For warranty information or technical support, please contact the manufacturer, Safety, directly. Refer to the product packaging or the manufacturer's official webсайт барои маълумот барои тамос.
