Instruction Manual for Ekena Millwork Devon Rope Panel Moulding

1. Муқаддима

The Ekena Millwork Devon Rope Panel Moulding is a decorative architectural element designed to enhance interior spaces. Crafted from solid urethane, this moulding offers exceptional durability and intricate detail, replicating historical patterns. It is lightweight, factory-primed, and ready for painting or faux finishing, making installation straightforward. This manual provides essential information for the proper handling, installation, and maintenance of your panel moulding.

Расми 1: Пеш view of the Ekena Millwork Devon Rope Panel Moulding, showcasing its detailed rope design.

2. Хусусиятҳои маҳсулот

• Historical Design: Modeled after original historical patterns and designs, providing a classic aesthetic.
• Маводи устувор: Made from solid urethane for maximum durability and detail retention.
• Насби осон: Lightweight construction ensures quick and easy installation.
• Ready for Finish: Factory primed and ready for your choice of paint or faux finish.
• Ҳаматарафа: Can be cut, drilled, glued, or screwed to fit various applications.

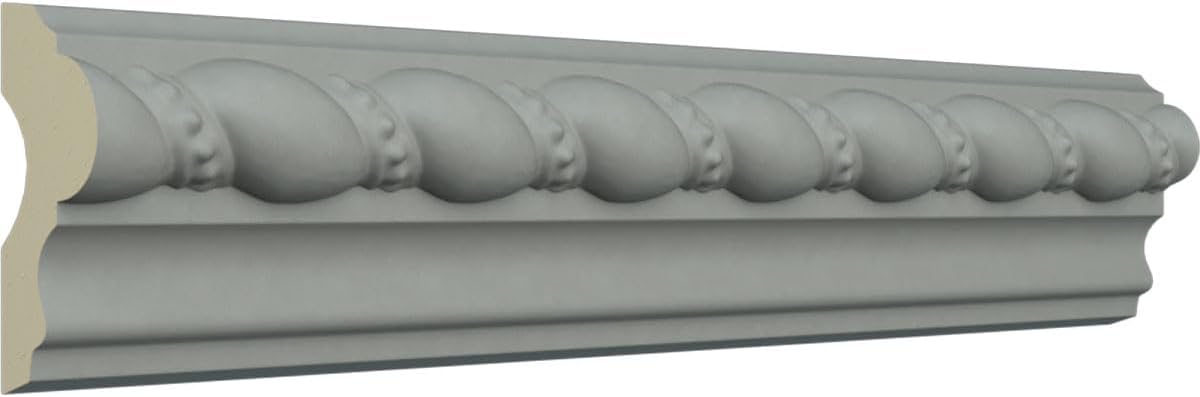

Расми 2: кунҷӣ view of the panel moulding, highlighting its three-dimensional profile.

3. Танзим ва омодагӣ

3.3 Cutting the Moulding

Measure the desired length for each piece of moulding. Use a miter saw or a fine-tooth saw to cut the urethane material. The material is designed to be easily cut without splintering. For corners, cut at appropriate angles (e.g., 45 degrees for 90-degree corners) to create seamless joints.

Figure 3: Cross-section of the moulding, illustrating its profile and solid urethane composition.

4. Дастур оид ба насб

1. Мутобиқати хушк: Before applying adhesive, dry fit all cut pieces to ensure they align correctly and form the desired pattern.
2. Илтиёмникро татбиқ кунед: Apply a continuous bead of high-quality construction adhesive to the back of the moulding where it will contact the surface.
3. Мавқеъ ва пахш: Carefully position the moulding piece onto the marked area on the wall or ceiling. Press firmly along the entire length to ensure good contact with the adhesive.
4. Бехатар (ихтиёрӣ): For added security, especially on ceilings or heavy pieces, use finishing nails or screws. Countersink the fasteners and fill the holes with paintable caulk or wood filler.
5. Join Pieces: When joining multiple pieces, apply a small amount of adhesive to the mitered ends before pressing them together. Wipe away any excess adhesive immediately.
6. Ҷамъоварӣ: Once all pieces are installed and the adhesive has set (refer to adhesive manufacturer's instructions for curing time), apply paintable caulk along all seams and edges where the moulding meets the wall/ceiling. This creates a smooth, finished look and seals any gaps.
7. Анҷом: After the caulk is dry, the moulding is ready for painting or faux finishing. Since it is factory-primed, it provides an excellent base for your chosen finish.

Расми 4: Мисample of panel moulding installed on an interior wall corner, demonstrating its application.

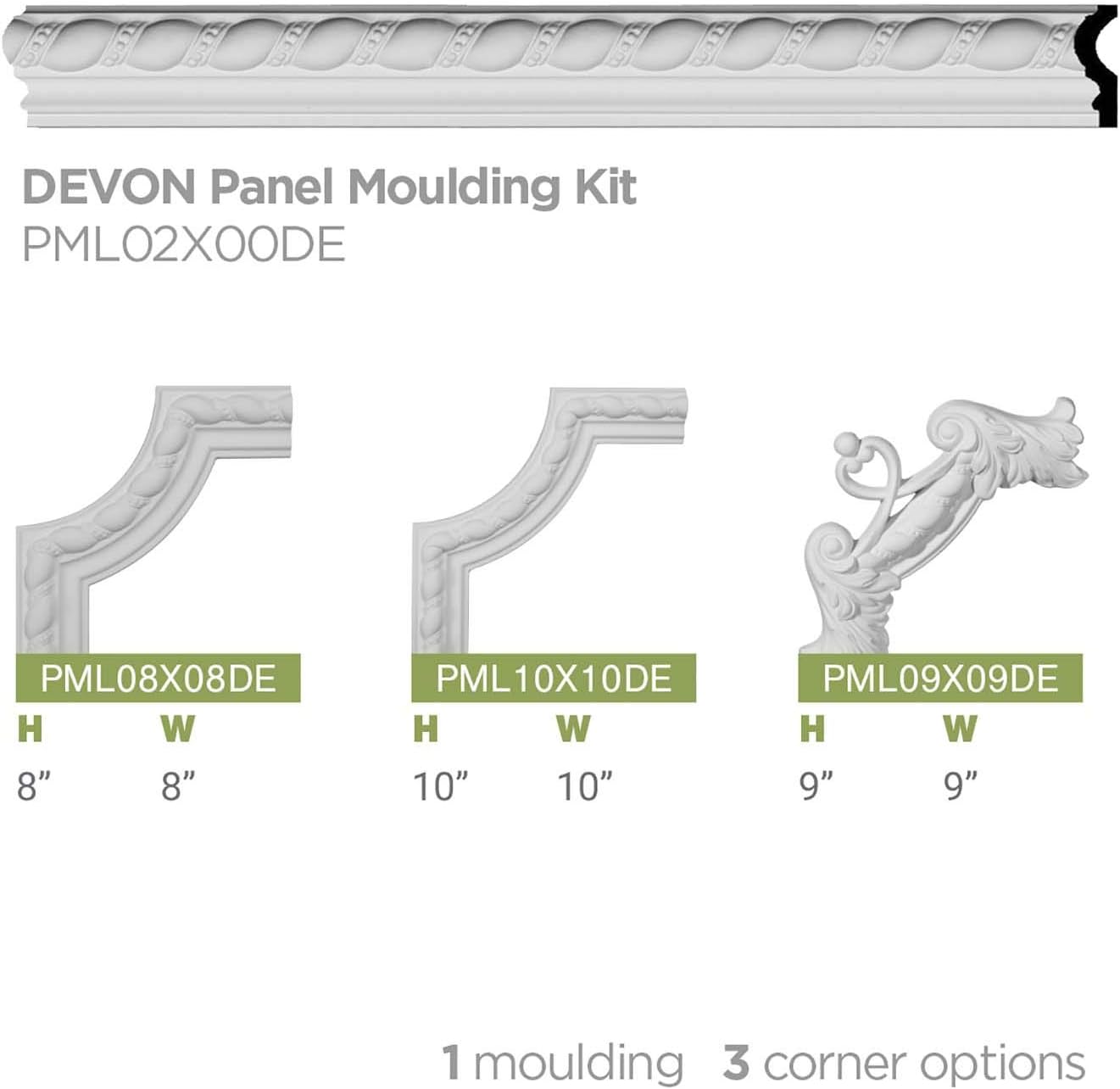

Figure 5: Diagram illustrating how panel moulding pieces and various corner options can be combined to create decorative wall or ceiling panels.

5. Нигоҳдорӣ

Ekena Millwork urethane mouldings are low-maintenance. Regular cleaning with a soft, damp cloth is sufficient to remove dust and dirt. Avoid abrasive cleaners or harsh chemicals, as these may damage the finish or the urethane material. If the painted finish becomes worn or damaged over time, simply clean the surface and apply a fresh coat of paint.

6. Баррасии мушкилот

7. Мушаххасоти

8. Кафолат ва дастгирӣ

For detailed warranty information and customer support, please refer to the official documentation provided by Ekena Millwork. You can also find additional resources and contact information on their official webсайт.

• Дастури насб (PDF)
• Дастури корбар (PDF)

9. About Ekena Millwork

Ekena Millwork is dedicated to pushing boundaries and innovating in the architectural products industry. With roots in carving, they apply their expertise to various materials, including urethane, resin, fiberglass, expanded cellular PVC, and rustic timber. Their focus is on building products that last and providing tools for customers to design and develop perfect applications for their homes.

10. Ариза Examples

Ekena Millwork panel mouldings can be used to create a variety of decorative effects in your home. Here are some visual examples:

Figure 6: A living room featuring decorative wall panels created with Ekena Millwork moulding, adding architectural interest.

Расми 7: собиқample of ceiling panels formed with Ekena Millwork moulding, enhancing the room's overhead design.

Figure 8: An office environment showcasing wall panels made with Ekena Millwork moulding, contributing to a sophisticated interior.
