GREENCYCLE Bike Alarm with Remote

Муқаддима

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your GREENCYCLE Bike Alarm with Remote. Please read this manual thoroughly before using the product to ensure proper function and safety. This device is designed to provide anti-theft security for bicycles, motorcycles, electric bikes, electric scooters, and can also be used for doors and windows.

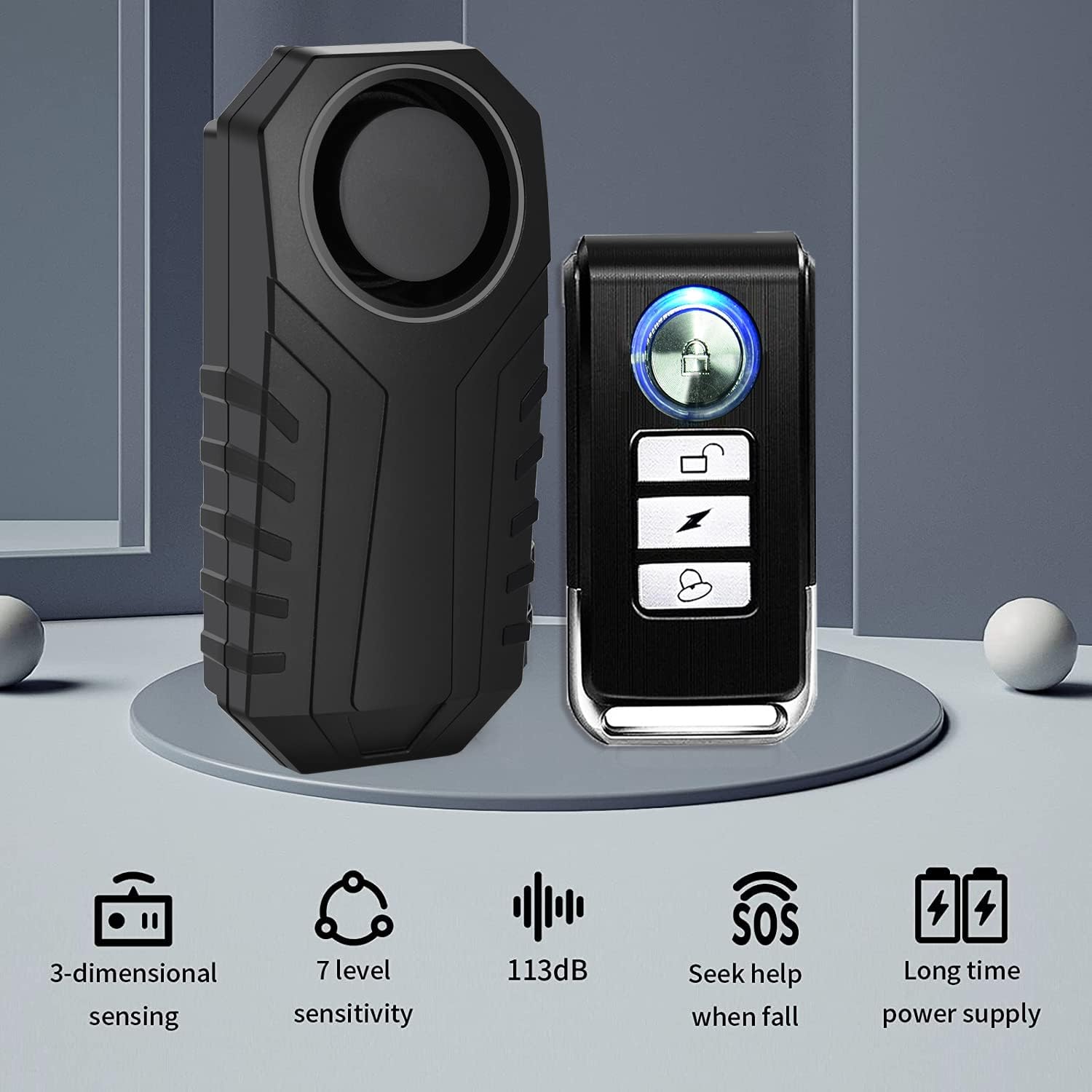

Image: The GREENCYCLE bike alarm unit and its remote control, highlighting features like 3-dimensional sensing, 7-level sensitivity, 113dB volume, SOS function, and long battery life.

Хусусиятҳои маҳсулот

• Multifunction Alarm: Suitable for bicycles, motorcycles, electric bikes, electric scooters, doors, and windows.
• Ҳассосияти танзимшаванда: 7 levels of sensitivity, from gentle touch to strong impact, can be set to your preference.
• SOS Emergency Alarm: Automatically triggers an alarm if the device detects a fall (e.g., bicycle inclined more than 45 degrees).
• Ҳаҷми танзимшаванда: 3 levels of volume adjustment, up to 113dB, to deter potential thieves and attract attention.
• Назорати дурдасти бесим: Operates wirelessly with a range of up to 20 meters (66 feet). Includes vehicle search function and 3 selectable bell tones (not available in armed mode).
• Насби осон: Can be installed using double-sided adhesive or straps; no screws or wiring required.
• Тарҳрезии компакт: Mini size (65mm*45mm) allows for discreet placement.
• IP55 обногузар: Protected against splashing water from any angle.

Image: The GREENCYCLE bike alarm and remote control shown in an outdoor setting, illustrating its IP55 waterproof rating, remote control functionality, 7 levels of sensitivity, 113dB loudness, and SOS function.

Мундариҷаи баста

Маҷмӯа одатан дар бар мегирад:

• 1 x GREENCYCLE Bike Alarm Unit
• 1 x Идоракунии дурдаст
• 1 x USB Charging Cable (for alarm unit)
• 1 x Double-sided Adhesive Pad
• 2 x Zip Ties (for strap installation)
• 1 x Дастури корбар

Насб ва насб

1. Charging the Alarm Unit

Before first use, ensure the alarm unit is fully charged. Connect the alarm unit to a USB power source using the provided USB charging cable. The indicator light will show charging status and turn off when fully charged.

2. Насби батареяи идоракунии дурдаст

The remote control typically comes with a pre-installed battery. If replacement is needed, open the remote control casing and insert a new battery (e.g., CR2032 coin cell, refer to remote for specific type) with the correct polarity.

3. Mounting the Alarm Unit

Choose a discreet and secure location on your bicycle, motorcycle, or other item. The alarm unit can be installed using two methods:

1. Монтажи часпак: Clean the surface where the alarm will be mounted. Peel off the protective film from the double-sided adhesive pad and firmly press the alarm unit onto the desired location.
2. Strap Mounting: Use the provided zip ties to secure the alarm unit to a frame, seat post, or other suitable part of your vehicle. Ensure it is tightly fastened to prevent movement.

Image: Four panels demonstrating installation methods. Top left shows mounting under a bicycle seat. Top right shows mounting on an electric scooter. Bottom left shows mounting on an electric bike frame. Bottom right shows the included double-sided sticker and zip ties for installation.

Дастурҳои амалиётӣ

Идоракунии дурдаст чор тугма дорад:

• Arm Button (Locked Padlock Icon): Press once to arm the alarm. The alarm will emit a confirmation sound.
• Disarm Button (Unlocked Padlock Icon): Press once to disarm the alarm. The alarm will emit a confirmation sound.
• Bell Tone/Vehicle Search Button (Занги нишона): Press to activate the vehicle search function (alarm will sound briefly) or to cycle through bell tones (when not in armed mode).
• Sensitivity/SOS Button (Нишонаи Lightning Bolt): Used for sensitivity adjustment and activating the SOS function.

Мусаллахшавй ва ярокпартой

To arm the alarm, press the Locked Padlock Icon button on the remote. The alarm will beep once, indicating it is armed. Any significant vibration or movement will trigger the alarm. To disarm, press the Unlocked Padlock Icon button. The alarm will beep twice, indicating it is disarmed.

Image: A diagram illustrating how the alarm responds to different levels of interaction. A gentle nudge causes the alarm to beep, while significant movement triggers the full alarm. This demonstrates the 7 adjustable sensitivity levels.

Vehicle Search Function

When the alarm is disarmed, press the Занги нишона button on the remote to activate the vehicle search function. The alarm unit will emit a sound, helping you locate your vehicle in a crowded area. This button also allows you to cycle through 3 different bell tones when the alarm is not armed.

Танзими ҳассосият

The alarm features 7 levels of sensitivity. To adjust the sensitivity:

1. Боварӣ ҳосил кунед, ки ҳушдор безарар карда шудааст.
2. -ро пахш карда нигоҳ доред Нишонаи Lightning Bolt button on the remote until the alarm unit emits a short beep.
3. Ҳар як пахшкунии минбаъдаи Нишонаи Lightning Bolt button will cycle through the sensitivity levels, indicated by a corresponding number of beeps (1 beep for level 1, 7 beeps for level 7).
4. Once you reach your desired sensitivity level, stop pressing the button. The setting will be saved automatically after a few seconds of inactivity.

Image: The GREENCYCLE bike alarm unit with a graphic indicating "Extremely Loud 113dB" and "7 Levels Adjustable Sensitivity," showing a visual representation of the sensitivity scale.

Танзими овоз

The alarm has 3 adjustable volume levels, up to 113dB. To adjust the volume:

1. Боварӣ ҳосил кунед, ки ҳушдор безарар карда шудааст.
2. -ро пахш карда нигоҳ доред Занги нишона button on the remote until the alarm unit emits a short beep.
3. Ҳар як пахшкунии минбаъдаи Занги нишона button will cycle through the volume levels, indicated by a different sound level.
4. Once you reach your desired volume level, stop pressing the button. The setting will be saved automatically after a few seconds of inactivity.

Функсияи SOS

The SOS function is designed to automatically trigger an alarm if the device detects a fall or significant tilt (e.g., a bicycle inclined more than 45 degrees for a sustained period). This function can be enabled or disabled.

1. Боварӣ ҳосил кунед, ки ҳушдор безарар карда шудааст.
2. -ро пахш кунед Нишонаи Lightning Bolt button on the remote twice quickly.
3. The alarm will emit a confirmation sound to indicate the SOS function is toggled (e.g., one beep for ON, two beeps for OFF).

Image: A visual representation of the SOS emergency help function, showing a person fallen next to a bicycle with the alarm unit nearby, indicating it will automatically alarm for help if the bicycle is inclined more than 45 degrees.

Пайвасткунии идоракунии дурдаст

One alarm unit can be paired with up to 8 remote controls. To pair an additional remote control:

1. Ensure the alarm unit is disarmed.
2. -ро пахш карда нигоҳ доред Занги нишона button on the alarm unit itself (if available, or refer to specific product instructions for pairing mode activation). The alarm will enter pairing mode, usually indicated by a continuous beep or flashing light.
3. While the alarm unit is in pairing mode, press any button on the new remote control you wish to pair.
4. The alarm unit will emit a confirmation sound (e.g., a long beep) to indicate successful pairing.
5. Exit pairing mode on the alarm unit (usually by pressing the bell button again or waiting for it to time out).

Шарҳ: Extra remote controls must be paired with the host alarm unit before they can be used.

Image: A diagram showing one GREENCYCLE bike alarm unit connected to eight remote controls, illustrating that one host alarm can be paired with up to eight remote controls.

Нигоҳдорӣ

Иваз кардани батарея (назорати дурдаст)

If the remote control's range decreases or it becomes unresponsive, the battery may need replacement. Open the remote control casing (usually by unscrewing a small screw or prying open a seam) and replace the old battery with a new one of the same type (e.g., CR2032). Ensure correct polarity.

Тозакунӣ

Wipe the alarm unit and remote control with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the device. The alarm unit is IP55 waterproof, meaning it is protected against splashing water, but it should not be submerged.

Мушкилкушо

Мушаххасоти

Image: The GREENCYCLE bike alarm unit displayed alongside various vehicles including a bicycle, motorcycle, electric bike, electric scooter, and a car, indicating its broad compatibility and 113 dB loudness.

Маълумот оид ба бехатарӣ

• Do not attempt to disassemble or modify the alarm unit or remote control.
• Дастгоҳро аз ҳарорати аз ҳад зиёд ва нурҳои бевоситаи офтоб дур нигоҳ доред.
• Ensure the alarm unit is securely mounted to prevent it from falling during use.
• The alarm is loud; avoid prolonged exposure to the sound at close range.
• Батареяҳоро мувофиқи қоидаҳои маҳаллӣ партов кунед.

Кафолат ва дастгирӣ

For warranty information or technical support, please refer to the product packaging or contact GREENCYCLE customer service directly. Contact details can typically be found on the manufacturer's webдар вебсайт ё дар саҳифаи чаканаи маҳсулот.
