Дастури корбарии сканери ҳуҷҷатҳои Fujitsu FS-6160ZLA

Муқаддима

This manual provides essential instructions for the safe and efficient operation of your Fujitsu FS-6160ZLA Document Scanner. Please read this manual thoroughly before using the scanner and retain it for future reference. Following these guidelines will ensure optimal performance and longevity of your device.

Маҳсулот ба охир расидview

The Fujitsu FS-6160ZLA is a high-performance document scanner designed for efficient paper handling and digital conversion. It features an Automatic Document Feeder (ADF) for batch scanning and a user-friendly control panel.

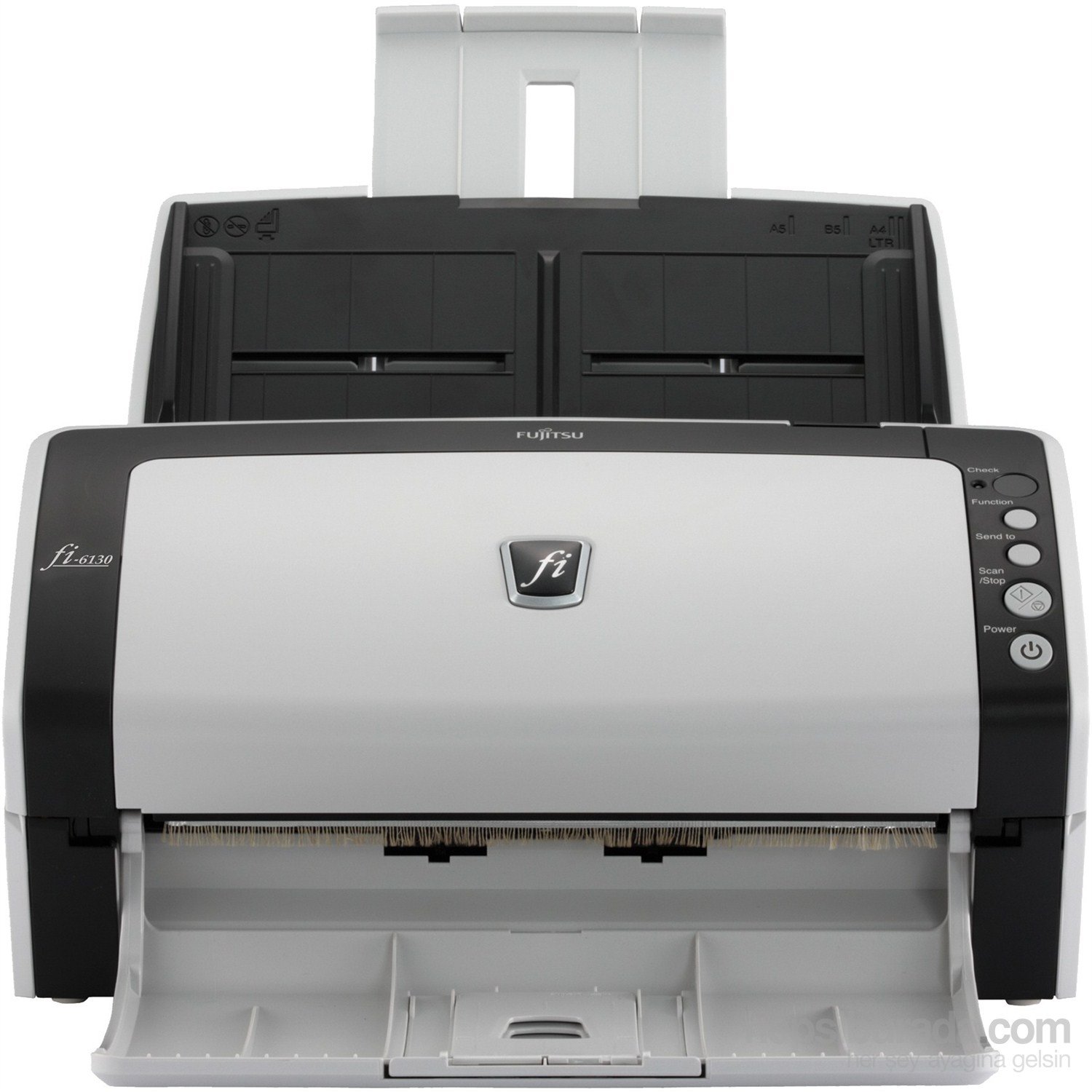

Расми 1: Пеш view of the Fujitsu fi-6130 document scanner, showing the automatic document feeder (ADF) input tray at the top, the control panel on the right, and the output tray at the bottom. The scanner is white and black.

Компонентҳои асосӣ:

• Таъминкунандаи худкори ҳуҷҷат (ADF): For loading multiple documents for continuous scanning.
• Сафҳаи идоракунӣ: Buttons for various functions including power, scan, and job selection.
• Табақи баромад: Collects scanned documents.
• USB/Power Ports: Located at the rear for connectivity and power supply.

Ташкил кардан

1. Кушодани: Carefully remove the scanner and all accessories from the packaging. Ensure all components are present: scanner unit, AC adapter, USB cable, and software CD/DVD (if included).
2. Ҷойгиршавӣ: Place the scanner on a stable, flat surface with adequate space for document feeding and output. Ensure proper ventilation.
3. Пайваст кардани барқ: Connect the AC adapter to the scanner's power input and then plug it into a wall outlet.
4. Ба компютер пайваст шавед:
   • Пайвасти USB: Connect one end of the USB cable to the scanner's USB port and the other end to an available USB port on your computer.
   • Пайвастшавӣ Wi-Fi: Refer to the separate network setup guide or the scanner's display (if applicable) for instructions on connecting to your wireless network.
5. Насби нармафзор: Insert the provided software CD/DVD into your computer's drive, or download the latest drivers and scanning software from the official Fujitsu support webсайт. Барои анҷом додани насб дастурҳои дар экран бударо иҷро кунед.

Дастурҳои амалиётӣ

1. Фаъол: -ро пахш кунед Қувва button on the control panel to turn on the scanner. Wait for the scanner to initialize.
2. Ҳуҷҷатҳоро бор кунед:
   • Fan the stack of documents to separate pages and align edges.
   • Place documents face-down in the Automatic Document Feeder (ADF) input tray. Adjust the side guides to fit the width of your documents.
   • Ensure documents are within supported sizes (e.g., A4, A5, B5, Letter, Legal).
3. Танзимоти сканро интихоб кунед: Open your scanning software on the computer. Select the desired scan profile, resolution, color mode (e.g., color, grayscale, black & white), and destination folder.
4. Оғози сканкунӣ:
   • -ро пахш кунед Скан / Ист button on the scanner's control panel, or initiate the scan from your computer software.
   • The scanner will feed and scan the documents.
5. Review ва Захира: After scanning, review the digitized images on your computer. Save them to your preferred location and format.
6. Функсияҳои панели идоракунӣ:
   • Санҷед: Verifies scanner status or settings.
   • Функсия: Cycles through predefined scan jobs or settings.
   • Ирсол ба: Directs scanned documents to a specific application or destination.
   • Scan/Stop: Starts or stops the scanning process.
   • Қувва: Сканерро фаъол ё хомӯш мекунад.

Нигоҳдорӣ

Нигоҳубини мунтазам сифати доимии сканкуниро таъмин мекунад ва мӯҳлати кори сканери шуморо дароз мекунад.

• Тоза кардани роликҳо:
  • Сканерро хомӯш кунед ва аз розетка ҷудо кунед.
  • Open the scanner cover to access the feed rollers.
  • Gently wipe the rollers with a lint-free cloth dampened with isopropyl alcohol or a specialized roller cleaner. Allow to dry completely before closing the cover.
• Тоза кардани шиша:
  • Locate the glass scanning surface inside the scanner.
  • Аз матои мулоим ва бе-лин истифода баред гampened with glass cleaner (non-abrasive) to clean the glass. Avoid spraying cleaner directly onto the glass.
• Тозакунии берунӣ: Wipe the exterior of the scanner with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Маводҳои истеъмолӣ: Periodically check the condition of feed rollers and separation pads. Replace them as recommended by Fujitsu to maintain optimal performance. Refer to the Fujitsu support website for replacement part information.

Мушкилкушо

This section addresses common issues you might encounter with your Fujitsu FS-6160ZLA scanner.

• Сканер фаъол нест:
  • Ensure the power cable is securely connected to both the scanner and a working power outlet.
  • Боварӣ ҳосил кунед, ки адаптери барқ ​​дуруст кор мекунад.
• Documents Jamming:
  • Remove all jammed documents carefully, following the scanner's internal guides.
  • Ensure documents are properly fanned and aligned in the ADF.
  • Check for worn-out feed rollers or separation pads and replace if necessary.
  • Avoid loading creased, stapled, or damaged documents.
• Poor Scan Quality (Streaks, Blurs, Dots):
  • Clean the glass scanning surface and feed rollers as described in the Maintenance section.
  • Adjust scan settings (e.g., resolution, brightness) in your scanning software.
  • Ensure documents are clean and free of debris.
• Scanner Not Detected by Computer:
  • Verify the USB or Wi-Fi connection is secure and active.
  • Ҳам сканер ва ҳам компютери худро бозоғоз намоед.
  • Reinstall the scanner drivers and software.
  • Порт ё сими дигари USB-ро санҷед.

Мушаххасоти

Кафолат ва дастгирӣ

For detailed warranty information, technical support, or to purchase replacement parts and consumables, please visit the official Fujitsu website or contact your local Fujitsu service provider. Keep your purchase receipt as proof of purchase for warranty claims.
