Муқаддима
The Sharp Atomic Clock provides precise timekeeping and temperature monitoring for your home or office. Featuring a large, easy-to-read display, this clock automatically synchronizes with the atomic time signal (WWVB) broadcast from Fort Collins, Colorado, ensuring accuracy without manual adjustments. It also includes a wireless outdoor sensor to display both indoor and outdoor temperatures.
Хусусиятҳои маҳсулот
- Дақиқии вақти атомӣ: Automatically synchronizes with the WWVB atomic time signal for precise timekeeping.
- Jumbo 3" Easy-to-Read Numbers: Large digital display for clear visibility of time, date, and temperature.
- Indoor/Outdoor Temperature Display: Monitors both indoor ambient temperature and outdoor temperature via a wireless sensor.
- Сенсори берунаи бесим: Transmits outdoor temperature data to the main unit.
- Батареяи барқгиранда: Operates on batteries for flexible placement (batteries not included).
- Танзими худкори вақти тобистона (DST): Automatically adjusts for daylight saving time changes.
- Минтақаҳои вақти интихобшаванда: Allows selection of various US time zones.
- Формати 12/24 соат: Option to display time in either 12-hour or 24-hour format.
- Намоиши дараҷаҳои Селсий/Фаренгейт: Гузариш байни воҳидҳои ҳарорати Celsius ва Farenheit.
Мундариҷаи баста
Please ensure all items are present before proceeding with setup.
- Воҳиди асосии соати атомии Sharp
- Сенсори берунаи бесим
- Дастури дастурӣ
Note: Batteries are not included. The main unit requires 2 AA batteries, and the outdoor sensor requires 2 AA batteries.
Ташкил кардан
1. Насби батарея
- Қисми батареяро дар қафои дастгоҳи асосии соат кушоед.
- Insert 2 AA batteries, observing the correct polarity (+ and -).
- Сарпӯши қисмати батареяро пӯшед.
- Open the battery compartment on the wireless outdoor sensor.
- Insert 2 AA batteries into the outdoor sensor, observing the correct polarity.
- Close the outdoor sensor's battery compartment cover.
2. Initial Synchronization and Settings
After battery installation, the clock will attempt to receive the WWVB atomic time signal and connect to the outdoor sensor. This process may take several minutes or up to 24 hours depending on your location and environmental interference.
- Минтақаи вақт: Press the "TIME ZONE" button (often labeled "UP TIME ZONE") on the back of the clock to cycle through available time zones (PST, MST, CST, EST). Select your desired time zone.
- Формати 12/24 соат: Press the "12/24" button to switch between 12-hour and 24-hour display.
- Цельсий/Фаренгейт: Press the "°C/°F" button to toggle between Celsius and Fahrenheit temperature display.
- Outdoor Sensor Pairing: If the outdoor temperature does not appear, press the "CHANNEL" button on the main unit to search for the sensor signal. Ensure the outdoor sensor is within range and not obstructed.
For optimal signal reception, place the clock away from large metal objects, electronic devices, and areas with heavy concrete or brick walls. The outdoor sensor should be placed in a shaded, dry location, protected from direct sunlight and precipitation, for accurate readings.

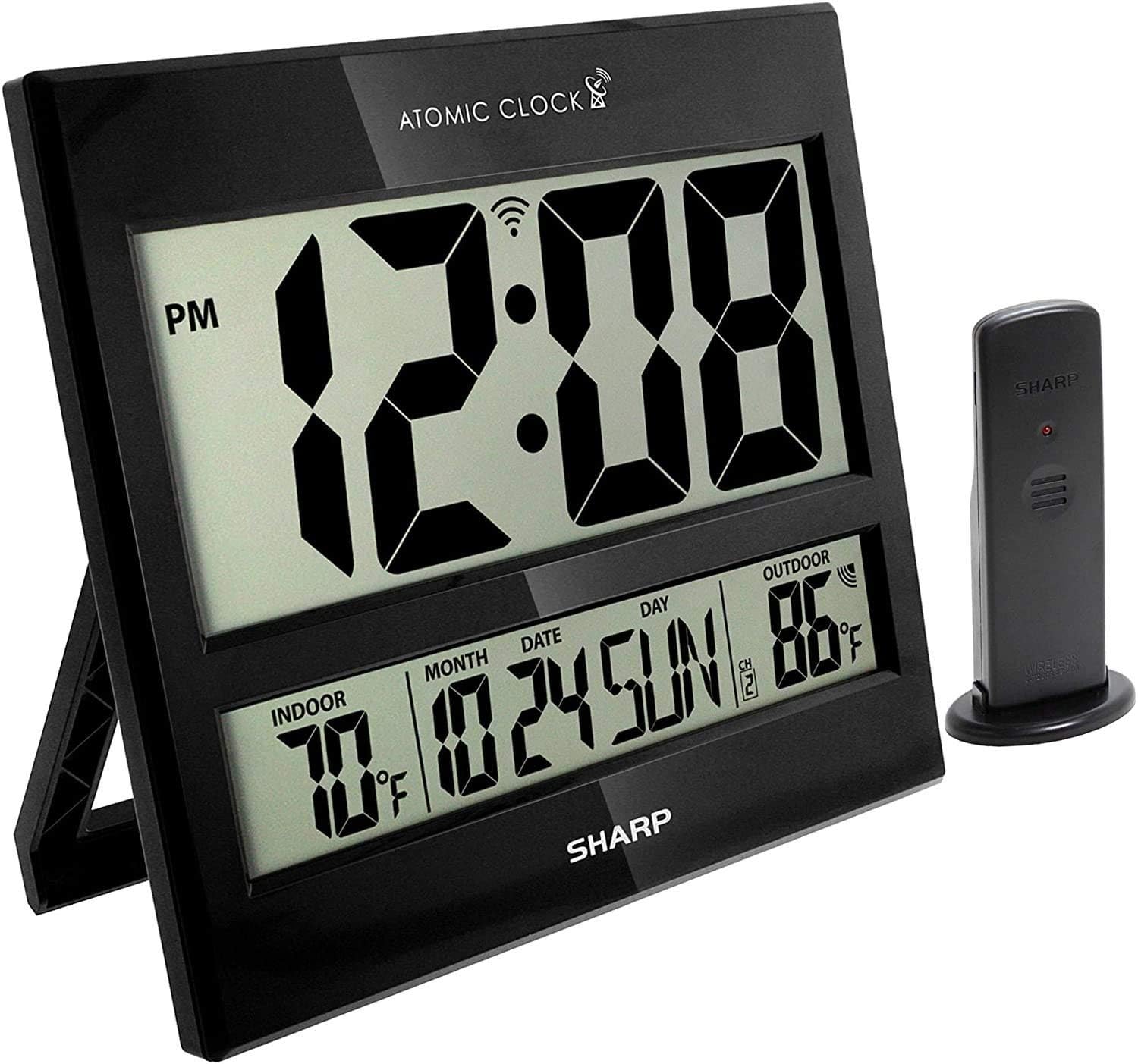

Image: The Sharp Atomic Clock main unit displaying time, indoor temperature, date, and outdoor temperature, alongside its wireless outdoor sensor.
Амалиёт
Намоиши маълумот
The clock's large LCD screen displays the following information:
- Вақт: Current time in selected 12-hour or 24-hour format.
- Нишондиҳандаи PM: Displays "PM" for afternoon hours in 12-hour format.
- Нишондиҳандаи сигнали атомӣ: Shows the status of the WWVB atomic time signal reception.
- Ҳарорати дохилӣ: Ҳарорати ҷорӣ аз ҷониби воҳиди асосӣ чен карда мешавад.
- Month/Date/Day: Current calendar information.
- Ҳарорати берунӣ: Current temperature measured by the wireless outdoor sensor.
- Outdoor Sensor Channel: Indicates the channel the outdoor sensor is transmitting on.
- Нишондиҳандаи камии батарея: An icon will appear when batteries are low and need replacement.
Button Functions (Rear Panel)
| Тугма | Функсия |
|---|---|
| ТАҚВИМ | Press and hold for 2 seconds to manually set calendar (Year, Month, Date, Language). Use UP/DOWN buttons to change values. |
| ВАҚТ | Press and hold for 2 seconds to manually set time (DST ON/OFF, Hour, Minute). Use UP/DOWN buttons to change values. |
| 12/24 | Switches between 12-hour and 24-hour time display. |
| КАНАЛ | Press to switch between outdoor sensor channels (1, 2, 3). Press and hold for 2 seconds to pair with the outdoor sensor. |
| ° C/° F | Toggles between Celsius and Fahrenheit temperature display. |
| МАВЧ | Initiates a manual search for the WWVB atomic time signal. |
| АЗ НАВОР КУНЕД | Resets the clock to factory default settings. Requires a pointed object (e.g., paperclip). |
| UP / TIME ZONE | Increases values during manual setting. Press to cycle through time zones. |
| ПОЁН | Decreases values during manual setting. |
Нигоҳдорӣ
- Иваз кардани батарея: Replace batteries in both the main unit and outdoor sensor when the low battery indicator appears on the display. Always replace all batteries at the same time with new ones.
- Тозакунӣ: Clean the clock and sensor with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ҷойгиркунии сенсорҳои беруна: Periodically check the outdoor sensor's location to ensure it remains protected from extreme weather conditions, direct sunlight, and moisture.
Мушкилкушо
- Clock not syncing with atomic time:
- Ensure the clock is placed away from electronic interference (TVs, computers, microwaves).
- Try placing the clock near a window facing Fort Collins, Colorado (if applicable to your region).
- Press the "WAVE" button to initiate a manual signal search.
- Барои ҳамоҳангсозии ибтидоӣ то 24 соат вақт диҳед.
- Outdoor temperature not displaying or incorrect:
- Check batteries in the outdoor sensor.
- Ensure the outdoor sensor is within the effective transmission range (typically up to 100 feet, line of sight).
- Press the "CHANNEL" button on the main unit to re-establish connection.
- Verify the outdoor sensor is placed in a location protected from direct sunlight and rain, which can affect readings.
- Дисплей хира ё холӣ аст:
- Replace all batteries in the main unit with fresh ones.
- Боварӣ ҳосил кунед, ки батареяҳо бо қутбҳои дуруст ҷойгир карда шудаанд.
- Вақт ё санаи нодуруст:
- Боварӣ ҳосил кунед, ки минтақаи вақти дуруст интихоб карда шудааст.
- Check if Daylight Saving Time (DST) setting is correct for your region.
- If atomic signal is not received, manually set the time and date using the "TIME" and "CALENDAR" buttons.
Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Бренд | Тез |
| Рақами модел | 8541848315 |
| UPC | 049353998732 |
| Ранги | Дурахши сиёҳ |
| Навъи намоиш | LCD рақамӣ |
| Хусусияти махсус | Atomic Time Synchronization (WWVB), Indoor/Outdoor Temperature |
| Андозаҳои маҳсулот | 13"W x 1.5"H (Main Unit) |
| Манбаи нерӯ | Батареяе |
| Шумораи батареяҳои зарурӣ | Main Unit: 2 AA; Outdoor Sensor: 2 AA |
| Материал | Пластмасса |
| Навъи васлкунӣ | Васлкунаки деворӣ / Истгоҳи болои миз |
| Истифодаи дарунӣ/берунӣ | Indoor (Main Unit), Outdoor (Sensor) |
Кафолат ва дастгирӣ
Sharp products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your product packaging or visit the official Sharp webсайт. Квитансияи хариди худро ҳамчун далели харид барои даъвоҳои кафолат нигоҳ доред.
