Дастури корбарии арраи мутақобилаи SKIL PWRCore 12 бе хасу 12V Compact RS582802

Муқаддима

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your SKIL PWRCore 12 Brushless 12V Compact Reciprocating Saw. Please read this manual thoroughly before using the tool to ensure proper handling and to maximize its performance and lifespan.

Маълумот оид ба бехатарӣ

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep the work area clean and well-lit. Wear appropriate personal protective equipment, including eye protection, hearing protection, and gloves. Ensure the tool is disconnected from the power source before making any adjustments or changing accessories. Refer to local safety regulations and guidelines for power tool usage.

Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳои дар поён овардашуда ба бастаи шумо дохил карда шудаанд:

• SKIL PWRCore 12 Brushless 12V Compact Reciprocating Saw
• SKIL PWRCore 12 2.0Ah Lithium Battery
• SKIL PWRJump Charger
• Майдони чӯббурӣ
• Battery Jacket

Маҳсулот ба охир расидview

The SKIL PWRCore 12 Reciprocating Saw is a compact, cordless tool designed for various cutting tasks. It features a brushless motor for efficient performance and an ergonomic design for comfortable use.

Расми 1: SKIL PWRCore 12 Reciprocating Saw, 2.0Ah Lithium Battery, and PWRJump Charger. This image displays the complete kit, showing the saw, battery, and charger side-by-side.

Компонентҳои асосӣ:

• Reciprocating Saw Body: Houses the motor, trigger, and blade clamp.
• Бастаи батарея: PWRCore 12 2.0Ah Lithium Battery provides cordless power.
• Пуркунандаи барқ: PWRJump Charger for rapid battery charging.
• Blade Clamp: Tool-less mechanism for quick blade changes.
• Пойафзоли чархзананда: Adjustable shoe for stable cutting and reduced vibration.
• Триггери суръати тағирёбанда: Allows control over cutting speed.
• Нури LED: Майдони корро равшан мекунад.

Ташкил кардан

1. Пуркунии батарея

Before initial use, fully charge the PWRCore 12 Lithium Battery using the PWRJump Charger.

1. Connect the PWRJump Charger to a standard power outlet.
2. Slide the PWRCore 12 Battery onto the charger until it clicks into place.
3. The charger's indicator lights will show the charging status. A 2.0Ah battery charges from 0% to 25% in approximately 5 minutes and fully charges in about 45 minutes.
4. Пас аз пур кардани барқ, батареяро аз пуркунандаи барқ ​​хориҷ кунед.

Расми 2: SKIL PWRJump Charger with a PWRCore 12 battery inserted. This image highlights the 5-minute charging capability.

The PWRCore 12 battery also features PWRAssist Mobile Charging with a USB port for charging other devices.

Расми 3: SKIL PWRCore 12 battery demonstrating its mobile charging feature via a USB port, connected to a smartphone.

2. Насб/хориҷ кардани батарея

• Насбкунӣ: Align the battery with the tool's battery port and slide it in until it clicks securely into place.
• Хориҷ: Press the battery release button (usually located on the battery itself) and slide the battery out of the tool.

3. Installing/Removing the Blade

The reciprocating saw features a tool-less blade change mechanism.

1. Ensure the battery is removed from the saw for safety.
2. Майсаро cl гардонедamp collar counter-clockwise to open the blade clamp даҳон.
3. Insert the shank of the blade fully into the clamp даҳон.
4. Майсаро озод кунед clamp collar. It will spring back and lock the blade in place. Gently pull on the blade to ensure it is securely seated.
5. To remove, rotate the blade clamp collar counter-clockwise and pull the blade out.

Расми 4: Аз наздики view of the adjustable pivoting shoe and the tool-less blade change mechanism on the SKIL reciprocating saw.

Дастурҳои амалиётӣ

1. Амалиёти умумӣ

• Боварӣ ҳосил кунед, ки батарея пурра пур карда шудааст ва бехатар насб шудааст.
• Select the appropriate blade for the material you intend to cut.
• Арраро бо ду даст сахт нигоҳ доред.
• Press the variable speed trigger to start the saw. The speed of the blade is controlled by the amount of pressure applied to the trigger.
• The integrated LED light will illuminate the work area when the trigger is pressed and will remain on for 10 seconds after release.

2. Adjustable Pivoting Shoe

The pivoting shoe provides stability and helps reduce vibration during cutting. It maintains constant contact with the workpiece. Adjust the shoe by loosening its locking mechanism (if applicable) and positioning it against the material before starting the cut. This helps to control the depth of cut and improve accuracy.

3. Техникаи буриш

Ҳамеша боварӣ ҳосил кунед, ки порчаи корӣ бехатар аст clampбарои пешгирии ҳаракат ҳангоми буридан нигоҳ дошта мешавад.

• Вуд: Use a coarse-tooth wood blade. Apply steady, moderate pressure.
• Металл: Use a fine-tooth metal cutting blade. Apply cutting oil to prolong blade life and improve cut quality. Use slower speeds for harder metals.
• PVC/Plastic: Use a general-purpose blade. Avoid excessive speed to prevent melting the material.

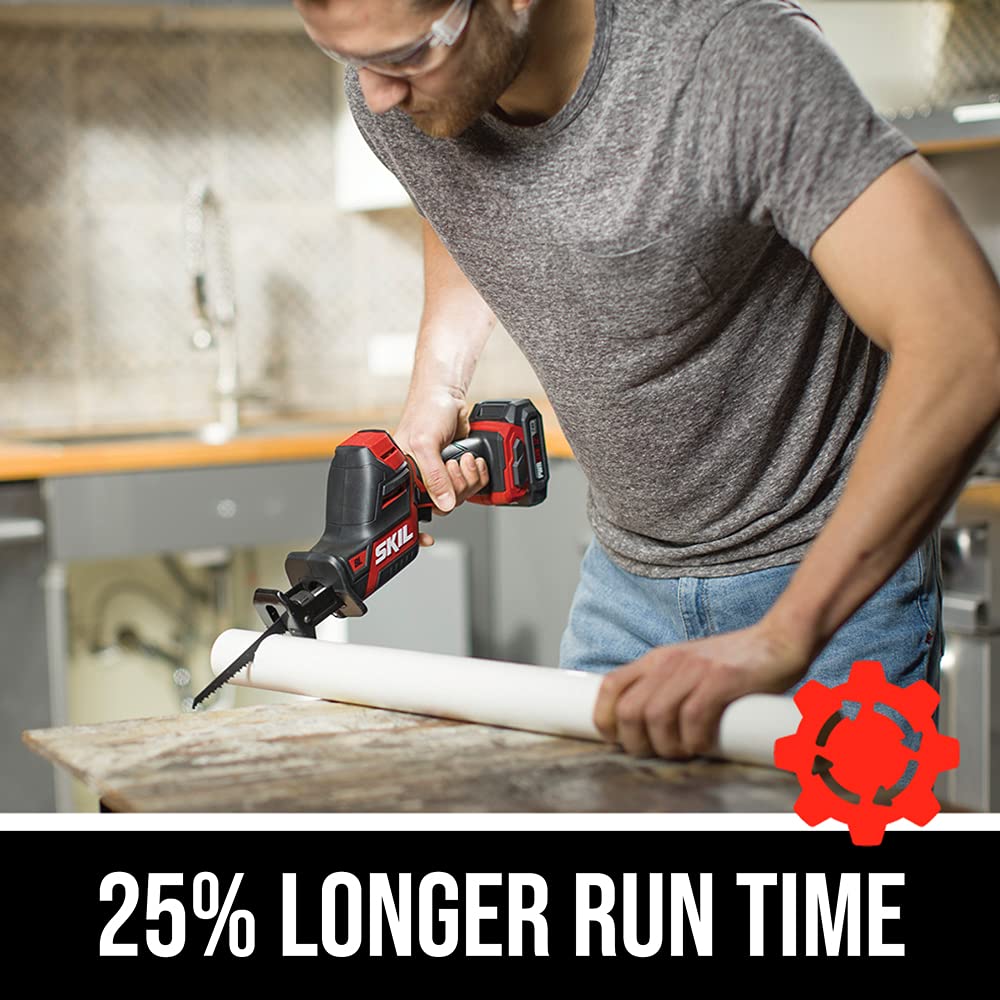

Расми 5: A user demonstrating the SKIL reciprocating saw cutting a PVC pipe, illustrating its versatility for various materials.

Нигоҳдорӣ

• Тозакунӣ: Regularly clean the tool's ventilation openings to prevent overheating. Use a soft brush or compressed air to remove dust and debris. Do not use water or chemical cleaners.
• Нигоҳубини пиёз: Replace dull or damaged blades promptly. Store blades in a dry place to prevent rust.
• Нигоҳдории батарея: Store batteries in a cool, dry place away from direct sunlight. For long-term storage, charge batteries to approximately 50% capacity.
• Санҷиш: Periodically inspect the power tool, battery, and charger for any signs of damage or wear. Do not use damaged components.

Мушкилкушо

Мушаххасоти

• Модели: RS582802
• Ҷилдиtage: 12 вольт
• Навъи мотор: Бе хасу
• Дарозии зарба: 3/4 дюйм (18 мм)
• Зарбҳо дар як дақиқа (SPM): То 3000 RPM
• Вазни ашё: 2.37 кг (5.22 фунт)
• Андозаҳо (LxWxH): 32.39 x 6.99 x 13.97 см (12.75 x 2.75 x 5.5 инч)
• Маводҳои чӯб: High Speed Steel (for included blade)
• Манбаи нерӯ: Battery Powered (PWRCore 12 Lithium)
• Пуркунандаи барқ: PWRJump Charger
• Хусусиятҳои махсус: Variable Speed Trigger, LED Light with Pre-light and After-glow, Tool-less Blade Change, Adjustable Pivoting Shoe, PWRAssist Mobile Charging (on battery)

Кафолат ва дастгирӣ

For warranty information and customer support, please refer to the warranty card included with your product or visit the official SKIL website. You can also contact SKIL customer service for assistance with product registration, technical support, or service inquiries.

SKIL Official Webсайт: www.skil.com
