1. Маҳсулот ба охир расидview
The E90-DTU-433L30 is a high-performance wireless data transceiver designed for reliable long-range communication. Operating within the 410-441MHz frequency range with a power output of 30dBm, it can achieve communication distances up to 8.0km. This device integrates digital data processing, modulation, demodulation, and error correction (FEC) to provide a transparent RS232/RS485 interface, distinguishing it from traditional analog FM transceivers.
Расми 1: Пеш view of the E90-DTU-433L30 Wireless Transceiver, showing RS232, RS485, GND, VCC ports, PWR, TXD, RXD indicators, M0, M1 pins, DC-IN, and antenna connector.
2. Хусусиятҳои асосӣ
- Advanced LoRa Modulation: Utilizes military-grade LoRa modulation technology for enhanced communication distance and stability.
- Истеҳсоли нерӯи баланд: Transmission power up to 1W, with multi-level adjustable settings, meeting European industrial standards.
- Wide Interface Support: Provides transparent RS232 and RS485 interfaces for versatile connectivity.
- Тарҳрезии мустаҳкам: All-aluminum alloy shell for compact size, easy installation, good heat dissipation, and excellent electromagnetic compatibility.
- Эътимоднокии мукаммал: Features power reverse connection protection, over-connection protection, and antenna surge protection.
- Таъмини қувваи чандир: Supports 10-28V power supply, compatible with various power devices or line pressure modes.
- Precise Frequency Stability: Incorporates temperature compensators for frequency stability better than ±1.5PPM.
- Параметрҳои танзимшаванда: All parameters such as power, frequency, air speed, and address ID can be set via programming software.
- Истеъмоли қувваи кам: Standby current is only 21mA (even lower in power-saving and sleep modes).
- Built-in Watchdog: Ensures automatic module restart in case of exceptions, maintaining continuous operation with previous settings.
3. Таҷҳизот ба охир расидview
The E90-DTU-433L30 features clearly labeled interfaces and indicators for easy setup and monitoring.
Расми 2: Муфассал view of the transceiver's hardware components, including Antenna Interface, Dip Switch, Power Interface, Function Indicators (PWR, TXD, RXD), RS485 terminals, and RS232 port.
- Интерфейси антенна: SMA-K connector for external antenna connection.
- Dip Switch (M0, M1): Used to set the module's operating mode (e.g., normal, wake-up, power-saving, configuration).
- Power Interface (DC-IN): Input for 10-28V DC power supply.
- Нишондиҳандаҳои функсия:
- PWR: Нишондиҳандаи барқ.
- TXD: Transmit data indicator.
- RXD: Receive data indicator.
- Интерфейси RS485: Screw terminals for RS485_A, RS485_B, GND, and VCC connections.
- Интерфейси RS232: DB9 serial port for RS232 communication.
4. Setup and Basic Function
The E90-DTU-433L30 facilitates transparent data transmission between devices using RS232 or RS485 interfaces.

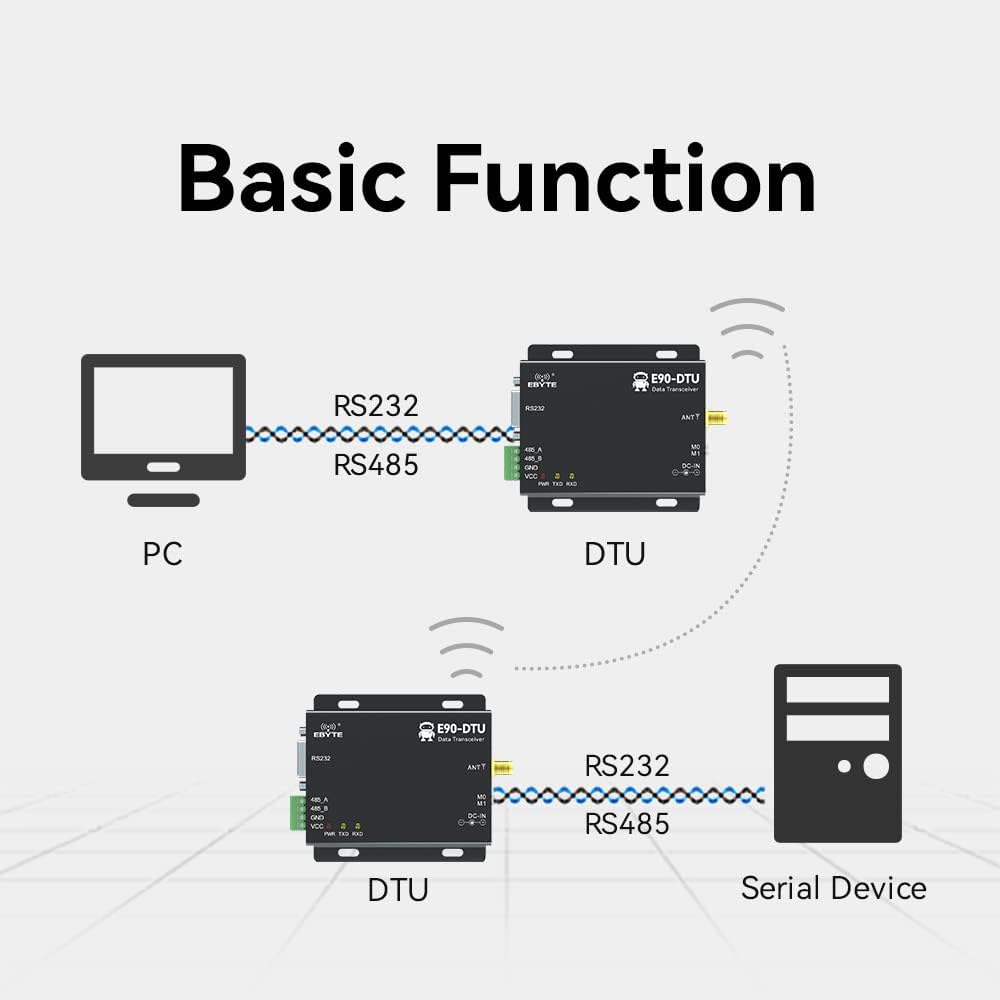

Figure 3: Diagram illustrating typical connections: a PC connected to one DTU via RS232/RS485, and another DTU connected to a serial device via RS232/RS485, communicating wirelessly.
4.1. Танзимоти ибтидоӣ
- Пайваст кардани антенна: Securely attach the 433MHz antenna to the SMA-K connector.
- Пайвасти барқ: Connect a 10-28V DC power supply to the DC-IN port. Ensure correct polarity.
- Пайвастшавӣ ба интерфейси маълумот:
- For RS232: Connect your device (e.g., PC) to the DB9 RS232 port using a serial cable.
- For RS485: Connect your device to the RS485_A and RS485_B terminals. Ensure proper A/B wiring.
- Mode Configuration: Set the M0 and M1 dip switches according to your desired operating mode (e.g., transparent transmission, configuration mode). Refer to the detailed technical manual for specific mode settings.
4.2. Танзимоти нармафзор
The E90-DTU-433L30 supports software configuration for various parameters, including frequency, air speed, and address ID.
Расми 4: Мисample interface of the Function Configuration Software, available for download from the official webсайт.
It is recommended to download and use the official configuration software to customize the module's settings to match your application requirements. This software allows for precise control over the transceiver's operational parameters.
5. Амалиёт
Once properly configured and connected, the E90-DTU-433L30 operates as a transparent data link. Data sent to its RS232 or RS485 port will be wirelessly transmitted to a paired E90-DTU module, and vice-versa.
- Интиқоли маълумот: When data is received on the serial input (RS232/RS485), the module automatically modulates and transmits it wirelessly. The TXD indicator will flash.
- Қабули маълумот: Upon receiving wireless data, the module demodulates it and outputs it through the serial interface. The RXD indicator will flash.
- Mode Management: Ensure both transmitting and receiving modules are set to compatible operating modes (e.g., transparent transmission mode) for seamless communication.
6. Мушаххасоти техникӣ
| Мушаххасоти | Арзиш |
|---|---|
| ASIN | B07R51G2CD |
| Рақами модели ашё | RS232 |
| Бренд | EBAYTE |
| Ҳама портҳои Ethernet | 2 |
| Шумораи портҳо | 2 |
| Maximum Upstream Data Transfer Rate | 433 МГц |
| Навъи модем | Рақамӣ |
| Истеҳсолкунанда | EBAYTE |
| Санаи аввалин дастрас | 27 сентябри соли 2021 |
Figure 5: Physical dimensions of the E90-DTU-433L30 module, approximately 82mm in length and 62mm in width.
7. Барномаҳои маъмулӣ
The E90-DTU-433L30 is suitable for a wide range of applications requiring reliable wireless data transmission.
Расми 6: Мисamples of application environments: Smart home, Agricultural application, Intelligent warehouse, Industrial applications, Device management, and general Wireless data transmission.
- Системаҳои хонагии интеллектуалӣ
- Agricultural Monitoring and Control
- Intelligent Warehouse Management
- Автоматика ва идоракунии саноат
- Идоракунии дастгоҳҳои дурдаст
- General Wireless Data Transmission
8. Нигоҳдорӣ
To ensure the longevity and optimal performance of your E90-DTU-433L30 transceiver, follow these maintenance guidelines:
- Тоза нигоҳ доред: Regularly clean the exterior of the module with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Шароити экологӣ: Operate the module within its specified temperature and humidity ranges. Avoid exposure to extreme temperatures, direct sunlight, or high moisture.
- Пайвастҳои бехатар: Periodically check all cable connections (power, serial, antenna) to ensure they are secure and free from damage.
- Навсозии нармафзор: Истеҳсолкунандаро санҷед webсайт барои ҳама гуна навсозии нармафзори дастрас, ки метавонад иҷрои корро беҳтар кунад ё мушкилотро ҳал кунад.
- Муносибати дуруст: Handle the module with care to prevent physical damage. Avoid dropping or subjecting it to strong vibrations.
9. Баррасии мушкилот
If you encounter issues with your E90-DTU-433L30, consider the following troubleshooting steps:
- Не қудрат:
- Тасдиқ кунед, ки ҳаҷми таъминоти барқtage is within the 10-28V DC range.
- Check power cable connections and ensure they are secure and correctly polarized.
- Confirm the power outlet or source is functional.
- Муошират нест:
- Ensure both transmitting and receiving modules are powered on and their PWR indicators are lit.
- Check serial cable connections (RS232/RS485) for proper wiring and secure fit.
- Verify that the M0 and M1 dip switch settings on both modules are identical and configured for the desired operating mode (e.g., transparent transmission).
- Confirm that the frequency, air speed, and address ID settings are consistent across all communicating modules using the configuration software.
- Check antenna connections and ensure antennas are properly installed and not obstructed.
- Reduce the distance between modules or remove obstacles if communication range is an issue.
- Intermittent Communication:
- Дар наздикии модулҳо манбаъҳои халалрасонии электромагнитӣ (EMI)-ро тафтиш кунед.
- Ensure the power supply is stable and free from fluctuations.
- Verify antenna integrity and placement.
- Module Not Responding to Software:
- Ensure the module is in configuration mode (check M0/M1 settings).
- Verify the correct COM port is selected in the software.
- Check the serial cable and drivers on your computer.
10. Дастгирӣ ва захираҳо
For detailed technical documentation, software downloads, and further support, please refer to the official EBYTE resources:
- Technical Manual Support: http://www.ebyte.com/en/product-view-news.aspx?id=418
- Истеҳсолкунанда: EBAYTE
- расмӣ Webсайт: Visit the EBYTE official website for the latest product information, drivers, and software.
11. Маълумот дар бораи кафолат
Specific warranty terms and conditions for the E90-DTU-433L30 Wireless Transceiver are typically provided at the point of purchase or can be found on the official EBYTE website. Please retain your proof of purchase for any warranty claims. For detailed warranty policy, please consult the manufacturer's official documentation or contact EBYTE customer support directly.
