electriQ 60cm Downdraft Cooker Hood User Manual

Маҳсулот ба охир расидview

The electriQ 60cm Downdraft Cooker Hood is designed for modern kitchens, offering a discreet and efficient solution for air purification. It features a hidden design that rises from the worktop when in use and retracts when not needed, providing a clean and uncluttered kitchen aesthetic.

Хусусиятҳои асосӣ инҳоянд:

• Discreet hidden design when not in use.
• Rises from the worktop with a touch, ready to use.
• Four fan speeds for versatile extraction.
• Downdraft design effectively removes smoke and cooking odors.
• High extraction rate of 563.8m³/h, suitable for large kitchens.
• Integrated LED strip for illuminating the cooking area.

Мушаххасоти

Насб ва насб

Due to the nature of this appliance, professional installation is highly recommended. Ensure all local electrical and building codes are followed during installation.

1. Кушодани: Carefully remove the cooker hood from its packaging. Inspect for any damage during transit. Retain packaging for future transport if needed.
2. Ҷойгиршавӣ: Choose a suitable location on your worktop or island, ensuring adequate clearance from the hob as per safety guidelines. Refer to the provided dimension diagram for precise measurements.


Figure 1: Installation Dimensions. This diagram illustrates the various measurements required for proper installation, including height, width, and depth, as well as ducting connections.

3. Монтаж: Securely mount the downdraft unit into the prepared cutout in the worktop. Ensure it is level and stable.
4. Канал: Connect the exhaust ducting. This model supports both extraction (vented outside) and recirculation (filtered air returned to the kitchen) methods. If recirculating, ensure charcoal filters are installed (sold separately if not included).
5. Пайвастагии барқ: Connect the appliance to a suitable power supply as per electrical safety standards. This should be performed by a qualified electrician.
6. Санҷиши ибтидоӣ: After installation, perform a brief test to ensure the unit rises and retracts smoothly, and the fan and lights function correctly.

Дастурҳои амалиётӣ

The electriQ downdraft cooker hood features intuitive touch controls for ease of use.

Тасвири 2: Панели идоракунӣview. The sleek black glass panel houses the touch-sensitive controls for power, fan speed, and lighting.

1. Фаъол / Хомӯш: Рамзи барқро ламс кунед (⏻) to raise the hood and turn it on. Touch again to retract and turn off.
2. Танзими суръати мухлиси: The hood offers four fan speeds. Use the slider or dedicated speed buttons (if present, indicated by increasing bars) to select the desired extraction level. Higher speeds are recommended for heavy cooking.

Расми 3: Муфассал View of Touch Controls. This image highlights the individual touch icons for power, fan speed selection (represented by a series of dots/bars), and the light function.
3. Назорати нур: Touch the light symbol (💡) to turn the integrated LED strip light on or off. The LED light provides illumination for your cooking area.

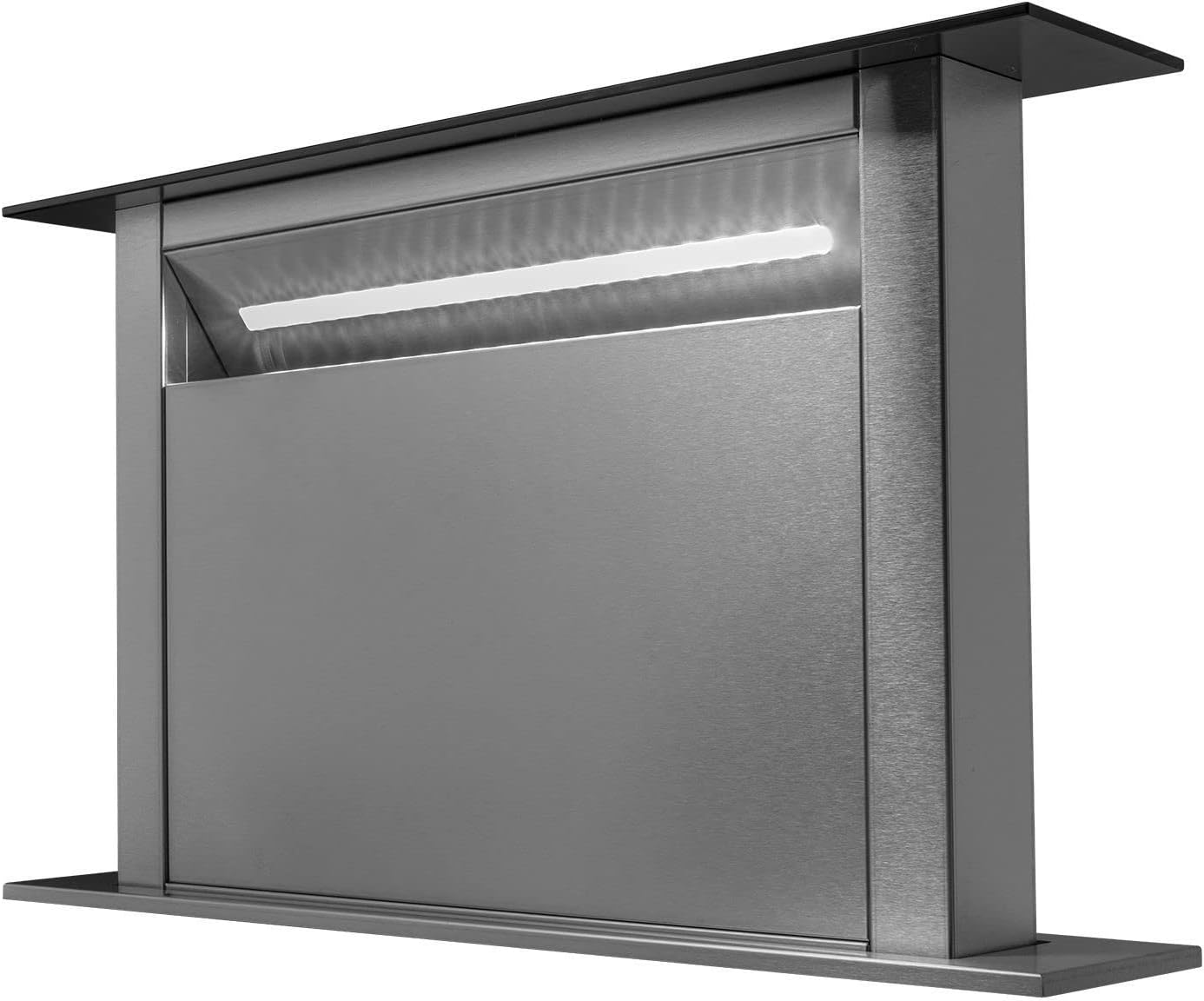

Figure 4: Hood Extended with Light On. This view demonstrates the hood in its operational, extended position, with the bright LED light strip providing clear visibility over the hob.

4. Функсияи таймер: The hood may include a timer function (5-40 minutes). Consult the specific timer icon on your control panel and refer to the full product manual for detailed instructions on setting the timer.

Figure 5: Retracted Hood. This image shows the cooker hood fully retracted into the worktop, showcasing its discreet and minimalist design when not in use.

Расми 6: кунҷӣ View, Retracted. Another perspective of the hood in its hidden state, emphasizing the flush integration with the countertop.

Нигоҳдорӣ

Regular maintenance ensures optimal performance and longevity of your cooker hood. Always disconnect the power supply before performing any maintenance.

1. Тоза кардани берун: Wipe the stainless steel and glass surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.
2. Cleaning/Replacing Grease Filters: The metal grease filters should be cleaned regularly (e.g., monthly, depending on usage) to maintain extraction efficiency.

Figure 7: Accessing Grease Filters. This image shows the front panel tilted open, providing access to the removable metal grease filters for cleaning or replacement.
• To remove: Open the front panel (if applicable) and release the filter clips.
• Clean filters in warm soapy water or a dishwasher. Ensure they are completely dry before re-installing.
3. Replacing Charcoal Filters (for Recirculation): If your hood is set up for recirculation, charcoal filters (carbon filters) will need to be replaced periodically (typically every 3-6 months, depending on usage). These filters cannot be washed.
4. Иваз кардани чароғҳои LED: LED lights are designed for long life and typically do not require user replacement. If a light fails, contact qualified service personnel.

Мушкилкушо

Пеш аз тамос бо дастгирии муштариён, лутфан ба масъалаҳои умумӣ ва роҳҳои ҳалли зерин муроҷиат кунед:

If the problem persists after attempting these solutions, please contact Electriq customer support.

Кафолат ва дастгирӣ

This electriQ product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.

For technical support, spare parts, or warranty claims, please contact Electriq customer service. Have your model number (ADF-F28A60) and purchase date ready when contacting support.

Electriq Customer Support:

• Please refer to your purchase documentation or the Electriq webсайт барои маълумоти охирини тамос.
