Morel Tempo Ultra 602 MKII 6-1/2" 2-Way Component Speakers User Manual

Муқаддима

Thank you for choosing the Morel Tempo Ultra 602 MKII 6-1/2" 2-Way Component Speakers. This manual provides essential information for the proper installation, operation, and maintenance of your new car audio system. To ensure optimal performance and longevity, please read these instructions carefully before proceeding with installation and use. For additional support, please visit the official Morel Store.

Маълумот оид ба бехатарӣ

Ҳамеша чораҳои бехатарии зеринро риоя кунед:

• Насбкунии касбӣ тавсия дода мешавад: Car audio installation can be complex and may require specialized tools and knowledge. It is highly recommended to have these speakers installed by a qualified professional to prevent damage to the speakers or your vehicle.
• Батареяро ҷудо кунед: Before beginning any electrical work, disconnect the vehicle's negative battery terminal to prevent electrical shorts and potential injury.
• Ноқил: Ensure all wiring is correctly connected according to the provided diagrams. Incorrect wiring can lead to speaker damage or vehicle electrical issues.
• Монтаж: Securely mount all components to prevent them from becoming loose during vehicle operation, which could cause injury or damage.
• Сатҳи садо: Гӯшдории тӯлонӣ ба сатҳи баланди садо метавонад ба шунавоӣ осеб расонад. Овозро ба сатҳи бароҳат танзим кунед.
• Гармӣ: Avoid installing speakers in locations exposed to excessive heat or direct sunlight, which can degrade performance and lifespan.

Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳама ҷузъҳо дар бастаи шумо мавҷуданд:

• 6-1/2" Woofers (2 units)
• 1.1" Soft Dome Tweeters (2 units)
• MXR Direct Crossovers (2 units)
• Mounting Hardware (screws, clips, etc. - specific items may vary)
• Дастури корбар (ин ҳуҷҷат)

Насб ва насб

The Morel Tempo Ultra 602 MKII is a 2-way component speaker system designed for car audio applications. Proper installation is crucial for optimal sound quality and system longevity.

1. Насби Вуфер

The 6-1/2" woofers are designed for robust mid-bass and mid-range reproduction. Ensure the mounting location in your vehicle can accommodate the woofer's dimensions, particularly the mounting depth of 2.56" (65mm).

Image: A single Morel Tempo Ultra 602 MKII 6-1/2 inch woofer, showing the speaker cone and mounting frame.

Mount the woofers securely using appropriate hardware. Avoid overtightening screws, which can damage the speaker frame.

2. Насби твиттер

The 1.1" soft dome tweeters are responsible for clear high-frequency reproduction. They can be flush-mounted or surface-mounted depending on your vehicle's interior and desired sound staging. Consider the tweeter's position to optimize sound dispersion towards the listening area.

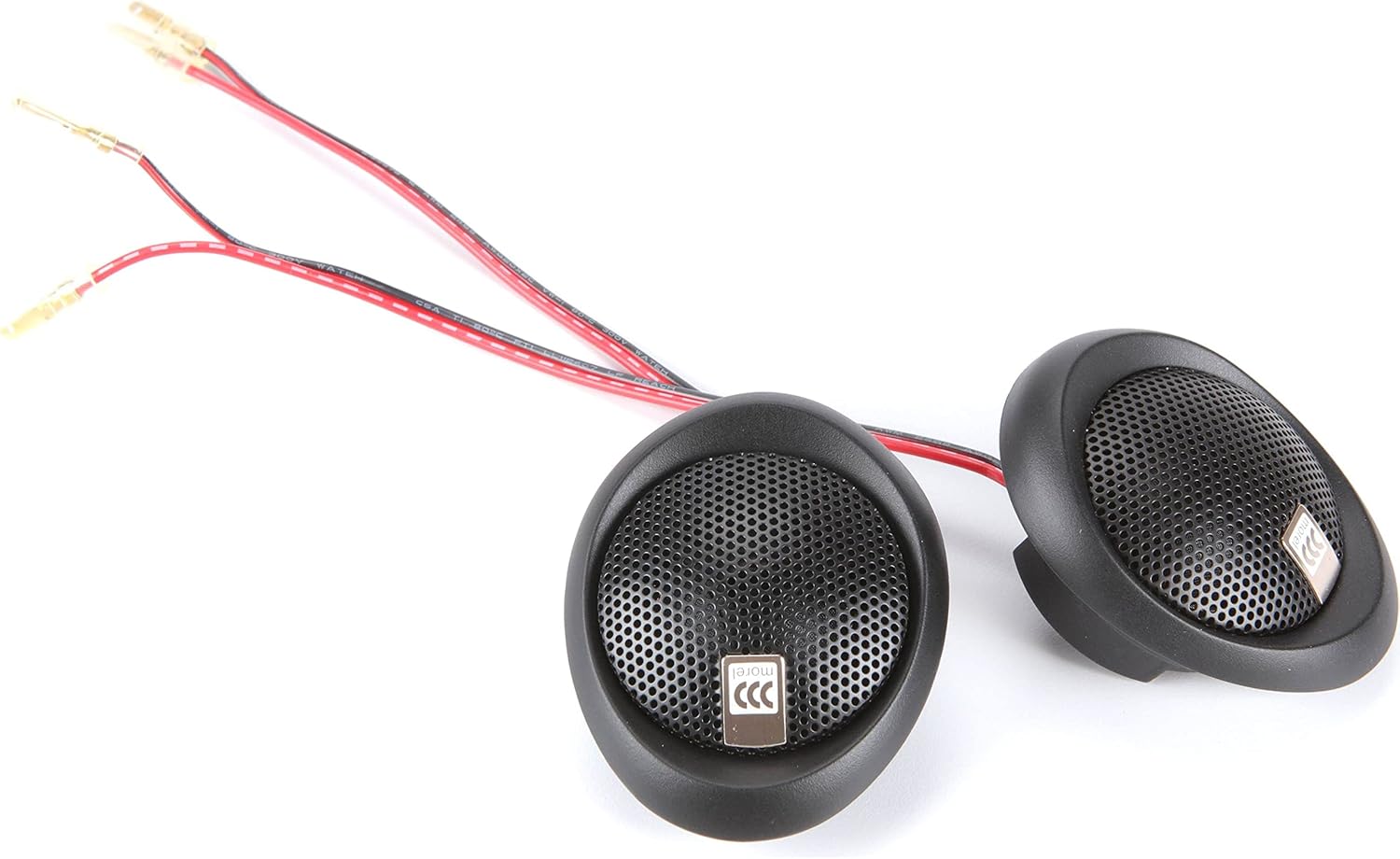

Image: Two Morel Tempo Ultra 602 MKII 1.1 inch soft dome tweeters with attached wiring, ready for installation.

Ensure the tweeters are firmly secured in their chosen location.

3. Crossover Network Connection

The MXR Direct Crossover network is essential for directing the correct frequency ranges to the woofers and tweeters, ensuring optimal sound quality and protecting the speakers from damage. Connect the amplifier output to the 'AMP' terminals on the crossover. Connect the woofer to the 'WF' terminals and the tweeter to the 'TWEETER' terminals. Observe correct polarity (+ and -) for all connections.

Image: A Morel Tempo Ultra 602 MKII MXR Direct Crossover unit, showing the input and output terminals for amplifier, woofer, and tweeter connections.

Some crossovers may offer tweeter level adjustments (e.g., +2dB, 0dB, -2dB). Refer to the crossover unit itself for specific settings and adjust according to your preference and vehicle acoustics.

4. Васл

Use high-quality speaker wire of appropriate gauge for all connections. Ensure all connections are secure and insulated to prevent short circuits. Route wires away from moving parts, sharp edges, and heat sources.

Дастурҳои амалиётӣ

Once installed, your Morel Tempo Ultra 602 MKII speakers are ready for use. Follow these guidelines for optimal performance:

• Қувваи ибтидоӣ: After installation, turn on your car audio system at a low volume level. Gradually increase the volume to ensure all speakers are functioning correctly and without distortion.
• Давраи танаффус: Speakers typically require a 'break-in' period of several hours of normal use to achieve their full sonic potential. During this time, the speaker's suspension components will loosen, leading to improved bass response and overall sound quality.
• Муомилоти барқ: These speakers have an RMS power handling of 130 watts per speaker (260 watts per pair) and a peak power handling of 250 watts per speaker (500 watts per pair). Ensure your amplifier's output matches these specifications to prevent damage. Overpowering or underpowering can both lead to speaker failure.
• Импеданс: The speakers have a 4 Ohm impedance. Ensure your ampлифтер дар ин импеданс устувор аст.
• Ҷавоби басомад: The system operates within a frequency range of 55Hz to 22,000Hz.
• Танзимоти кроссовер: Агар шумо amplifier or head unit has adjustable crossover settings, ensure they are configured appropriately for component speakers. Typically, a high-pass filter for the tweeters and a low-pass filter for the woofers (managed by the passive crossover) are used.
• Танзимоти садо: Use your head unit's equalizer and sound settings to fine-tune the audio to your personal preference. Avoid excessive bass or treble boost, which can introduce distortion.

Нигоҳдорӣ

Your Morel Tempo Ultra 602 MKII speakers are designed for durability and require minimal maintenance:

• Тозакунӣ: Gently wipe speaker grilles and surrounds with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Санҷиш: Periodically inspect speaker cones and surrounds for any signs of damage or wear. Ensure all mounting hardware remains secure.
• Омилҳои муҳити зист: While designed for automotive use, avoid exposing speakers to extreme moisture or direct water spray. The speakers are not water-resistant.

Мушкилкушо

Агар шумо бо баландгӯякҳои худ мушкилот дошта бошед, ба мушкилот ва роҳҳои ҳалли маъмулии зерин муроҷиат кунед:

Агар ин қадамҳо мушкилотро ҳал накунанд, тавсия дода мешавад, ки ба мутахассиси соҳаи аудиои мошин муроҷиат кунед.

Мушаххасоти

Detailed technical specifications for the Morel Tempo Ultra 602 MKII component speakers:

Маълумот дар бораи кафолат

Morel Tempo Ultra 602 MKII speakers come with a Limited Warranty. Specific terms and conditions of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, contact your authorized Morel dealer or visit the official Morel webсайт.

Дастгирӣ

For technical assistance, installation questions, or warranty inquiries, please contact:

• Your authorized Morel dealer or the professional installer who performed the installation.
• Morel Customer Service (contact information typically available on the official Morel webсайт).

When contacting support, please have your product model number (Tempo Ultra 602 MKII) and proof of purchase readily available.
