MiwebДастури корбарии ваннаи оби гарми MSpa Rimba U-RB061

Муқаддима

This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Miweba MSpa Rimba U-RB061 Inflatable Hot Tub. Please read this manual thoroughly before installation and use, and retain it for future reference.

Image: The Miweba MSpa Rimba U-RB061 inflatable hot tub, showcasing its round design and spacious interior, with a person relaxing inside. This model is designed for outdoor use and offers a comfortable spa experience.

Маълумот оид ба бехатарӣ

Always adhere to the following safety guidelines to prevent injury or damage to the hot tub:

• Do not install or use the hot tub on uneven or unstable surfaces.
• Ensure the electrical supply meets the specifications outlined in this manual and is protected by a Residual Current Device (RCD).
• Keep children under supervision at all times when near the hot tub.
• Avoid using electrical appliances near the hot tub.
• Do not operate the hot tub if any part is damaged or malfunctioning.
• Барои таъмини истифодаи бехатар ва гигиенӣ, таркиби химиявии обро дуруст нигоҳ доред.
• The maximum water temperature is 40°C. Consult a doctor before use if you have health concerns.

Мундариҷаи баста

Ҳангоми кушодан, тафтиш кунед, ки ҳамаи ҷузъҳои зерин дохил карда шудаанд:

• Inflatable Hot Tub Unit (Rimba U-RB061)
• All-in-One LED Remote Control
• 2 x Filter Cartridges
• Adapter Hose Garden
• Манометр (фишорсанҷ)
• Дастури дастурҳо (ин ҳуҷҷат)
• Insulation Protection Mat
• Матни фарш
• Сарпӯши болаззат

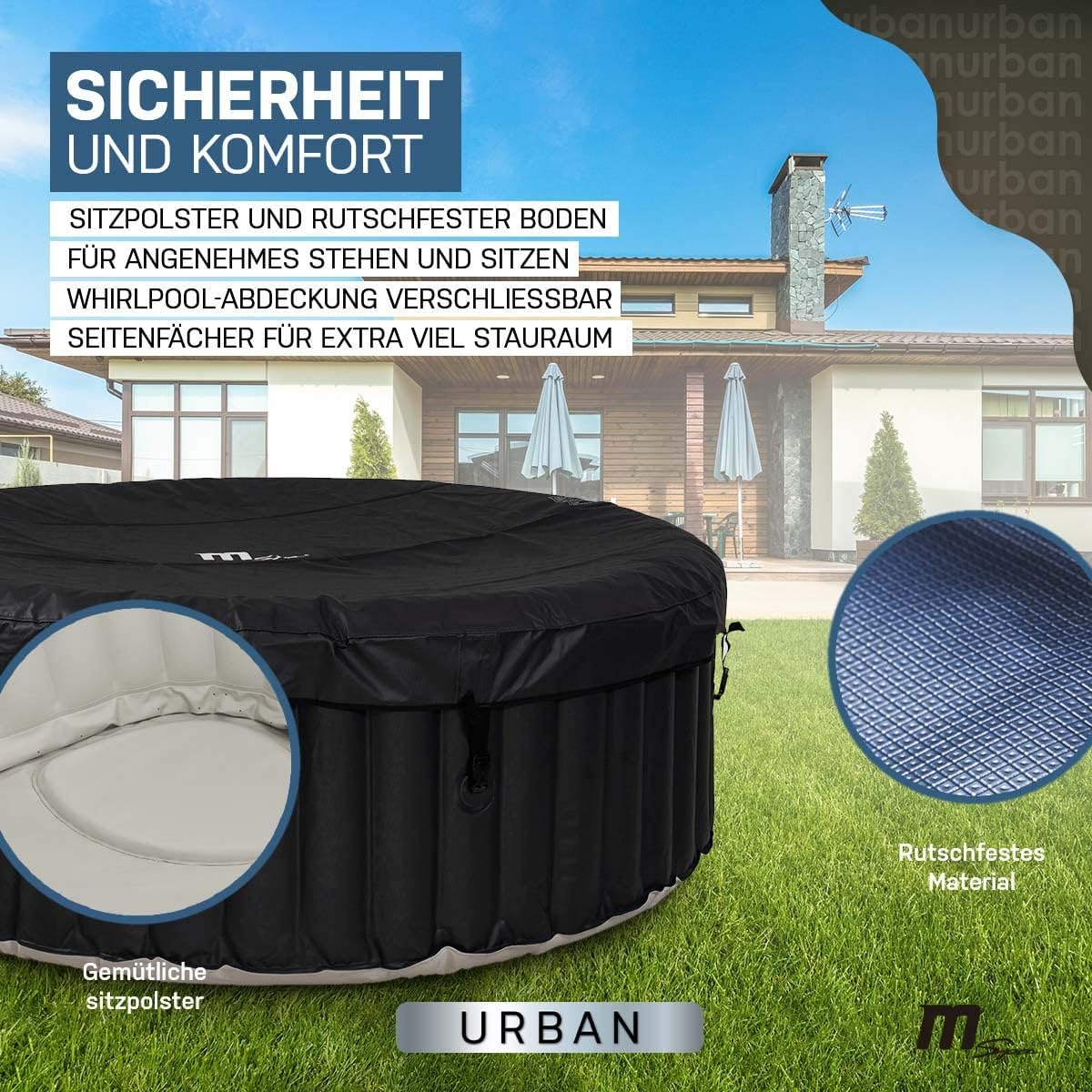

Image: The Miweba MSpa Rimba U-RB061 hot tub shown with its protective inflatable cover and a close-up of the non-slip floor material, highlighting features for safety and comfort.

Ташкил кардан

1. Интихоби сайт

Choose a flat, stable, and level surface capable of supporting the weight of the hot tub when filled (up to 1429 litres, approximately 1429 kg plus occupants). Ensure adequate drainage is available.

2. Inflation (M-ONE Self-inflating System)

The MSpa Rimba U-RB061 features an M-ONE self-inflating system for quick and easy setup. Simply connect the hot tub to a power source and press the inflation button on the control panel or remote. The pump will automatically inflate the hot tub to the correct pressure and stop when complete. Use the included manometer to verify pressure if needed.

Image: Illustration of the M-ONE one-click setup process, showing the hot tub inflating automatically with the remote control displaying temperature and settings. This system simplifies the initial setup.

3. Filter Cartridge Installation

Locate the filter housing inside the hot tub. Insert a filter cartridge into the housing and secure it according to the instructions provided in the filter section of this manual. Ensure it is properly seated to allow for effective water filtration.

4. Water Filling

Using a garden hose, fill the hot tub with fresh water to the recommended fill line (approximately 930 litres). Do not overfill. The maximum capacity is 1429 litres.

Фаъолият

1. Power On and Remote Control

Connect the hot tub to a suitable power outlet. Use the All-in-One LED Remote Control to power on the unit. The remote allows control over heating, bubbles, filtration, and other functions.

2. Heating Function (PTC Heating Technology)

Activate the heating function using the remote control. The PTC heating technology provides efficient heating at 1500 Watts, raising the water temperature by approximately 1.2-1.8 degrees Celsius per hour, up to a maximum of 40°C. The current water temperature will be displayed on the remote.

3. Bubble Massage System

The hot tub is equipped with 138 dynamic air nozzles for a comprehensive bubble massage. Press the bubble button on the remote to activate. The massage pump offers 3 intensity steps (300 watts, 500 watts, 720 watts) to customize your experience.

Image: A person relaxing in the hot tub, illustrating the effect of the dynamic air nozzles. The image also shows a digital timer display, indicating the ability to schedule operation up to 99 hours in advance.

4. Функсияи таймер

Utilize the timer function on the remote control to schedule the hot tub's operation. You can plan the start time up to 99 hours in advance, allowing for convenient pre-heating or activation of other functions.

Нигоҳдорӣ

1. Water Cleaning (Ozone Generator & UV-C)

The hot tub features an integrated ozone generator and UV-C water cleaning technology. These systems work together to eliminate up to 99% of germs, viruses, and bacteria, ensuring clean and hygienic water. Operate these functions regularly as part of your water maintenance routine.

Image: Visual representation of the integrated ozone generator and UV-C technology for water purification, highlighting their effectiveness in reducing germ formation by 99%.

2. Filter Cartridge Care

The high-performance 12V/25 watt filter pump requires regular maintenance of its filter cartridges. Clean the filter cartridges weekly by rinsing them with a garden hose. Replace cartridges every 4-6 weeks, or more frequently depending on usage and water quality. Using original MSpa filter cartridges is recommended for optimal performance and warranty compliance.

Image: A close-up of an MSpa filter cartridge, illustrating its function in providing clean water. The image emphasizes the importance of using original accessories for maintaining water quality.

3. Anti-Frost Protection

The hot tub is equipped with an anti-frost protection system. When the ambient temperature drops, the system automatically activates the heater to prevent water from freezing, protecting the internal components. Ensure the hot tub remains connected to power during cold weather.

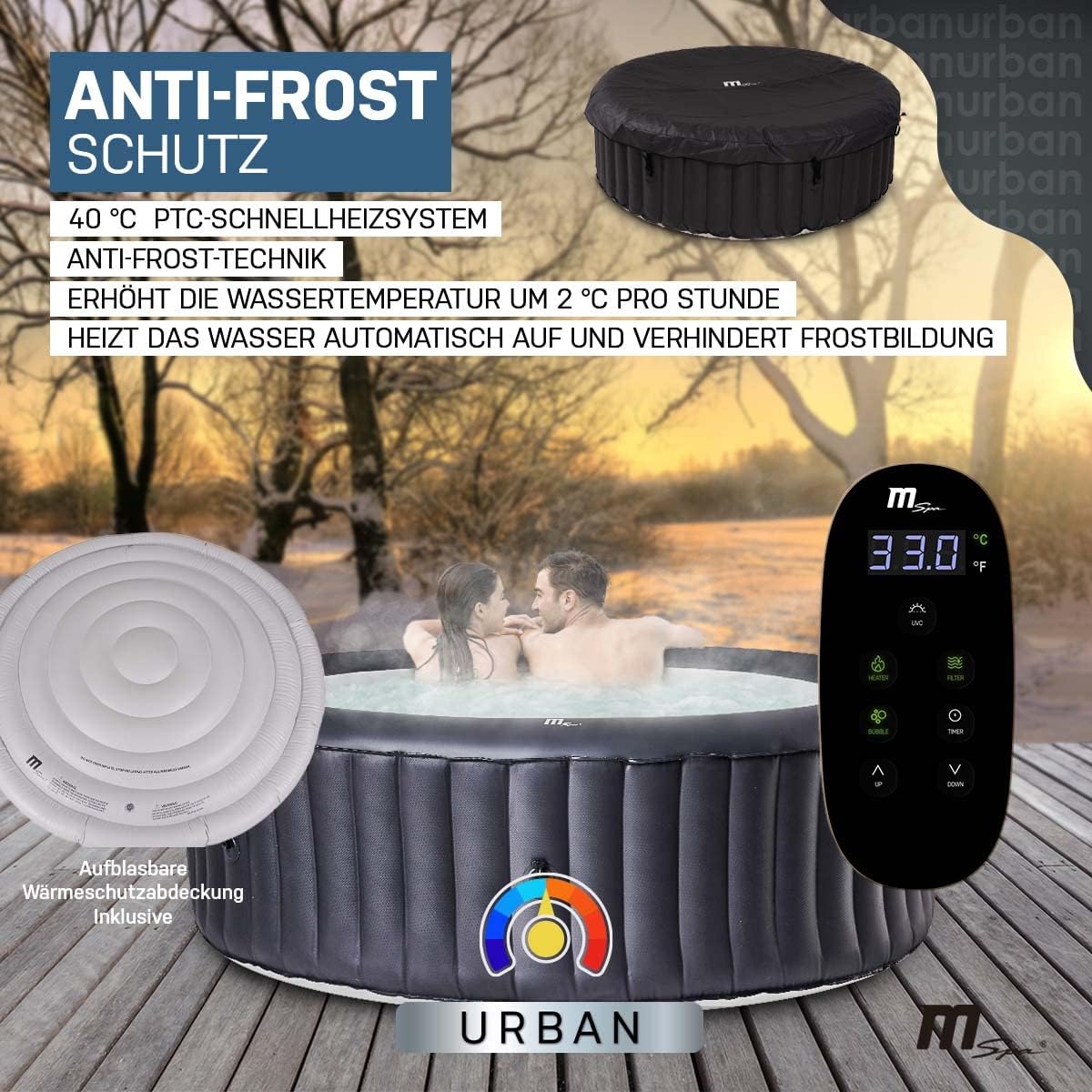

Image: The MSpa hot tub in a winter environment, demonstrating its anti-frost protection feature. The image also shows the inflatable thermal cover, which aids in insulation.

4. Тозакунӣ ва нигоҳдории умумӣ

Regularly clean the hot tub's interior and exterior with mild soap and water. When not in use for extended periods, drain the hot tub completely, clean it thoroughly, and ensure it is dry before deflating and storing in a cool, dry place. Use the provided inflatable cover for insulation and protection when the hot tub is filled but not in use.

Мушкилкушо

This section addresses common issues you might encounter with your hot tub. For problems not listed here, please contact customer support.

Мушаххасоти

Image: The Miweba MSpa Rimba U-RB061 hot tub in use, demonstrating its functional design and capacity for multiple users. It highlights the "Rimba Urban" model and its robust construction.

Кафолат ва дастгирӣ

For warranty information, technical support, or to purchase replacement parts, please contact Miweba customer service directly. Refer to the contact details provided with your purchase documentation or visit the official Miweba website. Ensure you have your model number (Rimba U-RB061) and purchase date available when contacting support.

Using non-original accessories may void your warranty. Always use genuine Miweba MSpa parts and accessories for optimal performance and safety.
