The RS PRO Gas Soldering Iron Kit with Auto Ignition (Model 1823821) is a versatile tool designed for various soldering and heating applications. This kit features convenient auto-ignition for quick startup and operates using gas, providing portability and flexibility for use in different environments.

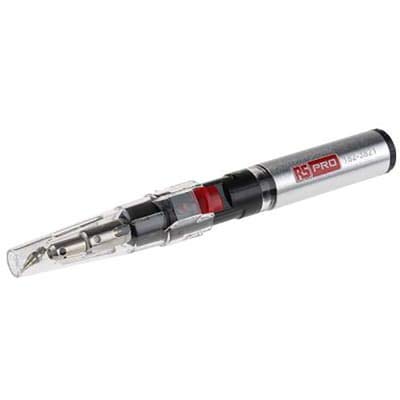

Image: The RS PRO Gas Soldering Iron Kit, featuring a sleek, pen-like design with a transparent gas reservoir and a metallic body. The "RS PRO 182-3821" branding is visible on the side.
Дастурҳои бехатарӣ
Always read and understand all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Use in a well-ventilated area to avoid inhalation of fumes.
- Do not touch the hot tip or heated parts of the soldering iron.
- Аз дастрасии кӯдакон дур нигоҳ доред.
- Дар ҷои хунук ва хушк дур аз нури бевоситаи офтоб ва манбаъҳои гармӣ нигоҳ доред.
- Ensure the gas is turned off when not in use.
- Do not puncture or incinerate the gas cartridge.
Ташкил кардан
- Gas Filling:
Ensure the soldering iron is cool and the gas valve is closed. Invert the soldering iron and insert the nozzle of a standard butane gas canister into the filling valve at the base. Press down firmly for 5-10 seconds. Repeat if necessary until the reservoir is full. Avoid overfilling.
- Насби маслиҳат:
Select the appropriate soldering tip for your application. Carefully screw the tip onto the heating element. Ensure it is securely fastened but do not overtighten.
Дастурҳои амалиётӣ
- Оғози:
Turn the gas flow adjustment knob (usually located near the base) to the 'ON' position or a desired flame setting. Press the auto-ignition button firmly until the flame ignites. If it does not ignite immediately, release and try again.
- Adjusting Temperature/Flame:
Rotate the gas flow adjustment knob to increase or decrease the flame size and heat output. Allow a few moments for the tip to reach the desired temperature.
- кафшер:
Once the tip is hot, apply solder to the joint, allowing it to flow evenly. Do not apply solder directly to the soldering iron tip.
- Хомӯш кардан:
After use, turn the gas flow adjustment knob to the 'OFF' position. Allow the soldering iron to cool completely before storing.
Нигоҳдорӣ
- Маслиҳатҳои тозакунӣ:
Нӯги кафшерро мунтазам бо истифода аз ад тоза кунедamp sponge or brass wool. This helps maintain optimal heat transfer and prevents oxidation.
- Нигоҳдорӣ:
Store the soldering iron in its original case or a protective pouch when not in use. Ensure it is completely cool before storing.
- Gas Refill:
Refill with high-quality butane gas only. Impure gas can clog the internal mechanisms.
Мушкилкушо
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Soldering iron does not ignite. | No gas, low gas pressure, clogged nozzle, faulty igniter. | Refill gas. Adjust gas flow. Clean nozzle. Contact support if igniter is faulty. |
| Flame is inconsistent or weak. | Low gas, impure gas, partially clogged nozzle. | Refill with pure butane. Clean nozzle. |
| Tip does not heat sufficiently. | Incorrect gas flow, oxidized tip, wrong tip for application. | Adjust gas flow. Clean or replace tip. Ensure correct tip is used. |
Мушаххасоти
- Модели: 1823821
- Бренд: RS PRO
- Навъи маҳсулот: Gas Soldering Iron Kit with Auto Ignition
- ASIN: B08Y1RSG4F
- Истеҳсолкунанда: RS PRO
- Аввалин дастрас: 5 марти соли 2021
- Навъи сӯзишворӣ: Butane Gas (not included)
- Оғози: Оғози худкор
Кафолат ва дастгирӣ
For warranty information and technical support, please refer to the official RS PRO webсайт ё бевосита бо хадамоти муштариёни худ тамос гиред. Квитансияи хариди худро ҳамчун далели харид нигоҳ доред.
Манбаъҳои онлайн: www.rspro.com
