SORAKO 10-inch 20V Max Cordless Electric Chainsaw User Manual

Маълумоти муҳим оид ба бехатарӣ

Огоҳӣ: Ҳама огоҳиҳои бехатарӣ, дастурҳо, тасвирҳо ва мушаххасоти бо ин асбоби барқӣ додашударо хонед. Риоя накардани ҳамаи дастурҳои дар поён овардашуда метавонад боиси зарбаи барқ, сӯхтор ва/ё ҷароҳати вазнин гардад.

• Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, gloves, and sturdy footwear when operating the chainsaw.
• Keep children and bystanders at a safe distance (at least 15 meters / 50 feet) from the operating area.
• Занҷирчаро дар шароити тар ё дар ҳузури моеъ ё газҳои оташгиранда кор накунед.
• Ensure the work area is clear of obstacles and has good lighting.
• Inspect the chainsaw for damage, loose parts, or wear before each use. Do not operate a damaged tool.
• Ҳангоми кор кардан, арраи занҷирӣ ҳамеша бо ҳарду даст маҳкам дошта бошед.
• Be aware of kickback. Kickback can occur when the moving chain at the tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Never operate the chainsaw above shoulder height.
• Пеш аз танзим кардан, иваз кардани лавозимот ё нигоҳ доштани асбоб, батареяро хориҷ кунед.
• Use only SORAKO recommended accessories and replacement parts.

Маҳсулот ба охир расидview

Familiarize yourself with the components of your SORAKO 10-inch Cordless Electric Chainsaw.

Тасвир: Барview of the SORAKO 10-inch Cordless Electric Chainsaw, highlighting key components such as the Lock-off Lever, Chain Brake/Hand Guard, Automatic Lubrication system, 4.0Ah Battery Pack, Tool-less Tensioning mechanism, and Guide Bar.

Компонентҳои асосӣ:

• Lock-off Lever: Prevents accidental starting. Must be pressed before the trigger.
• Тормози занҷир / Муҳофизати даст: Protects the operator's hand and stops the chain in case of kickback or emergency.
• Automatic Lubrication System: Automatically oils the guide bar and chain during operation.
• 4.0Ah Battery Pack: Provides power to the chainsaw. Rechargeable.
• Tool-less Tensioning: Allows for quick and easy adjustment of chain tension without additional tools.
• Панели роҳнамо: Занҷири арраро дастгирӣ ва роҳнамоӣ мекунад.
• Занҷири арра: Қисмати буридани занҷир.
• Калиди триггер: Activates the chainsaw motor.

Дастурҳои насб

1. Пуркунии батарея ва насб

1. Батареяро пур кунед: Connect the 4.0Ah battery pack to the provided fast charger. The charging time is approximately 2 to 2.5 hours for a full charge. Ensure the battery is fully charged before first use.
2. Батареяро насб кунед: Align the battery pack with the battery slot on the chainsaw handle. Slide the battery into place until it clicks securely. Ensure it is firmly seated.
3. Батареяро хориҷ кунед: Тугмаи раҳо кардани батареяро (агар мавҷуд бошад) пахш кунед ва батареяро аз дастгоҳ берун кашед.

2. Guide Bar and Chain Installation/Adjustment

The SORAKO chainsaw features a tool-less tensioning system for convenience.

Тасвир: A hand adjusting the tool-less tensioning knob on the side of the chainsaw, indicating how to quickly and easily adjust chain tension.

1. Бехатариро таъмин кунед: Always remove the battery pack before installing or adjusting the guide bar and chain.
2. Install Bar and Chain: Follow the specific instructions in your chainsaw's detailed manual for correct guide bar and chain placement. Ensure the chain direction is correct.
3. Танзими шиддати занҷир: Use the tool-less tensioning knob (as shown in the image) to adjust the chain tension. The chain should be snug against the guide bar but still able to be pulled freely by hand. A properly tensioned chain will not sag on the underside of the guide bar and can be pulled up slightly (about 2-3mm) at the center of the bar.
4. Тафтиши шиддат: After initial cuts, the chain may stretch. Recheck and adjust tension as needed.

3. Filling the Automatic Oiling System

The SORAKO chainsaw features an automatic oiling system to lubricate the guide bar and chain.

Тасвир: A hand pouring lubricating oil into the oil reservoir of the chainsaw, demonstrating the auto oiling system refill process.

1. Use Proper Oil: Use only high-quality bar and chain oil. Do not use waste oil or thin oils.
2. Пур кардани обанбор: Unscrew the oil cap and carefully pour bar and chain oil into the reservoir until it reaches the maximum fill line. Avoid overfilling.
3. Сарпӯши бехатар: Replace the oil cap and tighten it securely to prevent leaks.
4. Системаи асосӣ: Before first use, or after refilling, run the chainsaw for 1-3 minutes without cutting to allow the automatic oiling system to fully lubricate the chain and guide bar.
5. Monitor Oil Level: Regularly check the oil level during operation and refill as necessary.

Дастурҳои амалиётӣ

1. Ба кор андохтани арра

Тасвир: A person holding the chainsaw, demonstrating the ease of starting by pressing the trigger switch without a pull cord.

1. Бехатариро таъмин кунед: Confirm the chain brake is disengaged (pulled back towards the front handle).
2. Гирифтан: Арраи занҷирӣ бо ҳарду даст, яке дар дастаки пеш ва дигаре дар дастаки қафо, маҳкам дошта бошед.
3. Оғоз: Press the lock-off lever with your thumb, then squeeze the trigger switch to start the chainsaw. The chain will begin to move.
4. Ист: Release the trigger switch to stop the chainsaw. Engage the chain brake for added safety when not actively cutting.

2. Техникаи буриш

Always plan your cut before starting. Be aware of falling branches and kickback zones.

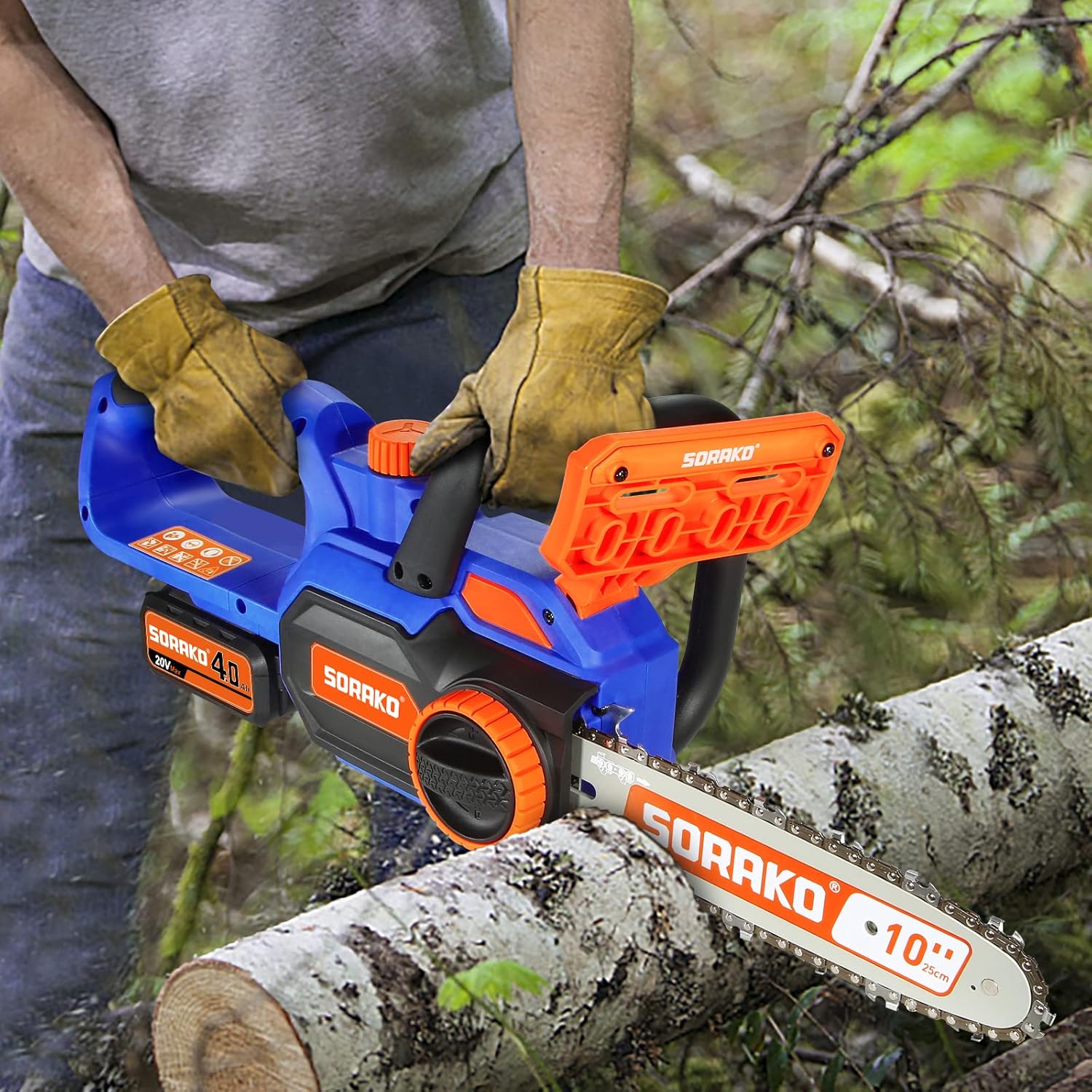

Тасвир: A person wearing gloves operating the SORAKO chainsaw to cut a log, demonstrating a typical cutting scenario.

• Stable Stance: Maintain a balanced and stable stance.
• Суръати пурра: Allow the chain to reach full operating speed before engaging the wood.
• Самти буриш: Cut with the bottom of the guide bar (pulling chain) for better control and to reduce kickback risk.
• Avoid Tip: Never cut with the tip of the guide bar, as this is the primary kickback zone.
• Буридани хурд: For larger branches or logs, make several smaller cuts rather than one deep cut.
• Тоза кардани партовҳо: Stop the chainsaw and remove the battery before clearing any sawdust or debris.

3. Хусусиятҳои бехатарӣ

Тасвир: A close-up of the chain brake/hand guard, illustrating its function in stopping the chain upon impact or activation.

• Double Protection Design: The chainsaw incorporates a safety lock and a brake disc for enhanced user safety.
• Қулфи бехатарӣ: Prevents unintentional starting. Always engage the safety lock when the chainsaw is not in use.
• Тормози занҷир: The mechanical chain brake is designed to stop the chain instantly in the event of kickback or if manually engaged by pushing the hand guard forward. Regularly test the chain brake for proper function.

Нигоҳдорӣ

Нигоҳдории мунтазам дарозумрӣ ва кори бехатари арраи шуморо таъмин мекунад.

• Тозакунӣ: After each use, remove the battery and clean the chainsaw thoroughly. Use a brush or compressed air to remove sawdust, chips, and debris from the motor housing, guide bar groove, and chain.
• Тоза кардани занҷир: A sharp chain is essential for efficient and safe cutting. Sharpen the chain regularly according to the manufacturer's specifications for file size and angle. A dull chain will cause the saw to work harder, produce fine sawdust instead of chips, and increase the risk of kickback.
• Нигоҳдории панели роҳнамо: Clean the guide bar groove to ensure proper oil flow. Flip the guide bar periodically to ensure even wear. Check for burrs on the guide bar rails and file агар мавҷуд бошанд, онҳоро ҳамвор кунед.
• Oil System Check: Ensure the automatic oiling system is functioning correctly. Check for blockages in the oil outlet.
• Нигоҳубини батарея: Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged.
• Нигоҳдорӣ: When not in use, store the chainsaw in a dry, secure location out of reach of children. Ensure the chain brake is engaged and the battery is removed. Use a guide bar cover to protect the chain.

Мушкилкушо

Мушаххасоти

Тасвир: The SORAKO chainsaw displayed with its key specifications including 20.6 ft/s Chain Speed, 4.0Ah Battery, 10-inch Guide Bar, and 8.1 lbs Weight.

Кафолат ва дастгирӣ

For warranty information, technical support, or to order replacement parts, please contact SORAKO customer service directly. Refer to the packaging or the official SORAKO webсайт барои маълумот барои тамос.

Always provide your product model number (SCS18E1) and purchase date when contacting support.
