Муқаддима
This instruction manual provides comprehensive guidance for the 8Bitdo Media Remote (White Short Edition), designed for seamless media control on your Xbox One, Xbox Series X, and Xbox Series S consoles. This remote offers dedicated media playback buttons, Xbox system navigation, and motion-activated backlighting for enhanced usability.

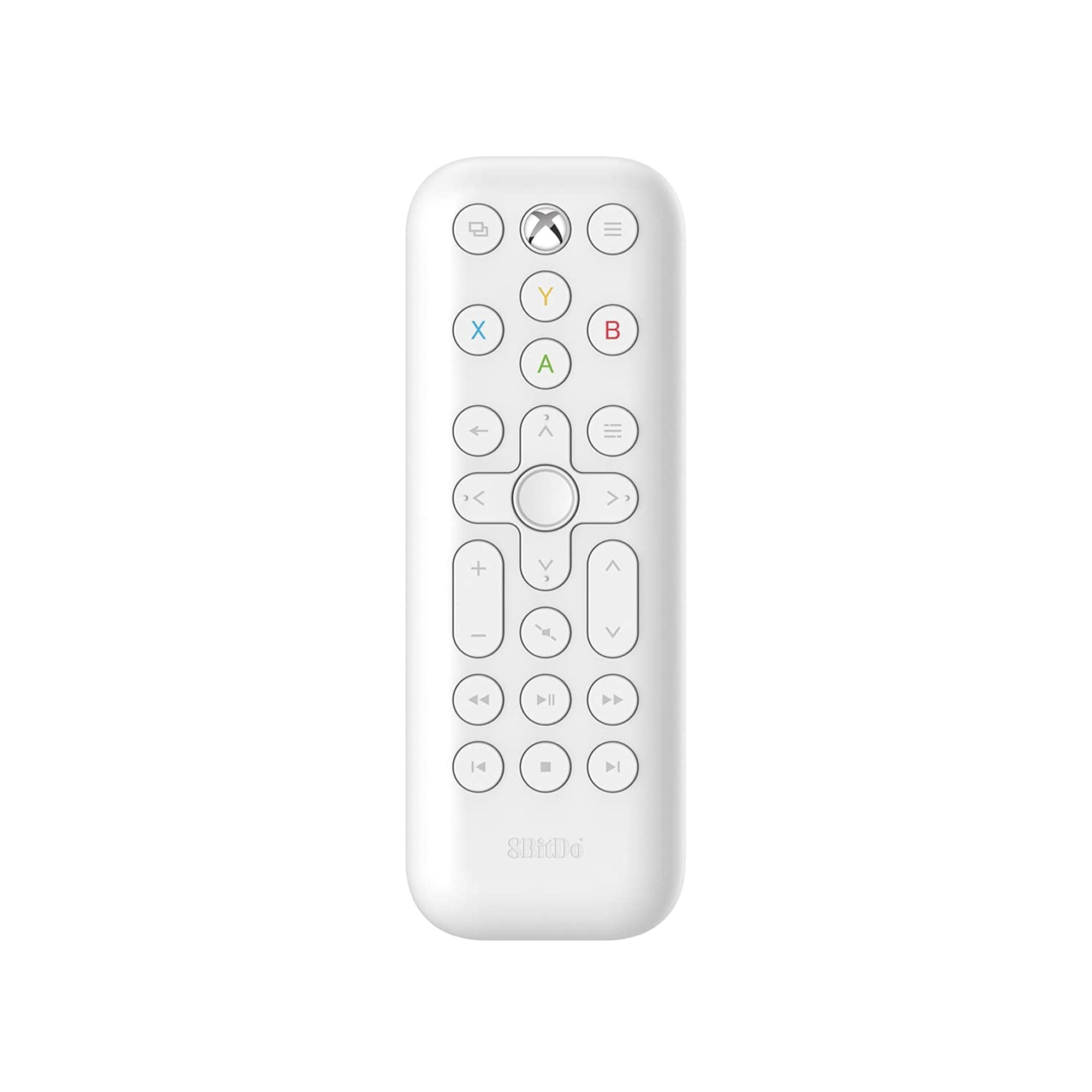

Image: The 8Bitdo Media Remote in White, Short Edition, showcasing its compact design and button layout.
Ташкил кардан
1. Насби батарея
The 8Bitdo Media Remote requires two AAA batteries for operation. These are typically included with your purchase.
- Сарпӯши қисмати батареяро дар қафои пулти дурдаст ҷойгир кунед.
- Сарпӯшро ба поён лағжонед, то қисмро кушоед.
- Ду батареяи AAA-ро ҷойгир кунед, ки қутбияти дурустро таъмин кунед (+ ва -).
- Сарпӯши қисмати батареяро то он даме ки бехатар клик кунад, ба ҷои худ ғеҷонед.
Image: A hand demonstrating how to open the battery compartment and insert AAA batteries into the remote.
2. Пайвасти ибтидоӣ
The 8Bitdo Media Remote uses infrared (IR) technology. No manual pairing is required. Simply ensure a clear line of sight between the remote's IR emitter (located at the top) and your Xbox console's IR receiver.
Image: A user holding the 8Bitdo Media Remote, pointing it towards an Xbox Series S console, illustrating the line-of-sight requirement for infrared communication.
Дастурҳои амалиётӣ
1. Фаъол/хомӯш кардани барқ ва паймоиш
- Dedicated Home Button: Press the Xbox Home button (located at the top center) to instantly wake your Xbox console.
- Панели самтнок (D-Pad): Use the circular D-Pad for navigating menus and selecting items.
- Тугмаҳои A/B/X/Y: These colored buttons correspond to standard Xbox controller functions for menu selection and interaction.
Image: The 8Bitdo Media Remote being used to wake an Xbox console, highlighting the dedicated Home button functionality.
2. Назорати бозикунии медиа
The remote features a full suite of media playback buttons:
- Бозӣ/Таваққуф: Start or pause media playback.
- Ба пеш/қафои зуд: Skip forward or backward through content.
- Баланд/Поёни овоз: Adjust the volume of your media.
- Хомӯш кардан: Аудио хомӯш ё боз кунед.
3. Motion-Activated Backlight
The buttons on the remote are motion-activated and will illuminate when the remote is picked up or moved, making it easy to use in low-light conditions.
4. OneGuide Button Customization
The OneGuide button (three horizontal lines icon) can be customized to launch a specific application on your Xbox. To configure this:
- On your Xbox, go to Танзимотҳо.
- Гузариш ба Devices & connections, пас интихоб кунед Медиа дурдаст.
- Choose the desired action or app to launch when the OneGuide button is pressed.
5. TV Volume Control (HDMI-CEC)
Your Xbox can control your TV's volume if your TV supports HDMI-CEC (Consumer Electronics Control). To enable this:
- Press the Xbox button on your controller to open the guide.
- Ба Танзимотҳо > Генерал > TV & display options.
- Интихоб кунед Назорати дастгоҳ > HDMI-CEC and enable all options.
- Consult your TV manufacturer's manual for specific HDMI-CEC settings.
Нигоҳдорӣ
1. Иваз кардани батарея
Replace the AAA batteries when the remote's performance diminishes or the backlight becomes dim. Refer to the 'Battery Installation' steps in the Setup section.
2. Тозакунӣ
Wipe the remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or buttons.
Мушкилкушо
- Ҷавоб намедиҳад.
- Боварӣ ҳосил кунед, ки батареяҳои нав дуруст насб карда шудаанд.
- Verify a clear line of sight between the remote and your Xbox console. Obstructions can block the infrared signal.
- Confirm your Xbox console is powered on and not in a deep sleep mode that disables IR reception.
- Backlight constantly active:
- The backlight is motion-activated. Any movement will trigger it. This is normal operation.
- If battery life is a concern due to frequent backlighting, consider using rechargeable AAA batteries.
- TV volume control not working:
- Ensure your TV supports HDMI-CEC and that it is enabled in your TV's settings.
- Verify HDMI-CEC settings are correctly configured on your Xbox console (Settings > General > TV & display options > Device control > HDMI-CEC).
Мушаххасоти
| Модели | 6922621501848 (White Short Edition) |
| Бренд | 8Битдо |
| Пайвастшавӣ | Инфрасурх (IR) |
| Мутобиқати | Xbox Series X, Xbox Series S, Xbox One |
| Манбаи нерӯ | 2 x батареяҳои AAA (дохил) |
| Dimensions (Short Edition) | 134.25 x 48 x 18.8 мм |
| Вазни ашё | 2.88 унция |
Image: A visual comparison of the 8Bitdo Media Remote in both short and long editions, detailing their respective dimensions.
Image: An illustration showing the 8Bitdo Media Remote's compatibility with Xbox One, Xbox Series X, and Xbox Series S consoles.
Кафолат ва дастгирӣ
8Bitdo is committed to producing high-quality gaming hardware. For specific warranty information, product support, or to access the latest firmware updates, please visit the official 8Bitdo webсайт ё бевосита бо хадамоти муштариёни худ тамос гиред. Барои даъвоҳои кафолат далели хариди худро нигоҳ доред.
Барои захираҳои иловагӣ ва маълумоти маҳсулот, шумо метавонед ба сайт муроҷиат кунед 8Bitdo Store on Amazon.
Маҳсулот ба охир расидview Видео
Видео: Як мансабдор тамом шудview of the 8Bitdo Media Remote for Xbox One and Xbox Series X|S, demonstrating its features and functionality.
