1. Дастурамал оид ба бехатарӣ
Ҳамеша ҳама огоҳиҳои бехатарӣ, дастурҳо, тасвирҳо ва мушаххасоти бо ин асбоби барқӣ додашударо хонед ва бифаҳмед. Риоя накардани ҳамаи дастурҳои дар поён овардашуда метавонад боиси зарбаи барқ, сӯхтор ва/ё ҷароҳати вазнин гардад.
- Бехатарии минтақаи корӣ: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
- Бехатарии барқ: Штепсельҳои асбоби барқӣ бояд ба розетка мувофиқат кунанд. Ҳеҷ гоҳ симро ба ҳеҷ ваҷҳ тағир надиҳед. Ягон штепсельи адаптерро бо асбобҳои барқии ба замин пайвастшуда истифода набаред. Васлкунакҳои бетағйир ва розеткаҳои мувофиқ хатари зарбаи барқро коҳиш медиҳанд.
- Бехатарии шахсӣ: Always wear eye protection. Use personal protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions. Stay alert, watch what you are doing, and use common sense when operating a power tool.
- Истифодаи асбоб ва нигоҳубин: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Истифодаи асбоби батарея ва нигоҳубин: Танҳо бо пуркунандаи барқе, ки истеҳсолкунанда нишон додааст, пур кунед. Пуркунандаи барқе, ки барои як намуди батарея мувофиқ аст, ҳангоми истифода бо батареяи дигар метавонад хатари сӯхторро ба вуҷуд орад. Асбобҳои барқро танҳо бо батареяҳои махсус таъиншуда истифода баред. Истифодаи ҳама бастаҳои дигари батарея метавонад хатари ҷароҳат ва сӯхторро ба вуҷуд орад.
2. Маҳсулот ба охир расидview
The Einhell TE-AP 18/26 Li-Solo is a versatile cordless reciprocating saw designed for cutting various materials such as wood, plastic, and metal. It is part of the Power X-Change family, allowing for interchangeable battery use with other Einhell tools.

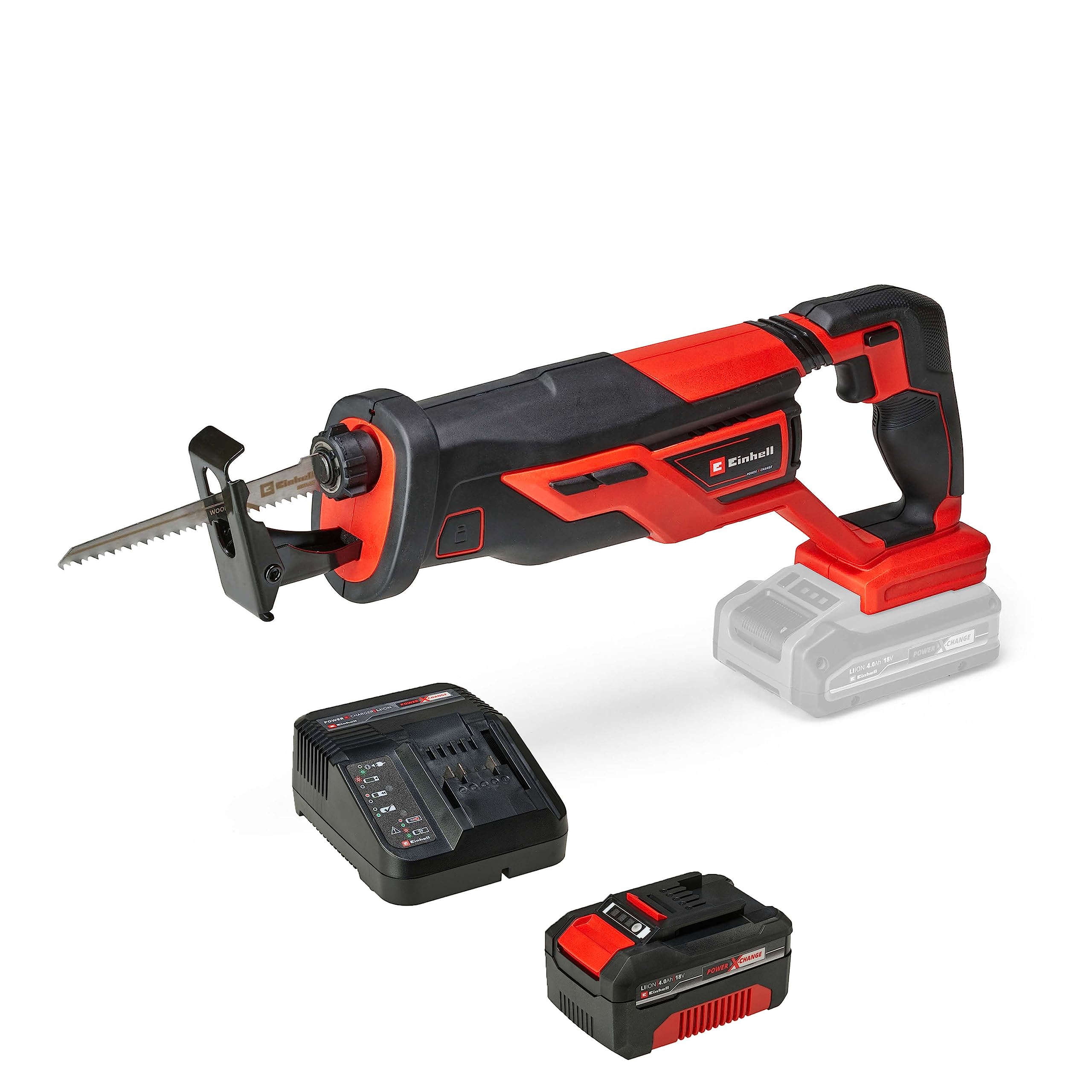

Figure 1: Einhell TE-AP 18/26 Li-Solo cordless reciprocating saw. This image shows the compact design of the saw, its ergonomic handle, and the included Power X-Change battery and charger, illustrating the main components of the tool.
Хусусиятҳои асосӣ:
- Системаи Power X-Change: Compatible with all Power X-Change batteries and chargers.
- Буридани бисёрҷониба: Suitable for wood, plastic, and metal.
- Чуқурии буридан: Up to 180 mm in wood and 12 mm in steel.
- Stroke Height: 26 mm for efficient material removal.
- Нишондиҳандаи батарея: 3-position LED for charge level monitoring.
- Бехатарии пешрафта: Microprocessor-controlled parameters for enhanced user safety.
- High-Quality Li-Ion Cells: Minimizes self-discharge for longer battery life.
3. Танзимот
3.1 Пуркунӣ ва ворид кардани батарея
- Ensure the battery is fully charged before first use. Connect the charger to a power outlet and insert the battery pack. The charger's indicator light will show the charging status.
- Once charged, slide the battery pack into the base of the reciprocating saw until it clicks securely into place.
- To remove the battery, press the release button(s) on the side of the battery pack and slide it out.
Figure 2: Battery insertion. This image demonstrates the correct method for inserting the Power X-Change battery into the base of the Einhell reciprocating saw, ensuring a secure connection.
3.2 Насбкунии майса
- Ensure the battery is removed from the tool before installing or changing blades.
- Locate the blade holder on the front of the saw. Depending on the model, this may involve twisting a collar or lifting a lever.
- Insert the shank of the saw blade fully into the blade holder. Ensure the blade teeth are facing the correct direction for cutting.
- Release the blade holder mechanism to secure the blade. Gently pull on the blade to confirm it is firmly locked in place.
Figure 3: Blade installation. This image illustrates the process of inserting a saw blade into the tool's blade holder, emphasizing the importance of proper seating and secure locking.
4. Амалиёт
4.1 «Оғоз ва қатъ».
- To start the saw, press the safety lock-off button (if present) and then squeeze the trigger switch. The saw will begin to operate.
- Барои боздоштани арра, тугмаи триггерро раҳо кунед.
- The speed of the blade can often be controlled by the pressure applied to the trigger switch.
4.2 Усулҳои буриш
Ҳамеша боварӣ ҳосил кунед, ки порчаи корӣ бехатар аст clamped or held to prevent movement during cutting. Wear appropriate personal protective equipment.
- Буридани умумӣ: Place the shoe of the saw firmly against the workpiece. Start the saw and allow it to reach full speed before engaging the blade with the material. Apply steady, even pressure.
- Буридани чӯб: Use a wood-specific blade. For thicker wood, consider making pilot holes or plunge cuts if necessary. The saw can cut up to 180 mm in wood.
- Буридани пластикӣ: Use a fine-tooth blade suitable for plastic. Lower speeds may be beneficial to prevent melting the material.
- Металл буридан: Use a metal-specific blade (e.g., high-speed steel). Apply cutting fluid if recommended for the specific metal. The saw can cut up to 12 mm in steel.
Figure 4: Saw in operation. This image depicts the Einhell reciprocating saw being used to cut a piece of wood, demonstrating proper grip and positioning during operation.
5. Нигоҳдорӣ
Regular maintenance ensures the longevity and safe operation of your tool. Always disconnect the battery before performing any maintenance.
5.1 Тозакунӣ
- Пас аз ҳар истифода, корпуси асбобро бо матои нарм тоза кунедamp матоъ. Моддаҳои кимиёвии сахт ё тозакунандаи абразивиро истифода набаред.
- Remove any sawdust, chips, or debris from the ventilation openings to prevent overheating. Use compressed air if available.
5.2 Иваз кардани майса
Replace blades when they become dull or damaged. Refer to Section 3.2 for blade installation instructions.
5.3 Нигоҳубини батарея
- Батареяҳоро дар ҷои хунук ва хушк аз нурҳои бевоситаи офтоб ва ҳарорати аз ҳад зиёд дур нигоҳ доред.
- Батареяҳоро муддати тӯлонӣ дар ҳолати холӣ нигоҳ надоред. Онҳоро мунтазам пур кунед, агар истифода нашаванд.
- Protect battery contacts from short-circuiting.
6. Баррасии мушкилот
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Дида оғоз намекунад | Battery not inserted correctly or discharged; Safety lock engaged; Faulty switch | Check battery connection and charge level; Release safety lock; Contact service if switch is faulty |
| Коркарди буридани камшуда | Dull or incorrect blade; Overheating; Insufficient battery charge | Replace blade with appropriate type; Allow tool to cool; Recharge battery |
| Вибрацияи аз ҳад зиёд | Loose blade; Damaged blade; Workpiece not secured | Ensure blade is securely fastened; Replace damaged blade; Secure workpiece firmly |
| Батарея пур карда намешавад | Charger not connected; Faulty battery or charger | Check power connection; Test with another battery/charger if available; Contact service |
7. Мушаххасоти
| Хусусият | Мушаххасоти |
|---|---|
| Модели | TE-AP 18/26 Li-Solo |
| Бренд | Эйнҳелл |
| Навъи манбаи барқ | Батареяе |
| Ҷилдиtage | 18 вольт |
| Баландии зарба | 26 мм |
| Cutting Depth (Wood) | 180 мм |
| Cutting Depth (Steel) | 12 мм |
| Маводҳои пиёз | Пӯлоди баландсуръат |
| Тавсияи рӯизаминӣ | Чӯб, пластикӣ, металлӣ |
| Маводҳои дастӣ | Hard Plastic or Composite |
| Хусусиятҳои махсус | 3-position battery level indicator, Microprocessor-controlled safety parameters |
| Компонентҳои дохилшуда | Battery, Battery Charger (if purchased as a kit) |
8. Кафолат ва дастгирӣ
This Einhell product comes with a limited warranty. For detailed warranty terms, conditions, and registration information, please refer to the warranty card included with your product or visit the official Einhell website. For technical support, spare parts, or service inquiries, please contact Einhell customer service or an authorized service center.
You can find more information and support resources on the official Einhell webсайт: www.einhell.com
