Дастури корбарии принтери термопарии сайёри PeriPage A6 Mini

1. Муқаддима

Thank you for choosing the PeriPage A6 Mini Portable Thermal Printer. This compact and versatile device allows you to print photos, labels, notes, lists, and more directly from your smartphone or PC. With its high-resolution thermal printing technology, you can enjoy clear and crisp prints without the need for ink cartridges. This manual provides essential information on setting up, operating, maintaining, and troubleshooting your new printer.

2. Маълумот оид ба бехатарӣ

Please read all safety instructions carefully before using the printer to ensure safe and proper operation.

• Do not disassemble, repair, or modify the printer yourself.
• Принтерро аз об, намӣ ва ҳарорати баланд дур нигоҳ доред.
• Танҳо сими пуркунандаи барқ ​​ва адаптери барқро истифода баред.
• Avoid exposing the print head to direct contact, as it can be hot after prolonged use.
• Аз дастрасии кӯдакони хурдсол дур нигоҳ доред.

3. Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳама ашё дар бастаи шумо мавҷуданд:

• PeriPage A6 Mini Printer
• Ролҳои коғази гармидиҳӣ
• Сими USB
• Дастури корбар

Image: Contents of the PeriPage A6 Mini Printer package, showing the printer, a roll of thermal paper, a USB charging cable, and the user manual.

4. Маҳсулот ба охир расидview

4.1 Хусусиятҳои асосӣ

• Ultra HD Printing: 304 DPI resolution for clear and detailed prints.
• Чопи термикии бе ранг: No ink cartridges required, reducing operating costs.
• Бисёрфунксионалӣ: Supports printing of photos, labels, notes, lists, QR codes, web саҳифаҳо ва ғайра.
• Пайвасти Bluetooth: Seamless wireless connection to iOS and Android smartphones.
• Тарҳрезии сайёр: Compact and lightweight with a built-in 1000mAh rechargeable battery.
• Дастгирии коғази бисёрҷониба: Compatible with various thermal paper types including standard, sticky, transparent, and colorful options.

4.2 Ҷузъҳои чопгар

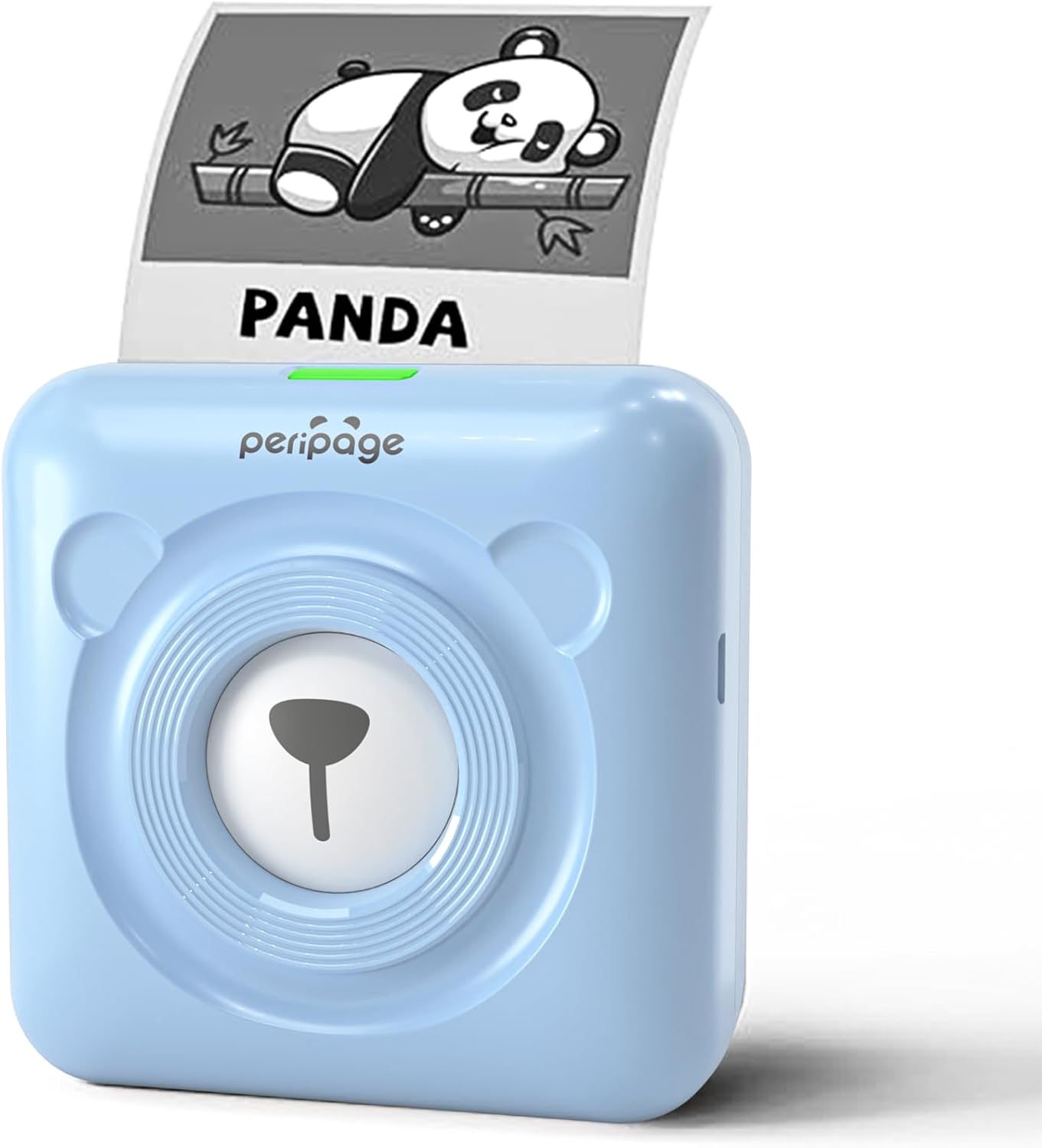

Image: The PeriPage A6 Mini Printer in blue, demonstrating a printed output. The printer features a bear-like design on its front.

Image: A visual comparison highlighting the superior print resolution of the PeriPage A6 Mini Printer (304 DPI) compared to a standard definition printer, showing finer details in the printed image.

Image: An illustration showing the different types of thermal paper that can be used with the PeriPage A6 Mini Printer, such as standard thermal paper, full sticky thermal paper, transparent stickers, and colorful sticky thermal paper, all 56mm wide.

5. Дастури насб

5.1 Пуркунии принтер

Before first use, fully charge the printer using the provided USB cable. Connect the USB cable to the printer's charging port and the other end to a USB power adapter (not included) or a computer's USB port. The indicator light will show charging status.

5.2 Installing Thermal Paper

1. Open the printer cover by gently sliding the release button or pressing the designated area.
2. Insert the thermal paper roll into the paper compartment, ensuring the printing side faces the print head.
3. Pull a small amount of paper out beyond the print head.
4. Сарпӯши принтерро маҳкам пӯшед, то он даме ки он ба ҷои худ лағжад.

5.3 Downloading the PeriPage App

The PeriPage A6 Mini Printer requires the official PeriPage APP for full functionality. You can download it via:

• Searching for "PeriPage" in your device's APP store (Apple App Store for iOS, Google Play Store for Android).
• Scanning the QR code provided in the instruction manual or on the product packaging.
• Visiting the official download page: https://www.ileadtek.com/download/app/peripage.html

Image: A guide illustrating two methods to download the PeriPage App: searching on Google Play or Apple App Store, or scanning a QR code.

5.4 Connecting to Your Device (Bluetooth)

1. Ensure your PeriPage A6 printer is turned on.
2. Bluetooth-ро дар смартфони худ фаъол созед.
3. Open the PeriPage App. The app will guide you to connect to the printer.
4. Select your printer from the list of available Bluetooth devices within the app. The printer's name usually starts with "PeriPage".
5. Once connected, the app will indicate a successful connection.

Image: A visual representation of connecting the PeriPage A6 Mini Printer to a smartphone via the PeriPage App, showing the app interface and Bluetooth icon.

6. Дастурҳои истифодабарӣ

The PeriPage App offers a wide range of functions to maximize your printer's utility.

6.1 Basic Printing Steps (via App)

1. Принтерро фаъол кунед: Тугмаи барқро дар принтер пахш кунед.
2. Open the PeriPage App: Боварӣ ҳосил кунед, ки чопгари шумо тавассути Bluetooth пайваст аст.
3. Select Printing Type: On the app's homepage, choose the type of content you wish to print (e.g., Photo Print, Label Print, Notes, Web Page Printing, OCR Text Recognition).
4. Import/Create Content: Select the image, text, or template you want to print. The app provides various fonts and themes.
5. Танзимотро танзим кунед (ихтиёрӣ): Modify print density, size, or other parameters as needed.
6. Чоп кардан: Tap the print button in the app. The printer will begin printing.

Image: A five-step visual guide demonstrating the printing process using the PeriPage App: 1. Press button to boot, 2. Enter PeriPage app, 3. Import file, 4. Connect via Bluetooth, 5. Get printed document.

6.2 Сенарияҳои истифода

The PeriPage A6 is suitable for a variety of applications:

• Ошхона: Print labels for jars and containers.
• Омӯзиш: Print study notes, lists, or quick references.
• Аксҳо: Print black and white photos for journaling or scrapbooking.
• Стикерҳои DIY: Create custom stickers for various purposes.

Тасвир: Мисamples of the PeriPage A6 Mini Printer's use in multiple scenarios, including creating kitchen labels, printing study notes, printing photos, and enhancing scrapbooks.

Image: A display of the PeriPage A6 Mini Printer's multifunctional thermal printing capabilities, showing its use for lists/bills, study notes, images, and DIY stickers.

7. Нигоҳдорӣ

7.1 Тоза кардани принтер

To ensure optimal print quality and prolong the life of your printer, regular cleaning is recommended.

• Turn off the printer and disconnect the power cable before cleaning.
• Барои тоза кардани берунии чопгар аз матои мулоим, хушк ва ифлос истифода баред.
• For the print head, gently wipe it with a cotton swab lightly dampened with isopropyl alcohol. Allow it to dry completely before use.
• Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.

7.2 Нигоҳубини батарея

• Барои нигоҳ доштани саломатии батарея, ҳатто агар истифода набаред ҳам, принтерро мунтазам пур кунед.
• Батареяро зуд-зуд пурра холӣ накунед.
• Вақте ки принтер муддати тӯлонӣ истифода намешавад, онро дар ҷои хунук ва хушк нигоҳ доред.

8. Баррасии мушкилот

If you encounter issues with your PeriPage A6 Mini Printer, refer to the following common problems and solutions:

9. Мушаххасоти

10. Кафолат ва дастгирӣ

10.1 Маълумот дар бораи кафолат

Please note that this product is listed with Кафолат нест. For specific details regarding returns or defects, please refer to the retailer's policy where the product was purchased.

10.2 Дастгирии муштариён

For further assistance, technical support, or inquiries not covered in this manual, please contact PeriPage customer service through their official website or the contact information provided by your retailer. Ensure you have your product model number (A6) and purchase details ready when contacting support.
