Sharp RP-TT70 Vinyl Record Player Turntable User Manual

1. Маҳсулот ба охир расидview

The Sharp RP-TT70 is a 12-inch vinyl record player turntable designed to deliver a rich audio experience with modern convenience. It features a classic wooden cabinet and comes with stereo bookshelf speakers. This belt-drive turntable supports multiple playback speeds and offers versatile connectivity options, including dual Bluetooth functionality.

Figure 1.1: Sharp RP-TT70 Turntable and Speakers. The turntable features a stylish wooden finish and a clear dust cover, flanked by two matching stereo bookshelf speakers.

2. Он чиро дар бар мегирад

Лутфан мундариҷаи бастаро тафтиш кунед, то боварӣ ҳосил кунед, ки ҳама ашё мавҷуд аст:

• Sharp RP-TT70 Turntable Unit
• Stereo Bookshelf Speakers (2 units)
• Сарпӯши чанг
• Адаптери барқ
• Дастури корбар (ин ҳуҷҷат)

3. Дастурамал оид ба насб

Follow these steps to set up your Sharp RP-TT70 turntable:

1. Ҷойгиршавӣ: Place the turntable on a stable, level surface away from direct sunlight, heat sources, and excessive dust. Ensure adequate ventilation around the unit.
2. Пайвастагии баландгӯяк: Connect the included stereo bookshelf speakers to the "SPEAKER OUT" terminals on the rear of the turntable. Ensure correct polarity (positive to positive, negative to negative).
3. Пайвасти барқ: Connect the power adapter to the "POWER IN DC 12V" port on the rear of the turntable, then plug the adapter into a wall outlet.
4. Сарпӯши чанг: Carefully attach the dust cover to the hinges on the back of the turntable.

Figure 3.1: Rear Panel Connections. This image highlights the AUX-IN Jack, RCL (R&L) Speaker Out, Pitch (+)(-) Speed Calibration, and Power In DC 12V ports, crucial for proper setup.

4. Дастурҳои истифодабарӣ

4.1 Навозиши сабти винилӣ

1. Фаъол: Turn the power knob to activate the turntable.
2. Суръатро интихоб кунед: Adjust the speed selector to match the record's RPM (33 1/3, 45, or 78 RPM). For 45 RPM records, place the included 45 RPM adapter on the spindle.
3. Ҷойгиршавӣ: Пластинаи винили худро бодиққат дар табақи гардишкунанда ҷойгир кунед.
4. Тонеро бардоштан: Бо истифода аз фишанги ишора, дастаки тонерро оҳиста бардоред.
5. Мавқеи стилус: Дастаки тонерро аз болои чуқури оғози дилхоҳи сабт ҳаракат диҳед.
6. Дасти поин: Бо истифода аз фишанги ишора, тонерро оҳиста поён кунед. Қалам бо сабт тамос мегирад ва навохтан оғоз мешавад.
7. Танзими садо: Adjust the volume using the volume knob on the turntable.
8. Хусусияти қатъи худкор: The turntable features an auto-stop function that will automatically stop the platter rotation when the record reaches its end.

4.2 Пайвасти Bluetooth

The Sharp RP-TT70 supports dual Bluetooth connectivity, allowing you to stream music in two ways:

• Streaming Vinyl to External Bluetooth Device:
  1. Боварӣ ҳосил кунед, ки гардиши гардиш фаъол аст.
  2. Activate Bluetooth pairing mode on your external Bluetooth speaker or headphones.
  3. The turntable will automatically search for and connect to nearby Bluetooth devices. The Bluetooth indicator light will illuminate when connected.
  4. Once connected, audio from your vinyl record will play through the external Bluetooth device.
• Streaming Music from Your Phone to Turntable Speakers:
  1. Боварӣ ҳосил кунед, ки гардиши гардиш фаъол аст.
  2. On your smartphone or other Bluetooth-enabled device, search for "Sharp RP-TT70" in the Bluetooth settings.
  3. Select the turntable to pair. The Bluetooth indicator light will illuminate when connected.
  4. Once connected, audio from your phone will play through the turntable's included stereo speakers.

4.3 Auxiliary Input (AUX-IN)

Connect external audio devices such as smartphones, tablets, or MP3 players using a 3.5mm audio cable (not included) to the AUX-IN jack on the rear of the turntable. Switch the input mode to AUX to play audio through the turntable's speakers.

4.4 Ҷеки гӯшмонак

For private listening, connect headphones to the headphone jack located on the front panel of the turntable.

5. Нигоҳдорӣ

Proper maintenance ensures the longevity and optimal performance of your turntable:

• Сарпӯши чанг: Always keep the dust cover closed when the turntable is not in use to prevent dust accumulation on the platter and stylus.
• Тоза кардани стилус: Gently clean the stylus regularly using a soft brush designed for turntable styli. Brush from back to front.
• Тоза кардани табақ: Wipe the turntable and speakers with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Cartridge and Stylus Replacement: The RP-TT70 uses a changeable ceramic cartridge and stylus. If sound quality degrades or the stylus is damaged, replace it with a compatible Sharp replacement part.

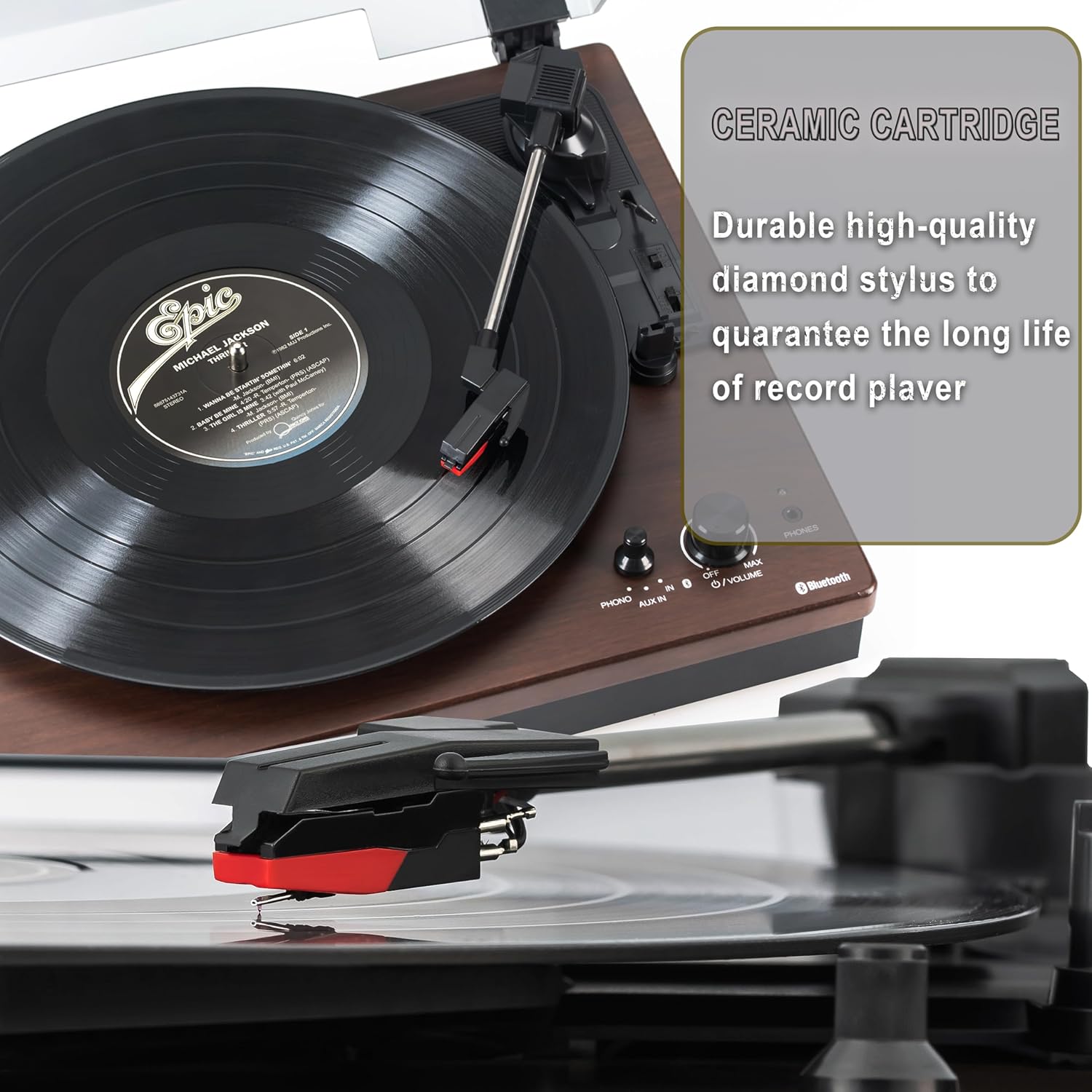

Figure 5.1: Ceramic Cartridge. The turntable is equipped with a durable high-quality diamond stylus designed for extended record playback life.

6. Баррасии мушкилот

If you encounter issues with your Sharp RP-TT70, refer to the following common problems and solutions:

7. Мушаххасоти

8. Кафолат ва дастгирӣ

Барои маълумоти кафолат ва дастгирии техникӣ, лутфан ба ширкати расмии Sharp муроҷиат кунед webсайт ё бевосита бо хадамоти муштариёни худ тамос гиред. Квитансияи хариди худро ҳамчун далели харид барои даъвоҳои кафолат нигоҳ доред.
