PTZOptics Move 4K Auto-Tracking PTZ Camera Instruction Manual

Маҳсулот ба охир расидview

The PTZOptics Move 4K 30x Auto-Tracking PTZ Camera is designed for high-quality video production, offering advanced features such as auto-tracking, auto-framing, and 4K resolution at 60 frames per second. It is suitable for various applications including education, conferences, and live broadcasts. This manual provides essential information for setting up, operating, and maintaining your camera.

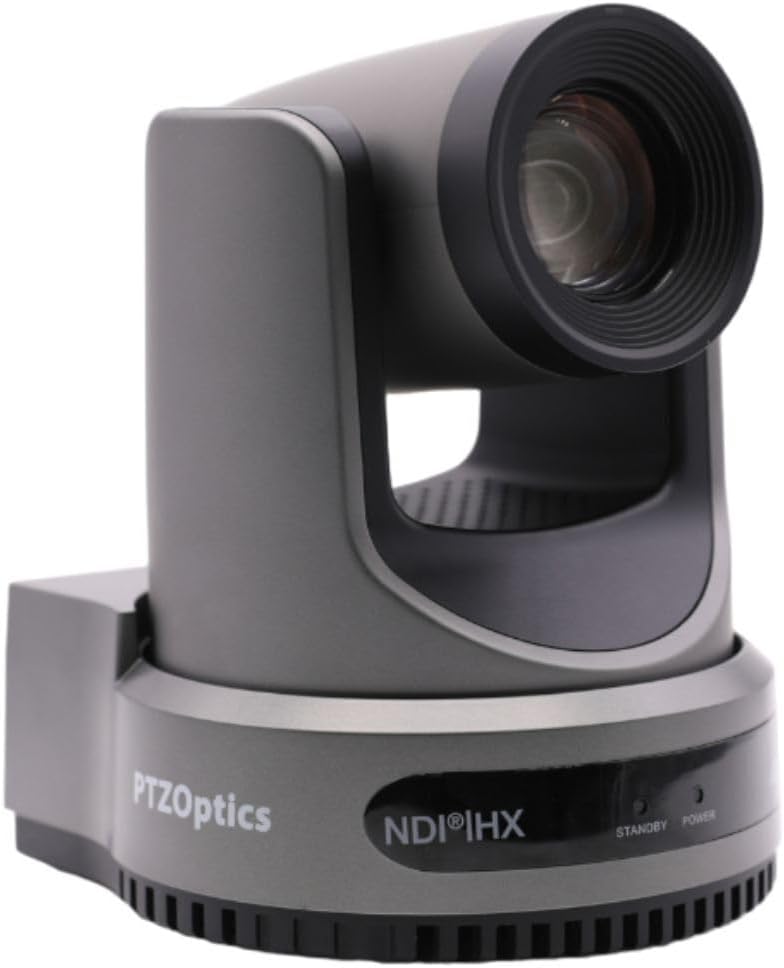

Расми 1: Пеш view of the PTZOptics Move 4K Camera.

Қуттии кушода ва мундариҷаи бастаҳо

Upon unboxing your PTZOptics Move 4K camera, ensure all components are present. The package typically includes the following items:

• PTZOptics Move 4K Camera (30X model)
• 12В AC таъминоти барқ
• Кабели USB AA
• Кабели RS232
• Дастури оғози зуд
• Дурдасти IR
• (2) Батареяҳои AA

Расми 2: Тараф view of the PTZOptics Move 4K Camera, showcasing тарҳи зебои он.

Ташкил кардан

Follow these steps to set up your PTZOptics Move 4K camera:

1. Пайвасти барқ: Connect the provided 12V AC Power Supply to the DC 12V port on the back of the camera. Alternatively, if your network supports Power over Ethernet (PoE), you can connect an Ethernet cable to the LAN port for both power and data.
2. Resolution and Frame Rate Selection: Before powering on, select your desired video resolution and frame rate using the yellow dial labeled "SYSTEM SELECT" on the back of the camera. Refer to the Quick Start Guide or the table on the bottom of the camera for available options.
3. Фаъолсозии ибтидоӣ: Once powered, the camera will perform an initial pan and tilt movement. The "POWER" light on the front will illuminate.
4. Пайвастшавӣ: Connect the camera to your live streaming, recording, or conferencing device using the appropriate output ports (USB 2.0, 3G-SDI, or HDMI).

Расми 3: Қафо view of the camera, highlighting the various input/output ports including DC 12V, LAN (PoE), USB 2.0, 3G-SDI, HDMI, RS232, RS485, and audio line in/out.

Дастурҳои амалиётӣ

The PTZOptics Move 4K camera offers multiple control options and features for seamless operation:

• Auto-Tracking and Auto-Framing: Utilize the camera's built-in auto-tracking and auto-framing capabilities to automatically follow a subject or keep multiple subjects framed within the shot.
• Tally Light: A built-in tally light located above the lens indicates whether the camera is live (red) or in preview mode, helping talent stay in sync with the production.
• Имконоти назорат: The camera can be controlled via the included IR remote, network connection, RS-232, RS-485, Web UI, PTZ Control App, or a Camera Management Platform.
• Натиҷаҳои ҳамзамон: The camera provides simultaneous video outputs via NDI, USB, and IP, along with either SDI or HDMI, allowing for flexible integration into various production workflows.

Figure 4: This diagram illustrates how the PTZOptics camera can be used for live streaming directly to platforms like YouTube and Facebook Live, with audio input via 3.5mm.

Нигоҳдорӣ

To ensure the longevity and optimal performance of your PTZOptics Move 4K camera, follow these general maintenance guidelines:

• Тозакунӣ: Барои тоза кардани корпуси камера аз матои нарм ва хушк истифода баред. Барои линза, барои пешгирӣ аз харошидан аз матои махсуси тозакунандаи линза ва маҳлули он истифода баред. Аз маводи кимиёвии сахт ё маводҳои абразивӣ истифода набаред.
• Муҳофизати чанг: Keep the camera in a clean, dust-free environment when not in use. Consider using a dust cover.
• Ҳарорат ва намӣ: Operate and store the camera within recommended temperature and humidity ranges to prevent damage to internal components.
• Навсозии нармафзор: Periodically check the PTZOptics official website for any available firmware updates. Keeping the firmware updated can improve performance, add new features, and resolve potential issues.

Мушкилкушо

If you encounter issues with your PTZOptics Move 4K camera, consider the following troubleshooting steps:

• Не қудрат: Ensure the power supply is securely connected and the power outlet is functional. If using PoE, verify your network switch provides sufficient power.
• Не баромади видео: Check all video cable connections (HDMI, SDI, USB, Ethernet). Verify the selected resolution and frame rate on the camera's system select dial are compatible with your receiving device.
• Масъалаҳои назорат: Ensure the IR remote batteries are fresh and there are no obstructions between the remote and the camera. For network control, verify the camera's IP address and network settings.
• Масъалаҳои сифати тасвир: Check lighting conditions. Ensure the lens is clean and free from smudges or dust. Adjust white balance and exposure settings as needed.
• Камера ҷавоб намедиҳад: Try pressing the "RESTORE" button on the back of the camera to reset it to factory defaults. This may resolve software-related glitches.

Мушаххасоти

Кафолат ва дастгирӣ

For detailed warranty information, technical support, and additional resources, please visit the official PTZOptics website or refer to the documentation included with your product. You may also find helpful information and protection plans available on the PTZOptics Store on Amazon.
