Муқаддима
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Tridonic Linear Essence Series 43 Watts Constant Current LED Driver. This driver is designed for high-performance constant current output and 0-10V dimming control, making it suitable for energy-efficient commercial lighting systems in the U.S. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.
Маълумот оид ба бехатарӣ
WARNING: Risk of electric shock. Installation should be performed by a qualified electrician in accordance with all applicable national and local electrical codes.
- Пеш аз насб ё хидматрасонӣ барқро ҷудо кунед.
- Барои пешгирӣ кардани хатарҳои барқ ба заминкании дурустро таъмин кунед.
- Ҳаҷми вуруди муқарраршударо зиёд накунедtage or output power ratings.
- This device is designed for dry and damp locations only. Do not expose to water or excessive moisture.
- Ensure adequate ventilation around the driver to prevent overheating.
- The driver is equipped with overload, short-circuit, no-load, and overtemperature protection. However, proper installation is crucial for safe operation.
Мундариҷаи баста
Пеш аз оғози насбкунӣ тасдиқ кунед, ки ҳама ҷузъҳо мавҷуданд:
- 1 x Tridonic Linear Essence Series 43W Constant Current LED Driver (Model: TLD-CC43W-UNV-LE2)
Насб ва насб
Follow these steps for proper installation of your Tridonic LED Driver. Ensure power is disconnected before proceeding.
1. Mounting the Driver
Mount the LED driver securely in a suitable enclosure or fixture. Ensure the mounting surface is stable and can support the weight of the driver. Allow for adequate space around the driver for air circulation to prevent overheating.

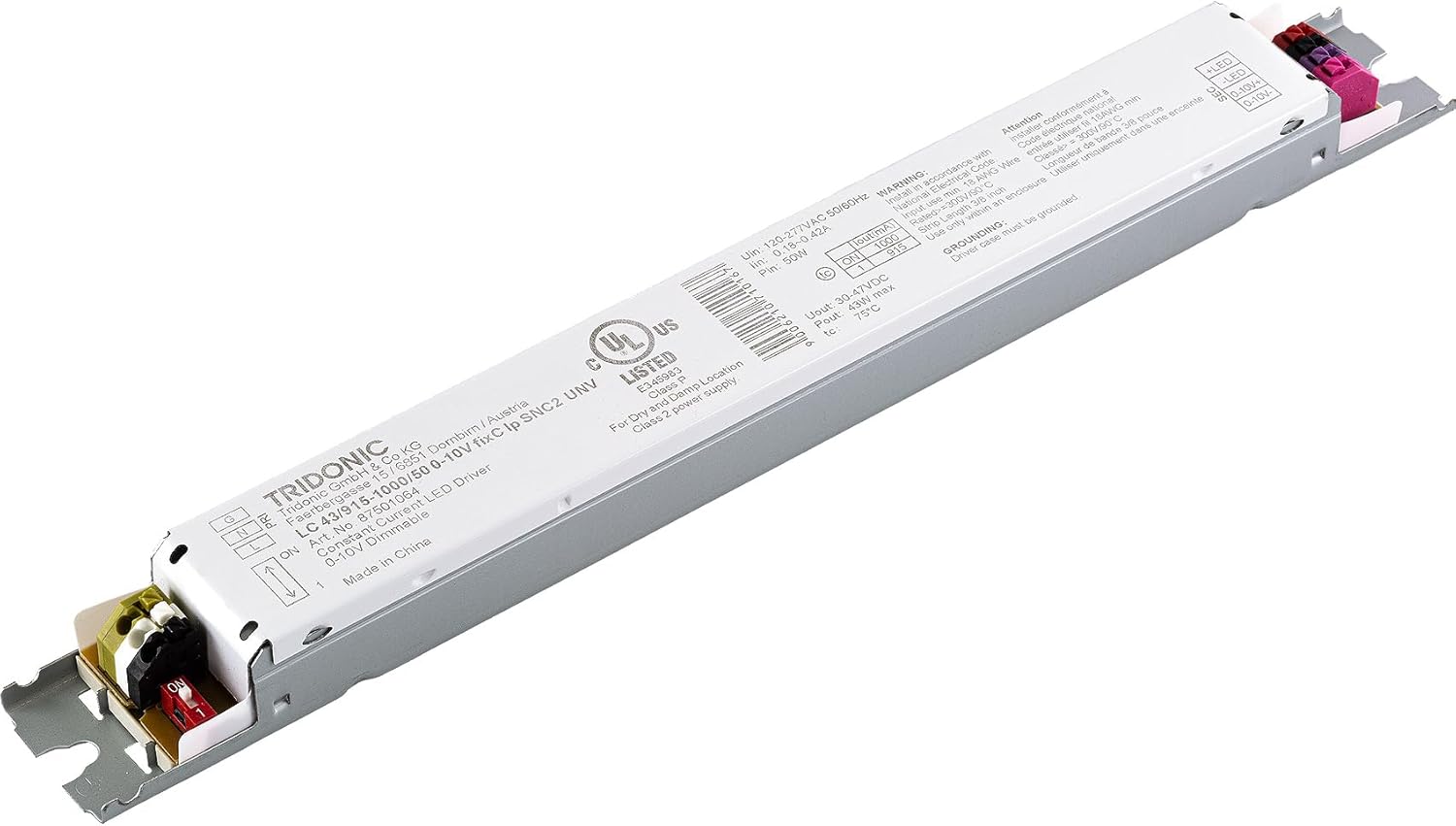

Figure 1: Tridonic Linear Essence Series 43W LED Driver. This image shows the overall design of the driver, highlighting its compact form factor and the terminal blocks for electrical connections.
2. Пайвастҳои ноқилӣ
Refer to the wiring diagram on the driver label and the instructions below for correct electrical connections. Use appropriate wire gauges for all connections.
Расми 2: Муфассал view of the Tridonic LED driver's wiring terminals. This image provides a close-up of the input (AC Line, Neutral, Ground) and output (LED positive/negative, 0-10V dimming control) connections, which are clearly labeled on the driver's casing.
- Қувваи вуруд (AC): Connect the AC line (L), neutral (N), and ground (G) wires from your power source to the corresponding terminals on the driver. The driver supports a rated supply voltagд аз 120-277 В AC.
- LED Output (DC): Connect the LED positive (LED+) and LED negative (LED-) wires from your LED module to the corresponding output terminals on the driver. Ensure correct polarity.
- Назорати тиракунии 0-10V: Connect the 0-10V dimming control wires (0-10V+ and 0-10V-) from your dimming system to the dedicated dimming terminals. This allows for dimming from 10% to 100%.
- Ба заминканӣ: Ensure the driver casing is properly grounded.
3. Output Current Adjustment (DIP Switches)
The driver features adjustable output current settings (915mA or 1,000mA) via DIP switches. Refer to the driver's label for the specific DIP switch configuration to select your desired output current. Adjust these settings before applying power.
Дастури видеоии насб
For a visual guide on wiring and installation, please refer to the official Tridonic Switch Series LED Drivers video below. This video demonstrates the connection process for similar Tridonic drivers, providing helpful visual cues for proper wiring.
Video: Tridonic Switch Series LED Drivers. This video illustrates the wiring process for Tridonic LED drivers, including connecting input power, LED output, and dimming control wires. It provides a practical demonstration of the steps involved in setting up the driver.
Дастурҳои амалиётӣ
Once installed and wired correctly, the Tridonic LED driver operates automatically. The primary control is through the 0-10V dimming interface.
- Фаъол / Хомӯш: The LED driver will power on when AC input voltagд таъмин карда мешавад.
- Дилтангӣ: Use a compatible 0-10V dimmer connected to the dimming terminals to adjust the light output from 10% to 100%. A 0V signal typically corresponds to the minimum dimming level (10%), and a 10V signal corresponds to 100% light output.
Нигоҳдорӣ
The Tridonic LED driver is designed for long-term, maintenance-free operation. However, periodic checks can help ensure continued performance.
- Тозакунӣ: Ensure the driver's exterior is free from dust and debris to maintain proper heat dissipation. Clean with a dry, soft cloth. Do not use liquid cleaners.
- Пайвастшавӣ: Periodically inspect all wiring connections to ensure they remain secure. Loose connections can lead to intermittent operation or electrical hazards.
- Муҳити зист: Verify that the operating environment remains within the specified temperature and humidity ranges (Dry and Damp Location, IP20).
Мушкилкушо
If you encounter issues with your LED driver, refer to the following common problems and solutions:
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| LEDҳо фурӯзон намешаванд | No input power; Incorrect wiring; Faulty LED module; Driver protection activated. | Check power supply; Verify all wiring connections (L, N, G, LED+, LED-); Test LED module; Cycle power to reset driver protection. |
| LEDs flickering or unstable dimming | Loose connections; Incompatible dimmer; Dimming wires incorrectly connected. | Check all wiring connections; Ensure 0-10V dimmer is compatible; Verify 0-10V+ and 0-10V- connections. |
| Ронанда аз ламс гарм аст | Вентилятсияи нокифоя; Сарбории аз ҳад зиёд. | Ensure adequate airflow around the driver; Verify total LED load does not exceed 43W. |
| Dimming range not 10-100% | Dimmer incompatibility; Dimmer settings. | Confirm dimmer is fully compatible with 0-10V standard; Check dimmer's minimum/maximum settings. |
Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Рақами модел | 87501064 (LC 43/915–1000/50 0-10V fixC lp SNC2 UNV) |
| Навъи | Ронандаи ҷории доимии LED |
| Қувваи баромад | 43W (Максимум) |
| Таъмини баҳогузорӣ ҷилдtage | 120-277 В AC |
| Ҷилди ACtage Диапазон | 108-305 В AC |
| Басомади барқ | 50/60 Гц |
| Макс. Ҳаҷми баромадtage (U-OUT) | 60 В DC |
| Интерфейси тиракунӣ | 0-10В |
| Диапазони диаметри | 10–100 % |
| Ҷараёни танзимшавандаи баромад | 915 mA or 1,000 mA (via DIP switches) |
| Рейтинги IP | IP20 |
| Маводи манзил | Metal, White |
| Хусусиятҳои муҳофизатӣ | Overload, Short-circuit, No-load, Overtemperature |
| Ҳаёти номиналӣ | То 50,000 соат |
| Андозаҳои маҳсулот (L x W x H) | 11.00" x 1.10" x 0.90" in. |
| Вазни маҳсулот | 7.0 унс |
| Сертификатсияҳо | UL Listed Class P, Meets DesignLights Consortium 4.3 |
Кафолат
The Tridonic Linear Essence Series LED Driver is backed by a Кафолати 5 сол from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service conditions. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper installation, misuse, abuse, or unauthorized modifications.
Дастгирӣ
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Tridonic customer support or your authorized dealer. Provide your product model number (87501064) and a detailed description of the issue when seeking support.
You can also visit the official Tridonic webсайт барои захираҳои иловагӣ ва маълумоти тамос.
