1. Маълумоти муҳим оид ба бехатарӣ
Please read this entire manual carefully before installing, operating, or servicing this gas heater. Failure to follow these instructions could result in fire, explosion, property damage, personal injury, or death.
- Вентилятсия: Always ensure adequate ventilation when operating the heater. Do not use in unventilated areas.
- Сӯзишворӣ: Use only butane or propane gas as specified. Ensure the gas cylinder is correctly connected and free from leaks.
- Ҷойгиршавӣ: Place the heater on a firm, level surface, away from flammable materials (curtains, furniture, paper, etc.). Maintain a safe distance from walls and other objects.
- Кӯдакон ва ҳайвоноти хонагӣ: Keep children and pets away from the heater. Never leave the heater unattended when in operation.
- Ҳаракат: Do not move the heater while it is operating or still hot.
- Тағирот: Do not modify the heater in any way. Any unauthorized modifications will void the warranty and may create a safety hazard.
- Нигоҳдорӣ: Store gas cylinders in a well-ventilated area, away from heat sources and direct sunlight.
- Оксиди карбон: Gas heaters produce carbon monoxide. Ensure proper ventilation to prevent carbon monoxide poisoning. Consider installing a carbon monoxide detector.
2. Маҳсулот ба охир расидview
The Orbegozo HBF 120 is a portable gas heater designed for indoor use, providing efficient warmth with adjustable flame and thermostat settings. It operates on butane or propane gas and features a sleek white finish.

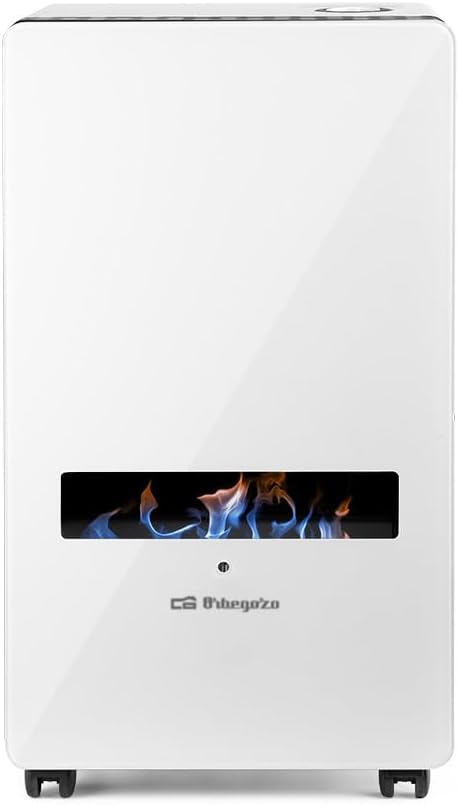

Расми 2.1: Пеш view of the Orbegozo HBF 120 Gas Heater. This image shows the heater's white exterior and the flame effect window at the base, indicating its operational state.
Расми 2.2: Тараф view of the Orbegozo HBF 120 Gas Heater. This image highlights the ventilation grilles on the side and a recessed handle on the top for portability.
3. Танзимот
- Кушодани: Carefully remove the heater from its packaging. Retain packaging for future storage or transport. Inspect the heater for any signs of damage. Do not use if damaged.
- Ҷойгиршавӣ: Position the heater on a stable, non-combustible, and level surface. Ensure there is at least 1 meter (3 feet) clearance from any combustible materials (furniture, curtains, walls, etc.) on all sides. Ensure adequate ventilation in the room.
- Пайвастшавӣ ба баллони газ:
- Боварӣ ҳосил кунед, ки клапани баллони газ баста аст.
- Connect the gas regulator to the gas cylinder valve according to the regulator's instructions.
- Connect the gas hose from the regulator to the heater's gas inlet. Ensure all connections are tight.
- Санҷиши ихроҷ:
- Клапани баллони газро охиста кушоед.
- Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Close the gas valve immediately and tighten the connections. Repeat the test. If leaks persist, do not use the heater and contact qualified service personnel.
- Battery Installation (for ignition, if applicable): If your model requires batteries for the igniter, install 1 AA battery as indicated in the battery compartment.
4. Дастурҳои истифодабарӣ
- Оғоз кардани гармкунак:
- Боварӣ ҳосил кунед, ки клапани баллони газ пурра кушода аст.
- Turn the control knob to the desired heat setting (e.g., Low, Medium, High).
- Press and hold the control knob inward while simultaneously pressing the igniter button repeatedly until the pilot flame ignites.
- Continue to hold the control knob for 10-20 seconds after ignition to allow the thermocouple to heat up. Release the knob. The main burner should now ignite.
- If the burner does not ignite, repeat the process. If it fails after several attempts, refer to the Troubleshooting section.
- Танзими гармӣ: Rotate the control knob to select the desired heat output. The Orbegozo HBF 120 features adjustable flame and thermostat settings for optimal comfort.
- Хомӯш кардани гармкунак:
- Тугмаи идоракуниро ба ҳолати "OFF" табдил диҳед.
- Клапани баллони газро пӯшед.
- Пеш аз интиқол ё нигоҳдорӣ, гармкунакро пурра хунук кунед.
5. Нигоҳдорӣ
Regular maintenance ensures the safe and efficient operation of your heater.
- Тозакунӣ:
- Ensure the heater is off and completely cool before cleaning.
- Сатҳи беруниро бо нарм пок кунед, гamp матоъ. Тозакунанда ё ҳалкунандаҳои абразивиро истифода набаред.
- Keep the ventilation openings clear of dust and debris. Use a soft brush or vacuum cleaner to gently remove any blockages.
- Шланги газ ва танзимкунанда: Periodically inspect the gas hose and regulator for cracks, cuts, or damage. Replace them immediately if any damage is found. Check the expiration date on the gas hose and replace it as recommended by the manufacturer.
- Нигоҳдорӣ: When not in use for extended periods, disconnect the gas cylinder and store the heater in a dry, dust-free location.
6. Баррасии мушкилот
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Гармкунак оташ намегирад. | Gas cylinder empty or valve closed. Оташгиранда шарора намезанад. Термопара ба қадри кофӣ гарм намешавад. | Check gas level and ensure valve is open. Check battery for igniter. Hold control knob longer after pilot ignition. |
| Шӯълаи паст ё шӯълаи номувофиқ. | Фишори гази паст. Partially blocked burner. | Check gas cylinder level. Ensure gas hose is not kinked. Contact service for burner inspection. |
| Бӯи газ. | Ихроҷи газ. Сӯзиши нопурра. | Immediately turn off heater and gas supply. Ventilate area. Perform leak test. If smell persists, evacuate and contact emergency services. |
| Гармкунак ногаҳон хомӯш мешавад. | Oxygen Depletion Sensor (ODS) activated due to insufficient ventilation. Thermocouple issue. | Increase ventilation. Ensure no obstructions. If problem persists, contact service. |
For problems not listed here or if solutions do not resolve the issue, contact qualified service personnel or the manufacturer.
7. Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Бренд | Орбегозо |
| Рақами модел | HBF 120 |
| Баромади барқ | 3800 Вт (3.8 кВт) |
| Навъи сӯзишворӣ | Butane / Propane Gas |
| Ранги | Сафед |
| Материал | Пӯлоди карбон |
| Андозаҳо (L x W x H) | 40 х 30 х 50 см |
| Вазни ашё | 9 килограмм |
| Хусусиятҳои махсус | Adjustable flame, Adjustable thermostat, Flame effect |
| Манбаи нерӯ | Бо газ таъмин карда мешавад |
| Навъи насб | Озодагон |
| Талабот ба батарея | 1 AA (for ignition, if applicable) |
8. Кафолат ва дастгирӣ
Warranty information for the Orbegozo HBF 120 Gas Heater is typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for specific details regarding coverage and duration.
For technical support, spare parts, or service inquiries, please contact Orbegozo customer service or your authorized dealer. Contact details can usually be found on the manufacturer's official webсайт ё дар бастабандии маҳсулоти шумо.
