Дастури корбарии мошини сохтани тамғагузории гармии CLABEL 221B

1. Муқаддима

This user manual provides comprehensive instructions for the operation, maintenance, and troubleshooting of your CLABEL 221B Thermal Label Maker Machine. Please read this manual carefully before using the device to ensure proper functionality and to extend the product's lifespan.

Image: The CLABEL 221B Thermal Label Maker Machine, a compact gray and white device, shown alongside a roll of white thermal labels. The printer displays a sample label with "CLABEL 221B Barcode Label Printer" and a barcode.

2. Маҳсулот ба охир расидview

2.1 Хусусиятҳои асосӣ

• Cost-Saving Freedom: Supports various brands of thermal paper, eliminating reliance on expensive proprietary supplies.
• Rich Label Selection: Compatible with thermal labels 25 to 50 mm wide, including transparent, colored, and round labels.
• One-Click Connection: Supports Bluetooth connection via the "Clabel trade" application for smartphones (iOS, Android) and USB connection for computers (Windows).
• Powerful App: The "Clabel trade" app offers extensive design features including text, formulas, symbols, and pre-made templates, with batch printing capabilities.
• Portable and Multifunctional: Equipped with a rechargeable battery for up to 4 hours of continuous use, weighing only 240 grams. Suitable for home, office, and retail use.

2.2 Мундариҷаи баста

The CLABEL 221B package typically includes:

• CLABEL 221B Thermal Label Maker Machine
• Сими USB
• Roll of Labels (as indicated by "Labels" in included components)
• Дастури корбар (ин ҳуҷҷат)

3. Танзимот

3.1 Фаъолсозии ибтидоӣ

To power on the device, press and hold the power button located on the side of the printer until the indicator light illuminates. The blue light will blink, indicating it is ready for connection.

Image: A visual guide showing five steps to connect the CLABEL 221B via Bluetooth. Step 1 shows pressing the power button, Step 2 shows enabling Bluetooth on a phone, Step 3 shows opening the app, Step 4 shows selecting the printer, and Step 5 shows editing a label.

3.2 Боркунии нишонаҳо

Follow these steps to correctly install thermal labels into your CLABEL 221B printer:

1. Squeeze the pressure points on the sides of the printer and pull upwards to open the top cover.
2. Switch the baffle lock to the "OPEN" position.
3. Load the label paper roll into the compartment, ensuring it is positioned on the left side. Push the baffle to the left to fit the label width snugly.
4. Pull out a small part of the label paper, extending it past the print head. Switch the baffle lock to "CLOSE" and then close the top cover firmly until it clicks.

Image: A sequence of four images demonstrating the label installation process. It shows opening the cover, adjusting the baffle, inserting the label roll, and closing the cover.

4. Дастурҳои истифодабарӣ

4.1 Connecting to a Smartphone (Bluetooth)

The CLABEL 221B connects wirelessly to your smartphone via Bluetooth. Ensure your printer is powered on and the blue light is blinking.

1. Download the "Clabel trade" application from the App Store (iOS) or Google Play Store (Android).
2. Bluetooth-ро дар смартфони худ фаъол созед.
3. Open the "Clabel trade" app. The app will guide you to connect to the printer.
4. Within the app, search for available devices and select "CT221B" to establish the connection.

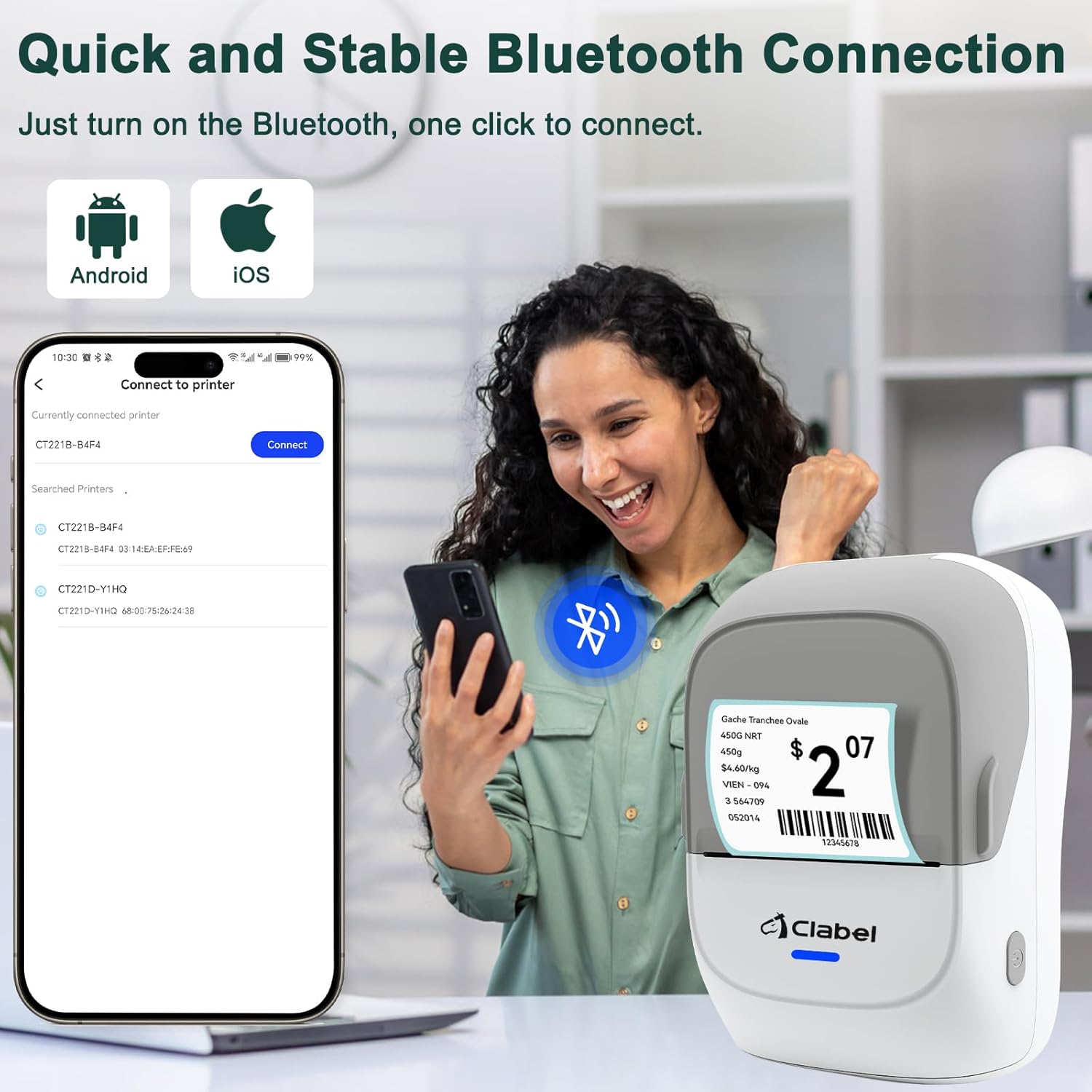

Image: A user connecting the CLABEL 221B printer to a smartphone. The phone screen shows the "Connect to printer" interface within the app, listing available printers. The printer itself is shown with a sampтамғаи le.

4.2 Пайвастшавӣ ба компютер (USB)

For Windows PC users, the CLABEL 221B can also be connected via USB. Note that laptop connections may be unstable according to product information.

1. Бо истифода аз сими USB-и додашуда принтерро ба компютери худ пайваст кунед.
2. Download and install the necessary software for Windows from the official CLABEL website (refer to product packaging or manufacturer's website for download link).
3. Once the software is installed, you can design and print labels directly from your computer.

Image: The CLABEL 221B printer connected to a laptop via a USB cable. The laptop screen displays a label design interface, indicating PC compatibility for label editing and printing.

4.3 Using the "Clabel trade" App

The "Clabel trade" app is a powerful tool for designing and managing your labels. It offers a wide range of customization options:

• Озодии тарҳрезӣ: Create labels with custom text, formulas, hundreds of symbols, and various fonts.
• Шаблонҳо: Utilize numerous pre-made templates for quick label creation.
• Barcode & QR Code: Generate and print barcodes and QR codes for various applications.
• Чопи дастаҷамъӣ: Improve efficiency by printing multiple labels in a single batch.
• Save & Recall: Easily store and retrieve your designed label documents for future use.

Image: Multiple screenshots of the "Clabel trade" app, showcasing its features for label personalization, multi-template support, PDF printing, and various editing tools like text, barcode, QR code, and image insertion.

4.4 Supported Label Types and Sizes

The CLABEL 221B supports thermal labels with a width ranging from 25 mm to 50 mm (0.98 inches to 1.96 inches). It is compatible with various label styles, including white, transparent, colored, round, retail, product, price, clothing, and decorative labels. Note that it is not suitable for continuous paper.

Image: An illustration demonstrating the variety of thermal label styles and sizes that the CLABEL 221B printer can support, including retail, product, price, clothing, and decorative labels with dimensions.

4.5 Барномаҳо

The CLABEL 221B is versatile and can be used for various labeling needs:

• Home Storage: Organize containers, boxes, and shelves.
• Идора: Нишон files, documents, and office supplies.
• Фиристодан: Create shipping labels for packages.
• Хурдафурӯшӣ: Нарх tagging, product identification, and inventory management.

Image: A four-panel image showcasing the practical uses of the CLABEL 221B label printer, including labeling items for home storage, office organization, shipping packages, and retail product pricing.

5. Нигоҳдорӣ

Regular maintenance ensures the longevity and optimal performance of your CLABEL 221B printer.

5.1 Тоза кардани сари чоп

The print head is a crucial component and should be cleaned periodically to prevent print quality issues. Use a cotton swab lightly dampened with isopropyl alcohol to gently wipe the print head. Allow it to dry completely before closing the cover and resuming operation.

5.2 Тозакунии умумӣ

Wipe the exterior of the printer with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the device's surface.

5.3 Нигоҳдорӣ

Store the printer in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) to maintain battery health.

6. Баррасии мушкилот

If you encounter issues with your CLABEL 221B, refer to the following common problems and solutions:

7. Мушаххасоти

8. Кафолат ва дастгирӣ

CLABEL provides a warranty for the 221B barcode label printer. Specific warranty terms and conditions, including duration and coverage, are typically provided with your product purchase or can be found on the official CLABEL webсайт. Лутфан далели хариди худро барои даъвоҳои кафолат нигоҳ доред.

For technical support, troubleshooting assistance beyond this manual, or warranty inquiries, please contact CLABEL customer service through their official webсайт ё маълумоти тамос, ки бо маҳсулоти шумо дода шудааст.

You can visit the official CLABEL Store for more information: CLABEL Store on Amazon
