ID-COOLING FROZN A410 DK CPU Cooler Instruction Manual

1. Маҳсулот ба охир расидview

The ID-COOLING FROZN A410 DK is an all-black single tower CPU air cooler designed for efficient heat dissipation. It features two 120mm FDB fans in a push-pull configuration and four direct contact heat pipes to effectively manage CPU temperatures. With a total height of 152mm, it offers broad compatibility with various chassis models and ensures non-interference with RAM and PCIe slots. The cooler supports a wide range of Intel and AMD sockets, including the latest LGA1700/1851 and AM4/AM5 platforms, providing a hassle-free installation experience.

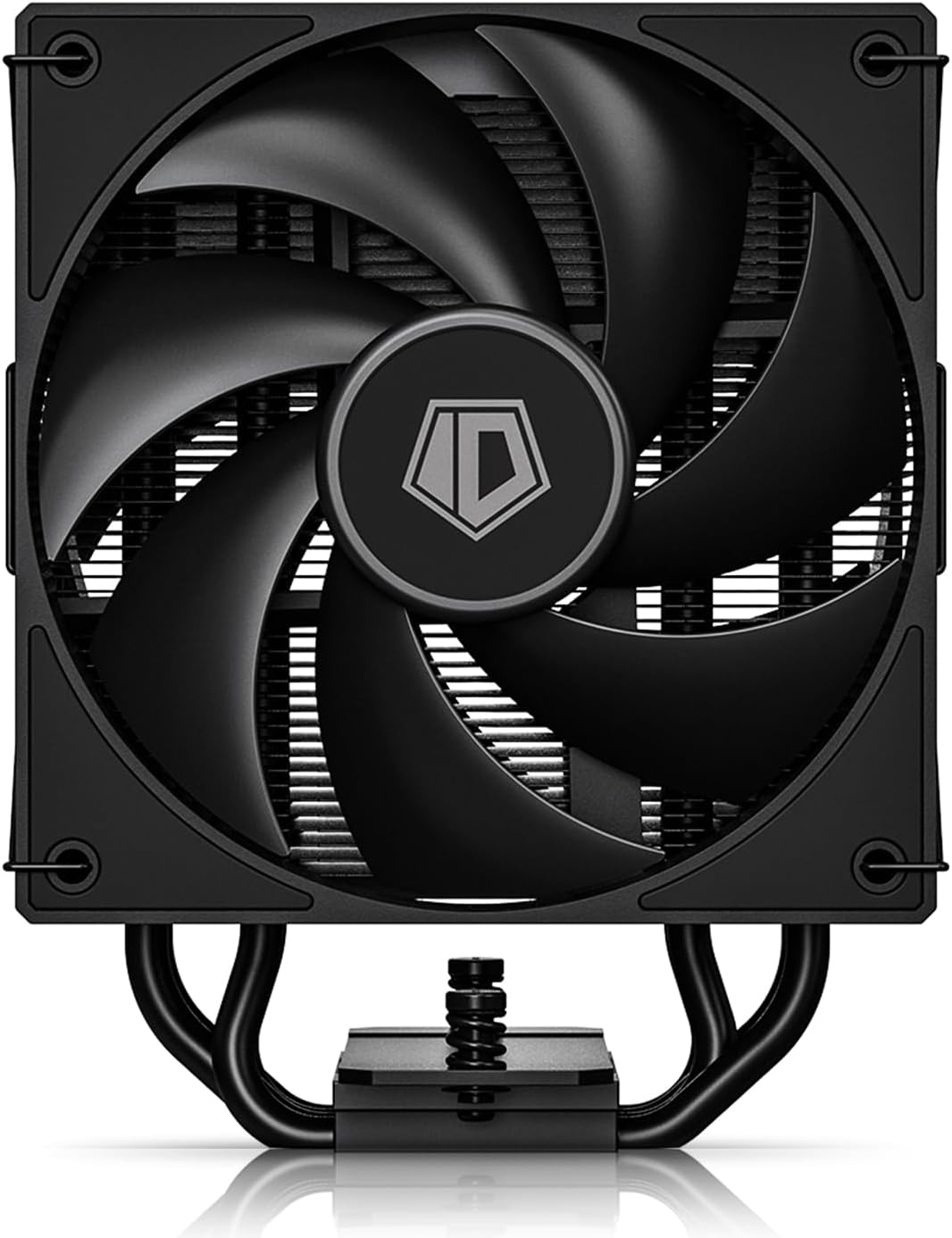

Расми 1: Асосӣ view of the ID-COOLING FROZN A410 DK CPU Cooler.

2. Хусусиятҳои асосӣ

• Better Heat Dissipation: Single tower design with 4 heat pipes and two 120mm FDB fans in a push-pull configuration for excellent CPU cooling.
• Баландии паймон: 152mm total height ensures compatibility with a wide range of PC chassis.
• RAM Compatibility: Designed to avoid interference with memory modules and PCIe slots.
• Direct Contact Heat Pipes: Four Ø6mm direct contact heat pipes with exclusive technology for effective heat transfer.
• PWM Fans: Dual 120mm PWM fans offer automatic speed control and ultra-quiet operation (Max. Air Flow: 78.25CFM; Noise Level: 29.85dB(A) Max.).
• Hassle-free Installation: Compatible with Intel LGA1700/1851/1200/1150/1151/1155/1156 and AMD AM4/AM5 sockets.
• Даъвати эстетикӣ: All-black layout blends seamlessly into most computer cases.

3. Дар қуттӣ чӣ мавҷуд аст

The ID-COOLING FROZN A410 DK CPU Cooler package includes:

• Гармикаш
• 2x 120mm Cooling Fans
• Mounting Hardware (for Intel and AMD sockets)
• Солидории гармӣ
• 1-to-2 4-pin PWM Fan Splitter

Figure 2: Included components for the FROZN A410 DK CPU Cooler.

4. Дастури насб

Follow these steps for proper installation of your ID-COOLING FROZN A410 DK CPU Cooler. Refer to the video guides for visual assistance.

4.1. Intel LGA1700/1851/1200/115X Installation

1. Табақи пуштиро омода кунед: Adjust the Intel backplate screws to the corresponding positions (pull outward for LGA1851/1700, pull inward for LGA1200/115X). Place the backplate through the back of the motherboard.
2. Install Standoffs and Brackets: Install the rubber Intel standoffs and Intel bracket in sequence. Secure the bracket with screws.
3. Равғани термалиро истифода баред: Clean the CPU surface. Peel off the protective sticker from the copper plate of the heatsink. Apply a thin, even layer of thermal grease to the CPU surface.
4. Mount Heatsink: Carefully place the heatsink onto the CPU, aligning it with the mounting holes. Secure it by tightening the two screws on each side.
5. Attach Fans: Use the provided fan clips to secure both 120mm fans to the heatsink tower in a push-pull configuration. Ensure the airflow direction is correct (typically, one fan pushes air into the heatsink, and the other pulls it through).
6. Пайваст кардани мухлисон: Connect the two fan cables to the 1-to-2 4-pin splitter. Then, connect the splitter to the CPU_FAN header on your motherboard.

4.2. Насби AMD AM4/AM5

1. Remove Stock Brackets: Remove the original AMD plastic retention frame from the motherboard, but keep the stock backplate.
2. Install Standoffs and Brackets: Install the red AMD standoffs and the universal AMD bracket. Secure them with screws.
3. Равғани термалиро истифода баред: Clean the CPU surface. Peel off the protective sticker from the copper plate of the heatsink. Apply a thin, even layer of thermal grease to the CPU surface.
4. Mount Heatsink: Carefully place the heatsink onto the CPU, aligning it with the mounting holes. Secure it by tightening the two screws on each side.
5. Attach Fans: Use the provided fan clips to secure both 120mm fans to the heatsink tower in a push-pull configuration. Ensure the airflow direction is correct.
6. Пайваст кардани мухлисон: Connect the two fan cables to the 1-to-2 4-pin splitter. Then, connect the splitter to the CPU_FAN header on your motherboard.

5. Дастурҳои истифодабарӣ

Once installed, the FROZN A410 DK CPU Cooler operates automatically via the motherboard's PWM fan control. Ensure your motherboard BIOS settings are configured for optimal fan curves to balance cooling performance and noise levels.

• Танзимоти BIOS/UEFI: Access your motherboard's BIOS/UEFI to customize fan speed curves. You can set fan speeds to increase with CPU temperature for better cooling under load or decrease for quieter operation at idle.
• Мониторинги ҳарорат: Use system monitoring software (e.g., HWMonitor, CPU-Z) to keep track of your CPU temperatures to ensure it stays within safe operating limits.
• Беҳсозии ҷараёни ҳаво: Ensure good airflow within your PC case by properly arranging other case fans to complement the push-pull configuration of the CPU cooler.

6. Нигоҳдорӣ

Нигоҳдории мунтазам ба таъмини дарозмуддат ва кори оптималии сардкунандаи CPU-и шумо кӯмак мекунад.

• Тоза кардани хок: Periodically clean dust from the heatsink fins and fan blades using compressed air or a soft brush. Ensure the fans are not spinning during cleaning.
• Хамираи гармидиҳӣ: Reapply thermal paste if you remove the heatsink for any reason. Old thermal paste can dry out and reduce cooling efficiency.
• Санҷиши вентилятор: Симҳои вентиляторро барои пайвастҳои боэътимод тафтиш кунед ва боварӣ ҳосил кунед, ки парҳои вентилятор аз монеаҳо холӣ ҳастанд.

7. Баррасии мушкилот

Агар шумо бо сардкунандаи CPU-и худ ба мушкилот дучор шавед, инҳоро баррасӣ кунед:

• Ҳарорати баланди CPU:
  • Check if the heatsink is securely mounted and making proper contact with the CPU.
  • Боварӣ ҳосил кунед, ки хамираи термоӣ дуруст истифода шудааст ва хушк нашудааст.
  • Ensure fans are spinning and not obstructed.
  • Check BIOS/UEFI fan settings to ensure an aggressive enough fan curve.
• Садои аз ҳад зиёди мухлисон:
  • Check for dust buildup on fans and heatsink.
  • Ensure fan cables are not hitting fan blades.
  • Adjust BIOS/UEFI fan settings to a quieter fan curve if temperatures allow.
• Мухлисон чарх намезананд:
  • Verify that the fan splitter is correctly connected to both fans and the CPU_FAN header on the motherboard.
  • Check motherboard BIOS/UEFI settings to ensure fan control is enabled.

8. Мушаххасоти

9. Кафолат ва дастгирӣ

For warranty information and technical support, please refer to the official ID-COOLING webсайт ё бевосита бо хадамоти муштариёни худ тамос гиред. Квитансияи хариди худро барои даъвоҳои кафолат нигоҳ доред.
