Poly CCX 700 Дастури корбари телефони IP

1. Муқаддима

This manual provides instructions for the setup, operation, and maintenance of the Poly CCX 700 IP Phone. The Poly CCX 700 is a business media phone designed for Voice over IP (VoIP) communication, featuring an integrated video camera, a large color touchscreen, and advanced audio technologies.

Хусусиятҳои асосӣ инҳоянд:

• Integrated 4-megapixel video camera with privacy shutter.
• 7-inch color LCD touchscreen display.
• Poly HD Voice and Acoustic Clarity technologies for clear audio.
• Poly Acoustic Fence and NoiseBlockAI for background noise reduction.
• Integrated Wi-Fi and Bluetooth connectivity.
• Full-duplex speakerphone.

2. Хусусиятҳои физикӣ

2.1 Асосӣ View

The front of the Poly CCX 700 features the handset, a large touchscreen display, an integrated camera, and speakerphone components.

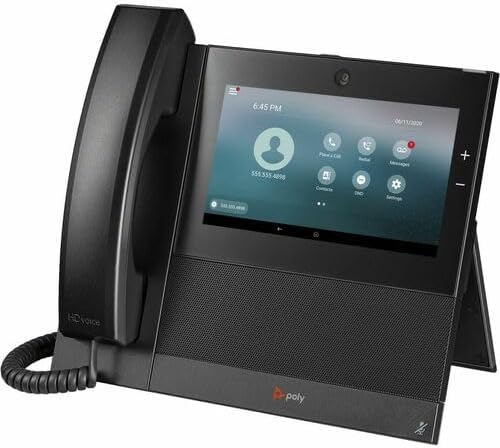

Тавсифи тасвир: A black Poly CCX 700 IP Phone shown from the front-left angle. The handset rests on the left side, connected by a coiled cord. The right side features a large, angled touchscreen display showing a call interface with contact information, call options, and settings icons. A small camera lens is visible above the screen. The base of the phone has a speaker grille and the 'poly' logo.

2.2 Қафо View ва Портҳо

The rear of the phone provides various ports for power, network connectivity, and accessories.

Тавсифи тасвир: Нақшаи наздик view of the back panel of the Poly CCX 700 IP Phone. It shows a recessed area with several ports: a power input (48V), two RJ-45 network ports (one for LAN, one for PC), a USB port, an RJ9 headset port, and an EHS (Electronic Hook Switch) port. The phone's stand is folded down, revealing these connections.

• Power Input (48V): Connects to the power adapter if Power over Ethernet (PoE) is not used.
• LAN Port (RJ-45): Connects the phone to your network. Supports PoE.
• PC Port (RJ-45): Connects a computer to the phone, allowing the computer to share the network connection.
• Портҳои USB: For connecting USB accessories.
• RJ9 Headset Port: For connecting a wired headset.
• EHS Port: For connecting an Electronic Hook Switch cable for compatible wireless headsets.

3. Танзимот

3.1 Пайваст кардани телефони дастӣ

1. Як нӯги сими печонидашудаи телефонро ба телефони мобилӣ пайваст кунед.
2. Connect the other end of the coiled handset cord to the handset port on the side of the phone base.

3.2 Network and Power Connection

The Poly CCX 700 can be powered via Power over Ethernet (PoE) or an optional external power adapter.

1. For PoE: Connect an Ethernet cable from a PoE-enabled network switch or injector to the LAN порт дар пушти телефон.
2. For External Power Adapter: Connect an Ethernet cable from your network to the LAN port. Then, connect the external power adapter (sold separately) to the 48В power input port and plug it into a power outlet.
3. If connecting a computer, connect an Ethernet cable from your computer to the PC порт дар пушти телефон.

3.3 Initial Boot-up and Wi-Fi Setup

1. Once connected, the phone will power on automatically.
2. Follow the on-screen prompts for initial setup, which may include language selection and network configuration.
3. To configure Wi-Fi, navigate to Танзимотҳо > Wi-Fi on the touchscreen. Select your desired network and enter the password if prompted.

4. Истифода бурдани телефон

4.1 Зангҳо ва қабули зангҳо

• Барои занг задан: Lift the handset, press the speakerphone button, or tap the 'Place a Call' icon on the touchscreen. Dial the number and press the 'Call' button.
• Барои ҷавоб додан ба занг: Lift the handset, press the speakerphone button, or tap the 'Answer' icon on the touchscreen.
• Барои анҷом додани занг: Replace the handset, press the speakerphone button again, or tap the 'End Call' icon on the touchscreen.

4.2 Using Video Calling

The integrated camera allows for video calls. Ensure your network connection supports video conferencing.

1. During a call, tap the 'Video' icon on the touchscreen to enable or disable your video feed.
2. To ensure privacy, slide the physical privacy shutter over the camera lens when video is not in use.

4.3 Ҷуфт кардани гӯшмонакҳои Bluetooth

1. Гузариш ба Танзимотҳо > Bluetooth дар экрани сенсорӣ.
2. Enable Bluetooth and put your Bluetooth headset into pairing mode.
3. Select your headset from the list of available devices and follow the on-screen instructions to complete pairing.

5. Нигоҳдорӣ

5.1 Тоза кардани телефон

• Disconnect the phone from power before cleaning.
• Аз матои мулоим ва матои пок каме истифода баред гampened with water or a mild, non-abrasive cleaner to wipe the display and phone surfaces.
• Avoid using harsh chemicals, abrasive cleaners, or aerosol sprays directly on the phone.

5.2 Нигоҳубини умумӣ

• Телефонро аз гармии аз ҳад зиёд, нури бевоситаи офтоб ва намӣ дур нигоҳ доред.
• Do not block ventilation openings on the phone.

6. Баррасии мушкилот

6.1 Не қудрат

• Verify that the Ethernet cable is securely connected to the LAN port and that the network switch provides PoE, or that the external power adapter is correctly connected and plugged into a working outlet.
• Try a different power outlet or Ethernet port.

6.2 No Dial Tone / Cannot Make Calls

• Check network connectivity. Ensure the Ethernet cable is firmly connected.
• Contact your IT administrator or service provider to confirm your VoIP service is active and configured correctly.

6.3 Мушкилоти видеоӣ

• Ensure the camera's privacy shutter is open.
• Check network bandwidth and stability, as video calls require more data.
• Verify that the video feature is enabled in the call settings.

7. Мушаххасоти

8. Кафолат ва дастгирӣ

The Poly CCX 700 IP Phone is manufactured by HP Inc. For detailed warranty information, technical support, and service options, please refer to the official HP or Poly website or contact your authorized reseller.

Always ensure you have your product model and serial number available when contacting support.
