ACEMIC UHF Wireless Violin Microphone System VT-5 Instruction Manual

Муқаддима

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your ACEMIC VT-5 UHF Wireless Violin Microphone System. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳои дар поён овардашуда ба бастаи шумо дохил карда шудаанд:

• 1 x Интиқолдиҳанда
• 1 x Receiving Antenna
• 1 x Charging Cable (2-in-1)
• 1 х 6.35 мм то 3.5 мм адаптер
• 1 x Дастури корбар
• 1 x Carrying Box

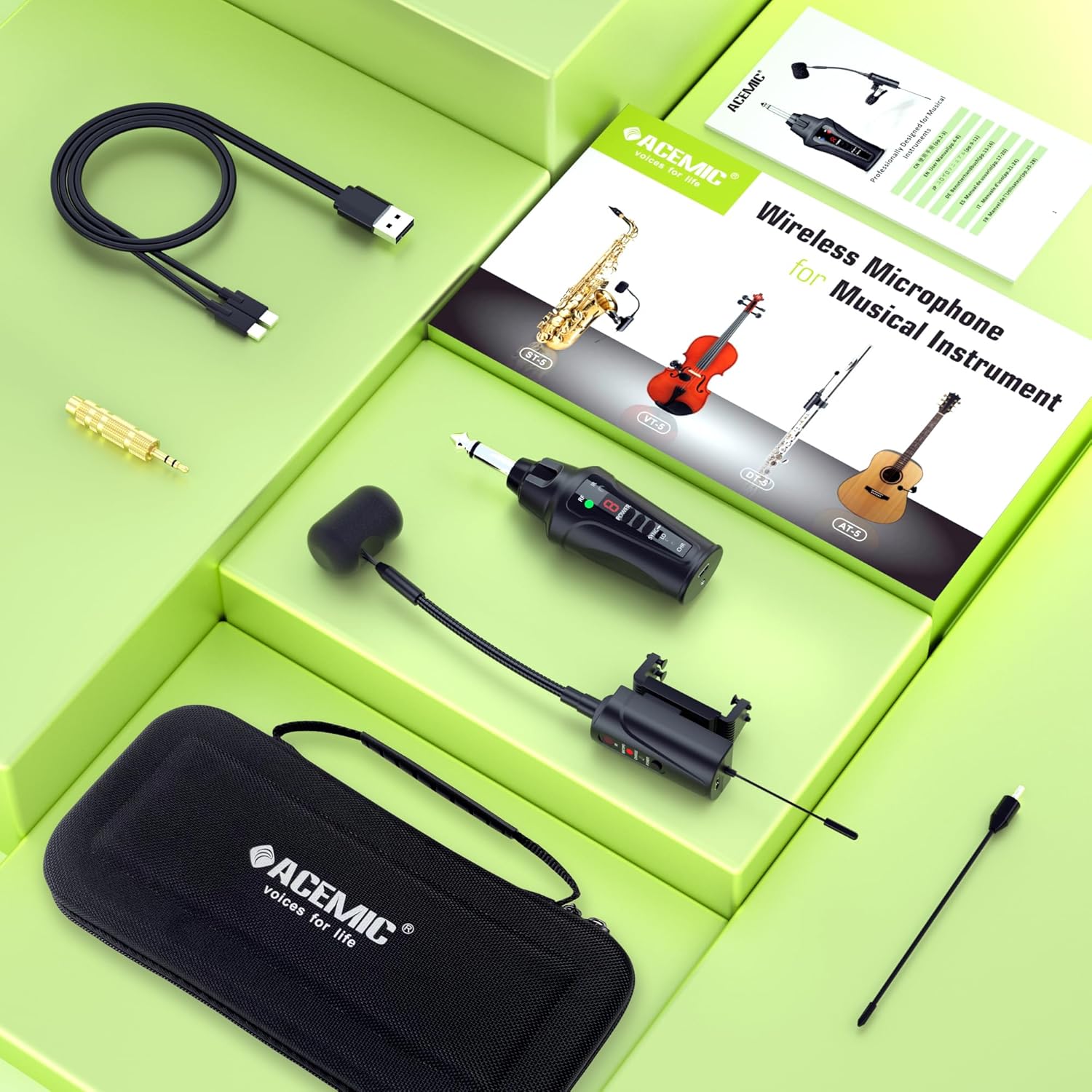

Image: All components included in the ACEMIC VT-5 package, neatly arranged in its carrying case.

Дастурҳои насб

1. Пуркунии дастгоҳҳо

Before initial use, fully charge both the transmitter and receiver using the provided 2-in-1 charging cable. A full charge typically takes 2.5 to 3 hours and provides approximately 6 hours of continuous use.

Image: Illustration of the transmitter and receiver being charged simultaneously with the included dual-port USB-C cable.

2. Attaching the Microphone to the Violin

The VT-5 features a gooseneck adjustable clip-on design. Carefully attach the spring clip with silicone pads onto the side of your violin. The silicone ensures a firm grip without causing damage to the instrument. Adjust the flexible gooseneck to position the microphone optimally for sound capture.

Image: Close-up of the microphone's clip mechanism, demonstrating how it attaches to the violin with silicone pads for protection.

3. Пайваст кардани қабулкунанда

Install the receiving antenna onto the bottom of the receiver. Plug the receiver into your active PA system, active speaker, amplifier, or audio mixer. Use the provided 6.35mm to 3.5mm adapter if your input requires a 3.5mm jack.

Image: Visual guide for connecting the receiver to an audio system.

4. Frequency Pairing

The system uses infrared automatic pairing. Follow these steps to pair the transmitter and receiver:

1. Long press the 'plus' button on the transmitter until the numbers on the display start flashing.
2. Use the 'plus' or 'minus' buttons to select your desired frequency channel.
3. Once the channel is selected, push the 'SYNC' key on the transmitter to the right.
4. Align the IR sensor of the microphone (transmitter) with the RF sensor of the receiver.
5. The RF green light on the receiver will illuminate, indicating successful frequency pairing.
6. Push the 'SYNC' key on the transmitter to the left to lock the frequency.

For a visual guide on frequency pairing, please refer to the video below:

Дастурҳои амалиётӣ

1. Фаъол/хомӯш

Press and hold the power button on both the transmitter and receiver to turn them on or off. Ensure both devices are powered on for operation.

2. Channel Selection and Multiple Set Usage

The VT-5 offers 16 preset adjustable channels to prevent interference. Up to 4 systems can be used simultaneously in the same location.

• To pair the first transmitter with the first receiver, set them to the same channel using the frequency pairing method described above.
• When pairing a second set, select a channel number that is at least 3 channels apart from the first set's channel to avoid interference.
• Repeat this method for subsequent systems until all four are matched.

Image: Explanation of how to utilize the 16 adjustable channels for simultaneous use of multiple microphone systems.

3. Sound Reproduction

The built-in highly sensitive condenser microphone captures the instrument's sound, delivering clear and realistic audio. The UHF frequency and digital audio transmission technology ensure stable transmission up to 130 feet in open areas with an ultra-short audio delay.

Image: Visual representation of the microphone's high-quality sound capture and output.

Image: Illustration of the wireless transmission range, showing a musician freely moving while connected to an audio mixer.

Нигоҳдорӣ

To ensure the longevity and optimal performance of your ACEMIC VT-5 system, follow these maintenance guidelines:

• Тозакунӣ: Use a soft, dry cloth to clean the transmitter, receiver, and microphone. Avoid using harsh chemicals or abrasive materials.
• Нигоҳдорӣ: Store the system in its provided carrying case when not in use to protect it from dust, moisture, and physical damage.
• Нигоҳубини батарея: Recharge the built-in lithium polymer batteries regularly, even if the system is not used frequently, to maintain battery health. Avoid fully discharging the batteries for extended periods.
• Антенна: Ensure the receiving antenna is properly installed before use and removed carefully when storing to prevent bending or damage.

Мушкилкушо

If you encounter issues with your ACEMIC VT-5 system, refer to the following common problems and solutions:

Мушаххасоти

Кафолат ва дастгирӣ

For warranty information or technical support, please refer to the documentation included with your purchase or contact ACEMIC customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
