Wiltec 3-Ton Hydraulic Car Jack Instruction Manual

1. Муқаддима ва зиёдаview

Thank you for choosing the Wiltec 3-Ton Hydraulic Car Jack. This robust and reliable floor jack is designed for safely lifting vehicles such as cars, SUVs, and caravans, with a maximum lifting capacity of 3 tons. Its durable steel construction ensures stability and long-lasting performance for various maintenance tasks. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting to ensure safe and efficient use of your hydraulic jack.

The jack features an adjustable lifting height ranging from 13.5 cm to 40 cm, allowing easy access to the underside of vehicles for tasks like tire changes or brake system inspections. Its compact design (59.2 x 24 x 14.6 cm) and practical mobility with two front and two rear wheels make it easy to store and position accurately under your vehicle.

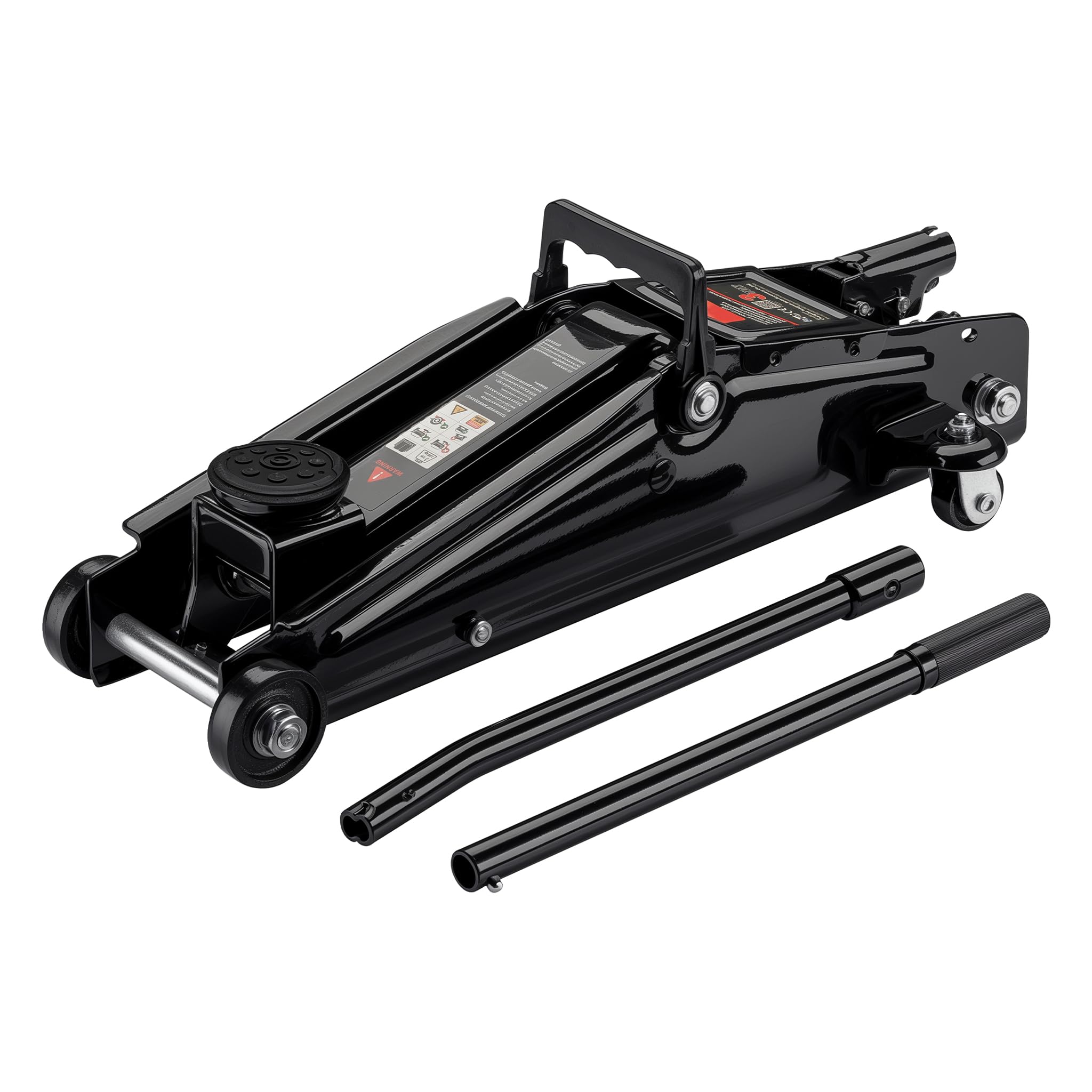

Image: The Wiltec 3-Ton Hydraulic Car Jack, showcasing its robust design and components.

2. Дастурамал оид ба бехатарӣ

Огоҳӣ: Риоя накардани ин дастурҳои бехатарӣ метавонад боиси осеби ҷиддӣ ё хисороти молӣ гардад.

• Дастурро хонед: Always read and understand this entire instruction manual before operating the hydraulic jack.
• Иқтидори борбардорӣ: Never exceed the maximum rated load capacity of 3 tons (6,000 lbs).
• Сатҳи устувор: Always use the jack on a hard, level, and stable surface. Avoid uneven ground, soft surfaces, or inclines.
• Устувории воситаи нақлиёт: Ensure the vehicle is in park (P) or a low gear, with the parking brake engaged. Block the wheels that are not being lifted.
• Jack Stands: After lifting the vehicle, always support it immediately with appropriate jack stands before performing any work underneath. Never rely solely on the hydraulic jack for support.
• Нуқтаҳои борбардорӣ: Lift the vehicle only at the manufacturer's recommended lifting points. Refer to your vehicle's owner's manual.
• Тозакунӣ: Keep hands, feet, and other body parts clear of the jack's moving parts and the vehicle during lifting and lowering.
• Таҷҳизоти муҳофизати шахсӣ: Таҷҳизоти бехатарии мувофиқ, аз ҷумла айнак ва дастпӯшакҳои бехатариро пӯшед.
• Ихроҷи моеъ: Do not use the jack if there are any signs of hydraulic fluid leaks.
• Тағирот: Do not modify the jack in any way. Use only original replacement parts.

Image: A person safely operating the Wiltec hydraulic jack to lift a vehicle, demonstrating proper usage.

3. Қисмҳои маҳсулот

Familiarize yourself with the main components of your Wiltec Hydraulic Car Jack:

• Lifting Saddle: The contact point with the vehicle's lifting point. Features a non-slip rubber pad.
• Дасти бардошта: The movable arm that raises and lowers the vehicle.
• силиндраи гидравликӣ: The core mechanism for lifting.
• Дастаки амалиётӣ: Used to pump the jack and activate the release valve. Consists of two parts for easy assembly.
• Клапани озодкунӣ: Controls the lowering of the jack. Operated by turning the handle.
• Чархҳо: Two fixed front wheels and two swivel rear wheels for easy maneuverability.
• Дастаки интиқол: Integrated handle for convenient transport.

Тасвир: Муфассал view of the jack's practical handle, smooth-rolling wheels, and non-slip lifting pad.

4. Танзимот

1. Кушодани: Carefully remove the jack and all components from the packaging. Check for any shipping damage.
2. Маҷмаи даста: Insert the upper part of the operating handle into the lower part and secure it. Then, insert the assembled handle into the handle socket on the jack.
3. Bleeding the Hydraulic System: Before first use, it is recommended to bleed any air from the hydraulic system. To do this:
   • Turn the release valve counter-clockwise to fully open it.
   • Pump the handle vigorously 10-15 times without a load.
   • Клапани озодкуниро бо ақрабаки соат гардонед, то онро пӯшед.
   • The jack should now operate smoothly. Repeat if necessary.

5. Дастурҳои истифодабарӣ

5.1. Бардоштани воситаи нақлиёт

1. Мошинро тайёр кунед: Park the vehicle on a hard, level surface. Engage the parking brake and place the transmission in park (automatic) or a low gear (manual). Block the wheels that will remain on the ground.
2. Ҷойгир кардани Jack: Locate the vehicle manufacturer's recommended lifting point. Slide the jack under the vehicle so that the lifting saddle is directly beneath the lifting point. Ensure the jack is centered and stable.
3. Клапани озодкуниро пӯшед: Turn the operating handle clockwise until the release valve is fully closed. Do not overtighten.
4. Воситаи нақлиёти лифтӣ: Pump the operating handle up and down to raise the lifting arm. Continue pumping until the vehicle is raised to the desired height.
5. Бо истифода аз стендҳои Ҷек муҳофизат кунед: Immediately place appropriately rated jack stands under the vehicle's frame at the manufacturer's recommended support points. Slowly lower the vehicle onto the jack stands (see 5.2). Never work under a vehicle supported only by the hydraulic jack.

5.2. Фаровардани Мошин

1. Каме боло бардоред: If the vehicle is on jack stands, pump the jack handle a few times to slightly raise the vehicle off the jack stands.
2. Ҷойгиркунии стендҳои Ҷек: Carefully remove the jack stands from under the vehicle.
3. Клапани озодкунии кушода: Slowly turn the operating handle counter-clockwise to open the release valve. The vehicle will begin to lower. Control the lowering speed by adjusting how much you open the valve.
4. Пурра пасттар: Continue to lower the vehicle until it is fully on the ground.
5. Ҷекро хориҷ кунед: Once the vehicle is fully lowered, remove the hydraulic jack from under the vehicle.

Image: A user demonstrating the operation of the Wiltec hydraulic jack, positioning it under a vehicle for lifting.

6. Нигоҳдорӣ

Regular maintenance ensures the longevity and safe operation of your Wiltec Hydraulic Car Jack.

• Молидани: Periodically lubricate all moving parts, including the wheels, pivot points, and handle mechanism, with light machine oil.
• Моеъи гидравликӣ: Check the hydraulic fluid level every three months or after heavy use. To check, lower the jack completely, remove the oil filler plug, and ensure the fluid is just below the filler hole. Use only high-quality hydraulic jack oil. Do not use brake fluid or motor oil.
• Тозакунӣ: Keep the jack clean and free of dirt, grease, and debris. Wipe down the piston rod to prevent corrosion.
• Санҷиш: Before each use, inspect the jack for any signs of damage, wear, or leaks. Check for bent or cracked components, loose fasteners, or damaged seals. Do not use a damaged jack.
• Нигоҳдорӣ: Store the jack in a clean, dry place with the lifting arm fully lowered.

7. Баррасии мушкилот

8. Мушаххасоти

• Модели: 65009
• Бренд: Вилтек
• Иқтидори: 3 тонна (6,000 фунт)
• Баландии ҳадди ақали борбардорӣ: 13.5 см (5.3 инч)
• Баландии ҳадди аксар: 40 см (15.7 инч)
• Андозаҳои маҳсулот (L x W x H): 59.2 x 24 x 14.6 см (23.3 x 9.4 x 5.7 инч)
• Вазни ашё: 16.44 кг (36.24 фунт)
• Мавод: Robust Steel
• Ранги: Сиёҳ
• Навъи хидматрасонии мошин: Automobile, Trailer, SUV

Image: The Wiltec hydraulic jack with key dimensions indicated, including length, width, and height.

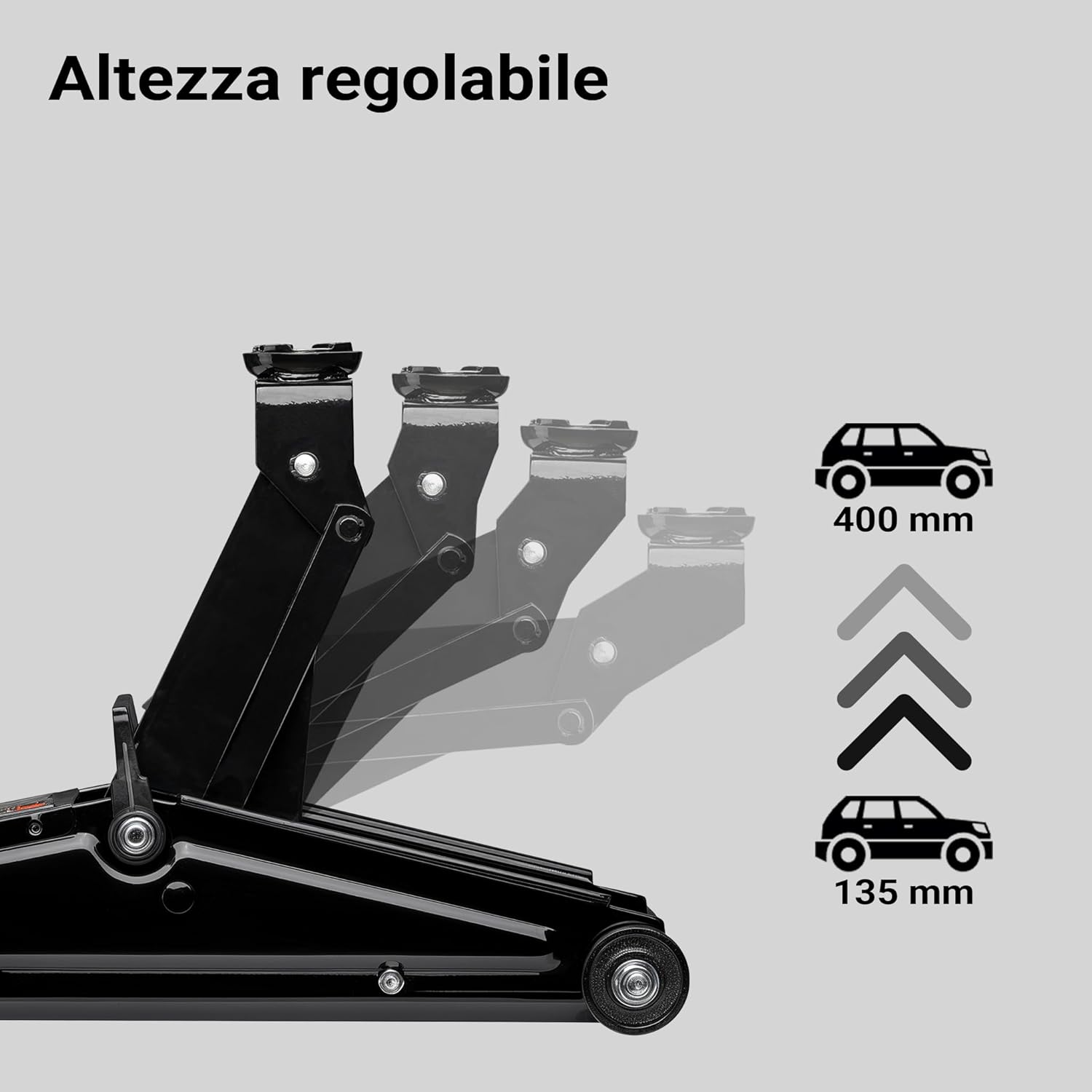

Image: A visual representation of the jack's adjustable lifting height, from 135 mm to 400 mm.

9. Кафолат ва дастгирӣ

Wiltec products are manufactured to high-quality standards. In the unlikely event of a defect or malfunction, please refer to your purchase documentation for warranty details. For technical assistance, spare parts, or further inquiries, please contact Wiltec customer service through the retailer where the product was purchased or visit the official Wiltec webсайт.

Лутфан далели хариди худро барои ҳама даъвоҳои кафолат нигоҳ доред.
