AIDA Single Pole Motion Sensor Light Switch User Manual

Муқаддима

This manual provides detailed instructions for the installation, operation, and maintenance of your AIDA Single Pole Motion Sensor Light Switch. This device is designed to enhance convenience and energy efficiency by automatically controlling lighting based on occupancy. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Image: The AIDA Single Pole Motion Sensor Light Switch shown alongside its product packaging, highlighting its design and key features.

Маълумоти муҳим оид ба бехатарӣ

WARNING: RISK OF ELECTRIC SHOCK. Improper installation can be dangerous or illegal. Always consult a qualified electrician if you are unsure about any part of the installation process.

• Хомӯш кардани барқ: Always disconnect power at the circuit breaker or fuse box before installing or servicing the switch.
• Сими нейтралӣ лозим аст: This device requires a neutral wire for proper operation. If your electrical box does not have a neutral wire, this switch is not compatible.
• Single Pole Only: This switch is designed for single-pole control only and is not suitable for 3-way or multiple-way circuits.
• UL/CUL Certified: The switch is UL and CUL listed, ensuring compliance with safety standards.
• Ҷилди амалиётӣtage: Ensure your electrical system operates at 120 Volts (AC).

Мундариҷаи баста

Пеш аз оғози насбкунӣ тасдиқ кунед, ки ҳама ҷузъҳо мавҷуданд:

• AIDA Single Pole Occupancy Motion Sensor Light Switch
• Плитаи девори бевинг
• Wire Nuts (Terminal caps)
• Виддаҳои васлкунӣ
• Дастури таълимӣ (ин ҳуҷҷат)

Мушаххасоти маҳсулот

Image: A visual representation of the product dimensions and a detailed table of specifications for the AIDA motion sensor switch.

Image: A chart illustrating the universal compatibility of the AIDA motion sensor switch with various load types including LED/CFL, MLV, INV/HAL, Ballast, and Fan.

Насб ва насб

Пеш аз оғоз кардан:

1. Хомӯш кардани барқ: Locate your circuit breaker panel and turn off the power to the switch box you will be working on. Verify power is off using a voltagсанҷанда
2. Муайян кардани симҳо: Carefully remove the existing wall plate and switch. Identify the following wires:
   • Line Wire (Black): Carries power from the circuit breaker.
   • Load Wire (Black): Ба чароғаки рӯшноӣ барқ ​​интиқол медиҳад.
   • Neutral Wire (White): Required for this switch.
   • Сими заминӣ (сабз ё мисии бараҳна): For safety.
3. Confirm Neutral Wire: This switch requires a neutral wire. If you do not have a neutral wire (typically white) in your electrical box, this switch is not compatible.

Дастурҳои пайвастшавӣ:

Follow the wiring diagram carefully. Use the provided wire nuts to secure connections.

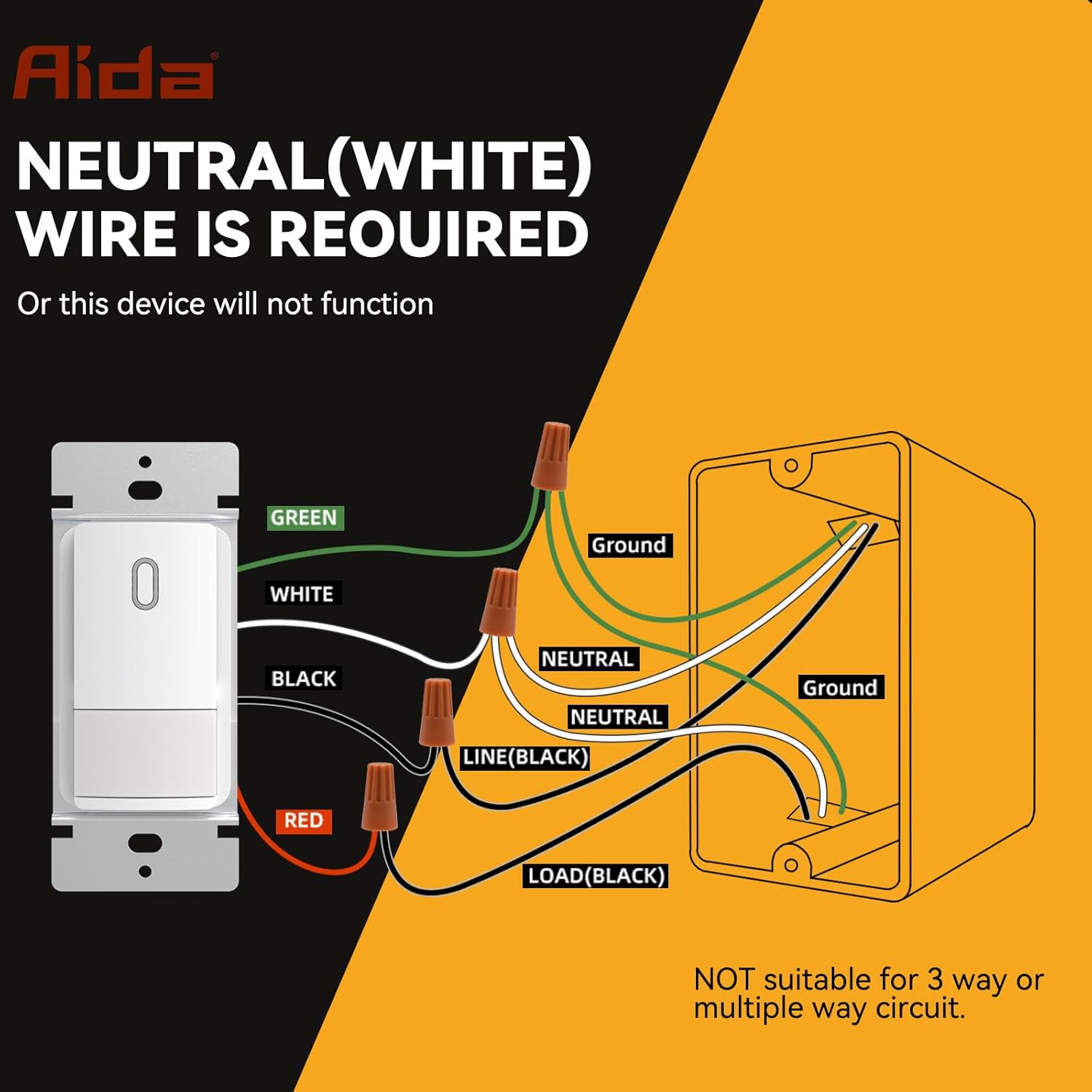

Image: A detailed wiring diagram showing connections for the AIDA motion sensor light switch, including Line, Load, Neutral, and Ground wires. It explicitly states that a neutral wire is required and the switch is not suitable for 3-way or multiple-way circuits.

• Пайваст кунед САБЗ wire from the switch to your house's ЗАМИН сим.
• Пайваст кунед САФЕД wire from the switch to your house's БЕТАРАФ сим.
• Пайваст кунед СИЁХ wire from the switch to your house's САТР сим (гарм).
• Пайваст кунед СУРХ wire from the switch to your house's БОР wire (to the light fixture).

Important: Ensure all connections are secure and insulated with wire nuts. This switch is for single-pole applications only. Do not use in 3-way or multi-way circuits.

Ҷойгиркунии коммутатор:

1. Carefully fold the wires and push the switch into the electrical box.
2. Secure the switch to the electrical box using the provided screws.
3. Attach the screwless wall plate.
4. Қувваи барқро дар ноқилҳои барқӣ барқарор кунед.

Image: A diagram showing the precise dimensions of the AIDA motion sensor light switch, its mounting bracket, and the screwless wall plate for easy installation.

Operating Instructions and Customization

The AIDA motion sensor switch offers various modes and adjustable settings to suit your needs.

Усулҳои кор:

• Occupancy Mode (Auto-On/Auto-Off): Lights automatically turn ON when motion is detected and OFF after a set delay when no motion is detected. Ideal for high-traffic areas like bathrooms, laundry rooms, and kitchens.
• Vacancy Mode (Manual-On/Auto-Off): Lights must be manually turned ON, but will automatically turn OFF after a set delay when no motion is detected. Suitable for bedrooms or TV rooms where you prefer manual control for turning on lights.

Танзимоти танзимшаванда:

The switch features internal dip switches for customizing settings. Carefully remove the faceplate to access these controls.

Тасвир: Нақшаи наздик view of the AIDA motion sensor switch's internal settings, showing dip switches for Adjustable Light Level (Timeout), PIR Sensitivity, and Ambient Light Sensor Mode.

• Adjustable Light Level (Timeout): This setting determines how long the light stays on after the last detected motion. Options typically include 30 seconds, 1 minute, 5 minutes, 15 minutes, or 30 minutes. Refer to the switch's internal labels for specific settings.
• Ҳассосияти PIR: Adjusts the sensitivity of the Passive Infrared (PIR) sensor to detect motion. Settings range from Low (L) to High (H). A higher sensitivity detects smaller movements or movements at a greater distance.
• Ambient Light Sensor Mode: Controls how the switch reacts to ambient light.
  • Паст/баланд: The switch will only turn on lights if the ambient light level is below a certain threshold (e.g., only turn on at night).
  • Хомӯш: The ambient light sensor is disabled, and the switch will turn on lights regardless of ambient light.
  • Фармоишгар: Allows for more specific ambient light level adjustments.

Note: After adjusting any internal settings, reattach the faceplate securely.

Тасвир: Муфассал view of the AIDA motion sensor switch with its cover removed, showing the dip switches for adjusting timeout, PIR sensitivity, and ambient light sensor mode.

Нигоҳдорӣ

The AIDA Motion Sensor Light Switch is designed for long-lasting, maintenance-free operation. To ensure optimal performance:

• Тозакунӣ: Periodically wipe the switch and wall plate with a soft, damp матоъ. Тозакунакҳои абразивӣ ё ҳалкунандаҳоро истифода набаред, зеро онҳо метавонанд ба қабат ё ҷузъҳои дохилӣ зарар расонанд.
• Монеа: Ensure the sensor lens is not obstructed by furniture, decorations, or other objects, as this can impair motion detection.
• Ягон қисмҳои хидматрасонии корбар: There are no user-serviceable parts inside the switch. Do not attempt to open or repair the unit beyond adjusting the dip switches.

Мушкилкушо

Кафолат ва дастгирии мизоҷон

AIDA products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official AIDA webсайт.

If you encounter any issues or have questions regarding your AIDA Single Pole Motion Sensor Light Switch, please contact our customer support team:

• Webсайт: Visit the AIDA Store on Amazon (барои маълумоти умумии маҳсулот)
• Почтаи электронӣ: Refer to product packaging or official webсайт барои тамос бо почтаи электронӣ.
• Телефон: Refer to product packaging or official webсайт барои рақами телефони тамос.

Please have your model number (B0DM4SGNBQ) and purchase date ready when contacting support.
