RAYMOND WEIL Automatic Watch 2783-ST-50000 User Manual

1. Муқаддима

This manual provides essential information for the proper setup, operation, and maintenance of your RAYMOND WEIL Automatic Watch, model 2783-ST-50000. This timepiece features a sophisticated self-winding mechanical movement, the Calibre RW1212, housed within a 38mm stainless steel case with an openworked dial. Understanding its functions and care requirements will ensure its longevity and accurate performance.

2. Хусусиятҳои асосӣ

• Ҳаракат: In-house developed Calibre RW1212 self-winding mechanical movement, beating at 28,800 vibrations per hour.
• Захираи барқ: Тақрибан 41 соат.
• Ҳолат: 38mm stainless steel case with an openworked dial showcasing the balance wheel at 6 o'clock.
• Рақам: Skeletonized design with a new sunray brushed finish, coated in black ruthenium.
• Oscillating Weight: Features the iconic W-shaped oscillating weight.
• Дастҳо: Luminous hands for enhanced readability in low light.
• тасма: High-quality 21 cm length, 19 mm width silver stainless steel bracelet with a deployment clasp.
• Муқовимат ба об: 10 bars (100 meters / 330 feet).
• Кристал: Sapphire crystal.

3. Танзимот

3.1 Кушодани қуттӣ

Carefully remove your watch from its original gift box. Inspect the watch for any visible damage. The watch is protected during transit; remove any protective films from the crystal, case back, and bracelet before use.

Image: The RAYMOND WEIL watch is presented in a sophisticated gray gift box, ensuring protection and elegant presentation upon unboxing.

3.2 Печондани ибтидоӣ

As an automatic watch, it is powered by the motion of your wrist. However, for initial use or after a period of inactivity, manual winding is recommended to build up the power reserve. To manually wind the watch:

1. Ensure the crown is in position 1 (fully pushed in, against the case).
2. Turn the crown clockwise approximately 20-30 times. You will feel a slight resistance as the mainspring winds. Do not overwind.

This initial winding will provide enough power for the watch to start running and for the automatic winding mechanism to take over with regular wear.

3.3 Танзими вақт

Барои таъин кардани вақт дар соати худ:

1. Gently pull the crown out to position 2. The watch hands will stop.
2. Turn the crown clockwise or counter-clockwise to move the hands to the desired time.
3. Once the time is set, push the crown back into position 1 (fully pushed in) to restart the watch and ensure water resistance.

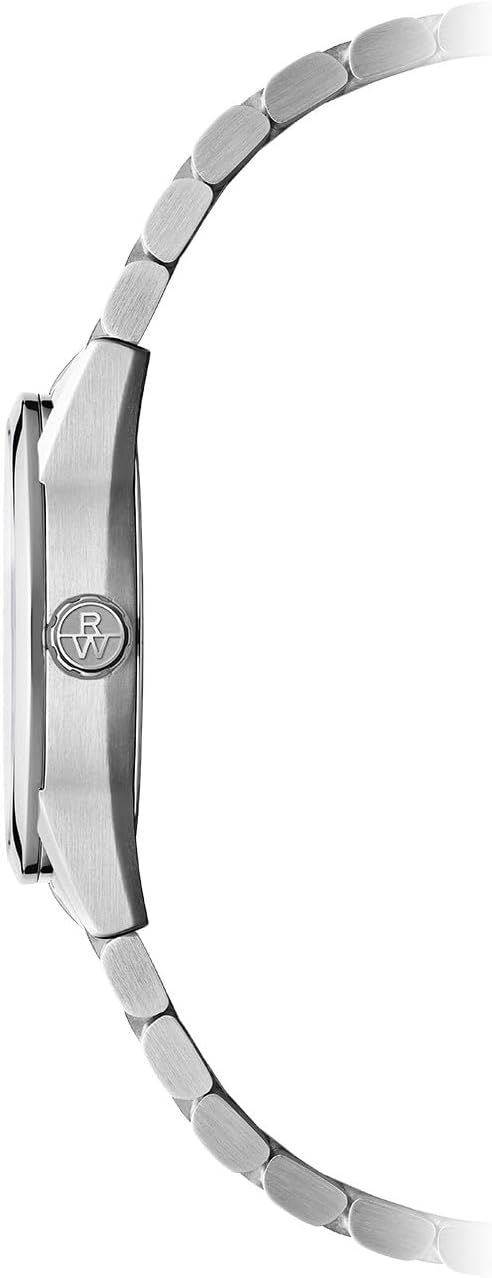

Тасвир: Side profile of the RAYMOND WEIL watch, highlighting the crown used for winding and time setting.

4. Идоракунии соати худ

4.1 Ҳаракати худкор

Your RAYMOND WEIL watch is equipped with an automatic mechanical movement. This means it is powered by the natural motion of your wrist. When worn regularly (approximately 8-10 hours a day), the oscillating weight inside the watch rotates, winding the mainspring and maintaining the power reserve. If the watch is not worn for an extended period, it will stop. Simply follow the initial winding procedure (Section 3.2) to restart it.

Тасвир: Пеш view of the RAYMOND WEIL Automatic Watch 2783-ST-50000, showcasing its skeletonized dial and intricate mechanical movement.

4.2 Муқовимат ба об

This watch has a water resistance rating of 10 bars (100 meters / 330 feet). This means it is suitable for swimming and snorkeling. However, it is not designed for scuba diving. Always ensure the crown is fully pushed in before exposing the watch to water. Avoid operating the crown while the watch is wet or submerged, as this can compromise its water resistance.

Тасвир: Қафо view of the RAYMOND WEIL watch, displaying the transparent case back that reveals the Calibre RW1212 movement and engraved water resistance rating.

5. Нигоҳдорӣ ва нигоҳубин

Proper care will help preserve the beauty and functionality of your RAYMOND WEIL watch.

• Тозакунӣ: Use a soft, dry cloth to wipe the case and crystal regularly. For the stainless steel bracelet, a soft brush with mild soapy water can be used, followed by thorough rinsing and drying.
• Аз зарбаҳо канорагирӣ кунед: While robust, mechanical watches are sensitive to strong impacts. Avoid dropping your watch or exposing it to severe shocks.
• Майдонҳои магнитӣ: Keep your watch away from strong magnetic fields (e.g., speakers, refrigerators, certain electronic devices) as these can affect the accuracy of the mechanical movement.
• Ҳарорати аз ҳад зиёд: Avoid exposing your watch to sudden and extreme temperature changes.
• Химиявӣ: Avoid contact with solvents, detergents, perfumes, and cosmetic products, as they can damage the case, crystal, or bracelet.
• Хизматрасонӣ: It is recommended to have your mechanical watch serviced by an authorized RAYMOND WEIL service center every 3-5 years to ensure optimal performance and water resistance.

Image: The RAYMOND WEIL Automatic Watch 2783-ST-50000 elegantly worn on a wrist, demonstrating its aesthetic appeal and fit.

6. Баррасии мушкилот

• Соат қатъ шуд: If the watch has stopped, it likely needs to be wound. Manually wind the watch by turning the crown clockwise 20-30 times (Section 3.2). If it still does not start, it may require professional inspection.
• Вақт нодуруст аст: Slight variations in accuracy are normal for mechanical watches. However, if the watch is consistently gaining or losing significant time, it may be magnetized or require servicing. Keep it away from strong magnetic fields and consider professional service.
• Конденсация дар зери булӯр: If you notice condensation under the crystal, this indicates a loss of water resistance. Immediately take the watch to an authorized service center to prevent further damage to the movement.

7. Мушаххасоти техникӣ

8. Кафолат ва дастгирӣ

8.1 Маълумот дар бораи кафолат

Your RAYMOND WEIL Automatic Watch 2783-ST-50000 comes with a Кафолати 2-солаи истеҳсолкунанда from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear.

Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the warranty card included with your watch or visit the official RAYMOND WEIL webсайт.

8.2 Дастгирии муштариён

For any questions, service requests, or warranty claims, please contact an authorized RAYMOND WEIL service center or your point of purchase. You can find a list of authorized service centers on the official RAYMOND WEIL webсайт: www.raymond-weil.com/en/customer-service/
