Дастури корбарии плеери сайёри CD-и августи SE15

1. Муқаддима

The August SE15 is a versatile portable CD player designed for a comprehensive audio experience. It features Bluetooth 5.3 for both transmitting and receiving audio, a USB port for digital music playback, and 3.5mm AUX In/Out connections. Equipped with built-in stereo speakers and a rechargeable battery, it offers portability and high-quality sound for various environments. The device supports CD, CD-R, CD-RW, MP3, and WMA formats, and includes features like adjustable EQ, anti-skip protection, and remote control for enhanced usability.

2. Мундариҷаи баста

Лутфан қуттии ҷузъҳои зеринро тафтиш кунед:

• August SE15 Portable CD Player
• Назорати дурдаст
• Гӯшмонакҳо
• Сими пуркунандаи USB-C
• Сими 3.5mm AUX
• Wall Mount Kit (screws and anchors)
• Пойгоҳи устувор
• Дастури корбар

Image: All items included in the August SE15 product box.

3. Тарҳбандии маҳсулот ва назорат

Familiarize yourself with the various ports and controls on your SE15 CD player.

Тасвир: Муфассал view of the SE15's connectivity ports.

• 3.5mm AUX-Out: Наушник ё баландгӯякҳои берунаро пайваст кунед.
• Порти USB: Insert a USB stick for MP3/WMA playback (Max 64GB, FAT32).
• 3.5mm AUX-In: Манбаъҳои берунаи аудиоро пайваст кунед.
• Калиди фурӯзон/хомӯш: Дастгоҳро фаъол ё хомӯш мекунад.
• Type-C Charging Socket: Барои пур кардани батареяи дохилӣ.
• Экрани намоиш: Shows track information, mode, and settings.
• Тугмаҳои назорат: Play/Pause, Skip/Search, Mode, EQ, Volume Up/Down.

4. Танзимот

4.1 Пур кардани дастгоҳ

Before first use, fully charge the SE15 using the provided USB-C cable and a compatible USB power adapter (not included). The built-in 2000mAh battery provides up to 40 hours of CD playback on a single charge.

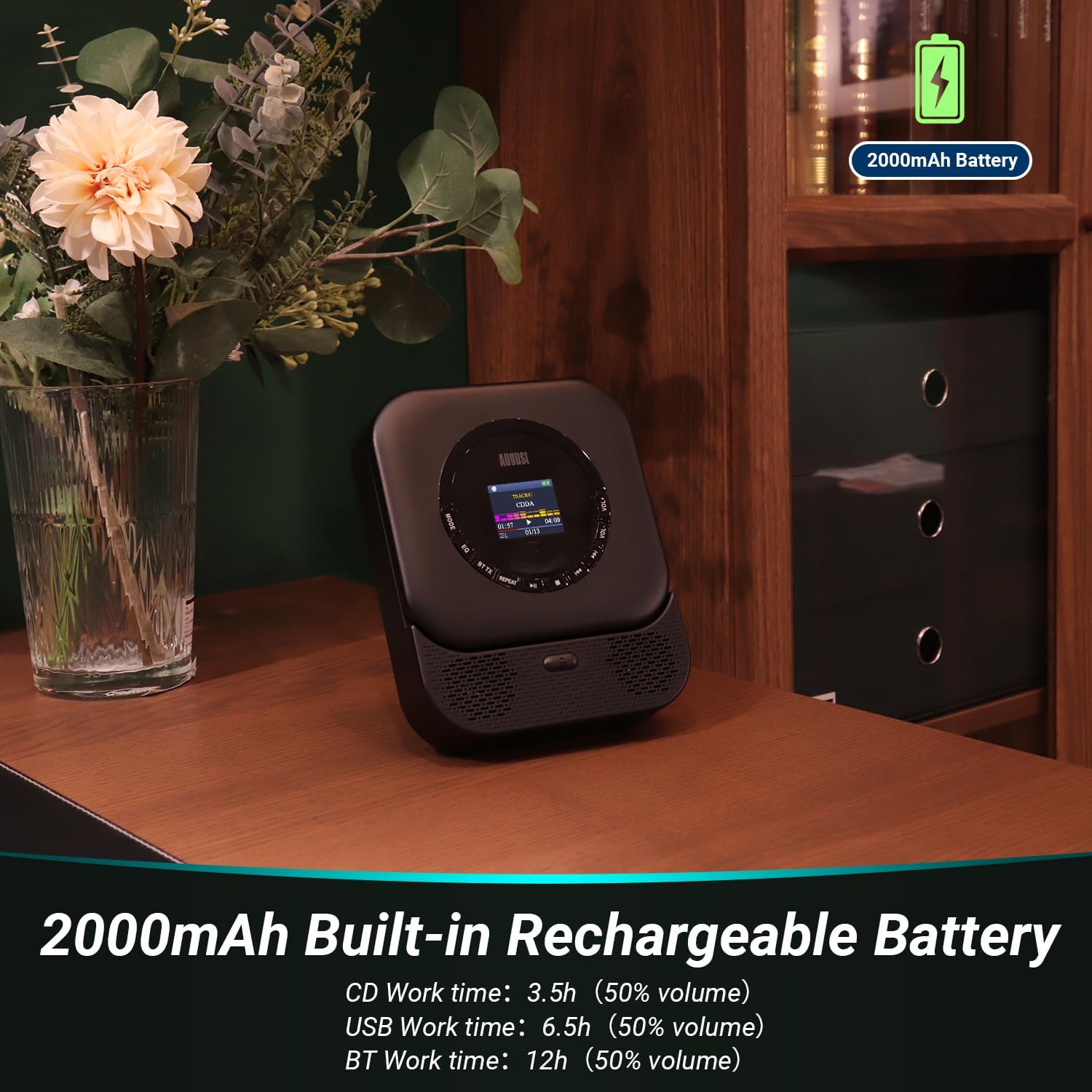

Image: The SE15 highlighting its 2000mAh rechargeable battery and usage times.

4.2 Ҷойгиркунӣ ва васлкунӣ

The SE15 can be used freestanding with its integrated stand or mounted on a wall using the included wall bracket kit.

• Мустақим: Pull out the integrated stand on the back of the unit to place it on a desk, shelf, or bedside table.
• Монтажи девор: Use the provided screws and anchors to securely attach the wall bracket to a suitable wall surface. Once the bracket is installed, slide the SE15 onto the bracket until it clicks into place.

Image: Demonstrating the wall-mounted and freestanding options for the SE15.

4.3 Фаъол кардан/хомӯш кардан

Slide the Power On/Off switch located on the side of the unit to the 'ON' position to power on the device. Slide it to 'OFF' to power off.

5. Дастурҳои истифодабарӣ

5.1 Бозии CD

1. Сарпӯши қисмати CD-ро кушоед.
2. Carefully place a CD (CD, CD-R, CD-RW) onto the spindle, label side up.
3. Close the CD compartment cover. The player will automatically begin reading the disc.
4. Use the Play/Pause, Skip/Search buttons on the unit or remote to control playback.

5.2 Бозии USB

1. Insert a USB flash drive (formatted to FAT32, max 64GB) containing MP3 or WMA audio fileс ба порти USB.
2. Press the 'MODE' button until 'USB' mode is selected on the display.
3. The player will automatically scan and begin playing audio files аз гардонандаи USB.

5.3 Bluetooth Connectivity (TX & RX)

The SE15 supports Bluetooth 5.3 for both transmitting (TX) and receiving (RX) audio.

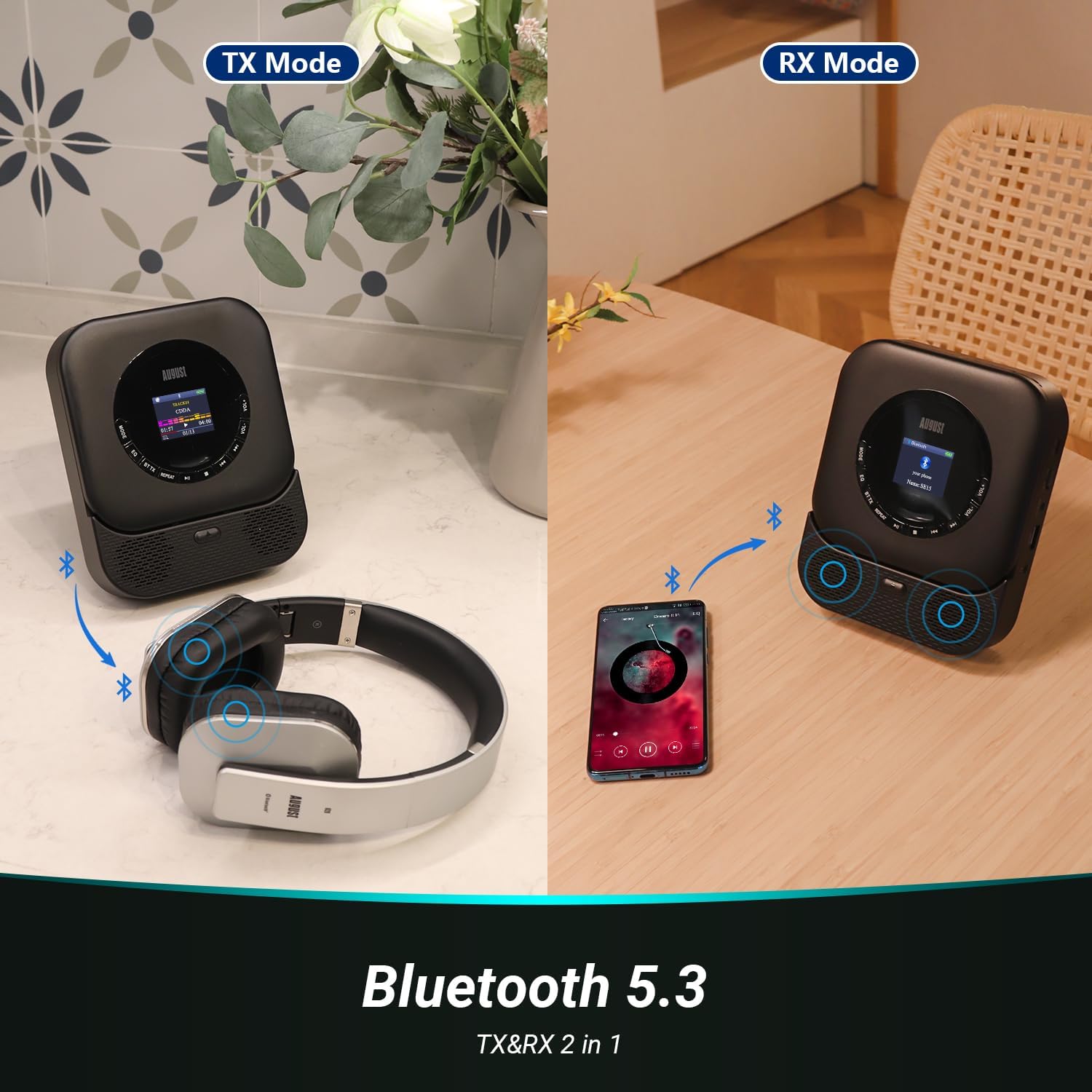

Image: Illustrating Bluetooth Transmit (TX) and Receive (RX) modes.

5.3.1 Bluetooth Transmit (TX) Mode

In TX mode, the SE15 transmits audio from CD, USB, or AUX-In to Bluetooth headphones or speakers.

1. Ensure the SE15 is playing audio from a source (CD, USB, AUX-In).
2. Press the 'BT TX' button on the remote control or the corresponding button on the unit to enter TX mode. The Bluetooth indicator will flash.
3. Гӯшмонакҳо ё баландгӯяки Bluetooth-и худро ба ҳолати ҷуфтшавӣ гузоред.
4. The SE15 will automatically search for and connect to nearby Bluetooth devices. Once connected, audio will play through the paired device.

5.3.2 Bluetooth Receive (RX) Mode

In RX mode, the SE15 acts as a Bluetooth speaker, receiving audio from a smartphone or tablet.

1. Press the 'MODE' button until 'BT RX' mode is selected on the display. The Bluetooth indicator will flash.
2. On your smartphone or tablet, enable Bluetooth and search for 'August SE15'.
3. Select 'August SE15' to pair. Once connected, audio from your device will play through the SE15's speakers.

5.4 AUX даромад/баромад

• AUX дар: Connect an external audio source (e.g., MP3 player, phone) to the 3.5mm AUX-In port using the provided AUX cable. Select 'AUX In' mode using the 'MODE' button.
• AUX берун: Connect the 3.5mm AUX-Out port to external speakers or headphones using an AUX cable for wired audio output.

5.5 Истифодаи пулти дурдаст

Пулти дурдасти дохилшуда дастрасии қулайро ба ҳамаи вазифаҳо аз масофа таъмин мекунад.

Image: The SE15 CD player and its remote control in use.

• Тугмаи барқ: Дастгоҳро фурӯзон/хомӯш мекунад.
• Тугмаи режим: Cycles through CD, USB, AUX In, BT RX modes.
• BT TX Button: Activates Bluetooth Transmit mode.
• Тугмаҳои бозӣ / таваққуф, гузаред / ҷустуҷӯ: Назорати бозикунии стандартӣ.
• Тугмаҳои VOL+/-: Овозро танзим кунед.
• Тугмаи EQ: Ба воситаи танзимоти эквалайзер давр мезанад.
• Тугмаи ТАКРОР: Controls repeat playback modes (e.g., repeat one, repeat all).

5.6 EQ Settings and Anti-Skip Protection

• Танзимоти EQ: Press the 'EQ' button on the unit or remote to cycle through various equalizer presets (e.g., Pop, Rock, Classic, Jazz, Flat) to optimize sound for different music genres.
• Муҳофизати зидди гузариш: The SE15 features automatic shock and skip protection, providing 40 seconds for CD and 120 seconds for MP3 playback, ensuring uninterrupted audio even during movement.

6. Нигоҳдорӣ

To ensure the longevity and optimal performance of your August SE15 CD player, follow these maintenance guidelines:

• Тозакунӣ: Use a soft, dry cloth to clean the exterior of the unit. For stubborn marks, a slightly damp cloth can be used, followed by a dry one. Do not use abrasive cleaners or solvents.
• Қисми CD: Keep the CD compartment clean and free of dust. Avoid touching the laser lens. If necessary, use a specialized CD lens cleaner disc.
• Нигоҳдорӣ: When not in use for extended periods, store the player in a cool, dry place away from direct sunlight and extreme temperatures.
• Нигоҳубини батарея: To preserve battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in constant use.

7. Баррасии мушкилот

If you encounter issues with your August SE15, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact August customer support.

8. Мушаххасоти

9. Кафолат ва дастгирӣ

August International Ltd. provides a warranty for this product. For detailed warranty information and customer support, please visit the official August webсайт ё бевосита бо хадамоти муштариёни худ тамос гиред.

Шумо метавонед маълумоти бештар ва дастгирии худро дар зер пайдо кунед August Store on Amazon.

For the PDF version of this user manual, please refer to: Дастури корбар (PDF)
