1. Муқаддима
Welcome to the user manual for your JLab JBuds Party Portable Bluetooth Speaker. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your speaker. The JBuds Party speaker delivers powerful audio with dual full-range drivers and passive woofers, features customizable RGB lighting, and offers multi-speaker connectivity via LabSync technology. Its IP56 waterproof rating ensures durability for various environments.
Image: The JLab JBuds Party Portable Bluetooth Speaker in Cyan, showcasing тарҳи он.
2. Он чиро дар бар мегирад
Лутфан мундариҷаи бастаро тафтиш кунед, то боварӣ ҳосил кунед, ки ҳама ашё мавҷуд аст:
- JLab JBuds Party Bluetooth Speaker
- Сими пуркунандаи USB-C
- Дастури корбар
3. Назорат ва хусусиятҳо
Бо ҷузъҳо ва контролҳои баландгӯяк шинос шавед:

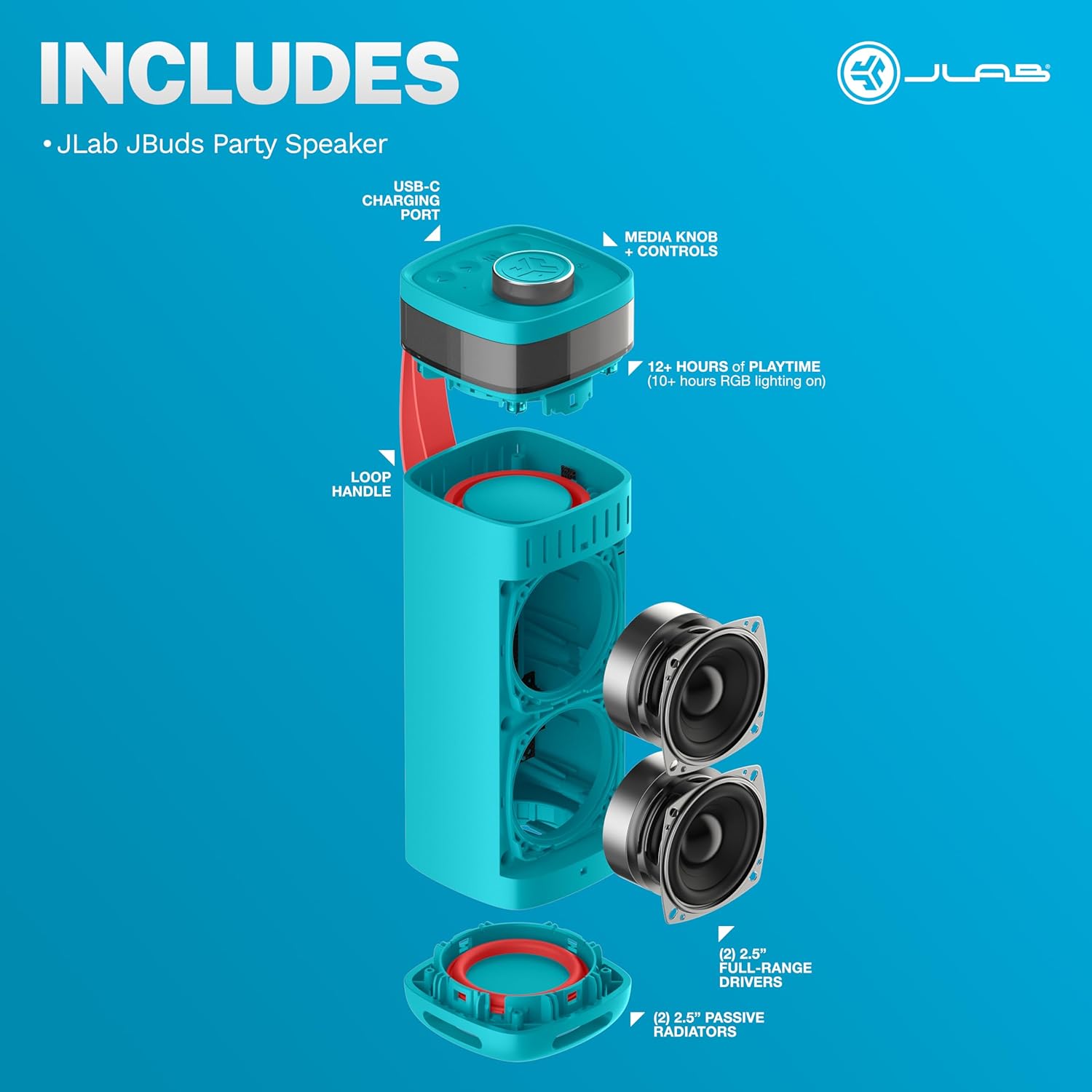

Image: An exploded diagram of the JLab JBuds Party speaker, highlighting its internal components such as the USB-C charging port, media knob and controls, loop handle, 2.5-inch full-range drivers, and 2-inch passive radiators.
- Media Knob + Controls: Located on the top panel for power, volume, playback, and other functions.
- Порти пуркунандаи USB-C: Барои пур кардани батареяи дохилии баландгӯяк.
- Loop Handle: Integrated for easy transport and hanging.
- Full-Range Drivers (2x 2.5"): Deliver clear and powerful audio.
- Passive Radiators (2x 2"): Enhance bass response.
- Равшании RGB: Customizable lighting effects around the top of the speaker.
4. Танзимот
4.1 Пур кардан
Before first use, fully charge your JBuds Party speaker. Connect the provided USB-C charging cable to the speaker's charging port and a compatible USB power source. The charging indicator will show the charging status.
4.2 Пайвасткунии Bluetooth
- Power on the JBuds Party speaker by pressing and holding the power button.
- The speaker will automatically enter Bluetooth pairing mode, indicated by a flashing light.
- Дар дастгоҳи худ (смартфон, планшет, ноутбук) ба танзимоти Bluetooth гузаред.
- Select "JBuds Party" from the list of available devices.
- Once connected, the speaker will confirm with an audible prompt, and the light indicator will become solid.
4.3 JLab App Integration
For enhanced control and customization, download the JLab App from the App Store or Google Play Store. The app allows you to customize RGB lighting, adjust sound settings (EQ4 presets), and receive software updates.
Image: A hand interacting with the JLab App on a smartphone, showing options to customize the RGB lighting of the JBuds Party speaker.
5. Истифода бурдани баландгӯяк
5.1 Бозии асосӣ
After successful Bluetooth pairing, you can play audio from your connected device. Use the media knob on the speaker or your device's controls to adjust volume, play/pause, and skip tracks.
Равшании 5.2 RGB
The JBuds Party speaker features integrated RGB lighting. You can customize the color, pattern, and frequency of these lights using the JLab App to match your preference.
Сурат: як шахс viewing their JLab JBuds Party speaker while customizing its sound and RGB lighting settings through the JLab App on their smartphone.
5.3 LabSync Multi-Speaker Connectivity
LabSync allows you to connect up to 100 JLab Party speakers for synchronized sound and lighting. Refer to the JLab App for detailed instructions on initiating and managing LabSync connections.
Image: Two JLab JBuds Party speakers shown side-by-side, illustrating the LabSync feature for synchronizing sound and lights across multiple units.
5.4 LabSync Stereo Pairing
For a more immersive audio experience, you can use LabSync to designate two JLab Party speakers as left and right channels, creating a powerful 2-channel stereo system. This feature is managed through the JLab App.

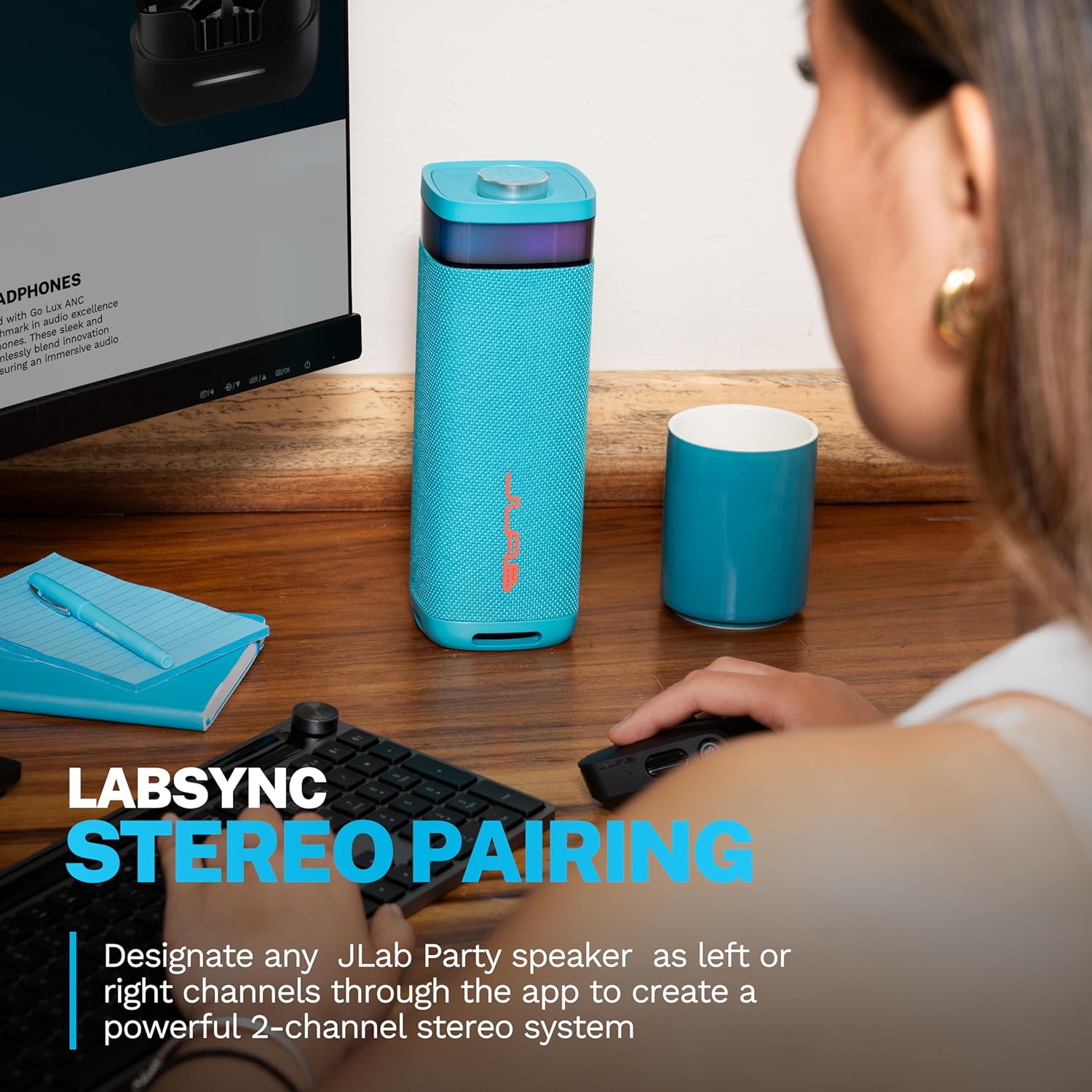

Image: A JLab JBuds Party speaker positioned on a desk next to a computer, demonstrating its use in a stereo pairing setup for an enhanced audio experience.
5.5 Waterproof Rating (IP56)
The JBuds Party speaker is IP56 rated, meaning it is protected against dust ingress and high-pressure water jets from any direction. This makes it suitable for outdoor use and resistant to splashes or light rain. Do not submerge the speaker in water.

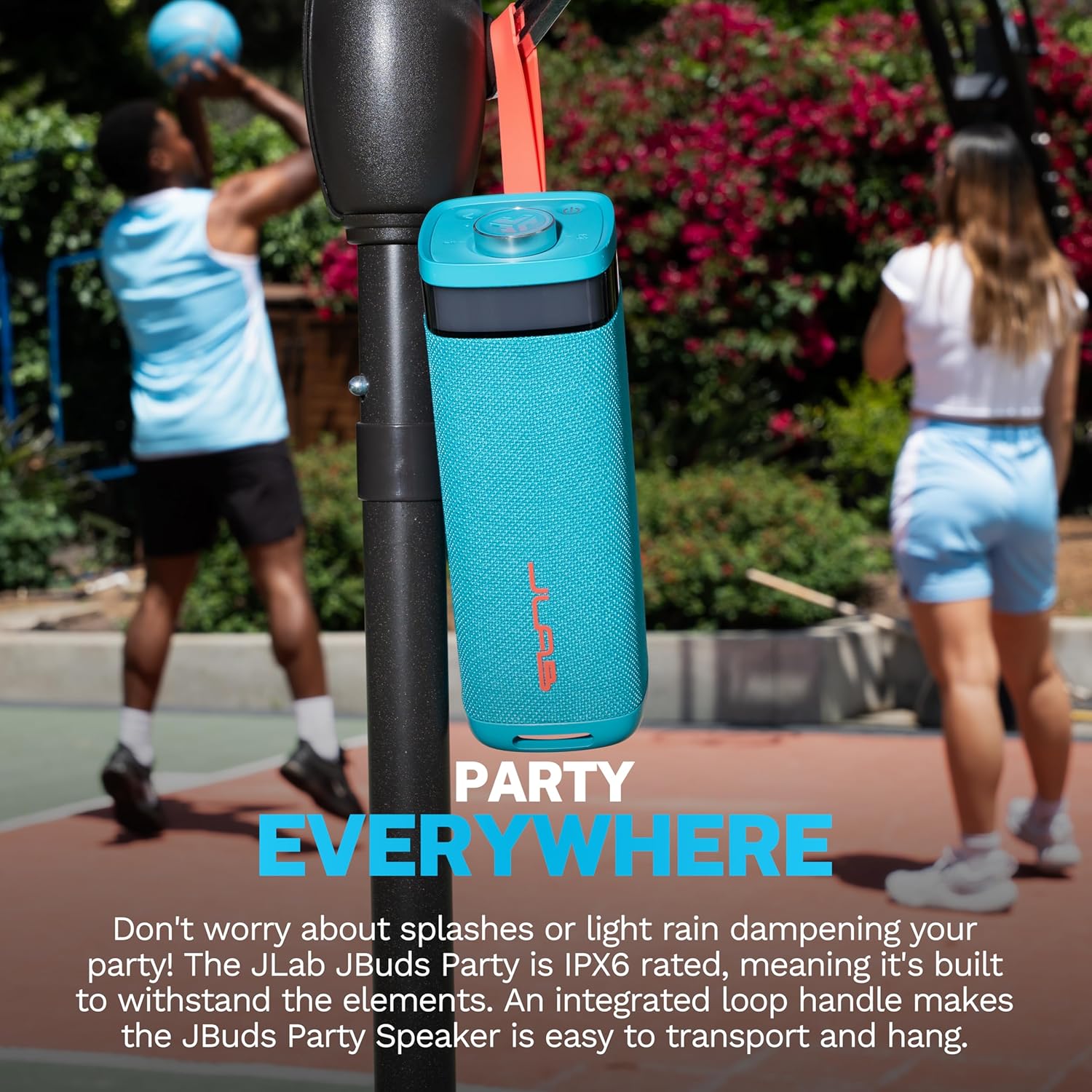

Image: A JLab JBuds Party speaker, equipped with its loop handle, hanging from a basketball hoop outdoors, demonstrating its portability and suitability for various environments.
6. Нигоҳдорӣ
- Тозакунӣ: Баландгӯякро бо нармӣ тоза кунед, гamp матоъ. Аз истифодаи кимиёвии сахт ё тозакунандаи абразив худдорӣ намоед.
- Нигоҳдорӣ: Динамикро дар ҷои хунук ва хушк нигоҳ доред, вақте ки истифода намешавад.
- Таъсири об: While IP56 rated, ensure the charging port cover is securely closed before exposure to water. After exposure, dry the speaker thoroughly before charging.
7. Баррасии мушкилот
| Чоп | Ҳалли имконпазир |
|---|---|
| Баландгӯяк фаъол нест | Боварӣ ҳосил кунед, ки баландгӯяк пур аст. Бо истифода аз сими USB-C ба манбаи барқ пайваст шавед. |
| Садо нест | Check if the speaker is paired correctly. Increase volume on both the speaker and your connected device. Ensure the audio source is playing. |
| Пайвасткунии Bluetooth ноком мешавад | Ensure the speaker is in pairing mode. Turn off and on Bluetooth on your device. Move the speaker closer to your device. Forget "JBuds Party" from your device's Bluetooth list and try pairing again. |
| LabSync connection issues | Ensure all speakers are within range and powered on. Check the JLab App for connection status and troubleshooting steps specific to LabSync. |
8. Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Номи модел | JBuds Party |
| Рақами модели ашё | SBJBUDSCYA12WEB |
| Навъи баландгӯяк | Баландгӯяки сайёр |
| Технологияи пайвастшавӣ | блутуз |
| Технологияи алоқаи бесим | блутуз |
| Ҳолати баромади аудио | Стерео |
| Танзимоти канали садои атроф | 2.0 |
| Баландгӯяк Максимум қудрати баромади | 30 Ватт |
| Андозаи баландгӯяк | 2.5 Inches (Full-Range Drivers) |
| Диаметри Вуфер | 2 Inches (Passive Woofers) |
| Манбаи нерӯ | Батареяе |
| Батареяҳо | 2 Nonstandard Battery batteries required (included) |
| Вақти бозӣ | 12 Hours (10+ hours with RGB lighting) |
| Сатҳи муқовимат ба об | IP56 (обногузар) |
| Усули назорат | Тугмаи пахш кунед, ламс кунед |
| Андозаҳои маҳсулот | 3.35"D x 3.35"W x 9.76"H |
| Вазни ашё | 3.56 фунт |
| Дастгоҳҳои мувофиқ | Ноутбук, плеери MP3, смартфон, планшет |
| UPC | 810119074768 |
9. Кафолат ва дастгирӣ
9.1 Маълумот дар бораи кафолат
The JLab JBuds Party Portable Bluetooth Speaker comes with a Full Warranty. Please refer to the official JLab website or your purchase documentation for specific terms and conditions of the warranty.
9.2 Дастгирии муштариён
Барои гирифтани кӯмаки бештар, дастгирии техникӣ ё даъвоҳои кафолатӣ, лутфан ба дастгирии расмии JLab муроҷиат кунед webба сомона муроҷиат кунед ё бо шӯъбаи хизматрасонии муштариёни онҳо тамос гиред. Маълумоти тамосро одатан дар JLab пайдо кардан мумкин аст. webсайт ё дар бастабандии маҳсулоти шумо.
