BOXPUT Q11 Android TV Box User Manual

1. Муқаддима

This user manual provides detailed instructions for the setup, operation, and maintenance of your BOXPUT Q11 Android TV Box. The Q11 is a high-performance streaming media player featuring the Amlogic S905X4 Quad-Core processor, Android 11.0 operating system, and support for 8K and 4K UHD video streaming. It includes dual-band Wi-Fi (2.4/5GHz) and a 1000M Ethernet port for stable network connectivity, along with an IRI Voice Remote for convenient control. Please read this manual thoroughly to ensure proper use and to maximize your viewтаҷрибаи ғанӣ.

Image: The BOXPUT Q11 Android TV Box, its IRI Voice Remote, and the product packaging, showcasing the device's sleek design and included accessories.

2. Мундариҷаи баста

Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳои дар поён овардашуда ба бастаи маҳсулоти шумо дохил карда шудаанд:

• 1 x BOXPUT Q11 Android TV Box
• 1 x IRI BT Voice Remote Control
• 1 x адаптери барқи ИМА
• 1 x кабели HDMI
• 1 x Дастури корбар

Image: A visual representation of the BOXPUT Q11 TV Box and its included accessories: the TV box, remote controller, user guide, power adapter, and HDMI cable.

3. Маҳсулот ба охир расидview

The BOXPUT Q11 features a compact design with essential ports for connectivity. Familiarize yourself with the device's layout and available connections.

Device Ports and Interfaces:

• LAN 1000M: Gigabit Ethernet port for wired network connection.
• Натиҷаи AV: For connecting to older televisions.
• Optical Audio Output (SPDIF): For digital audio connection.
• HDMI: For connecting to modern displays.
• DC 5V: Порти вуруди барқ.
• Ковокии корти micro SD: Supports up to 128GB for expanded storage.
• USB 2.0: Порти стандартии USB барои дастгоҳҳои периферӣ.
• USB 3.0: High-speed USB port for faster data transfer.

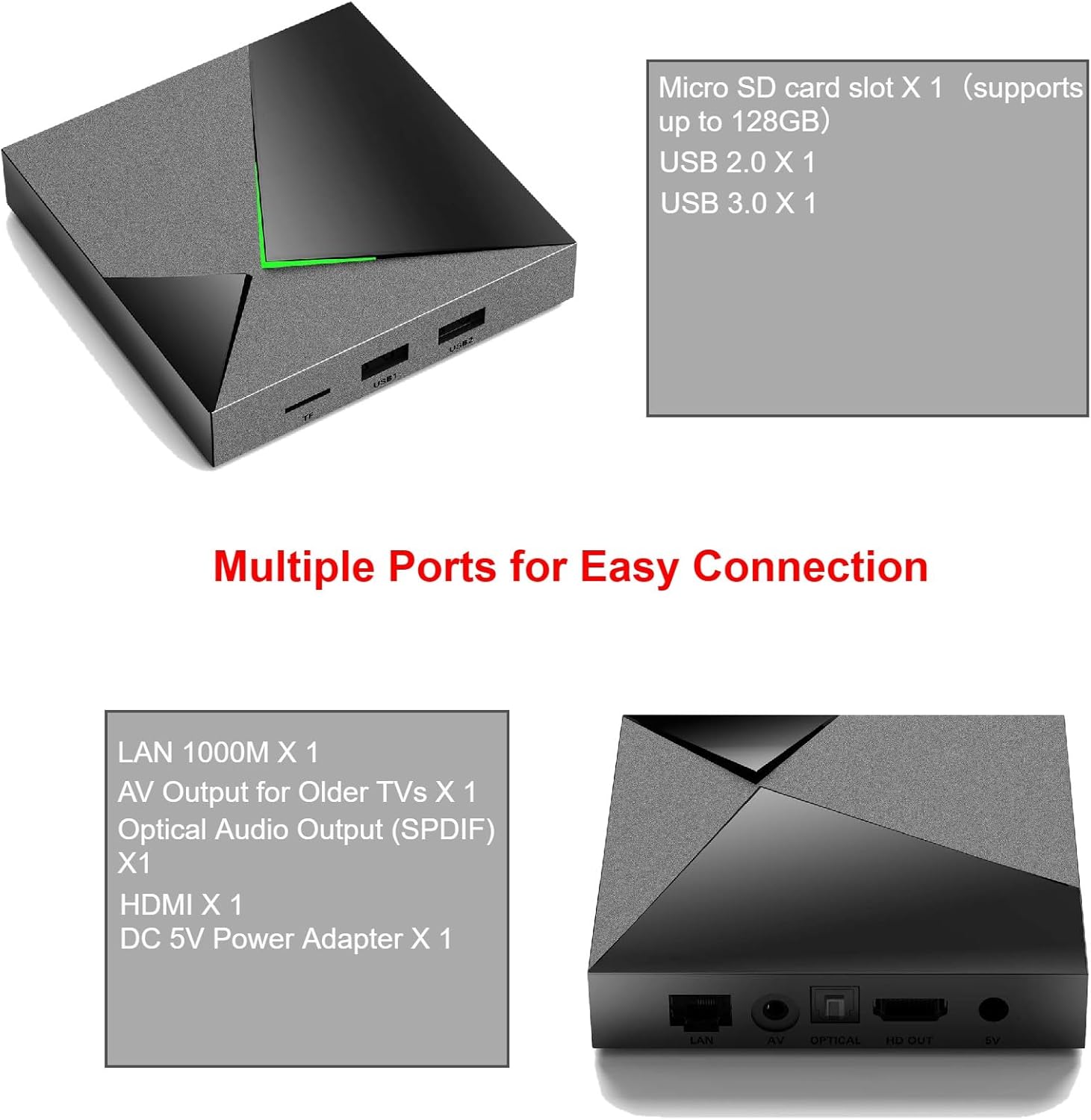

Image: A detailed diagram illustrating the various input and output ports on the BOXPUT Q11 Android TV Box, including LAN, AV, Optical, HDMI, DC 5V, Micro SD, USB 2.0, and USB 3.0.

4. Танзимот

Follow these steps to set up your BOXPUT Q11 Android TV Box:

1. Ба телевизор пайваст шавед: Connect one end of the provided HDMI cable to the HDMI port on the Q11 TV Box and the other end to an available HDMI input on your television.
2. Пайваст кардани барқ: Plug the US power adapter into the DC 5V port on the Q11 TV Box, then plug the adapter into a wall outlet.
3. Пайвастшавӣ ба шабака (ихтиёрӣ):
   • Сим: For a stable connection, connect an Ethernet cable from your router to the LAN 1000M port on the Q11 TV Box.
   • Бесим: If using Wi-Fi, you will configure this after the initial boot-up.
4. Фаъол: Turn on your television and select the correct HDMI input source. The Q11 TV Box should automatically power on and display the boot-up screen.
5. Конфигуратсияи ибтидоӣ: Follow the on-screen prompts to complete the initial setup, including language selection, Wi-Fi connection (if not using Ethernet), and Google account login.

Image: The BOXPUT Q11 TV Box positioned in front of a television screen, illustrating a typical setup for home entertainment, highlighting its Android 11 OS, S905X4 processor, Dual WiFi, and Bluetooth 4.2 capabilities.

5. Дастурҳои истифодабарӣ

Once set up, navigate the Android TV interface using the IRI BT Voice Remote Control. The remote allows for intuitive control and voice commands.

Навигатсияи асосӣ:

• Use the directional pad (up, down, left, right) to move between menu items.
• -ро пахш кунед OK тугмаи барои интихоби ашё.
• -ро пахш кунед Бозгашт тугмаи барои баргаштан ба экрани пешина.
• -ро пахш кунед Хона button to go to the main Android TV home screen.

Назорати овоз:

Press the dedicated voice button on your IRI BT Voice Remote to activate voice commands. Speak clearly into the remote to search for content, open applications, or control playback.

Зеркашии экран (Miracast):

The Q11 supports one-click screen mirroring, allowing you to cast games or live sports from your compatible phone or tablet directly to your TV. Access the Miracast feature from the device's settings or a dedicated app.

6. Пайвастшавӣ

The BOXPUT Q11 offers robust connectivity options to ensure a smooth streaming experience.

Пайвастшавӣ Wi-Fi:

The device supports dual-band 2.4GHz and 5GHz Wi-Fi, providing flexibility and improved performance in congested wireless environments. To connect to Wi-Fi:

1. Ба Танзимотҳо дар экрани хонагӣ.
2. Интихоб кунед Шабака ва Интернет.
3. Аз рӯйхат шабакаи дилхоҳи Wi-Fi-ро интихоб кунед.
4. Агар дархост карда шавад, пароли Wi-Fi-ро ворид кунед.

Пайвасти Ethernet:

For the most stable and fastest connection, use the built-in 1000M Gigabit Ethernet port. Simply connect an Ethernet cable from your router to the LAN port on the Q11 TV Box. The device will automatically detect and use the wired connection.

Блутуз:

The Q11 features Bluetooth connectivity, primarily used for the IRI BT Voice Remote Control. It can also be used to connect other compatible Bluetooth accessories.

7. 8K/4K UHD Streaming

Experience ultra-high-definition content with the BOXPUT Q11, designed to deliver stunning visuals.

8K@60fps Output:

The Q11 streaming box supports 8K resolution at 60 frames per second, providing exceptional detail and clarity. This requires an 8K-compatible television and 8K content.

HDR (диапазони баланди динамикӣ):

Enjoy brighter, more realistic colors and greater detail with HDR support. This technology enhances the contrast and color accuracy of compatible content.

Image: A visual comparison demonstrating the enhanced clarity and detail of 8K HDR compared to HD and 4K resolutions, highlighting the vibrant colors and sharper image quality.

Advanced Video Formats:

The Q11 is compatible with advanced video codecs including H.265, VP9, and AV1, ensuring efficient decoding of high-quality video streams.

Image: An illustration detailing the efficiency of the AV1 codec (50% more efficient than H.264, 20% more efficient than HEVC) and a comparison of 60 frames per second playback on the Q11 versus standard TV boxes, showing smoother motion.

8. Хусусиятҳои пешрафта

VPN Sharing:

The Q11 TV Box supports sharing VPN internet access. You can log in to your VPN application via an Ethernet connection, and the Q11 can then function as a software Wi-Fi router to share the VPN-protected internet with other devices in your home.

Image: A diagram illustrating how the BOXPUT Q11 can share a VPN connection. The Q11 connects to the internet via a 1G cable Ethernet, runs a VPN app, and then broadcasts a 2T2R Wi-Fi signal to other devices, effectively acting as a VPN router.

9. Нигоҳдорӣ

To ensure the longevity and optimal performance of your BOXPUT Q11 Android TV Box, follow these maintenance guidelines:

• Тозакунӣ: Use a soft, dry cloth to clean the exterior of the device. Avoid using liquid cleaners or abrasive materials.
• Вентилятсия: Ensure the device is placed in a well-ventilated area to prevent overheating. Do not block the ventilation openings.
• Хомӯш: When not in use for extended periods, it is recommended to unplug the power adapter.
• Навсозии нармафзор: Periodically check for system updates in the device settings to ensure you have the latest features and security patches.

10. Баррасии мушкилот

If you encounter issues with your BOXPUT Q11, refer to the following common problems and solutions:

• Не барқ ​​/ На намоиш:
  • Боварӣ ҳосил кунед, ки адаптери барқ ​​ҳам ба дастгоҳ ва ҳам ба васлаки барқии корӣ боэътимод пайваст шудааст.
  • Verify that the HDMI cable is properly connected to both the TV Box and the TV, and that the correct HDMI input is selected on your TV.
• Пайвасти интернет нест:
  • For Wi-Fi, check your network settings and ensure the correct password is entered. Try restarting your router.
  • For Ethernet, ensure the cable is securely connected and your router is functioning correctly.
• Идоракунии дурдаст ҷавоб намедиҳад:
  • Батареяҳои пулти дурдастро тафтиш кунед ва агар лозим бошад, онҳоро иваз кунед.
  • Боварӣ ҳосил кунед, ки байни пульти дурдаст ва қуттии телевизор ягон монеа вуҷуд надорад.
  • If it's a Bluetooth remote, try re-pairing it in the device's Bluetooth settings.
• Сифати пасти видео:
  • Ensure your internet connection is stable and fast enough for high-resolution streaming.
  • Verify that your TV supports the resolution (e.g., 4K or 8K) you are trying to stream.
  • Check the video output settings on the Q11 TV Box.

11. Мушаххасоти

12. Кафолат ва дастгирӣ

BOXPUT is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, the product includes access to a friendly after-sales support team.

For any questions, technical assistance, or support needs, please refer to the contact information provided with your purchase or visit the official BOXPUT website. Our support team is available to assist you with any issues or inquiries regarding your Q11 Android TV Box.

Image: A person seated at a desk, using a computer, with the BOXPUT Q11 TV Box and remote control nearby, symbolizing readily available customer support and assistance.
