Муқаддима
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your KERDOM Foldable Electric Wheelchair, Model KD-B02. Please read this manual thoroughly before using the wheelchair to ensure proper understanding and to prevent injury or damage.
Маълумот оид ба бехатарӣ
Бехатарии шумо аз ҳама муҳим аст. Ҳамеша дастурҳои бехатарии зеринро риоя кунед:
- Always ensure the wheelchair is fully unfolded and locked before use.
- Engage the EABS parking system when stationary.
- Иқтидори максималии вазнро аз 330 фунт зиёд накунед.
- Avoid operating the wheelchair on slopes exceeding 12 degrees.
- Regularly inspect tires, brakes, and electrical connections.
- Дастҳо ва либосҳоро аз қисмҳои ҳаракаткунанда дур нигоҳ доред.
- Use the seat belt at all times.
- Consult a healthcare professional for guidance on safe operation if you have any medical conditions.
Ташкил кардан
Кушодани аробачаи маъюбон
The KERDOM electric wheelchair features a 3-second folding design for portability. To unfold:
- Аробачаи маъюбиро дар рӯи ҳамвор ва устувор ҷойгир кунед.
- Gently pull the backrest upwards until the frame locks into place.
- Press down on the seat cushion until it is flat and secure.
- Боварӣ ҳосил кунед, ки ҳамаи механизмҳои қулфкунӣ пеш аз истифода фаъоланд.

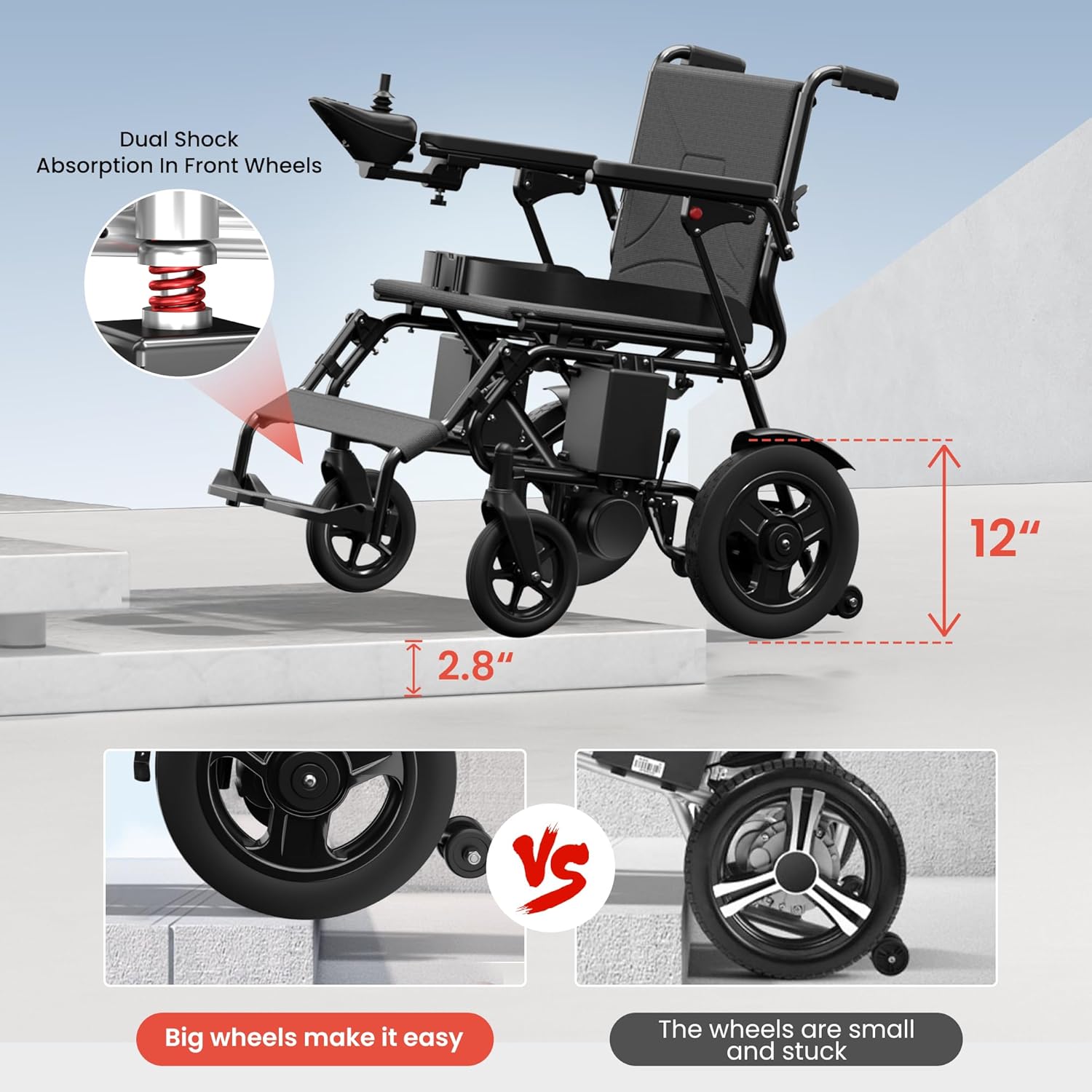

Figure 1: The KERDOM Foldable Electric Wheelchair in its unfolded state, ready for use.
Attaching the Joystick Controller
The 360° joystick controller can be attached to either the left or right armrest for user convenience.
- Locate the mounting bracket on the desired armrest.
- Slide the joystick controller onto the bracket until it clicks into place.
- Secure the controller using the provided screw or locking mechanism.
- Connect the controller cable to the corresponding port on the wheelchair frame.
Расми 2: Муфассал view of attaching the joystick controller to the armrest.
Пайваст кардани кабелҳои барқ
Ensure all power cables are securely connected before operating the wheelchair. Incorrect connections can lead to improper function or charging issues.
- Locate the main power cable connectors near the battery compartment.
- Connect the red power cord securely. Failure to do so may result in the charging indicator lighting up while charging, but not actually charging.
- Verify that all motor cables are correctly plugged in. If the wheelchair operates in the opposite direction, check and correct the left and right motor wire connections.
Video 1: Installation and use of electric wheelchairs and the solution of problems in use. This video demonstrates the setup process, including connecting the joystick and power cables, and addresses common issues like incorrect motor direction.
Дастурҳои амалиётӣ
Фаъолкунӣ ва хомӯш
- To power on: Press and hold the power button on the joystick controller until the indicator lights illuminate.
- To power off: Press and hold the power button again until the indicator lights turn off.
Driving the Wheelchair
The 360° flexible joystick provides precise control over movement.
- Ба пеш/қафо: Gently push the joystick forward or pull it backward.
- Гард кардан: Push the joystick left or right to steer.
- Қатъ кардан: Release the joystick to its neutral position. The EABS parking system will automatically engage, stopping the wheelchair safely.
Figure 3: The intelligent 360° flexible joystick for precise maneuverability, showing controls for balance, steering sensitivity, and safe stopping on inclines.
Speed Adjustment and Horn
- Танзими суръат: Use the '+' and '-' buttons on the joystick controller to increase or decrease the speed. The LED display will show the current speed setting.
- Шох: Press the horn button on the joystick controller to activate the horn for safety.
Фаъолияти режими дастӣ
To push the wheelchair manually without power, you need to disengage the motors.
- Ensure the handbrake is in the down position.
- Pull out the clutches on both sides of the wheelchair (located near the rear wheels). This disengages the motors, allowing the wheels to move freely.
- To re-engage electric power, push the clutches back in.
Figure 4: Location of the manual brake and clutches for switching between electric and manual modes.
Нигоҳдорӣ
Нигоҳубини батарея ва пуркунии барқ
- Пеш аз истифодаи аввал батареяро бо барқ пур кунед.
- Танҳо пуркунандаи барқро истифода баред.
- Do not overcharge the battery. Disconnect the charger once the battery is full.
- Store the wheelchair and battery in a cool, dry place.
- If storing for extended periods, charge the battery every 1-2 months to maintain its lifespan.
Figure 5: The LED display on the joystick shows battery life and speed clearly, aiding in timely charging.
Тозакунӣ ва нигоҳдорӣ
- Чаҳорчӯбаро бо таблиғ тоза кунедamp матоъ. Аз истифодаи тозакунандаи абразив худдорӣ намоед.
- The breathable seat cushion can be removed for cleaning.
- For storage, fold the wheelchair as demonstrated in the setup section.
- Store in a dry, protected area away from direct sunlight and extreme temperatures.
Figure 6: The compact, folded electric wheelchair fits easily into a car trunk for convenient transport and storage.
Нигоҳубини шина
The wheelchair is equipped with solid, puncture-resistant tires, eliminating the need for inflation. Periodically check for debris embedded in the treads and remove them to maintain traction.
Мушкилкушо
Агар шумо бо ягон мушкилот дучор шавед, ба мушкилот ва роҳҳои ҳалли маъмулии зерин муроҷиат кунед:
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Аробачаи маъюбӣ барқ намегирад. | Battery not charged or power cables disconnected. | Ensure battery is charged and all power cables are securely connected. |
| Wheelchair moves in the wrong direction. | Motor wires are plugged in backwards. | Check and correct the left and right motor wire connections. Refer to the setup video. |
| Wheelchair does not move when joystick is pushed. | Clutches are disengaged (manual mode). | Push the clutches on both sides of the wheelchair back in to engage electric mode. |
| Charging indicator lights up but battery doesn't charge. | Red power cord is not securely connected. | Ensure the red power cord is firmly connected. |
Мушаххасоти
- Модели: KD-B02
- Иқтидори вазн: 330 фунт стерлинг
- Андозаҳои маҳсулот: 36.19"D x 24.8"W x 33.4"H
- Вазн (бе батарея): Тақрибан 57 фунт
- Мотор: Dual 250W motors (Total 500W)
- Батарея: 24В 12Ач Литий-ион
- Маводҳои чаҳорчӯба: Iron, Plastic
- Назорат: 360° Joystick
- Системаи боздорӣ: EABS Parking System
- Чархҳои зидди нӯги: Дохил карда шудааст
- Slope Capability: ≤12°
- Шинҳо: Puncture-resistant solid tires
Кафолат ва дастгирӣ
KERDOM provides a 12-month warranty for this electric wheelchair. For any queries, technical assistance, or warranty claims, please contact KERDOM's 24/7 US-based customer support. Our quick-response team aims to resolve issues within 24 hours.
Барои маълумоти иловагӣ, боздид кунед KERDOM Store.
