1. Муқаддима
This manual provides essential information for the safe and effective operation, maintenance, and care of your KERDOM Foldable Electric Wheelchair KD-B02. Please read this manual thoroughly before using the wheelchair to ensure proper understanding and to prevent potential hazards.
Image 1.1: The KERDOM Foldable Electric Wheelchair KD-B02, showcasing its compact design and joystick control.
The KERDOM KD-B02 is designed for adults requiring mobility assistance, offering a combination of portability, safety, and ease of use. Key features include a 3-second folding mechanism, a 360° joystick for precise control, and an EABS parking system for enhanced safety.
2. Дастур оид ба бехатарӣ
Your safety is paramount. Adhere to all safety instructions to prevent injury or damage to the wheelchair.
- EABS Parking System: The Electronic Automatic Braking System (EABS) engages automatically when the joystick is released, providing immediate stopping power. This system also features slope-sensing technology, which automatically stops the wheelchair on inclines up to 12 degrees when the joystick is not engaged.
- Чархҳои зидди нӯги: Equipped with rear anti-tip wheels to enhance stability and prevent backward tipping, especially on inclines or uneven surfaces.
- Тасмаи бехатарӣ: Always use the integrated seat belt for secure seating during operation. The seat belt features a quick-release buckle for easy fastening and unfastening.
- Иқтидори вазн: Иқтидори максималии вазнро аз 330 фунт (150 кг) зиёд накунед.
- Шароити экологӣ: Avoid operating the wheelchair in extreme weather conditions, such as heavy rain or snow, to prevent damage to electronic components.
Image 2.1: Illustration of the EABS slope standing function, showing the wheelchair remaining stable on an incline when the joystick is released.
Image 2.2: Close-up of the seat belt design, highlighting the quick-release buckle for user convenience and safety.
Image 2.3: Depiction of the anti-roll design, showing the small rear wheels that prevent the wheelchair from tipping backward on inclines.
3. Насбкунӣ ва васлкунӣ
The KERDOM KD-B02 is designed for quick setup. It arrives largely pre-assembled, requiring minimal steps to prepare for use.
3.1 Кушодани аробачаи маъюбон
- Аробачаи маъюбиро дар рӯи ҳамвор ва устувор ҷойгир кунед.
- Gently pull the armrests outwards to begin unfolding the frame.
- Push down on the seat rails until the frame locks into place. Ensure all locking mechanisms are securely engaged.
- Attach the footrests if they are not already installed.
3.2 Folding the Wheelchair for Transport/Storage
The wheelchair features a 3-step folding design for compact storage and easy transport.
- Step 1: Lift Cushion. Lift the seat cushion upwards.
- Step 2: Tuck In The Middle. Fold the backrest forward and push the sides of the frame inwards.
- Step 3: Complete Fold. Continue to compress the wheelchair until it is fully folded and secured.

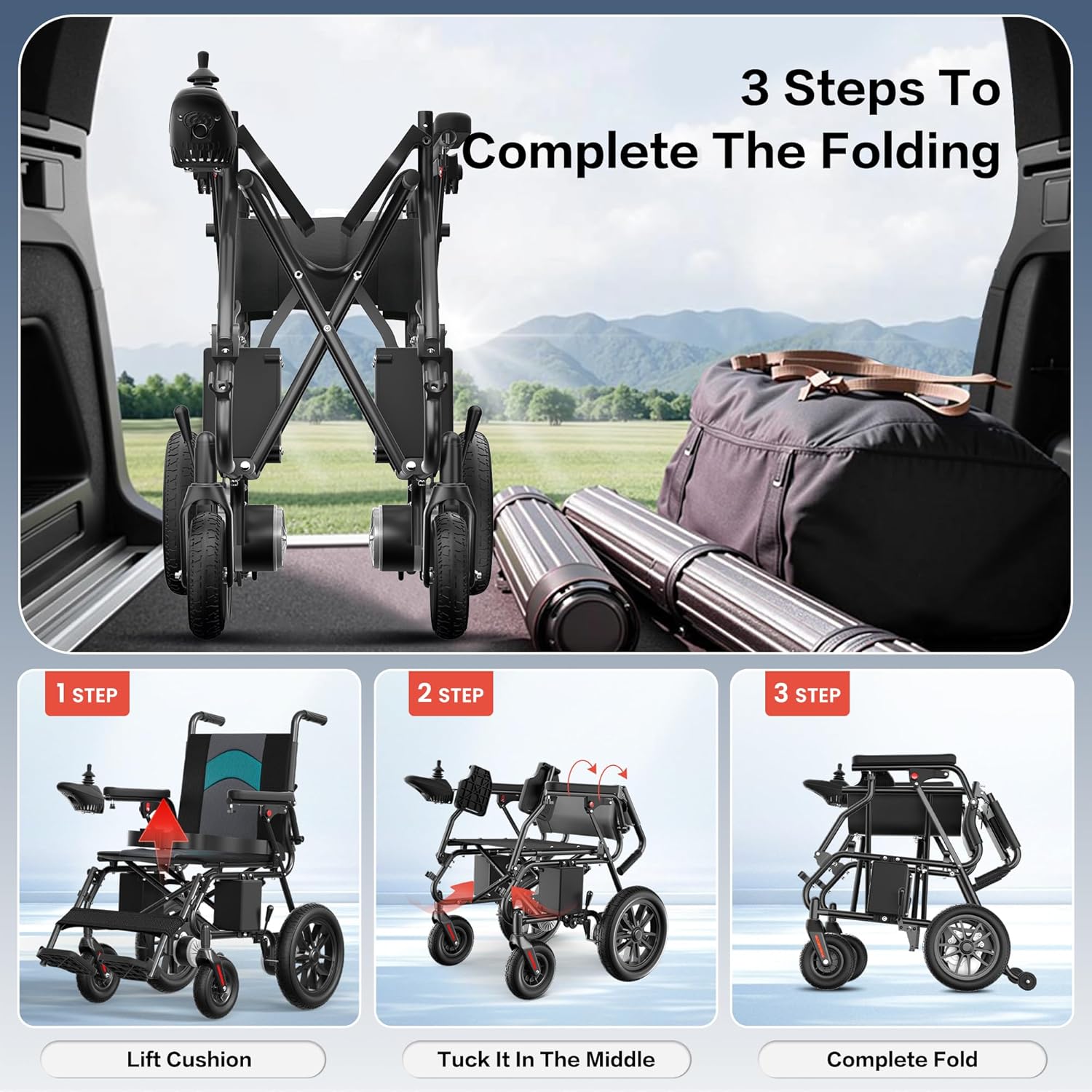

Image 3.1: Visual guide demonstrating the three steps to fold the KERDOM electric wheelchair for compact storage.
Image 3.2: The folded wheelchair shown fitting into a car trunk and standing upright for convenient storage.
4. Дастурҳои истифодабарӣ
The KERDOM KD-B02 is controlled via an intuitive 360° joystick, designed for ease of use and precise maneuverability.
4.1 Назорати Joystick
- Фаъол / Хомӯш: Press the power button on the joystick panel to turn the wheelchair on or off.
- Ҳаракат: Gently push the joystick in the desired direction (forward, backward, left, right) to move. The wheelchair's speed is proportional to how far the joystick is pushed.
- Қатъ кардан: Release the joystick to engage the EABS parking system, which will bring the wheelchair to a smooth stop.
- Танзими суръат: Use the speed control buttons (+/-) on the joystick panel to adjust the maximum speed.
Тасвири 4.1: Наздик view of the 360° flexible joystick, illustrating its ergonomic design and control buttons for intuitive operation.
Image 4.2: Diagram showing the joystick's ability to control movement in all directions: forward, back, left, and right.
4.2 Battery Indicator and USB Charging
- The LED display on the joystick panel shows the current battery life. Monitor this regularly to avoid unexpected power loss.
- A USB charging port is integrated into the joystick for convenient charging of personal electronic devices during outings.
5. Маълумот дар бораи батарея ва пуркунии барқ
The KERDOM KD-B02 is powered by a 24V/12AH Lithium battery, offering a travel range of up to 15 miles on a full charge.
5.1 Пур кардани батарея
- Ensure the wheelchair is turned off before charging.
- Connect the charger to the charging port on the battery pack.
- Пуркунандаи барқро ба васлаки стандартии барқ пайваст кунед.
- The charging indicator light on the charger will change color (e.g., red to green) when charging is complete.
- Avoid overcharging; disconnect the charger once the battery is full.
5.2 Battery Range
The 15-mile travel distance allows for various activities, from short trips to the park to longer excursions to a supermarket.
Image 5.1: Graphic illustrating the 15-mile travel range and examples of destinations achievable within this distance.
6. Нигоҳдорӣ ва нигоҳубин
Regular maintenance ensures the longevity and optimal performance of your electric wheelchair.
- Тозакунӣ: Wipe down the frame and seat with a damp cloth. Avoid using abrasive cleaners or excessive water directly on electronic components. The breathable fabric seat cushion is easy to clean.
- Фишори чарх: Check tire pressure regularly (if applicable for the specific tire type). The 12-inch rear wheels are designed for durability.
- Нигоҳубини батарея: Store the battery in a cool, dry place. If storing the wheelchair for an extended period, ensure the battery is fully charged and recharge it periodically (e.g., every 1-2 months) to maintain its health.
- Санҷишҳо: Periodically check all bolts, nuts, and connections for tightness. Ensure the joystick operates smoothly and the brakes engage correctly.
Image 6.1: Close-up of the breathable fabric seat, highlighting its three-dimensional gauze material for comfort and ease of cleaning.
7. Баррасии мушкилот
If you encounter issues with your KERDOM electric wheelchair, refer to the following common troubleshooting steps:
- Wheelchair does not power on:
- Check if the battery is properly connected and fully charged.
- Ensure the power button on the joystick is pressed firmly.
- Wheelchair does not move:
- Verify the joystick is functioning correctly and not stuck.
- Дар атрофи чархҳо ҳама гуна монеаҳо мавҷуданд, тафтиш кунед.
- Ensure the EABS system is not engaged due to a steep incline or an error.
- Садоҳои ғайриоддӣ ҳангоми кор:
- Inspect wheels and motors for any foreign objects.
- Боварӣ ҳосил кунед, ки ҳамаи ҷузъҳо боэътимод баста шудаанд.
For issues not resolved by these steps, please contact KERDOM customer support.
8. Мушаххасоти
| Хусусият | Мушаххасоти |
|---|---|
| Рақами модел | KD-B02 |
| Андозаҳои маҳсулот (кушода) | 36.19"D x 24.8"W x 33.4"H |
| Андозаҳои маҳсулот (паҳншуда) | Approximately 23.6"W x 41.4"H (when folded upright) |
| Вазни ашё | 73 Pounds (approx. 57 lbs without battery) |
| Иқтидори максималии вазн | 330 фунт стерлинг |
| Моторхо | Dual 250W Motors (Total 500W) |
| Навъи батарея | Батареяи литий 24V/12AH |
| Майдони сафар | То 15 мил |
| Max Incline Capability | 12° (with EABS auto-stop) |
| Чархҳои пеши | Азхудкунии зарбаи дугона |
| Чархҳои пушти | 12-inch (Big 11-inch Tires, can cross steps/stone pavement below 7cm) |
| Материал | Оҳан, Пластик |
Image 8.1: Comparison illustrating the upgraded 500W dual motor system, highlighting improved climbing capacity and extended motor life.
Тасвири 8.2: Муфассал view of the dual 250W motors, emphasizing their role in improved climbing ability and navigation over difficult terrain.
Image 8.3: Illustration of the dual shock absorption in the front wheels and the large 12-inch rear wheels, designed for comfortable rides over varied surfaces.
Image 8.4: Close-up of the 11-inch tires, indicating their capability to cross steps or stone pavement up to 7cm high.
Image 8.5: Diagram showing the key dimensions of the wheelchair and its 300 lbs weight capacity.
9. Кафолат ва дастгирӣ
KERDOM is committed to providing reliable products and excellent customer service.
- Кафолат: Your KERDOM electric wheelchair is backed by a Кафолати 12-моҳа аз рӯзи харид. Ин кафолат нуқсонҳои истеҳсолӣ ва корношоямиро дар ҳолати истифодаи муқаррарӣ фаро мегирад.
- Дастгирии муштариён: For any queries, technical assistance, or warranty claims, please contact our 24/7 US-based customer support team. Our quick-response team aims to resolve all inquiries within 24 hours.
For further assistance, please refer to the contact information provided with your purchase or visit the official KERDOM webсайт.
