Муқаддима
Welcome to the user manual for your new KERDOM Electric Wheelchair. This manual provides essential information for the safe and efficient operation, maintenance, and care of your wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.
The KERDOM Electric Wheelchair is designed for adults, offering a lightweight, foldable, and portable solution for enhanced mobility. It features dual 250W motors, a 12AH lead-acid battery providing up to 15 miles of travel range, and a responsive 360° joystick control.
Маълумоти муҳим оид ба бехатарӣ
Бехатарии шумо аз ҳама муҳим аст. Ҳамеша дастурҳои зеринро риоя кунед:
- Always wear the safety belt provided.
- Ensure the electromagnetic brakes are functioning correctly before each use.
- Иқтидори максималии вазнро аз 350 фунт зиёд накунед.
- Avoid operating the wheelchair on excessively steep inclines or uneven terrain beyond its capabilities.
- Дастҳо ва либосҳоро аз қисмҳои ҳаракаткунанда дур нигоҳ доред.
- Consult a healthcare professional for guidance on safe usage if you have any medical conditions.
- Regularly inspect the wheelchair for any signs of wear or damage.
Танзим ва васлкунӣ
Follow these steps to set up your KERDOM Electric Wheelchair. For a visual guide, please refer to the installation video below.
1. Кушодани аробачаи маъюбон
- Carefully remove the wheelchair from its packaging.
- Gently pull the handles upwards to unfold the chair.
- Press down on the seat cushion until it lies flat. (Caution: Be careful to avoid pinching your hand when pressing the cushion.)
- Adjust the footrests to the desired position.

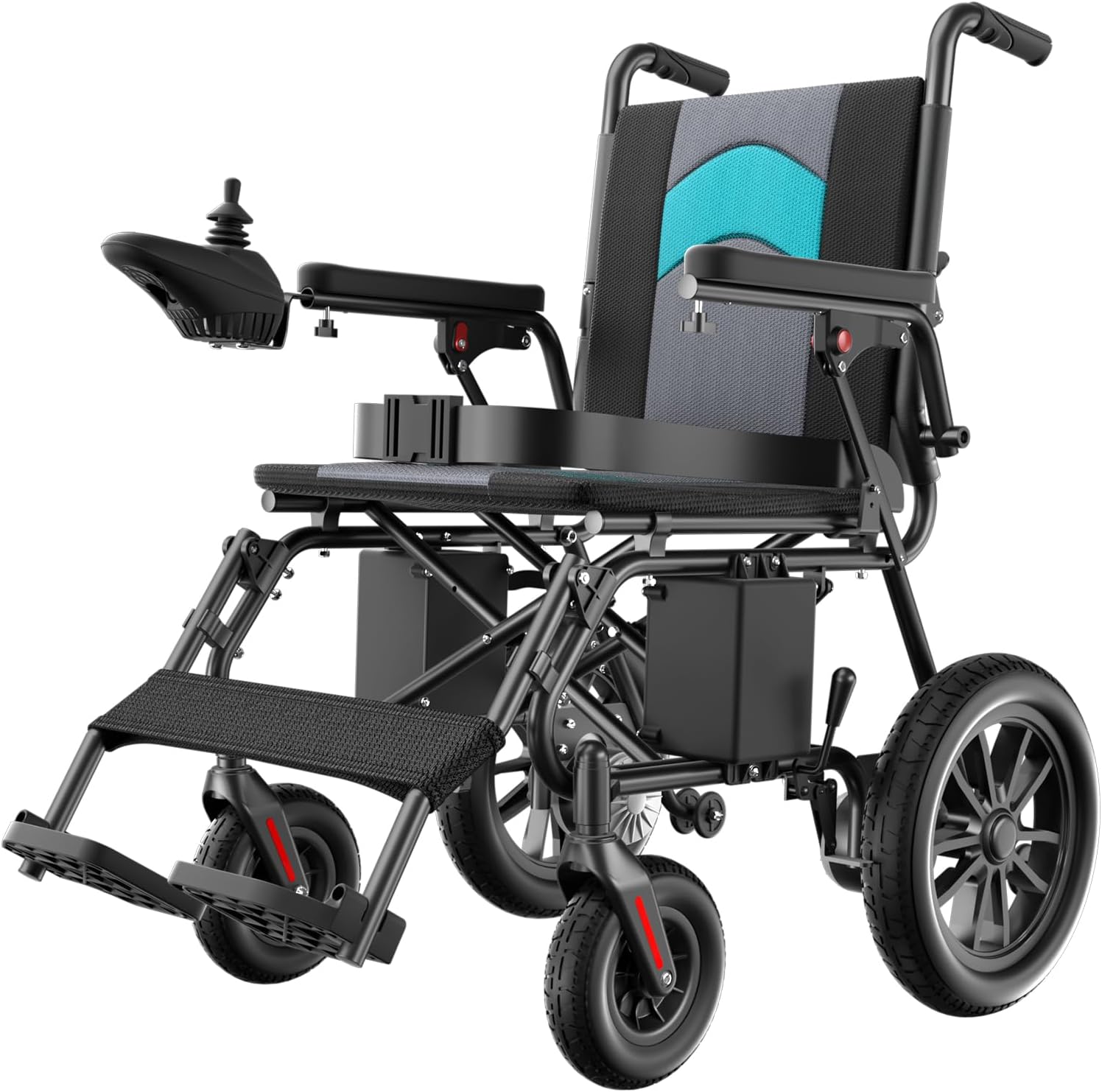

Image: The KERDOM Electric Wheelchair in its fully unfolded state, showcasing дизайн ва ҷузъҳои он.
2. Attaching the Joystick Controller
- Locate the joystick controller and the designated attachment point on the armrest.
- Slide the joystick onto the armrest bracket.
- Secure it in place using the provided screw and knob. Ensure it is firmly attached.
3. Installing Anti-Roll Wheels
The anti-roll wheels provide additional stability.
- Slightly elevate the rear of the wheelchair (you may need to place something under the main wheels for support).
- Insert the anti-roll wheel assembly into the designated slots at the rear of the frame.
- Secure them with the pins or clips provided.
Тасвир: Муфассал view of the powerful dual brushless motors, indicating their 500W combined output.
4. Пайваст кардани батарея
Ensure the battery is properly connected before operating the wheelchair.
- Locate the battery compartment, typically under the seat.
- Connect the red power cord from the battery to the corresponding red connector on the wheelchair frame.
- Пайвасти бехатарро таъмин кунед.

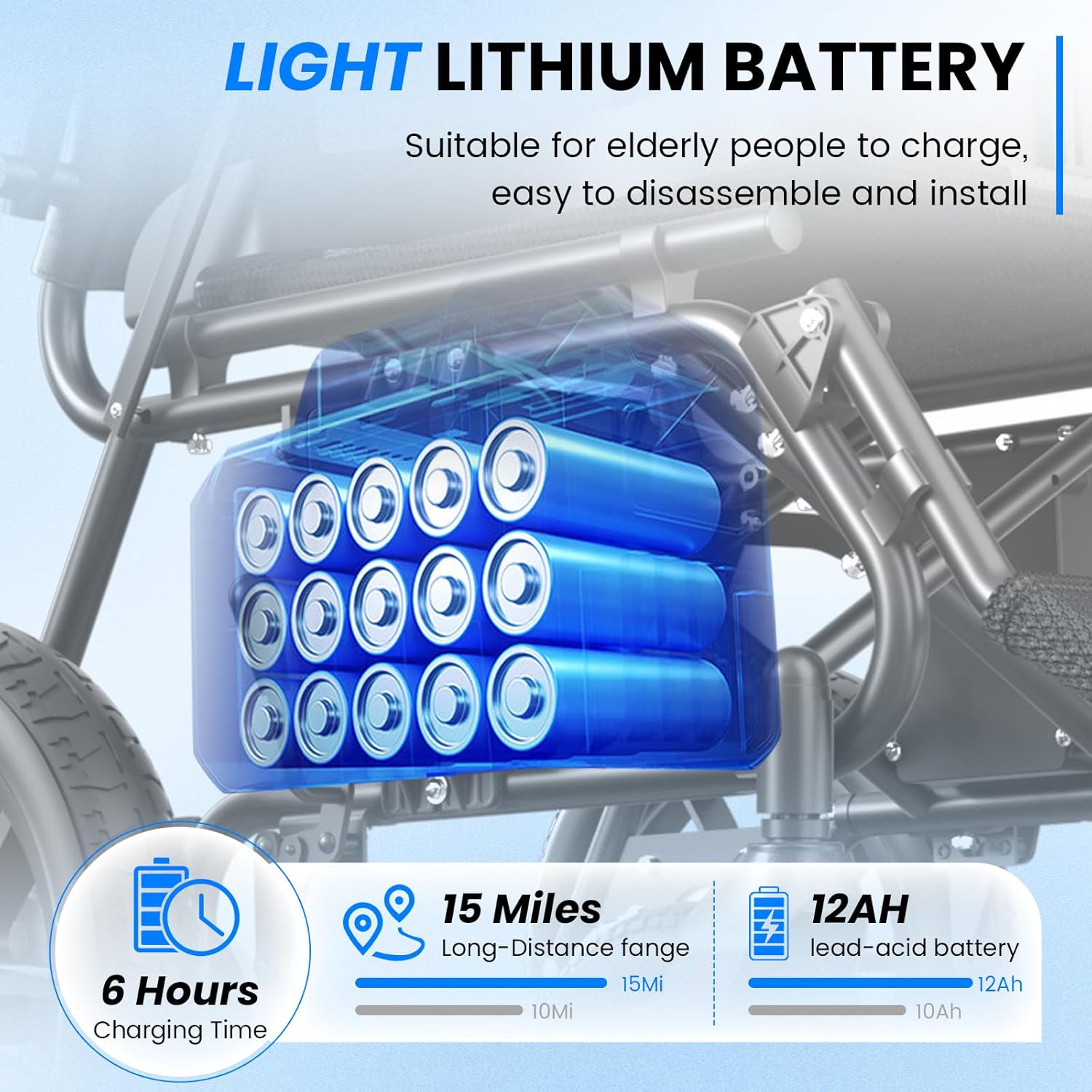

Image: A visual representation of the wheelchair's 12AH lead-acid battery, highlighting its 6-hour charging time and 15-mile travel range.
Дастури видеоии насб
Video: A comprehensive guide demonstrating the installation, use, and maintenance procedures for the KERDOM Electric Wheelchair.
Дастурҳои амалиётӣ
Joystick Control Panel
The 360° joystick provides intuitive control over the wheelchair's movement and functions.
Image: A close-up of the joystick controller, showing the power switch, horn, speed adjustment buttons (+/-), mute switch, SOS button, and battery level display.
- Калиди барқ: Press to turn the wheelchair on or off.
- Ҷойстик: Move forward, backward, left, or right to control direction.
- Танзими суръат (+/-): Increase or decrease the wheelchair's speed.
- Шох: Барои садо додани шох пахш кунед.
- One-touch Mute: Mutes system sounds.
- Тугмаи SOS: Activates an emergency alert (functionality may vary by model/region).
- Намоиши сатҳи батарея: Заряднокии ҷории батареяро нишон медиҳад.
Системаи тормоз
The KERDOM Electric Wheelchair is equipped with an electromagnetic braking system for reliable stopping power.
- Тормози худкор: Релеasing the joystick will automatically engage the electromagnetic brakes, bringing the wheelchair to a stop.
- Manual Brakes: For additional security, manual brakes are located on the rear wheels. Engage them when parking or transferring.
- Чархҳои зидди нӯги: Rear anti-tip wheels are designed to prevent the wheelchair from tipping backward, especially on inclines.
- Камарбанди бехатарӣ: Always fasten the safety belt before operating the wheelchair.
Image: The wheelchair demonstrating its stability on a 12-degree incline, with insets showing the seat belt, rear anti-tip wheels, and manual brakes.
Navigating Various Terrains
Your KERDOM Electric Wheelchair is designed to handle a variety of terrains with ease.

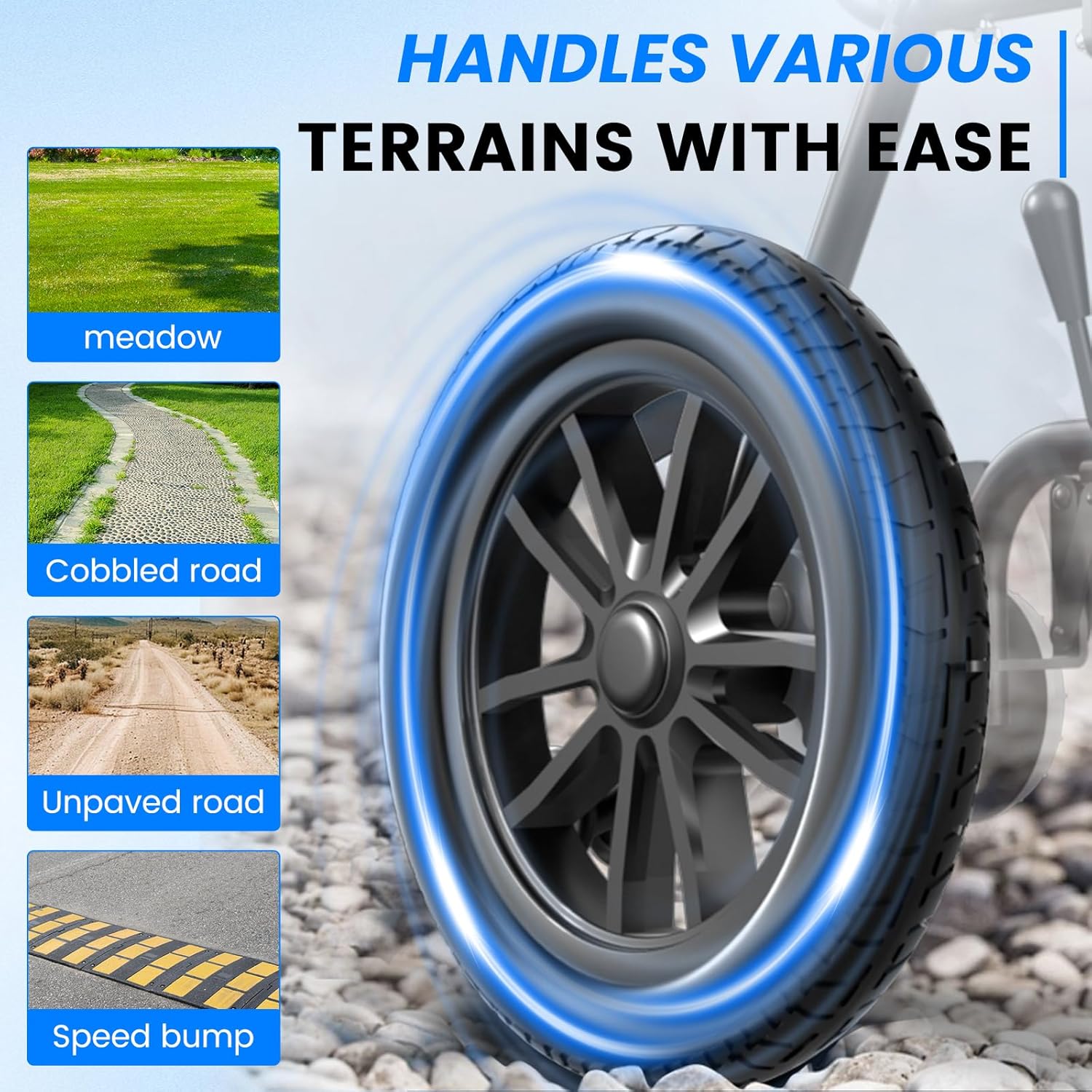

Image: A visual guide illustrating the wheelchair's capability to navigate different surfaces such as meadows, cobbled roads, unpaved roads, and speed bumps.
- Сатҳҳои ҳамвор: Ideal for indoor use and paved outdoor areas.
- Uneven Terrain: Can traverse meadows, cobbled roads, and unpaved paths. Exercise caution and reduce speed on these surfaces.
- Монеаҳо: Approach speed bumps and small obstacles slowly and directly.
Нигоҳдорӣ
Нигоҳубини батарея ва пуркунии барқ
Proper battery maintenance ensures optimal performance and longevity.
- Пур кардан: Charge the 12AH lead-acid battery for approximately 6 hours for a full charge, providing up to 15 miles of travel.
- Нигоҳдорӣ: If storing the wheelchair for an extended period, ensure the battery is fully charged and disconnect it. Recharge periodically to maintain battery health.
- Иваз: If the battery's performance significantly degrades, contact customer support for replacement options.
Тозакунӣ ва нигоҳубини умумӣ
- Чорчӯба: Чаҳорчӯбаро бо таблиғ тоза кунедamp матоъ ва шустушӯй нарм. Аз тозакунандаи абразивӣ худдорӣ кунед.
- Болишҳо: The double-layer seat cushion with breathable honeycomb sponge is removable and washable. Follow the care instructions on the cushion label.
- Чархҳо: Regularly check wheels for debris and ensure they spin freely.
- Қисмҳои барқӣ: Keep all electrical components dry. Do not spray water directly onto the joystick or motor areas.
Мушкилкушо
If you encounter any issues with your KERDOM Electric Wheelchair, please refer to the following common problems and solutions.
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Аробачаи маъюбӣ барқ намегирад. | Батарея пайваст нашудааст ё холӣ нашудааст. | Боварӣ ҳосил кунед, ки батарея боэътимод пайваст аст. Батареяро пурра пур кунед. |
| Wheelchair moves slowly or erratically. | Low battery charge; joystick malfunction; motor issue. | Charge the battery. Check joystick connections. If problem persists, contact support. |
| Тормозҳо дуруст кор намекунанд. | Brake mechanism obstruction or malfunction. | Inspect for obstructions. If issues continue, contact support immediately. |
| Садои ғайриоддӣ ҳангоми кор. | Loose components; motor issue; debris in wheels. | Inspect for loose parts and tighten if safe. Clear debris from wheels. Contact support if noise persists. |
For issues not listed here or if solutions do not resolve the problem, please contact KERDOM customer support.
Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Модели | B0FQMYV81K |
| Бренд | КЕРДОМ |
| Андозаҳои маҳсулот (кушода) | 36.19"D x 24.8"W x 33.4"H |
| Материал | Оҳан |
| Қувваи мотор | Dual 250W (500W total) Brushless Motors |
| Навъи батарея | 12AH Lead-Acid Battery |
| Майдони сафар | То 15 мил барои як заряд |
| Вақти пуркунии барқ | тахминан. 6 соат |
| Иқтидори вазн | То 350 фунт |
| Системаи тормоз | Тормозҳои электромагнитӣ |
| Ранги | Blue (This specific variant) |
Image: Detailed dimensions of the KERDOM Electric Wheelchair in both its unfolded and folded configurations, along with its 350 lbs weight capacity.
Кафолат ва дастгирӣ
KERDOM is committed to providing comprehensive after-sales service.
- Кафолат: Тафсилоти мушаххаси кафолат одатан бо ҳуҷҷатҳои хариди шумо пешниҳод карда мешаванд. Лутфан, барои шартҳо ва қоидаҳо ба ин ҳуҷҷатҳо муроҷиат кунед.
- Дастгирии муштариён: If you encounter any issues with your power wheelchair or require assistance, please contact the seller, HeatiOne, directly through your purchase platform or their official contact channels. They are dedicated to assisting you promptly.
