Дастури корбарии AOOSTAR MACO AMD Ryzen 7 H255 Mini PC

1. Муқаддима

Welcome to the AOOSTAR MACO AMD Ryzen 7 H255 Mini PC user manual. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your new mini PC. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Маҳсулот ба охир расидview

2.1 Хусусиятҳои асосӣ

• AMD Ryzen 7 H255 Processor: High-end mobile processor with Zen 4 architecture, 4nm process, 8-core, 16-thread configuration, and up to 4.9 GHz boost frequency.
• Radeon 780M Graphics: Integrated RDNA 3 architecture for smooth graphics performance.
• Dual DDR5 & Dual PCIe4.0: Supports dual-channel DDR5 5600MHz RAM (expandable to 128GB) and dual M.2 2280 NVMe PCIe4.0x4 SSDs (expandable to 8TB).
• One-Touch Fingerprint Unlock: For instant access and enhanced security with enterprise-grade encryption.
• Four Display Support: Connect up to four 4K displays simultaneously for improved productivity.
• OCuLink Port: Extremely high bandwidth (64 Gbps) for external GPU solutions, offering faster support speeds and fewer transfer bottlenecks compared to Thunderbolt 4 and USB4.
• Интерфейсҳои сершумор: Includes OCuLink*1, USB4*2, USB3.2 Gen2*2, USB3.0*1, HD*1, DC*1, DP*1, Jack*1, 2.5G*2 for versatile peripheral compatibility.
• Системаи самараноки хунуккунӣ: Designed for stable and cool full-power use.

2.2 Мундариҷаи баста

The following items are included in your AOOSTAR MACO AMD Ryzen 7 H255 Mini PC package:

• 1 x AOOSTAR MACO AMD Ryzen 7 H255 Mini PC
• 1 x SSD Cooling Pad
• 1 x 120W 19V 6.32A Type-C Power Supply

2.3 Physical Components and Ports

Familiarize yourself with the various ports and components of your mini PC.

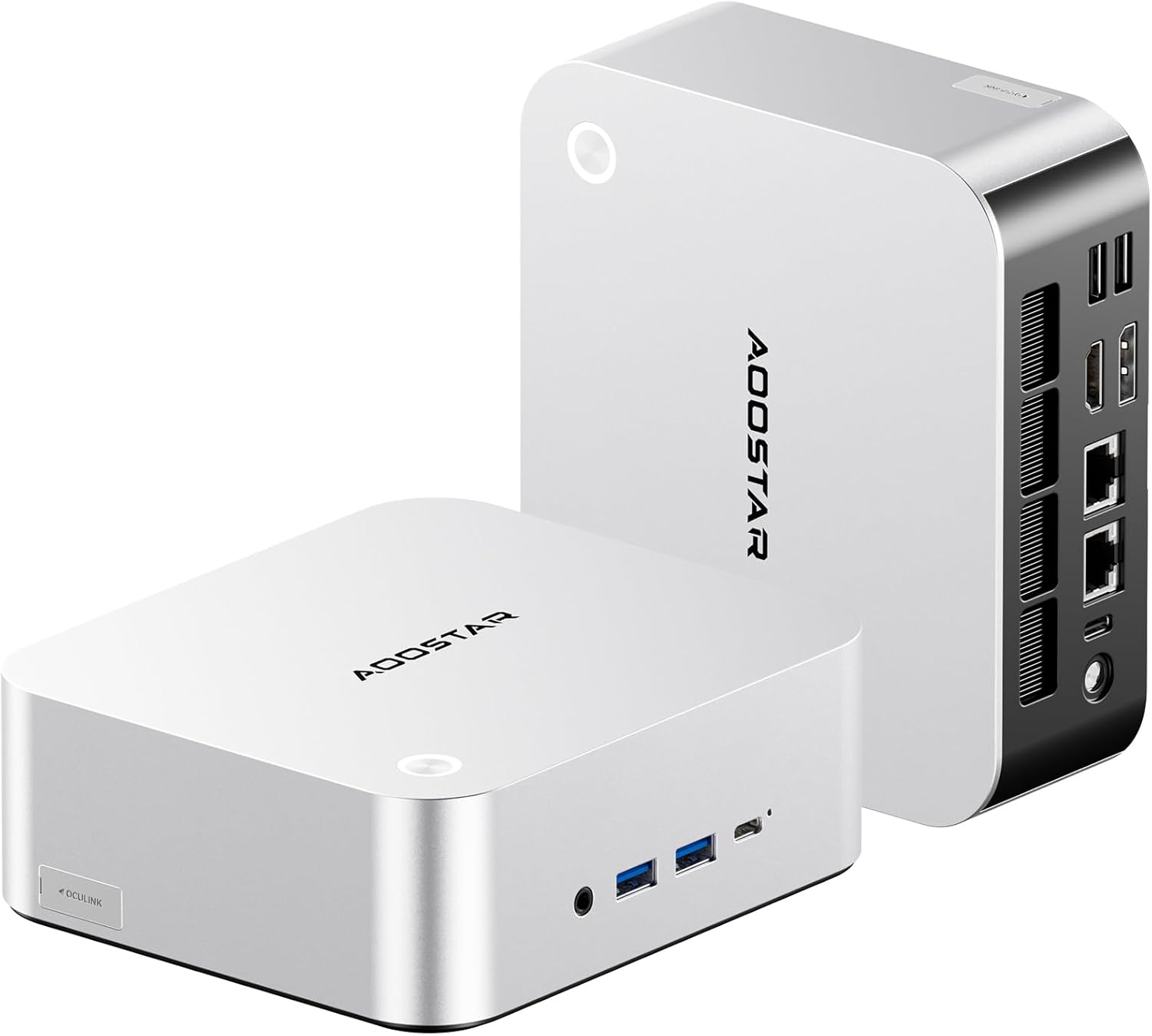

Тасвир: Пеш ва пушти view of the AOOSTAR MACO AMD Ryzen 7 H255 Mini PC, showcasing its compact design and various connectivity options.

Тасвир: Барview of the AOOSTAR MACO Mini PC's key features, including the AMD Ryzen PRO processor, one-piece formed metal casing, and various ports.

Панели пеши:

• Power Button with Fingerprint Sensor: For powering on/off and secure login.
• Jack Jack: For headphones or microphones.
• USB 3.2 Gen2 Ports (x2): Интиқоли маълумот бо суръати баланд.
• USB4 Port (x1): Интиқоли маълумот ва баромади намоиш бо суръати баланд.

Панели пушти:

• Вуруди қувваи DC: Адаптери барқро пайваст кунед.
• USB4 Port (x1): Интиқоли маълумот ва баромади намоиш бо суръати баланд.
• 2.5G LAN Ports (x2): Барои пайвастҳои шабакаи симӣ.
• Порти HDMI (x1): For display output.
• Порти Намоишӣ (DP) (x1): For display output.
• OCuLink Port (x1): For connecting external GPUs.
• Портҳои USB 3.0 (x2): Барои пайваст кардани дастгоҳҳои периферӣ.

2.4 Системаи хунуккунӣ

The AOOSTAR MACO H255 Mini PC features an advanced cooling architecture to ensure stable performance even under heavy loads.

Image: Diagram illustrating the internal cooling system of the AOOSTAR MACO Mini PC, including the turbo fan, FIN heat dissipation, and VC heat spreader.

3. Танзимот

3.1 Пайвастагии ибтидоӣ

1. Намоиши пайвастшавӣ: Connect your monitor(s) to the HDMI, DisplayPort, or USB4 ports using appropriate cables. The mini PC supports up to four displays.
2. Дастгоҳҳои перифериро пайваст кунед: Plug in your keyboard, mouse, and other USB devices into the available USB ports.
3. Пайвастшавӣ ба шабака (ихтиёрӣ): For a wired connection, connect an Ethernet cable to one of the 2.5G LAN ports. For wireless, ensure your WiFi network is available.
4. Пайваст кардани барқ: Plug the Type-C power adapter into the DC power input port on the rear panel, then connect the adapter to a power outlet.

3.2 Боркунии аввал

Press the power button on the front panel. The mini PC will power on, and the power indicator will illuminate. The device typically comes pre-configured with Windows 11.

3.3 Насби системаи оператсионӣ

Follow the on-screen instructions to complete the initial Windows 11 setup, including language, region, network connection, and user account creation. If prompted, you can set up the fingerprint unlock feature during this process or later via Windows settings.

4. Дастурҳои истифодабарӣ

4.1 Фаъол кардан/хомӯш кардан

• Фаъол: Тугмаи барқро як маротиба пахш кунед.
• Пӯшида шудан: Тугмаи Оғоз дар Windows-ро пахш кунед ва сипас Ҳокимият > Хомӯш кардан-ро интихоб кунед.
• Оғози дубора: Тугмаи Windows Start -ро пахш кунед ва сипас Power > Reboot -ро интихоб кунед.
• хоб: Click the Windows Start button, then select Power > Sleep.

4.2 Кушодани изи ангушт

The integrated fingerprint sensor allows for quick and secure login. Ensure your fingerprint is registered in Windows Hello settings. Simply touch the power button with your registered finger to unlock the system.

Image: A hand demonstrating the one-touch fingerprint unlock feature on the AOOSTAR MACO Mini PC.

4.3 Пайваст кардани дастгоҳҳои беруна

• Дастгоҳҳои USB: Connect USB keyboards, mice, external drives, and other peripherals to the available USB 3.2 Gen2 or USB 3.0 ports.
• OCuLink External GPU: For enhanced graphics performance, connect a compatible external GPU enclosure to the OCuLink port. Note: OCuLink connections are not hot-swappable. Ensure the system is powered off before connecting or disconnecting an OCuLink device.
• Намоишҳои сершумор: Utilize the HDMI, DisplayPort, and USB4 ports to connect up to four monitors. Adjust display settings in Windows for extended or mirrored desktop modes.

Image: Close-up of the OCuLink port on the AOOSTAR MACO Mini PC, designed for external GPU connections.

Image: Illustration showing the AOOSTAR MACO Mini PC connected to and supporting up to four external displays.

4.4 Пайвастшавӣ ба шабака

• Пайвасти симӣ: Connect an Ethernet cable to either of the 2.5G LAN ports for a high-speed wired network connection.
• Пайвасти бесим: The mini PC supports WiFi 6. To connect to a wireless network, go to Windows Settings > Network & Internet > Wi-Fi, then select your network and enter the password.

5. Нигоҳдорӣ

5.1 Тозакунӣ

Regular cleaning helps maintain optimal performance and extends the lifespan of your mini PC.

• берунӣ: Use a soft, dry, lint-free cloth to wipe the exterior. For stubborn marks, slightly dampдар матои об. Аз маводи кимиёвии сахт худдорӣ намоед.
• Вентилятсия: Use compressed air to gently clear dust from the ventilation grilles to ensure proper airflow and cooling. Perform this periodically.

5.2 Навсозии нармафзор

Барои таъмини амният, устуворӣ ва кори беҳтарин, системаи оператсионӣ ва драйверҳои худро навсозӣ кунед.

• Навсозии Windows: Go to Windows Settings > Update & Security > Windows Update to check for and install the latest OS updates.
• Навсозии ронандагон: Periodically check the AOOSTAR official website for updated drivers for your specific model, especially for graphics and chipset.

5.3 Васеъ кардани анбор

The AOOSTAR MACO H255 Mini PC supports dual M.2 2280 NVMe PCIe4.0x4 SSDs for storage expansion.

1. Хомӯш: Ensure the mini PC is completely powered off and disconnected from the power supply.
2. Дастрасӣ: Refer to the product's physical design for accessing the internal M.2 slots. Typically, this involves removing screws from the bottom panel.
3. SSD насб кунед: Carefully insert the new M.2 NVMe SSD into an available slot and secure it with the provided screw or retention mechanism.
4. Бозсозӣ: Securely reattach the bottom panel.
5. Оғоз кунед: After booting, you may need to initialize and format the new SSD through Windows Disk Management before it can be used.

Тасвир: дохилӣ view of the AOOSTAR MACO Mini PC, highlighting the dual M.2 NVMe PCIe 4.0 SSD slots and dual-channel DDR5 memory.

6. Баррасии мушкилот

This section addresses common issues you might encounter with your AOOSTAR MACO H255 Mini PC.

7. Мушаххасоти

Detailed technical specifications for the AOOSTAR MACO AMD Ryzen 7 H255 Mini PC.

8. Кафолат ва дастгирӣ

AOOSTAR products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official AOOSTAR website. For technical support, product inquiries, or service requests, please contact AOOSTAR customer support through their official channels.

9. Видеои маҳсулот

Барои дидани видеои расмии маҳсулот, онро тамошо кунедview of the AOOSTAR MACO H255 Mini PC.
