Муқаддима
The MOZA RS062 Truck Table Clamp is engineered for serious truck simulator enthusiasts who demand stability and precision. Constructed from high-strength steel, this clamp provides a solid foundation for your MOZA wheelbase and accessories, ensuring a secure and flex-free setup even during intense driving sessions. With adjustable height and universal compatibility across the MOZA ecosystem, this clamp allows you to customize your rig for maximum comfort and control. It is ideal for sim racing setups requiring versatility, durability, and ease of installation, offering the strength and flexibility needed for a professional-grade experience.
Хусусиятҳои асосӣ:
- Сохтмони устувор: Made from high-strength steel for long-lasting durability and stability.
- Баландии танзимшаванда: Easily adjust the clamp height for an optimal driving position.
- Мутобиқати универсалӣ: Works with all MOZA wheelbases and accessories for a seamless fit within the MOZA ecosystem.
- Монтажи устувор: Prevents wobbling or shifting for a realistic and immersive truck simulation experience.
- Насби осон: Features a straightforward design for simple assembly and adjustment.
- Тарҳрезии дараҷаи касбӣ: Suitable for both casual players and serious sim racing enthusiasts.
Тасвир: Пеш view of the MOZA RS062 Truck Table Clamp. This image shows the overall structure and design of the clamp аз пеш.

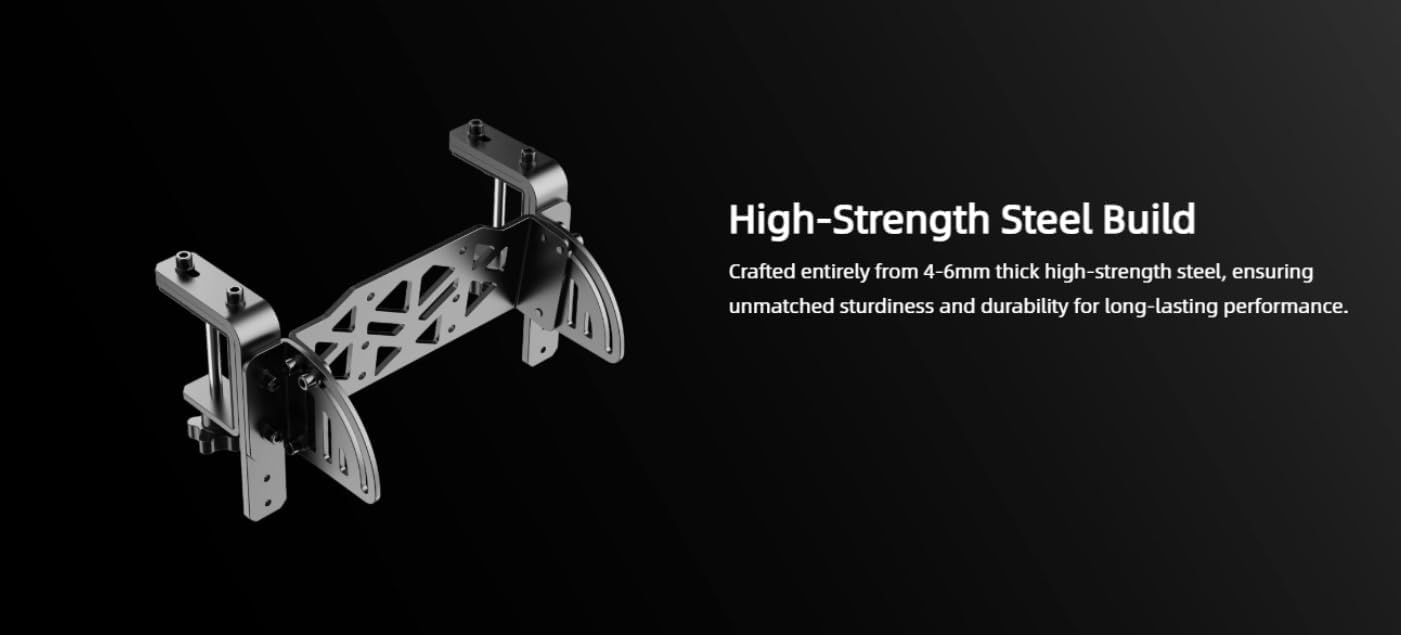

Image: High-Strength Steel Build. The MOZA RS062 clamp is crafted from 4-6mm thick high-strength steel, ensuring exceptional sturdiness and durability for long-lasting performance.

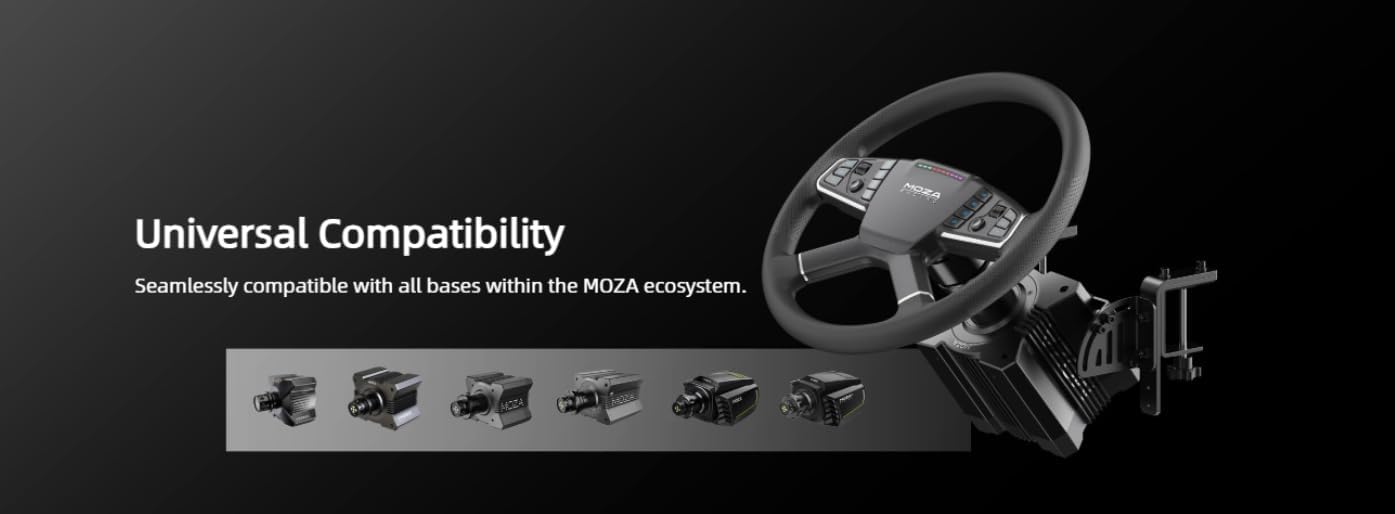

Image: Universal Compatibility. The clamp is seamlessly compatible with all wheelbases within the MOZA ecosystem, allowing for flexible integration into your existing setup.
Насб ва насб
Follow these steps to properly set up your MOZA RS062 Truck Table Clamp.
Мундариҷаи баста:
- MOZA RS062 Truck Table Clamp (1 дона)
- Mounting hardware (screws, knobs, etc.)

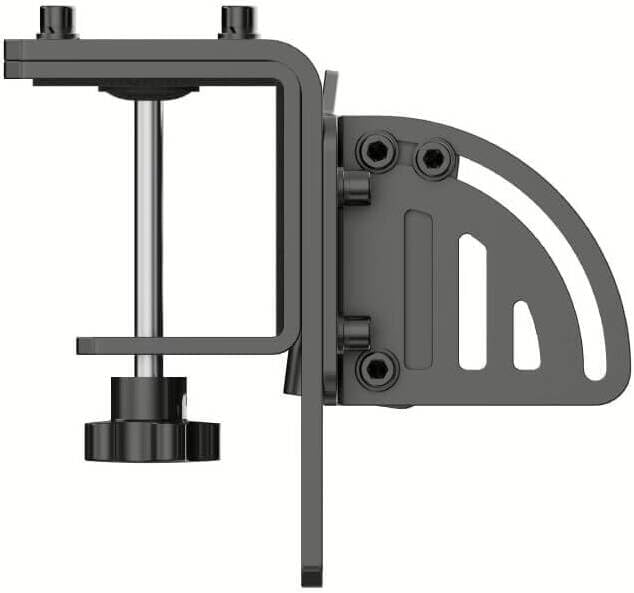

Тасвир: тараф view of the MOZA RS062 Truck Table Clamp. Ин view highlights the vertical posts and locking mechanisms used for height adjustment.
Имконоти насб:
Image: Flexible Installation Options. The clamp can be installed by clamping onto desktops or mounting onto aluminum profiles.
Option 1: Desktop Clamping (3-70mm thickness)
- Замимаи Clamp Қавс: Ду cl-ро муҳофизат кунедamp brackets to the main plate of the RS062 using the provided screws. Ensure they are oriented correctly for desk clamping.
- Position on Desk: Place the assembled clamp onto the edge of your desktop. Ensure the desk thickness is between 3mm and 70mm.
- Cl-ро пурзӯр кунедamps: Use the adjustable knobs on the clamp brackets to firmly secure the clamp to the desk. Turn the knobs clockwise until the clamp is stable and does not move. Do not overtighten.
- Mount Wheelbase: Attach your MOZA wheelbase to the mounting plate of the RS062 clamp using the appropriate screws provided with your wheelbase. Refer to your wheelbase manual for specific mounting patterns.
Option 2: Aluminum Profile Монтаж
- Омода кардани Clamp: Агар лозим бошад, cl-ро танзим кунедamp brackets or remove them if your aluminum profile mounting requires direct attachment to the main plate.
- Attach to Profile: Secure the RS062 clamp to your aluminum profile rig using T-nuts and bolts (not included with the clamp, typically supplied with your aluminum profile rig). Ensure the clamp is aligned and securely fastened.
- Mount Wheelbase: Attach your MOZA wheelbase to the mounting plate of the RS062 clamp using the appropriate screws provided with your wheelbase.
Танзими кунҷ ва баландӣ:
Image: Versatile Angle Adjustment. The clamp allows for angle adjustments ranging from 0 to 75 degrees, enabling precise customization of your steering wheel position.
The MOZA RS062 allows for versatile angle and height adjustments to optimize your driving experience.
- Танзими кунҷ: Loosen the bolts on the side of the clamp that control the angle. Adjust the mounting plate to your desired angle (0-75 degrees) and then firmly retighten the bolts to secure the position.
- Танзими баландӣ: The vertical posts of the clamp allow for height adjustment. Loosen the locking mechanisms on the posts, slide the mounting plate to the desired height, and then firmly tighten the locking mechanisms to secure it.
Амалиёт
Once the MOZA RS062 Truck Table Clamp is securely installed and your MOZA wheelbase is mounted, ensure all connections are tight before beginning your simulation session.
- Санҷиши пеш аз амалиёт: Before each use, verify that the clamp is securely fastened to your desk or aluminum profile and that your wheelbase is firmly attached to the clamp. Check for any loose screws or wobbling.
- Adjustments During Use: If you need to adjust the angle or height during a session, ensure your simulation is paused and the wheelbase is not in active use. Loosen the necessary bolts/knobs, make the adjustment, and retighten securely.
- Субот: The robust design of the RS062 ensures maximum stability. If you experience any movement or flex, re-check all mounting points and tighten them appropriately.
Нигоҳдорӣ
Regular maintenance helps ensure the longevity and optimal performance of your MOZA RS062 Truck Table Clamp.
- Тозакунӣ: Клро тоза кунедamp with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents that could damage the finish.
- Санҷиши бастабандӣ: Periodically inspect all screws, bolts, and knobs for tightness. Over time, vibrations from use can cause fasteners to loosen. Tighten any loose components to maintain stability.
- Нигоҳдорӣ: If storing the clamp for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.
Мушкилкушо
This section addresses common issues you might encounter with your MOZA RS062 Truck Table Clamp.
| Мушкилот | Сабаби эҳтимолӣ | Ҳалли |
|---|---|---|
| Clamp is unstable or wobbles. | Loose desk clamp knobs or mounting bolts. | Боварӣ ҳосил кунед, ки ҳамаи мизҳои корӣamp knobs are fully tightened. If mounted to an aluminum profile, check all bolts for tightness. |
| Difficulty adjusting height or angle. | Механизмҳои қулфкунӣ аз ҳад зиёд танганд ё ҷузъҳо сахтанд. | Loosen the relevant bolts/knobs sufficiently before attempting to adjust. Apply a small amount of silicone lubricant to moving parts if stiffness persists (avoiding contact with electrical components). |
| Wheelbase feels loose on the clamp. | Wheelbase mounting screws are not tight. | Verify that the screws attaching the wheelbase to the RS062 mounting plate are securely tightened. |
Мушаххасоти
| Хусусият | Тафсилот |
|---|---|
| Рақами модел | RS062 |
| Бренд | РАСИНГИ MOZA |
| Материал | High-Strength Steel (as described in product features) |
| Андозаҳои маҳсулот (LxWxH) | 25.51 х 11.5 х 23 см |
| Вазни ашё | 1.5 кг |
| Диапазони кунҷи танзимшаванда | 0-75 дараҷа гарм |
| Мизи кории Clamp Диапазони ғафсӣ | 3-70 мм |
| Мутобиқати | All MOZA wheelbases and accessories |
Кафолат ва дастгирӣ
For detailed warranty information, please refer to the warranty card included with your product or visit the official MOZA RACING website. MOZA RACING products typically come with a limited warranty covering manufacturing defects.
If you encounter any issues or require technical assistance, please contact MOZA RACING customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model (RS062) and purchase details ready.
Official MOZA RACING Webсайт: www.mozaracing.com
